Windows 11 got something right ... fixed 3990x numa issue

masc2279 · July 3, 2021, 3:44am

Windows 11 got something right … fixed 3990x numa issue.

Windows now handles a 3990x threadripper correctly. Singe numa and clearly some major work on the scheduler has taken place.

alkafrazin · July 3, 2021, 6:13am

I’d guess it’s probably to do with Intel’s big/little design.

masc2279 · July 4, 2021, 4:08am

That or the writing is on the wall that going forward allow more cores and threads are the norm so they needed to fix this issue.

MisteryAngel · July 4, 2021, 11:08am

Thats promising indeed.
I also like the new ui changes as well sofar, although we have to wait for the final product.

masc2279 · July 4, 2021, 11:36pm

Yeah but the Secure Boot and TMP is an issue. i have a couple of NVME Raid cards in my different rigs that have to Load their UEFI before boot so clearly Windows 11 is going to alienate user further away.

Which is always good for the Linux front.

wendell · July 5, 2021, 2:06am

I’m doing linux testing with my monster machines right now. Can you run indigobench for windows and confirm it uses all the cores?

masc2279 · July 5, 2021, 2:48am

Sure i was about to erase and return to Kubuntu due to not being able to use my raid card with secure boot and TPM … Once i return to my machine in a little i will run the test for you !

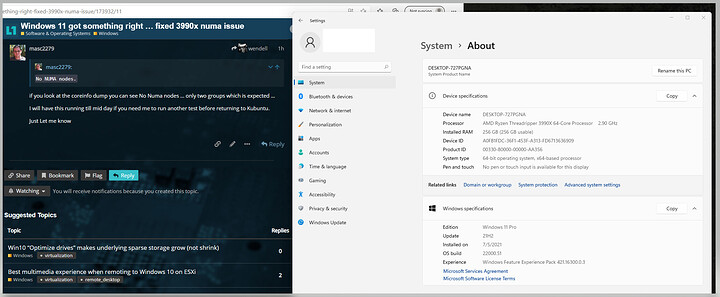

masc2279 · July 5, 2021, 8:00am

It treats it like one giant processor. The way it should have been in the first place.

masc2279 · July 5, 2021, 8:01am

Everything i throw at it works great and nothing so far has split the 3990x in half as it did in windows 10.

masc2279 · July 5, 2021, 8:08am

Coreinfo v3.52 - Dump information on system CPU and memory topology
Copyright (C) 2008-2021 Mark Russinovich
Sysinternals - www.sysinternals.com


AMD Ryzen Threadripper 3990X 64-Core Processor
AMD64 Family 23 Model 49 Stepping 0, AuthenticAMD
Microcode signature: 00000000
HTT             *       Multicore
CET             -       Supports Control Flow Enforcement Technology
Kernel CET      -       Kernel-mode CET Enabled
User CET        -       User-mode CET Allowed
HYPERVISOR      -       Hypervisor is present
VMX             -       Supports Intel hardware-assisted virtualization
SVM             *       Supports AMD hardware-assisted virtualization
X64             *       Supports 64-bit mode

SMX             -       Supports Intel trusted execution
SKINIT          *       Supports AMD SKINIT
SGX             -       Supports Intel SGX

NX              *       Supports no-execute page protection
SMEP            *       Supports Supervisor Mode Execution Prevention
SMAP            *       Supports Supervisor Mode Access Prevention
PAGE1GB         *       Supports 1 GB large pages
PAE             *       Supports > 32-bit physical addresses
PAT             *       Supports Page Attribute Table
PSE             *       Supports 4 MB pages
PSE36           *       Supports > 32-bit address 4 MB pages
PGE             *       Supports global bit in page tables
SS              -       Supports bus snooping for cache operations
VME             *       Supports Virtual-8086 mode
RDWRFSGSBASE    *       Supports direct GS/FS base access

FPU             *       Implements i387 floating point instructions
MMX             *       Supports MMX instruction set
MMXEXT          *       Implements AMD MMX extensions
3DNOW           -       Supports 3DNow! instructions
3DNOWEXT        -       Supports 3DNow! extension instructions
SSE             *       Supports Streaming SIMD Extensions
SSE2            *       Supports Streaming SIMD Extensions 2
SSE3            *       Supports Streaming SIMD Extensions 3
SSSE3           *       Supports Supplemental SIMD Extensions 3
SSE4a           *       Supports Streaming SIMDR Extensions 4a
SSE4.1          *       Supports Streaming SIMD Extensions 4.1
SSE4.2          *       Supports Streaming SIMD Extensions 4.2

AES             *       Supports AES extensions
AVX             *       Supports AVX instruction extensions
AVX2            *       Supports AVX2 instruction extensions
AVX-512-F       -       Supports AVX-512 Foundation instructions
AVX-512-DQ      -       Supports AVX-512 double and quadword instructions
AVX-512-IFAMA   -       Supports AVX-512 integer Fused multiply-add instructions
AVX-512-PF      -       Supports AVX-512 prefetch instructions
AVX-512-ER      -       Supports AVX-512 exponential and reciprocal instructions
AVX-512-CD      -       Supports AVX-512 conflict detection instructions
AVX-512-BW      -       Supports AVX-512 byte and word instructions
AVX-512-VL      -       Supports AVX-512 vector length instructions
FMA             *       Supports FMA extensions using YMM state
MSR             *       Implements RDMSR/WRMSR instructions
MTRR            *       Supports Memory Type Range Registers
XSAVE           *       Supports XSAVE/XRSTOR instructions
OSXSAVE         *       Supports XSETBV/XGETBV instructions
RDRAND          *       Supports RDRAND instruction
RDSEED          *       Supports RDSEED instruction

CMOV            *       Supports CMOVcc instruction
CLFSH           *       Supports CLFLUSH instruction
CX8             *       Supports compare and exchange 8-byte instructions
CX16            *       Supports CMPXCHG16B instruction
BMI1            *       Supports bit manipulation extensions 1
BMI2            *       Supports bit manipulation extensions 2
ADX             *       Supports ADCX/ADOX instructions
DCA             -       Supports prefetch from memory-mapped device
F16C            *       Supports half-precision instruction
FXSR            *       Supports FXSAVE/FXSTOR instructions
FFXSR           *       Supports optimized FXSAVE/FSRSTOR instruction
MONITOR         *       Supports MONITOR and MWAIT instructions
MOVBE           *       Supports MOVBE instruction
ERMSB           -       Supports Enhanced REP MOVSB/STOSB
PCLMULDQ        *       Supports PCLMULDQ instruction
POPCNT          *       Supports POPCNT instruction
LZCNT           *       Supports LZCNT instruction
SEP             *       Supports fast system call instructions
LAHF-SAHF       *       Supports LAHF/SAHF instructions in 64-bit mode
HLE             -       Supports Hardware Lock Elision instructions
RTM             -       Supports Restricted Transactional Memory instructions

DE              *       Supports I/O breakpoints including CR4.DE
DTES64          -       Can write history of 64-bit branch addresses
DS              -       Implements memory-resident debug buffer
DS-CPL          -       Supports Debug Store feature with CPL
PCID            -       Supports PCIDs and settable CR4.PCIDE
INVPCID         -       Supports INVPCID instruction
PDCM            -       Supports Performance Capabilities MSR
RDTSCP          *       Supports RDTSCP instruction
TSC             *       Supports RDTSC instruction
TSC-DEADLINE    -       Local APIC supports one-shot deadline timer
TSC-INVARIANT   *       TSC runs at constant rate
xTPR            -       Supports disabling task priority messages

EIST            -       Supports Enhanced Intel Speedstep
ACPI            -       Implements MSR for power management
TM              -       Implements thermal monitor circuitry
TM2             -       Implements Thermal Monitor 2 control
APIC            *       Implements software-accessible local APIC
x2APIC          -       Supports x2APIC

CNXT-ID         -       L1 data cache mode adaptive or BIOS

MCE             *       Supports Machine Check, INT18 and CR4.MCE
MCA             *       Implements Machine Check Architecture
PBE             -       Supports use of FERR#/PBE# pin

PSN             -       Implements 96-bit processor serial number

PREFETCHW       *       Supports PREFETCHW instruction

Maximum implemented CPUID leaves: 00000010 (Basic), 80000020 (Extended).
Maximum implemented address width: 48 bits (virtual), 48 bits (physical).

Processor signature: 00830F10

Logical to Physical Processor Map:
Physical Processor 0 (Hyperthreaded):
**--------------------------------------------------------------
----------------------------------------------------------------
Physical Processor 1 (Hyperthreaded):
--**------------------------------------------------------------
----------------------------------------------------------------
Physical Processor 2 (Hyperthreaded):
----**----------------------------------------------------------
----------------------------------------------------------------
Physical Processor 3 (Hyperthreaded):
------**--------------------------------------------------------
----------------------------------------------------------------
Physical Processor 4 (Hyperthreaded):
--------**------------------------------------------------------
----------------------------------------------------------------
Physical Processor 5 (Hyperthreaded):
----------**----------------------------------------------------
----------------------------------------------------------------
Physical Processor 6 (Hyperthreaded):
------------**--------------------------------------------------
----------------------------------------------------------------
Physical Processor 7 (Hyperthreaded):
--------------**------------------------------------------------
----------------------------------------------------------------
Physical Processor 8 (Hyperthreaded):
----------------**----------------------------------------------
----------------------------------------------------------------
Physical Processor 9 (Hyperthreaded):
------------------**--------------------------------------------
----------------------------------------------------------------
Physical Processor 10 (Hyperthreaded):
--------------------**------------------------------------------
----------------------------------------------------------------
Physical Processor 11 (Hyperthreaded):
----------------------**----------------------------------------
----------------------------------------------------------------
Physical Processor 12 (Hyperthreaded):
------------------------**--------------------------------------
----------------------------------------------------------------
Physical Processor 13 (Hyperthreaded):
--------------------------**------------------------------------
----------------------------------------------------------------
Physical Processor 14 (Hyperthreaded):
----------------------------**----------------------------------
----------------------------------------------------------------
Physical Processor 15 (Hyperthreaded):
------------------------------**--------------------------------
----------------------------------------------------------------
Physical Processor 16 (Hyperthreaded):
--------------------------------**------------------------------
----------------------------------------------------------------
Physical Processor 17 (Hyperthreaded):
----------------------------------**----------------------------
----------------------------------------------------------------
Physical Processor 18 (Hyperthreaded):
------------------------------------**--------------------------
----------------------------------------------------------------
Physical Processor 19 (Hyperthreaded):
--------------------------------------**------------------------
----------------------------------------------------------------
Physical Processor 20 (Hyperthreaded):
----------------------------------------**----------------------
----------------------------------------------------------------
Physical Processor 21 (Hyperthreaded):
------------------------------------------**--------------------
----------------------------------------------------------------
Physical Processor 22 (Hyperthreaded):
--------------------------------------------**------------------
----------------------------------------------------------------
Physical Processor 23 (Hyperthreaded):
----------------------------------------------**----------------
----------------------------------------------------------------
Physical Processor 24 (Hyperthreaded):
------------------------------------------------**--------------
----------------------------------------------------------------
Physical Processor 25 (Hyperthreaded):
--------------------------------------------------**------------
----------------------------------------------------------------
Physical Processor 26 (Hyperthreaded):
----------------------------------------------------**----------
----------------------------------------------------------------
Physical Processor 27 (Hyperthreaded):
------------------------------------------------------**--------
----------------------------------------------------------------
Physical Processor 28 (Hyperthreaded):
--------------------------------------------------------**------
----------------------------------------------------------------
Physical Processor 29 (Hyperthreaded):
----------------------------------------------------------**----
----------------------------------------------------------------
Physical Processor 30 (Hyperthreaded):
------------------------------------------------------------**--
----------------------------------------------------------------
Physical Processor 31 (Hyperthreaded):
--------------------------------------------------------------**
----------------------------------------------------------------
Physical Processor 32 (Hyperthreaded):
----------------------------------------------------------------
**--------------------------------------------------------------
Physical Processor 33 (Hyperthreaded):
----------------------------------------------------------------
--**------------------------------------------------------------
Physical Processor 34 (Hyperthreaded):
----------------------------------------------------------------
----**----------------------------------------------------------
Physical Processor 35 (Hyperthreaded):
----------------------------------------------------------------
------**--------------------------------------------------------
Physical Processor 36 (Hyperthreaded):
----------------------------------------------------------------
--------**------------------------------------------------------
Physical Processor 37 (Hyperthreaded):
----------------------------------------------------------------
----------**----------------------------------------------------
Physical Processor 38 (Hyperthreaded):
----------------------------------------------------------------
------------**--------------------------------------------------
Physical Processor 39 (Hyperthreaded):
----------------------------------------------------------------
--------------**------------------------------------------------
Physical Processor 40 (Hyperthreaded):
----------------------------------------------------------------
----------------**----------------------------------------------
Physical Processor 41 (Hyperthreaded):
----------------------------------------------------------------
------------------**--------------------------------------------
Physical Processor 42 (Hyperthreaded):
----------------------------------------------------------------
--------------------**------------------------------------------
Physical Processor 43 (Hyperthreaded):
----------------------------------------------------------------
----------------------**----------------------------------------
Physical Processor 44 (Hyperthreaded):
----------------------------------------------------------------
------------------------**--------------------------------------
Physical Processor 45 (Hyperthreaded):
----------------------------------------------------------------
--------------------------**------------------------------------
Physical Processor 46 (Hyperthreaded):
----------------------------------------------------------------
----------------------------**----------------------------------
Physical Processor 47 (Hyperthreaded):
----------------------------------------------------------------
------------------------------**--------------------------------
Physical Processor 48 (Hyperthreaded):
----------------------------------------------------------------
--------------------------------**------------------------------
Physical Processor 49 (Hyperthreaded):
----------------------------------------------------------------
----------------------------------**----------------------------
Physical Processor 50 (Hyperthreaded):
----------------------------------------------------------------
------------------------------------**--------------------------
Physical Processor 51 (Hyperthreaded):
----------------------------------------------------------------
--------------------------------------**------------------------
Physical Processor 52 (Hyperthreaded):
----------------------------------------------------------------
----------------------------------------**----------------------
Physical Processor 53 (Hyperthreaded):
----------------------------------------------------------------
------------------------------------------**--------------------
Physical Processor 54 (Hyperthreaded):
----------------------------------------------------------------
--------------------------------------------**------------------
Physical Processor 55 (Hyperthreaded):
----------------------------------------------------------------
----------------------------------------------**----------------
Physical Processor 56 (Hyperthreaded):
----------------------------------------------------------------
------------------------------------------------**--------------
Physical Processor 57 (Hyperthreaded):
----------------------------------------------------------------
--------------------------------------------------**------------
Physical Processor 58 (Hyperthreaded):
----------------------------------------------------------------
----------------------------------------------------**----------
Physical Processor 59 (Hyperthreaded):
----------------------------------------------------------------
------------------------------------------------------**--------
Physical Processor 60 (Hyperthreaded):
----------------------------------------------------------------
--------------------------------------------------------**------
Physical Processor 61 (Hyperthreaded):
----------------------------------------------------------------
----------------------------------------------------------**----
Physical Processor 62 (Hyperthreaded):
----------------------------------------------------------------
------------------------------------------------------------**--
Physical Processor 63 (Hyperthreaded):
----------------------------------------------------------------
--------------------------------------------------------------**

Logical Processor to Socket Map:
Socket 0:
****************************************************************
****************************************************************

Logical Processor to NUMA Node Map:
NUMA Node 0:
****************************************************************
----------------------------------------------------------------

No NUMA nodes.

Logical Processor to Cache Map:
Data Cache          0, Level 1,   32 KB, Assoc   8, LineSize  64
**--------------------------------------------------------------
----------------------------------------------------------------
Instruction Cache   0, Level 1,   32 KB, Assoc   8, LineSize  64
**--------------------------------------------------------------
----------------------------------------------------------------
Unified Cache       0, Level 2,  512 KB, Assoc   8, LineSize  64
**--------------------------------------------------------------
----------------------------------------------------------------
Unified Cache       1, Level 3,   16 MB, Assoc  16, LineSize  64
********--------------------------------------------------------
----------------------------------------------------------------
Data Cache          1, Level 1,   32 KB, Assoc   8, LineSize  64
--**------------------------------------------------------------
----------------------------------------------------------------
Instruction Cache   1, Level 1,   32 KB, Assoc   8, LineSize  64
--**------------------------------------------------------------
----------------------------------------------------------------
Unified Cache       2, Level 2,  512 KB, Assoc   8, LineSize  64
--**------------------------------------------------------------
----------------------------------------------------------------
Data Cache          2, Level 1,   32 KB, Assoc   8, LineSize  64
----**----------------------------------------------------------
----------------------------------------------------------------
Instruction Cache   2, Level 1,   32 KB, Assoc   8, LineSize  64
----**----------------------------------------------------------
----------------------------------------------------------------
Unified Cache       3, Level 2,  512 KB, Assoc   8, LineSize  64
----**----------------------------------------------------------
----------------------------------------------------------------
Data Cache          3, Level 1,   32 KB, Assoc   8, LineSize  64
------**--------------------------------------------------------
----------------------------------------------------------------
Instruction Cache   3, Level 1,   32 KB, Assoc   8, LineSize  64
------**--------------------------------------------------------
----------------------------------------------------------------
Unified Cache       4, Level 2,  512 KB, Assoc   8, LineSize  64
------**--------------------------------------------------------
----------------------------------------------------------------
Data Cache          4, Level 1,   32 KB, Assoc   8, LineSize  64
--------**------------------------------------------------------
----------------------------------------------------------------
Instruction Cache   4, Level 1,   32 KB, Assoc   8, LineSize  64
--------**------------------------------------------------------
----------------------------------------------------------------
Unified Cache       5, Level 2,  512 KB, Assoc   8, LineSize  64
--------**------------------------------------------------------
----------------------------------------------------------------
Unified Cache       6, Level 3,   16 MB, Assoc  16, LineSize  64
--------********------------------------------------------------
----------------------------------------------------------------
Data Cache          5, Level 1,   32 KB, Assoc   8, LineSize  64
----------**----------------------------------------------------
----------------------------------------------------------------
Instruction Cache   5, Level 1,   32 KB, Assoc   8, LineSize  64
----------**----------------------------------------------------
----------------------------------------------------------------
Unified Cache       7, Level 2,  512 KB, Assoc   8, LineSize  64
----------**----------------------------------------------------
----------------------------------------------------------------
Data Cache          6, Level 1,   32 KB, Assoc   8, LineSize  64
------------**--------------------------------------------------
----------------------------------------------------------------
Instruction Cache   6, Level 1,   32 KB, Assoc   8, LineSize  64
------------**--------------------------------------------------
----------------------------------------------------------------
Unified Cache       8, Level 2,  512 KB, Assoc   8, LineSize  64
------------**--------------------------------------------------
----------------------------------------------------------------
Data Cache          7, Level 1,   32 KB, Assoc   8, LineSize  64
--------------**------------------------------------------------
----------------------------------------------------------------
Instruction Cache   7, Level 1,   32 KB, Assoc   8, LineSize  64
--------------**------------------------------------------------
----------------------------------------------------------------
Unified Cache       9, Level 2,  512 KB, Assoc   8, LineSize  64
--------------**------------------------------------------------
----------------------------------------------------------------
Data Cache          8, Level 1,   32 KB, Assoc   8, LineSize  64
----------------**----------------------------------------------
----------------------------------------------------------------
Instruction Cache   8, Level 1,   32 KB, Assoc   8, LineSize  64
----------------**----------------------------------------------
----------------------------------------------------------------
Unified Cache      10, Level 2,  512 KB, Assoc   8, LineSize  64
----------------**----------------------------------------------
----------------------------------------------------------------
Unified Cache      11, Level 3,   16 MB, Assoc  16, LineSize  64
----------------********----------------------------------------
----------------------------------------------------------------
Data Cache          9, Level 1,   32 KB, Assoc   8, LineSize  64
------------------**--------------------------------------------
----------------------------------------------------------------
Instruction Cache   9, Level 1,   32 KB, Assoc   8, LineSize  64
------------------**--------------------------------------------
----------------------------------------------------------------
Unified Cache      12, Level 2,  512 KB, Assoc   8, LineSize  64
------------------**--------------------------------------------
----------------------------------------------------------------
Data Cache         10, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------**------------------------------------------
----------------------------------------------------------------
Instruction Cache  10, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------**------------------------------------------
----------------------------------------------------------------
Unified Cache      13, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------**------------------------------------------
----------------------------------------------------------------
Data Cache         11, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------**----------------------------------------
----------------------------------------------------------------
Instruction Cache  11, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------**----------------------------------------
----------------------------------------------------------------
Unified Cache      14, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------**----------------------------------------
----------------------------------------------------------------
Data Cache         12, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------**--------------------------------------
----------------------------------------------------------------
Instruction Cache  12, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------**--------------------------------------
----------------------------------------------------------------
Unified Cache      15, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------**--------------------------------------
----------------------------------------------------------------
Unified Cache      16, Level 3,   16 MB, Assoc  16, LineSize  64
------------------------********--------------------------------
----------------------------------------------------------------
Data Cache         13, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------**------------------------------------
----------------------------------------------------------------
Instruction Cache  13, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------**------------------------------------
----------------------------------------------------------------
Unified Cache      17, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------**------------------------------------
----------------------------------------------------------------
Data Cache         14, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------**----------------------------------
----------------------------------------------------------------
Instruction Cache  14, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------**----------------------------------
----------------------------------------------------------------
Unified Cache      18, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------**----------------------------------
----------------------------------------------------------------
Data Cache         15, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------**--------------------------------
----------------------------------------------------------------
Instruction Cache  15, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------**--------------------------------
----------------------------------------------------------------
Unified Cache      19, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------------**--------------------------------
----------------------------------------------------------------
Data Cache         16, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------**------------------------------
----------------------------------------------------------------
Instruction Cache  16, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------**------------------------------
----------------------------------------------------------------
Unified Cache      20, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------------**------------------------------
----------------------------------------------------------------
Unified Cache      21, Level 3,   16 MB, Assoc  16, LineSize  64
--------------------------------********------------------------
----------------------------------------------------------------
Data Cache         17, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------**----------------------------
----------------------------------------------------------------
Instruction Cache  17, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------**----------------------------
----------------------------------------------------------------
Unified Cache      22, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------**----------------------------
----------------------------------------------------------------
Data Cache         18, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------**--------------------------
----------------------------------------------------------------
Instruction Cache  18, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------**--------------------------
----------------------------------------------------------------
Unified Cache      23, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------------------**--------------------------
----------------------------------------------------------------
Data Cache         19, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------**------------------------
----------------------------------------------------------------
Instruction Cache  19, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------**------------------------
----------------------------------------------------------------
Unified Cache      24, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------------------**------------------------
----------------------------------------------------------------
Data Cache         20, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------**----------------------
----------------------------------------------------------------
Instruction Cache  20, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------**----------------------
----------------------------------------------------------------
Unified Cache      25, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------**----------------------
----------------------------------------------------------------
Unified Cache      26, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------********----------------
----------------------------------------------------------------
Data Cache         21, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------**--------------------
----------------------------------------------------------------
Instruction Cache  21, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------**--------------------
----------------------------------------------------------------
Unified Cache      27, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------------------------**--------------------
----------------------------------------------------------------
Data Cache         22, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------**------------------
----------------------------------------------------------------
Instruction Cache  22, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------**------------------
----------------------------------------------------------------
Unified Cache      28, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------------------------**------------------
----------------------------------------------------------------
Data Cache         23, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------**----------------
----------------------------------------------------------------
Instruction Cache  23, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------**----------------
----------------------------------------------------------------
Unified Cache      29, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------**----------------
----------------------------------------------------------------
Data Cache         24, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------------**--------------
----------------------------------------------------------------
Instruction Cache  24, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------------**--------------
----------------------------------------------------------------
Unified Cache      30, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------------------------------**--------------
----------------------------------------------------------------
Unified Cache      31, Level 3,   16 MB, Assoc  16, LineSize  64
------------------------------------------------********--------
----------------------------------------------------------------
Data Cache         25, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------------**------------
----------------------------------------------------------------
Instruction Cache  25, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------------**------------
----------------------------------------------------------------
Unified Cache      32, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------------------------------**------------
----------------------------------------------------------------
Data Cache         26, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------**----------
----------------------------------------------------------------
Instruction Cache  26, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------**----------
----------------------------------------------------------------
Unified Cache      33, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------**----------
----------------------------------------------------------------
Data Cache         27, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------------------**--------
----------------------------------------------------------------
Instruction Cache  27, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------------------**--------
----------------------------------------------------------------
Unified Cache      34, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------------------------------------**--------
----------------------------------------------------------------
Data Cache         28, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------------------**------
----------------------------------------------------------------
Instruction Cache  28, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------------------**------
----------------------------------------------------------------
Unified Cache      35, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------------------------------------**------
----------------------------------------------------------------
Unified Cache      36, Level 3,   16 MB, Assoc  16, LineSize  64
--------------------------------------------------------********
----------------------------------------------------------------
Data Cache         29, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------**----
----------------------------------------------------------------
Instruction Cache  29, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------**----
----------------------------------------------------------------
Unified Cache      37, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------**----
----------------------------------------------------------------
Data Cache         30, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------------------------**--
----------------------------------------------------------------
Instruction Cache  30, Level 1,   32 KB, Assoc   8, LineSize  64
------------------------------------------------------------**--
----------------------------------------------------------------
Unified Cache      38, Level 2,  512 KB, Assoc   8, LineSize  64
------------------------------------------------------------**--
----------------------------------------------------------------
Data Cache         31, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------------------------**
----------------------------------------------------------------
Instruction Cache  31, Level 1,   32 KB, Assoc   8, LineSize  64
--------------------------------------------------------------**
----------------------------------------------------------------
Unified Cache      39, Level 2,  512 KB, Assoc   8, LineSize  64
--------------------------------------------------------------**
----------------------------------------------------------------
Data Cache         32, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
**--------------------------------------------------------------
Instruction Cache  32, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
**--------------------------------------------------------------
Unified Cache      40, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
**--------------------------------------------------------------
Unified Cache      41, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
********--------------------------------------------------------
Data Cache         33, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--**------------------------------------------------------------
Instruction Cache  33, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--**------------------------------------------------------------
Unified Cache      42, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--**------------------------------------------------------------
Data Cache         34, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----**----------------------------------------------------------
Instruction Cache  34, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----**----------------------------------------------------------
Unified Cache      43, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----**----------------------------------------------------------
Data Cache         35, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------**--------------------------------------------------------
Instruction Cache  35, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------**--------------------------------------------------------
Unified Cache      44, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------**--------------------------------------------------------
Data Cache         36, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------**------------------------------------------------------
Instruction Cache  36, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------**------------------------------------------------------
Unified Cache      45, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------**------------------------------------------------------
Unified Cache      46, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
--------********------------------------------------------------
Data Cache         37, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------**----------------------------------------------------
Instruction Cache  37, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------**----------------------------------------------------
Unified Cache      47, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------**----------------------------------------------------
Data Cache         38, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------**--------------------------------------------------
Instruction Cache  38, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------**--------------------------------------------------
Unified Cache      48, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------**--------------------------------------------------
Data Cache         39, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------**------------------------------------------------
Instruction Cache  39, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------**------------------------------------------------
Unified Cache      49, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------**------------------------------------------------
Data Cache         40, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------**----------------------------------------------
Instruction Cache  40, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------**----------------------------------------------
Unified Cache      50, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------**----------------------------------------------
Unified Cache      51, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
----------------********----------------------------------------
Data Cache         41, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------**--------------------------------------------
Instruction Cache  41, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------**--------------------------------------------
Unified Cache      52, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------**--------------------------------------------
Data Cache         42, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------**------------------------------------------
Instruction Cache  42, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------**------------------------------------------
Unified Cache      53, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------**------------------------------------------
Data Cache         43, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------**----------------------------------------
Instruction Cache  43, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------**----------------------------------------
Unified Cache      54, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------**----------------------------------------
Data Cache         44, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------**--------------------------------------
Instruction Cache  44, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------**--------------------------------------
Unified Cache      55, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------**--------------------------------------
Unified Cache      56, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
------------------------********--------------------------------
Data Cache         45, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------**------------------------------------
Instruction Cache  45, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------**------------------------------------
Unified Cache      57, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------**------------------------------------
Data Cache         46, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------**----------------------------------
Instruction Cache  46, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------**----------------------------------
Unified Cache      58, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------**----------------------------------
Data Cache         47, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------**--------------------------------
Instruction Cache  47, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------**--------------------------------
Unified Cache      59, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------**--------------------------------
Data Cache         48, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------**------------------------------
Instruction Cache  48, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------**------------------------------
Unified Cache      60, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------**------------------------------
Unified Cache      61, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
--------------------------------********------------------------
Data Cache         49, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------**----------------------------
Instruction Cache  49, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------**----------------------------
Unified Cache      62, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------**----------------------------
Data Cache         50, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------**--------------------------
Instruction Cache  50, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------**--------------------------
Unified Cache      63, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------**--------------------------
Data Cache         51, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------**------------------------
Instruction Cache  51, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------**------------------------
Unified Cache      64, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------**------------------------
Data Cache         52, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------**----------------------
Instruction Cache  52, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------**----------------------
Unified Cache      65, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------**----------------------
Unified Cache      66, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
----------------------------------------********----------------
Data Cache         53, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------**--------------------
Instruction Cache  53, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------**--------------------
Unified Cache      67, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------**--------------------
Data Cache         54, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------**------------------
Instruction Cache  54, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------**------------------
Unified Cache      68, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------**------------------
Data Cache         55, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------**----------------
Instruction Cache  55, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------**----------------
Unified Cache      69, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------**----------------
Data Cache         56, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------**--------------
Instruction Cache  56, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------**--------------
Unified Cache      70, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------**--------------
Unified Cache      71, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
------------------------------------------------********--------
Data Cache         57, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------**------------
Instruction Cache  57, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------**------------
Unified Cache      72, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------**------------
Data Cache         58, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------------**----------
Instruction Cache  58, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------------**----------
Unified Cache      73, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------------**----------
Data Cache         59, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------------**--------
Instruction Cache  59, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------------**--------
Unified Cache      74, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------------**--------
Data Cache         60, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------**------
Instruction Cache  60, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------**------
Unified Cache      75, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------**------
Unified Cache      76, Level 3,   16 MB, Assoc  16, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------********
Data Cache         61, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------------------**----
Instruction Cache  61, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------------------**----
Unified Cache      77, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
----------------------------------------------------------**----
Data Cache         62, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------------------**--
Instruction Cache  62, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------------------**--
Unified Cache      78, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
------------------------------------------------------------**--
Data Cache         63, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------------**
Instruction Cache  63, Level 1,   32 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------------**
Unified Cache      79, Level 2,  512 KB, Assoc   8, LineSize  64
----------------------------------------------------------------
--------------------------------------------------------------**

Logical Processor to Group Map:
Group 0:
****************************************************************
----------------------------------------------------------------
Group 1:
----------------------------------------------------------------
****************************************************************

masc2279 · July 5, 2021, 8:11am

if you look at the coreinfo dump you can see No Numa nodes … only two groups which is expected …

I will have this running till mid day if you need me to run another test before returning to Kubuntu.

Just Let me know

masc2279 · July 5, 2021, 2:55pm

masc2279 · July 5, 2021, 3:15pm

Well not all things work WSL2 is still stuck to 64 threads. Might be an old config or restriction.

wendell · July 5, 2021, 3:16pm

it seems like some things are ok but some things not, how very weird. Its good its reporting one numa node, but two processor groups still. got anything in the adobe suite? haha.

masc2279 · July 5, 2021, 3:26pm

So Process lasso half works. It thinks there is only 64 threads in windows 11.

masc2279 · July 5, 2021, 3:29pm

No nothing in the adobe suite … I use open source.

masc2279 · July 5, 2021, 3:54pm

Well i think its time to revert my machine back to Linux … It feels dirty running windows … LOL

This was just a quick check on what the state of windows 11 is currently at for the 3990x.

Clearly they took some steps forward and have allot more to go but the sad part is they took a few steps back for those of us who have specialized hardware and raid cards that need to load before Secure Boot and TPM.

They are only pushing away pro users further into Linux which to me is a good thing so keep up the good work Microsoft …

@wendell Let me know if you ever need something else tested, I can always swap back.

Jolly · July 14, 2021, 1:43am

Wait, might numa/scheduler issues explain why I get horrible lag on a 3995wx running Win 10? I just wanted a machine that could handle 200-500 chrome tabs without slowing down too much.

wendell · July 14, 2021, 2:33am

If you process lasso chrome to one processor group and it goes away… Maybe

masc2279 · July 14, 2021, 5:22am

I have to fully agree if you have a Threadripper get process lasso. Even if you don’t have a threadripper its a great app support them !! The voodoo it does, it does well.

But i am guessing this was a joke post tho …
