Quietest PC Cases, for Music Production PC Build?

Looking to build the most silent PC [at idle / normal operation] possible.

I know Macs are great, but I need to go PC to run various Windows programs for work, etc.

If gaming or video editing or doing very taxing tasks, I don’t mind fan noise - just want to keep it as silent as possible for everyday work use, and recording music with microphones.

So far I’ve narrowed the cases down to:

  • Fractal Define 7
  • be quiet! Silent Base 802
  • Antec Flux Pro

(I am open to replacing stock fans with Noctua fans, and even adding extra fans, to bring down the noise even more)

Any insights on which one might be best? Or other cases I should consider?

I can attest to this case being extraordinarily quiet. i had my 5950x in it with a dark rock pro air cooler. even with all the fans on high, i couldnt hear it. My hearing is damaged so take that into consideration.
This case is not the best for cooling however, silence has its tradeoffs.

2 Likes

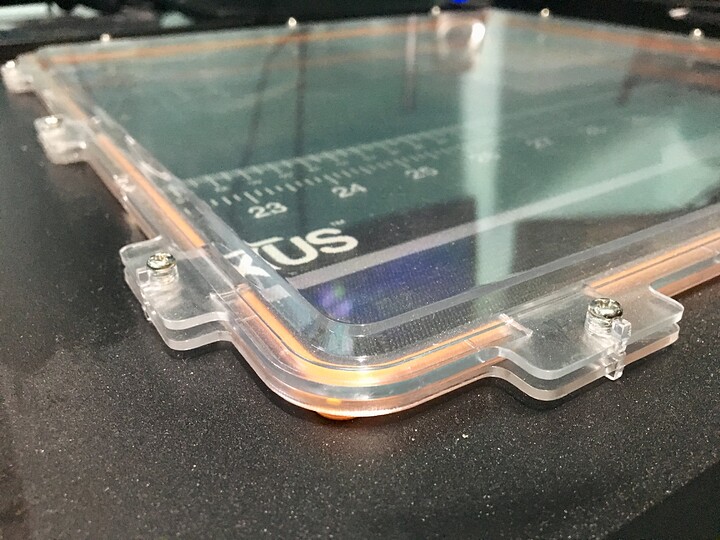

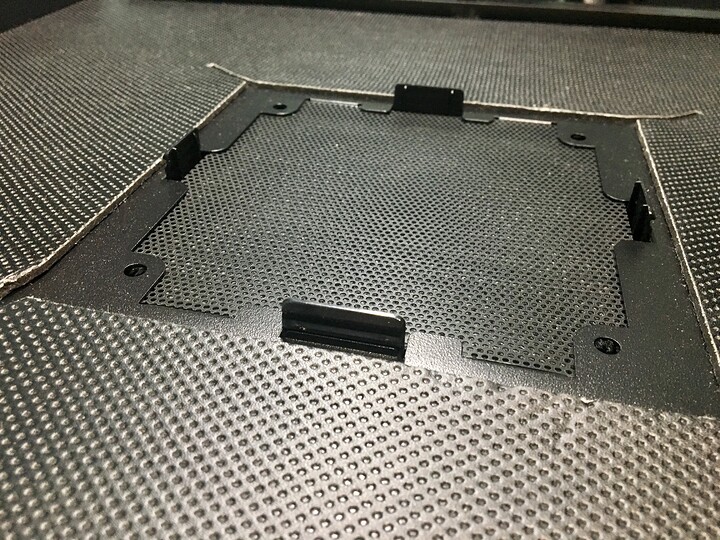

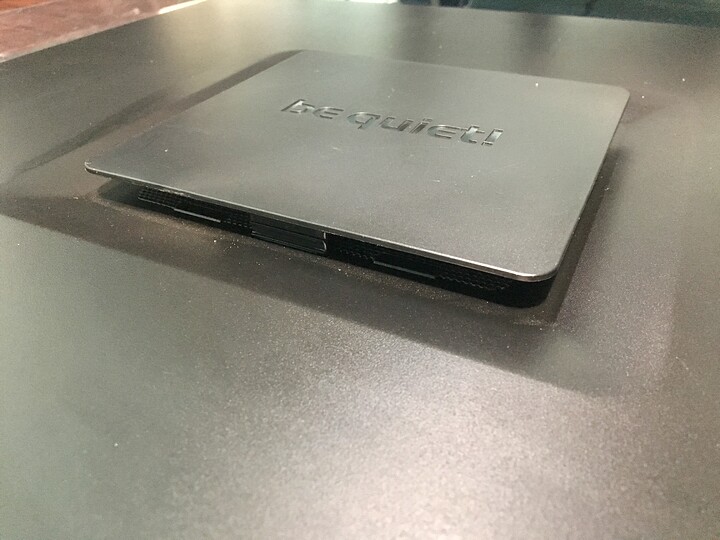

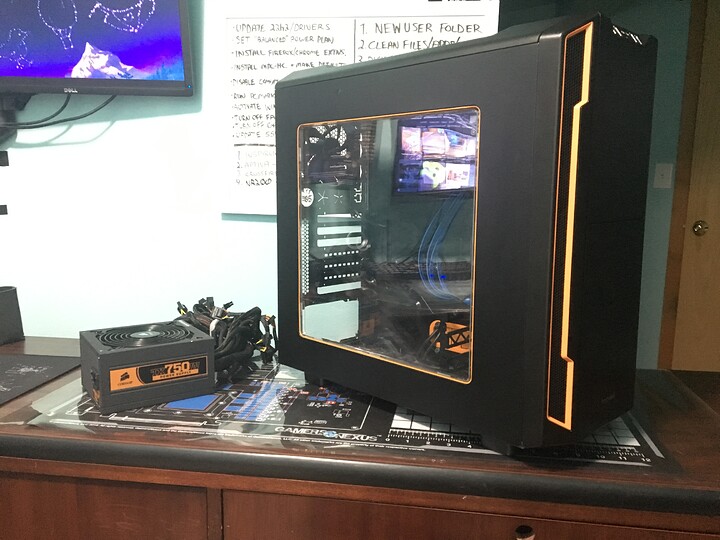

The only BeQuiet! case that I’ve ever owned is from 2009 and has a double layered acrylic side panel and tons of sound deadening materials everywhere. Even the back side panel is vented but has a sound baffle!

3 Likes

It depends on what you plan to put in it. Is this for workstation class hardware (Threadripper/Xeon)? High end gaming 9950x3d + high end GPU? Or is it more mainstream 9800x + 60 or 70 class GPU?

Knowing what you need to cool helps a lot in making a recommendation.

Fanless builds are the absolute most silent you can get. Streacom is known for it.

But your requirements will dictate how low you can go. Fanless builds can only wick away so much heat from powerful components.

For example: as soon as you need a modern GPU, there are zero fanless SKUs to be found. You make a choice between guaranteed silence and GPU prowess.

1 Like

9950X, GPU unclear. This thread’s basically dup of their other one, where cases have already been covered.

2 Likes

Have you considered physically relocating the tower into a separate room / airspace? The make really long fiber optic cables for DP, HDMI, USB. . . really everything you can plug into a computer.

4 Likes

So why are we discussing it yet again here?
Only skipped through it.

But like you already said in that post, depending on the workload, “silent cases” can be less silent than Airflow cases.

I don’t quite agree with your take on Noctua, since fans measurements are hard.
When a good reviewer does a good test with some nuance, Noctua fans tend to be among the top. Combined with their excellent support and reliability (compared to something like Artic) they can still be worth the price IMHO.
Especially considering smaller stuff like their double case fans with slightly different RPM to not generate an annoying hum.

If you really need that CPU for your workload (which I really don’t know enough about, my guess would be that the two CCDs are worse), I would recommend this case Epoch — ATX Mid-Tower PC Case because it comes preinstalled with 3 of the best fans currently available on the marked.

The improvement over Fractal Design’s older fans is quite substantial – the word “dramatic” comes to mind when looking at the results. Without any obstacles, airflow results are particularly impressive, and the Momentum 12 even surpasses top-tier models like the Noctua NF-A12x25 PWM – even at very low noise levels.

Link to the review

1 Like

Agreed, quietest case I have is the Torrent. Large fans and a case designed so the airflow flows in a sane pattern go a really long way. I’ve mentioned elsewhere that the 7950x3d + 4090 are normally very quiet.

The Torrent is much quieter than the Design 7. It’s not even close. It also does a much better job cooling the stuff inside. Also keeps the interior cleaner because it’s a pure positive pressure design.

1 Like

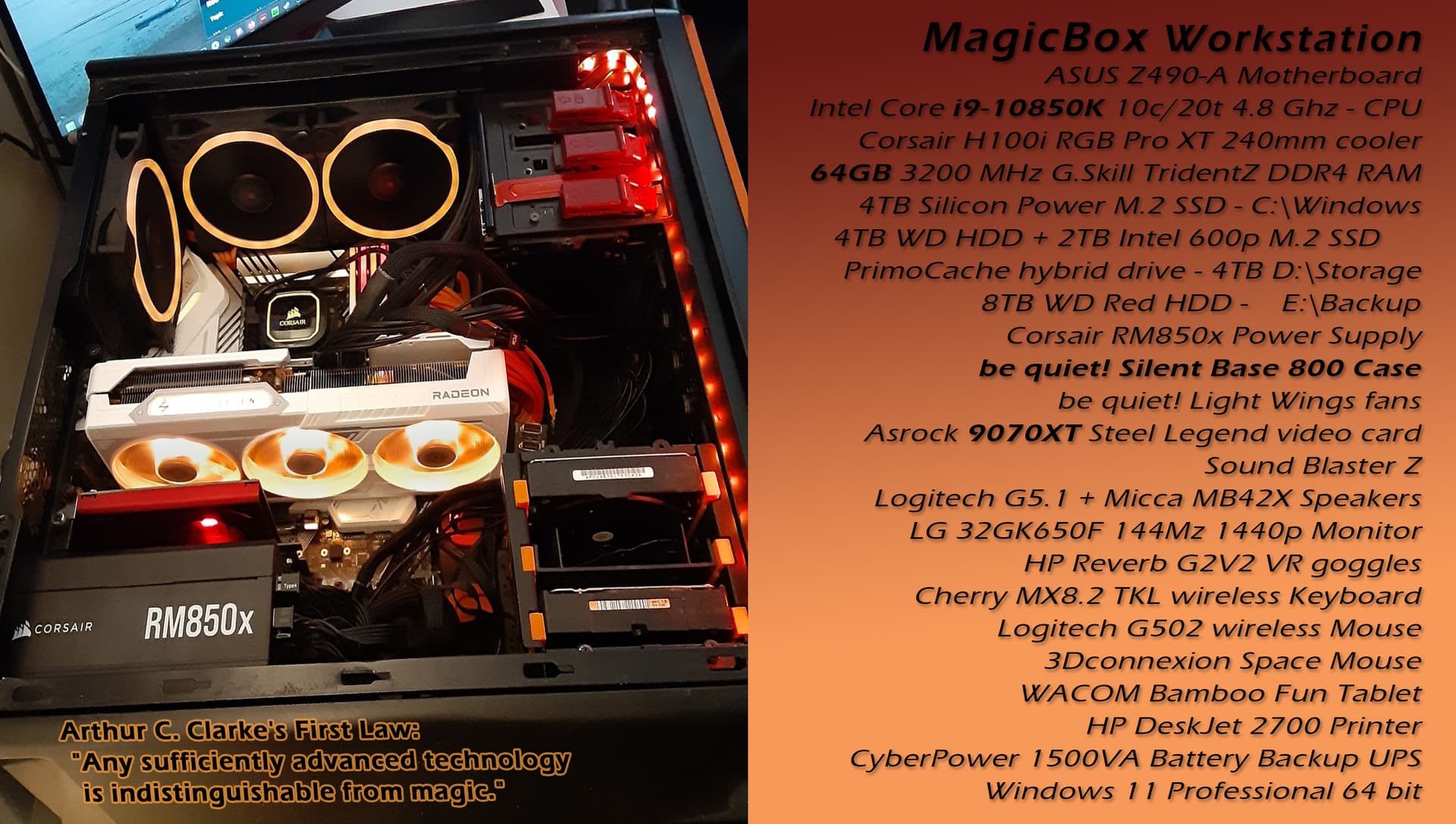

I love my be quiet! Silent Base 800 case.

Yeah it’s quiet and all that, but what no one mentioned is build quality. This baby is built like a tank designed by German engineers. Solid as a rock made of steel. It should last me until the universe dies from heat entropy.

I did compromise the silence by not getting the double pane be quiet! window. I removed the rubber lined steel side panel and got a custom side panel made from thick tempered glass. Not perfectly silent, but it looks way better than a plastic window. Initially I used a ThermalRight Macho Bravo passive CPU cooler and just used case fans for airflow. Later I went with a Corasir AIO. I did replace all the fans with either be quiet! Light Wings RGB units and Silent Wings where I didn’t need lighting. I would say that the be quiet! fans are just as good as Noctua, but Noctua fans may be a little quieter. Hard to say without a dB meter test. I don’t really hear the fans until I do a CAD rendering and the CPU gets hot for a minute. I had a mix of be quiet!, Corsair and Noctua fans, before I made all of them be quiet!

1 Like

Depends on which line.
Silents wings are also great, Pure wings are not even close (and suffer from the same problem ARCTIC fans suffer, that some of them start to rattle after 3y of usage).

1 Like

Even Noctua’s own marketing points out a majority of their fans are poorly designed and NF-A14x25 G1 isn’t among the top either. Their performance competitive fans are just NF-A12x25 G1, NF-A12x25 G2, and NF-A14x25 G2.

In my experience it’s cheaper, faster, and easier to replace Noctua parts with something else than to try to get Noctua support to actually provide support. Support experiences vary by region and who your tickets end up with but the common assumption Noctua’s premium pricing pays for excellent support has proven entirely incorrect here. Maybe if you live in a different region Noctua’s value proposition on this isn’t as bad, but even at only 2x overpricing, it’s still more cost effective to use parts from a zero support competitor and self insure. And my experience’s been either I haven’t needed support from Noctua competitors or they have pretty good support.

Somewhat similarly, Noctua claims high reliability but there’s no evidence to show their fans have longer MTTF than if you cost down 2-3x. Decent entry level fans are ~5x cost down and 60,000 hours versus Noctua and other premium fans’ 150,000. But 60,000 hours is 6.8 years and 150,000 is 17. So, even if you’re running the fans 24x7 and expecting a 15+ year build life (OP was looking for 10 in their other thread), it’s worth asking whether it’s locking in on a current gen Noctua makes more sense than replacing with another set of lower cost fans that’s likely to be of higher performance in 5-7 years. I see this as a personal preference but it does illustrate how high reliability potentially crosses over into being a bug rather than feature.

If you want to buy Noctua, buy Noctua. But if somebody’s looking at parts tradeoffs IMO awareness that marketing and branding is what Noctua does best probably isn’t a bad thing.

All the spectrometry I’ve run shows the offset speed thing’s just marketing babble. If it makes you feel better, though, just take two non-G2 fans and set their curves a little differently so they run at offset speeds.

Epoch uses North tooling and the North is pretty jank, so unless you like paying premium pricing for a case where the flex means you have to be a bit careful to get panels line up and the captive knobs regularly fall off after being used for a bit, I’d be cautious of Epoch as a way of getting preinstalled Momentum. Maybe Fractal’s addressed some of the North’s issues but, if they have, they haven’t addressed others like the solid shroud.

Meshify 3 also ships with Momentum and, as already pointed out in the other fork of this thread, underperforms relative to its competitors. Haven’t seen anything on how Meshify 3 and Epoch compare for build quality.

As @ThisMightBeAFish pointed out, depends which ones. Silent Wings 4 beat NF-A12x25 G1 at higher speeds but aren’t performance competitive with either G2. They’re also steeply priced here. Not as steeply as Noctua but still 1.5-2x Momentum, ~1.5x Vento Pro. The Toughfan Pros do better for about the same.

Perhaps, perhaps not. You’d have to measure both configurations to see if be quiet!'s “total silence concept” (quoting their marketing materials here) results in any meaningful difference. be quiet! doesn’t actually claim the damping does anything and third party measurements don’t don’t show any clear difference.

2 Likes

Bottom line: It’s a pretty nice quiet case. Not perfect but darn good.
I can hear it when the AIO fans go full speed, but 90% of the time it is silent. The rubber coated steel panel is quieter than 5mm glass. The Insulation, baffles and muffler stuff work and it still has good airflow with 6 be quiet! fans. 3x SilentWings 140 intake and 3x LightWings 120 exhaust.

2 Likes

The ProArt PA602 is freakishly quiet at low speeds, and temps that match my Torrent Compact for the most part…

1 Like

I don’t care that much about marketing, like I already stated, real and good test (like the one I linked) show a different result.

Totally correct, that is just years of personal experience. So only anecdotal evidence.

2 Likes

Thanks rjsams - do you find that that Torrent is quieter even at idle, versus the Define 7?

I’m looking for the case that will be quietest at idle and low-workloads. (For recording music etc).

At higher workloads / gaming - I don’t mind if thermals and noise are a bit higher - just searching for the quietest case at idle.

I’ve been hearing about this too.

I saw a 2-pack kit for Noctua fans, with the “RPM-offset to lower hum” in the description - does buying that have any advantages to simply offsetting the RPM by a few hz for any Noctua fans next to each other, in my custom fan curves?

In my case yes. A lot is going to depend on your fan curves. The huge advantage of the Torrent over the other case is the 180mm fans move a lot of air, even at very low RPM.

Depending on what graphics card you end up with you can probably stop the 3 small bottom fans at idle. Even under gaming type load it’s not loud.

Make sure the power supply has a fan stop feature, otherwise it may be your loudest part. With the PSU intake being inside the Torrent case, it actually gets airflow from the case fans delaying when it will actually turn on.

Under load the loudest part is the GPU fans on my 4090. The 7950x3d, air cooled, never has issues staying cool. Not overclocked though.

No, not really. It would if you plugged both into the same header.

1 Like

Both should be at 0dB. Because both should be at 0RPM at idle if you do it right.
Torrent fans don’t seam to support 0RPM, but at 300RPM they are probably pretty silent.

No, it is just that but in hardware instead of software.

2 Likes

If you do the affinity maths and confirm with measurement, they’re outperformed on a noise-normalized basis by 3x120. Unless you’re notably bad at choosing 120s. I was hoping the larger diameter might help with the +50% noise-normalized airflow needed to get n = 2 fans to match n + 1 fans but couldn’t pick up anything in the Torrent Compact I built. Bigger fan better assumptions are good for selling cases though. ¯\_ (ツ)_/¯

Can’t think of an airflow case I’ve measured where bottom or shroud fan spinup has had any effect on a recent-ish dGPU’s core and hotspot temperatures, at least within the 1200-1500 RPM upper limit of the few different fans I’ve used in testing. Sometimes a degree or two for GDDR. (Haven’t looked at a dGPU that reports the VRMs, I should do that sometime.)

Quieter than a 4090’s 29-38 dB(A) leaves a ~20-25 dB(A) range that’s undesirably loud for recording.

Refer to Fractal’s specs to see 300 RPM leads to 16 dB(A) for both the GP-18 and AL-18. Out of fan stop configurations were covered in the OP’s other thread for this build a while ago.

0 dB(A) isn’t how log₁₀(0) works. Basic math isn’t exactly marketing’s strong point but, as unforced failures go, it’s still kind of impressive.

1 Like

lemma, you and I are not going to agree on this.

A single 180mm fan covers the same area as 2.25 120mm fans. To get the same airflow out of the smaller fan you need both higher linear flow speed, and almost certainly higher rotational speed. Both lead to more turbulence. That leads to noise.

Also note the design goal wasn’t noise normalized, it was noise floor at idle. The obsession of over over-cooling everything, at the expense of complexity and noise is silly. These parts have a thermal design window. You simply need to keep them in that window. If 85c* is good enough for a data center part running 24/7, it’s good enough for a pc.

There are secondary considerations also. What is the frequency spectrum? In this case you probably want dBC not dBA. If you are recording or monitoring, you don’t want the low frequencies, even if they are less annoying, interfering.

In my office right now there is about a 5dB difference between A and C according to my Reed r8050.

  • exact limits vary by part.
