Problems getting a PC to boot with an Intel P5801X on X99

Hello. I’m having a weird problem with an Intel Optane P5801X that just came in the mail.

A couple of weeks ago I picked up an Intel P5801X for my next PC. I plugged it into my current older PC using this cheap m.2 to E1.S adapter from amazon:

I then plugged in the 12v molex cable, and plugged the whole thing into my m.2 slot on my Gigabyte X99-UD4P motherboard.

While the PC did boot up, I never got past the BIOS. It simply hard-locked on the splash screen and never booted into windows. Any idea what could be causing the problem?

I tried putting the SSD in an m.2 to PCIe carrier card instead, and the same problem happened. Booted up, but didn’t pass the BIOS screen.

I know this is a PCIe gen 4 SSD, but PCIe is supposed to be backwards compatible. Or is it that the P5800 series SSDs jsut can’t operate at PCIe gen 3.0? Anyone have any idea what is going on here?

I did order a couple more adapters from Amazon including this one. Maybe I can get one of them to work:

UPDATE:

Verified my m.2 slot on my motherboard and the m.2 to PCIe card I had was working. PC booted as expected a normal PCIE gen 3.0 ssd.

I then installed a PNY PCIe gen 4.0 M.2 SSD into my computer and that also booted up just fine.

During the bootup process, a small green LED turns on the back of the P5801X turns on and remains on. However, the computer still fails to pass the POST screen.

As a last-ditch effort, I taped off the two SMBUS pins on the EDSFF connector. Apparently some Dell or HP network cards will not boot in non-Dell or HP systems if th SMBUS is connected. This probably has nothing to do with my problem, and it didn’t. This also didn’t work.

I don’t know what is causing this issue, but i’m guessing it has to be a motherboard incompatibility. Because I retested my adapters with different SSDs and they all worked.

I’ll retest this in the MSI X870E Tomahawk motherboard and report back if it works. I don’t know what’s causing this issue but maybe it’s just an incompatibility with the motherboard.

2 Likes

SECOND UPDATE:

I GOT IT TO WORK!!!

For anyone else who runs into the same problem I did, here is what you need to do:

I went into my motherboard BIOS under “boot options”. Under boot options, there was a dropdown menu where I could select “Option ROM boot”. I had the option of choosing “Legacy only” “UEFI only” or “Disabled”. After I chose “UEFI Only” and saved, my PC booted up just fine.

And wow is this SSD ever fast. Even on PCIe Gen 3.0 you notice if you have an OS installed.

3 Likes

This. I also purchased an E1.s Optane drive a few weeks back and have gone through the progression of various adapters. Including: GEN Z 1C EDSFF Male to Female Extension Cable
and: Buy EDSFF E1.S NVMe SSD to M.2 M-key Card with 3.5 Bracket

I was able to get it working on secondary computer and witness the exceptional Random 4k performance, but sadly I cannot manage to get it working on my AM5 main rig. I will keep poking around in the BIOS and report back if I figure it out.

1 Like

TBF, its maximum write speed is barely above the PCIe 3.0 limit, and for either read or write, low-queue depth I/O is hardly going to bump up against even PCIe 2.0 bandwidth limits.

1 Like

@CircleTech Hello

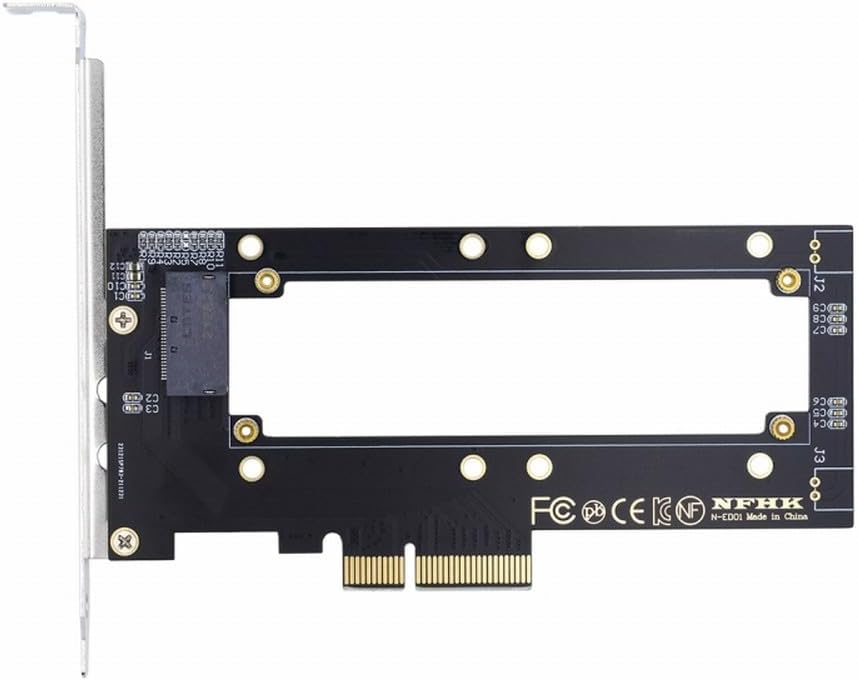

Have you tried the Amazon adapter (PCI-E 4X Host Adapter to NVMe Ruler 1U GEN-Z EDSFF Short SSD E1.S) ?
It’s not compatible with the heat sink. Did you remove it ?

Thanks

1 Like
