Threadripper and Zenith Extreme build up and running with GPU passthrough

Hardware Build Logs
1

pc
pc.jpg900x1011 215 KB

Took me a few days to get everything working with GPU passthrough as this was my first time setting it up and TR in general seems to be more fincky than other platforms atm. I’m running Ubuntu 16.04 LTS with the latest 4.15 kernel, using gnif’s patch for the PCI reset issues, and it is running rock solid stable. Really appreciate all the work the community has put in to getting the issues sorted out.

I haven’t seen too many people get this working on the Zenith so just wanted to share my success story and if anyone else is having issues I’ll try to help out.

Full specs

1950X w/ Enermax TR4 360 cooler
Asus Zenith Extreme
64GB GSKILL 3200MHz RAM (running at 3000… had issues with 3200)
Radeon Pro WX 5100 (host)
Radeon RX Vega 64 (guest)
Corsair AX1200i PSU
2 TB Samsung 960 Pro NVMe drive
2x500GB Samsung 950 Pro/960 Evo NVMe
4x8TB WD Red and 2x4TB WD Red hard drives
Sonnet Allegro Pro USB 3.0 PCIe card (nice thing about this card is that it has 4 USB ports with 4 individual USB controllers that can be passed through, so you could potentially use it to dedicate USB devices to 4 different VMs).
LG 38UC99 monitor

3DMark run: https://www.3dmark.com/fs/14890963

Using this build as my NAS, development server, and gaming all in one box. Works perfectly and I’m really happy with it.

5 Likes
2

Nice. How PCI devices are mapped to IOMMU groups?

Script shows IOMMU groups/PCI devices

3

Oh hey, saw your build on PCPP.

1 Like
4

Here’s the full list:

IOMMU Group 0 00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 10 00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 59)
IOMMU Group 10 00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 11 00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1460]
IOMMU Group 11 00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1461]
IOMMU Group 11 00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1462]
IOMMU Group 11 00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1463]
IOMMU Group 11 00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1464]
IOMMU Group 11 00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1465]
IOMMU Group 11 00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1466]
IOMMU Group 11 00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1467]
IOMMU Group 12 00:19.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1460]
IOMMU Group 12 00:19.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1461]
IOMMU Group 12 00:19.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1462]
IOMMU Group 12 00:19.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1463]
IOMMU Group 12 00:19.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1464]
IOMMU Group 12 00:19.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1465]
IOMMU Group 12 00:19.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1466]
IOMMU Group 12 00:19.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1467]
IOMMU Group 13 01:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43ba] (rev 02)
IOMMU Group 13 01:00.1 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b6] (rev 02)
IOMMU Group 13 01:00.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b1] (rev 02)
IOMMU Group 13 02:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02)
IOMMU Group 13 02:01.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02)
IOMMU Group 13 02:02.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02)
IOMMU Group 13 02:03.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02)
IOMMU Group 13 02:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02)
IOMMU Group 13 02:09.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b4] (rev 02)
IOMMU Group 13 03:00.0 Network controller [0280]: Qualcomm Atheros QCA6174 802.11ac Wireless Network Adapter [168c:003e] (rev 32)
IOMMU Group 13 04:00.0 Network controller [0280]: Wilocity Ltd. Wil6200 802.11ad Wireless Network Adapter [1ae9:0310] (rev 02)
IOMMU Group 13 05:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03)
IOMMU Group 13 08:00.0 USB controller [0c03]: ASMedia Technology Inc. Device [1b21:2142]
IOMMU Group 14 09:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd Device [144d:a804]
IOMMU Group 15 0a:00.0 PCI bridge [0604]: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch [10b5:8608] (rev ba)
IOMMU Group 16 0b:01.0 PCI bridge [0604]: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch [10b5:8608] (rev ba)
IOMMU Group 17 0b:05.0 PCI bridge [0604]: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch [10b5:8608] (rev ba)
IOMMU Group 18 0b:07.0 PCI bridge [0604]: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch [10b5:8608] (rev ba)
IOMMU Group 19 0b:09.0 PCI bridge [0604]: PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch [10b5:8608] (rev ba)
IOMMU Group 1 00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 20 0c:00.0 USB controller [0c03]: Fresco Logic FL1100 USB 3.0 Host Controller [1b73:1100] (rev 10)
IOMMU Group 21 0d:00.0 USB controller [0c03]: Fresco Logic FL1100 USB 3.0 Host Controller [1b73:1100] (rev 10)
IOMMU Group 22 0e:00.0 USB controller [0c03]: Fresco Logic FL1100 USB 3.0 Host Controller [1b73:1100] (rev 10)
IOMMU Group 23 0f:00.0 USB controller [0c03]: Fresco Logic FL1100 USB 3.0 Host Controller [1b73:1100] (rev 10)
IOMMU Group 24 10:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1470] (rev c0)
IOMMU Group 25 11:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1471]
IOMMU Group 26 12:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Device [1002:687f] (rev c0)
IOMMU Group 27 12:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Device [1002:aaf8]
IOMMU Group 28 40:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 29 40:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 2 00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 30 40:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 31 40:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 32 40:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 33 40:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 34 40:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 35 40:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 35 40:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454]
IOMMU Group 35 44:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:145a]
IOMMU Group 35 44:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Device [1022:1456]
IOMMU Group 35 44:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:145c]
IOMMU Group 36 40:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 36 40:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454]
IOMMU Group 36 45:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:1455]
IOMMU Group 36 45:00.2 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
IOMMU Group 37 41:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd Device [144d:a804]
IOMMU Group 38 42:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd NVMe SSD Controller [144d:a802] (rev 01)
IOMMU Group 39 43:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Device [1002:67c7]
IOMMU Group 39 43:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Device [1002:aaf0]
IOMMU Group 3 00:01.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 4 00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 5 00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 6 00:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1453]
IOMMU Group 7 00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 8 00:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 8 00:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454]
IOMMU Group 8 13:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:145a]
IOMMU Group 8 13:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Device [1022:1456]
IOMMU Group 8 13:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:145c]
IOMMU Group 9 00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:1452]
IOMMU Group 9 00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:1454]
IOMMU Group 9 14:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:1455]
IOMMU Group 9 14:00.2 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
IOMMU Group 9 14:00.3 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Device [1022:1457]

5

Thanks.

Do you have idea which devices/slots are feeded by these PLX switches (PLX Technology, Inc. PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch)?

6

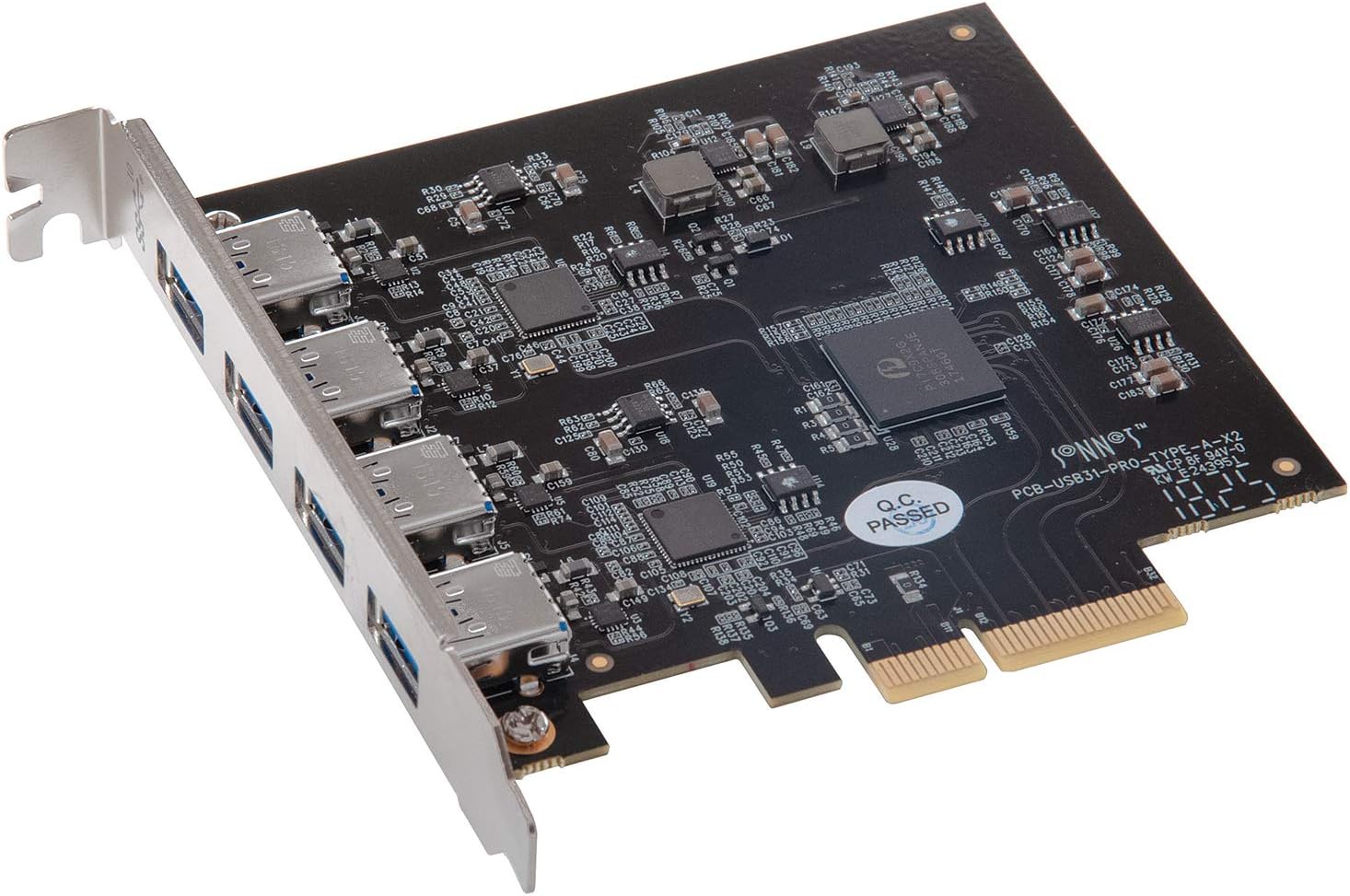

Yeah, those PLX switches seem to be associated with my PCIe USB card, which is in the bottom slot.

7

Thanks. That make sense, probably the biggest chip on card.


8

Nice build. Have you confirmed this actually works when passed through to multiple VM’s? I’ve been looking for a solution like this but other similar cards don’t work as expected in this configuration.

9

sorry for the late reply, but yes, it works. I am running a macOS VM now alongside my Windows one and was able to pass through an individual USB controller to each VM with both running at the same time.

Added an RX560 to my build since for the OSX VM, which works great. The Vega 64 worked with OSX as well for anyone interested but it had reset issues.

10

Well done!

Where can I get more information about your software setup? I am working on a 2950x build with an ASRock x399 Taichi that will use GPU passthrough for multiple GPU’s

Thanks
