Someone needs to figure out how to adapt MI250 GPUs to PCIe

1mm minus pad advance is the right one for fit.

These LGA4677 coolers work well if you break off the plastic and bolts.

As do the SP3

5 Likes

@matthock Do you mind sharing the gerber into the GitHub pages we have going, myself and the guy near me are both thinking to do an interposer for debugging these boards so this would be a huge saving rather than re-inventing the wheel. Also I think @TsuKitsune might also be able to weigh in as he/she is also making their own board. No need for 3 of us to repeat the same effort.

1 Like

You are right those are really close, what youre matching is the bolster CPU screw holes which have been punched through - lucky for you :smiley: can you post the vendor name / part number because i looked at a few others and not ALL vendor coolers have that unique feature.

BTW the reason some of the screws dont line up is the LGA4677 is 46/43 but the MI250X is 46 / 51 -ish

UPDATE: Note the LGA4677 cooler probably can only dissipate 250-300W so be careful when running this guy at load as its 600+W TDP.

https://www.te.com/commerce/DocumentDelivery/DDEController?Action=srchrtrv&DocNm=2351050&DocType=Customer%20Drawing&DocLang=English&DocFormat=pdf&PartCntxt=2-2351050-5

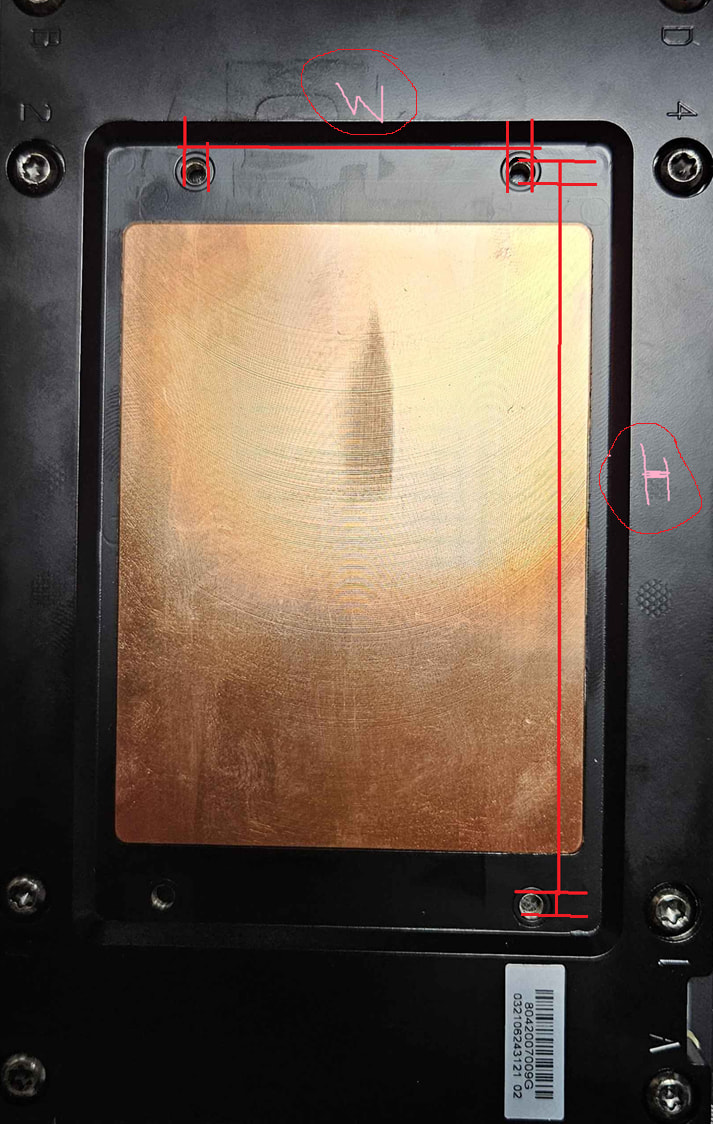

TOP Hole W = 43.4 (inside) 48.8 (outside)
BOTTOM Hole W = 49.2 (inside) 54.4 (outside)
H=100.5 (inside) - 105.67 (outside)
Hole Depth = 3.95
Hole Width = 2.88 ( checking M4 my measurement is likely 3.5 screw altho 3.3-3.4 screws dont go in, and 2.8-2.9 screws are too loose)

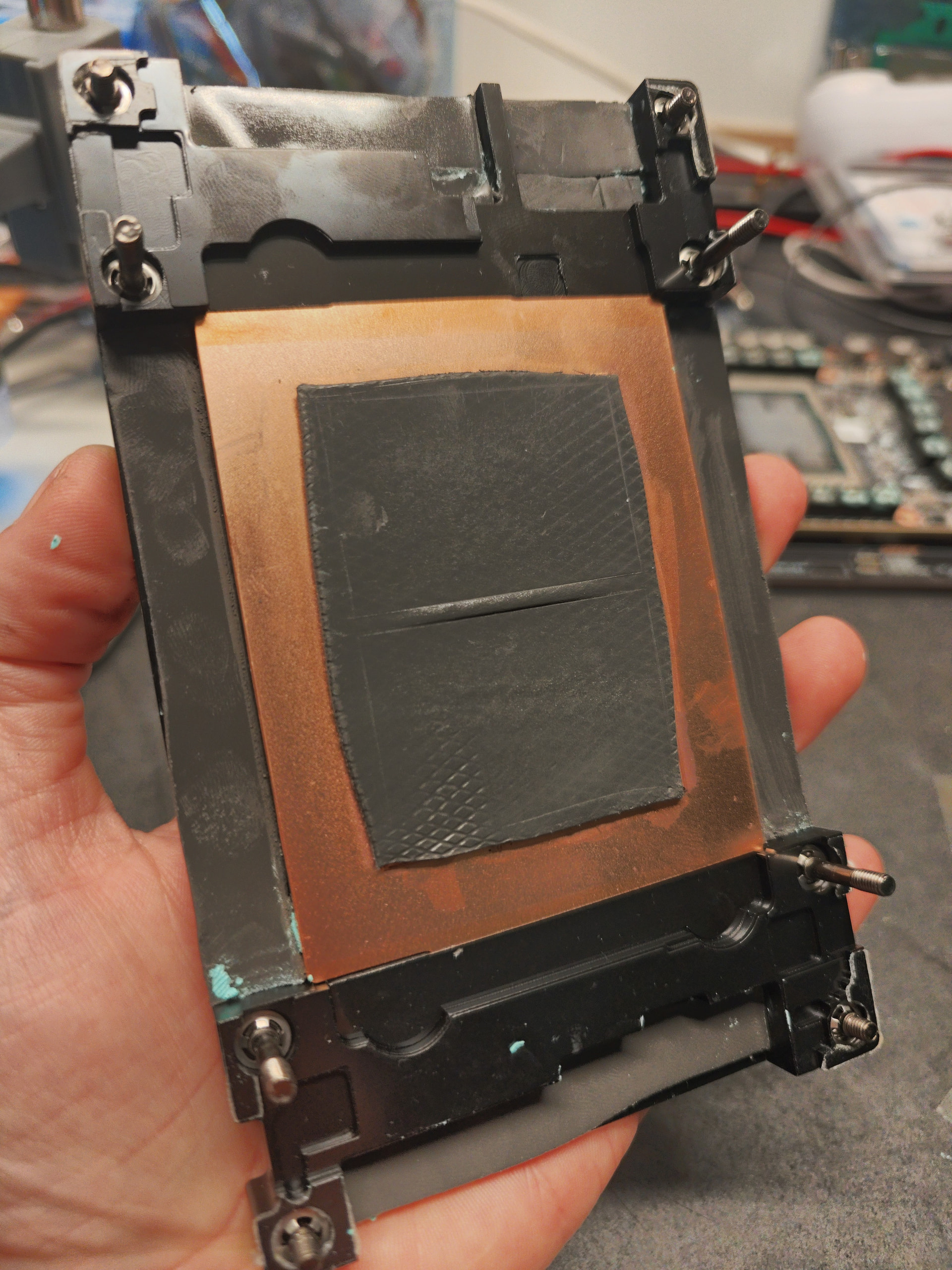

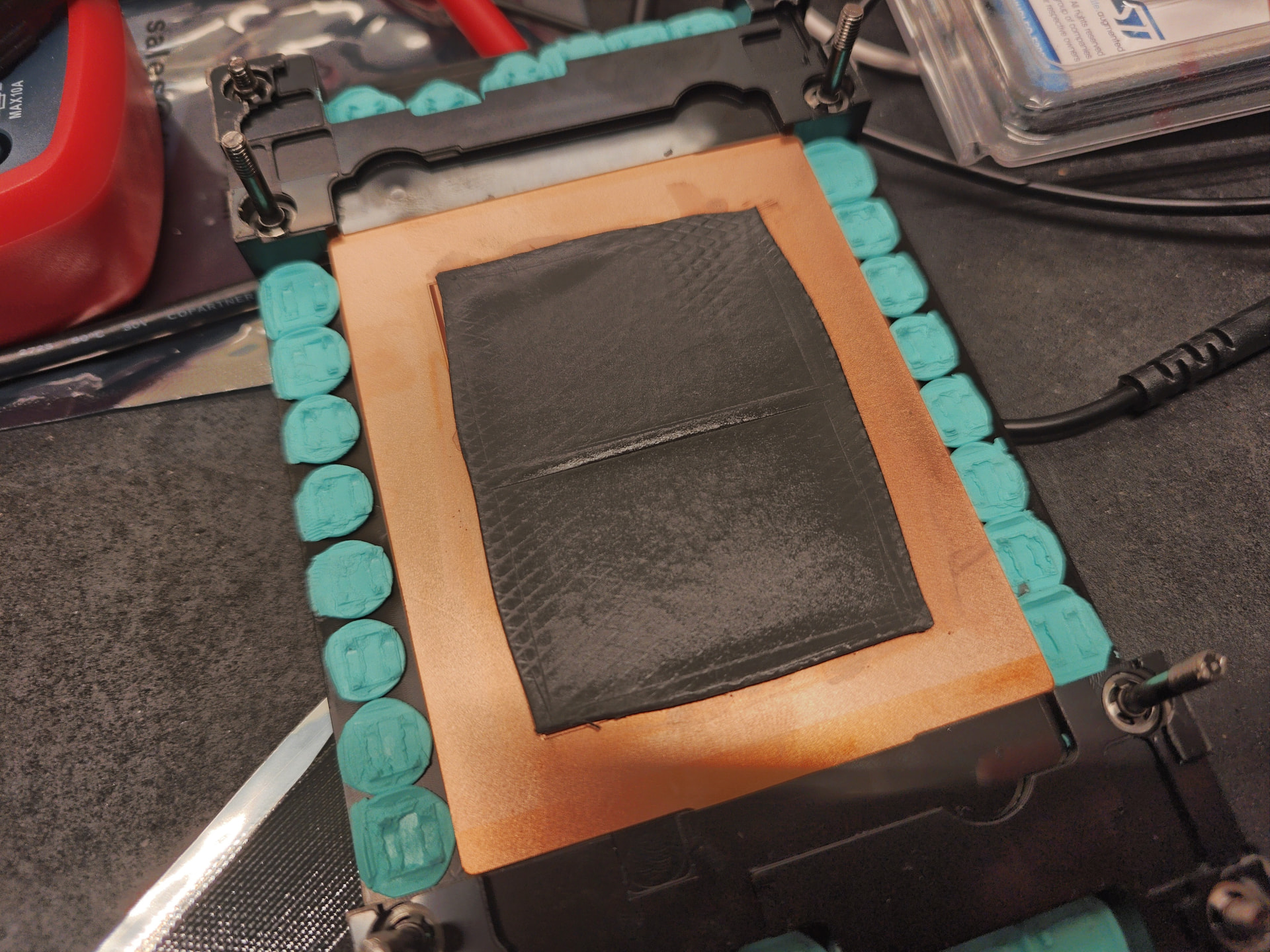

Copper W=65.65, H=87.57
Pan W=71.25 H=110 Depth=2.57

2 Likes

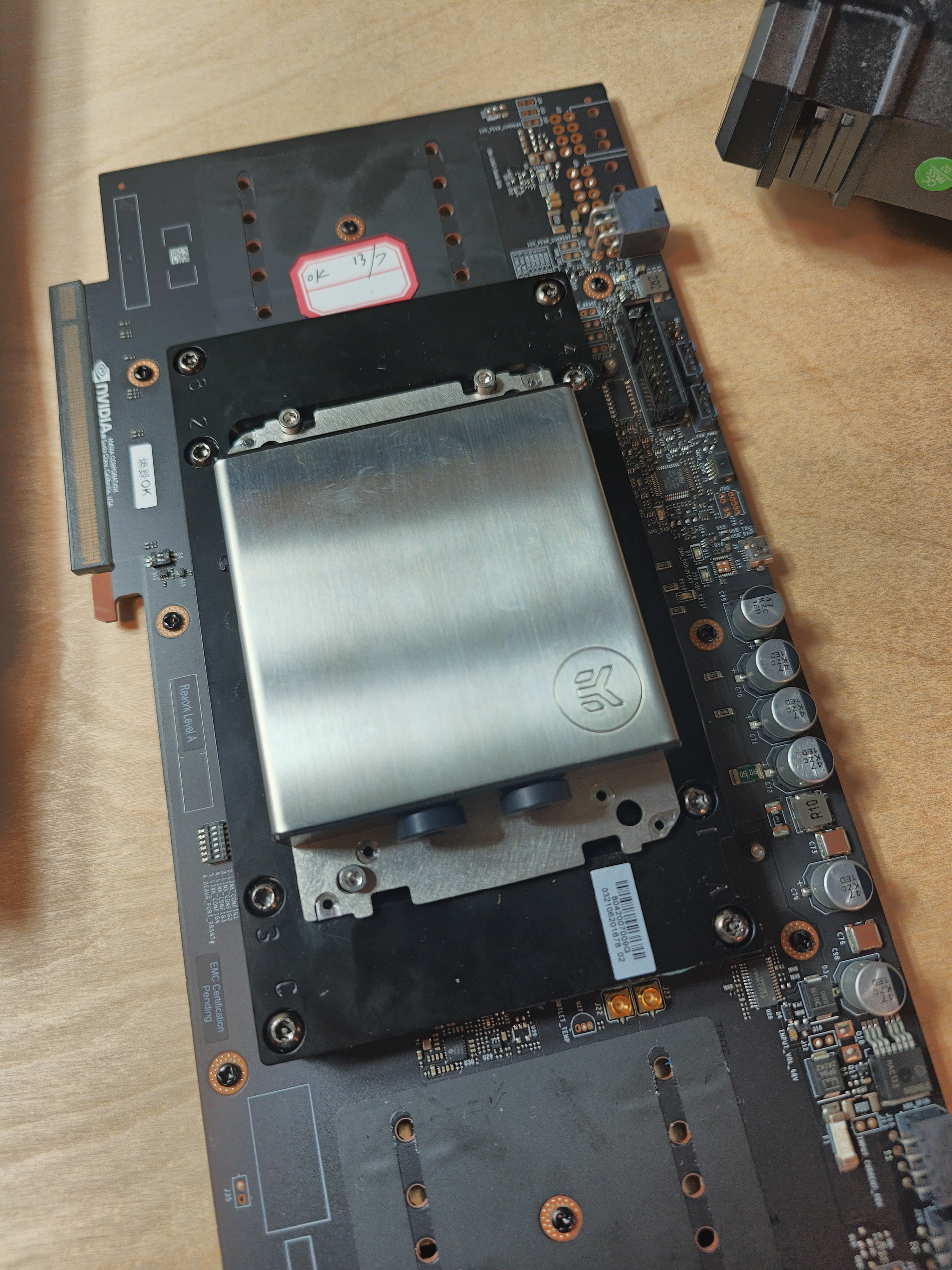

EKWB EK-Pro 4677 Rack CPU Water Block, Ni + Acetal new

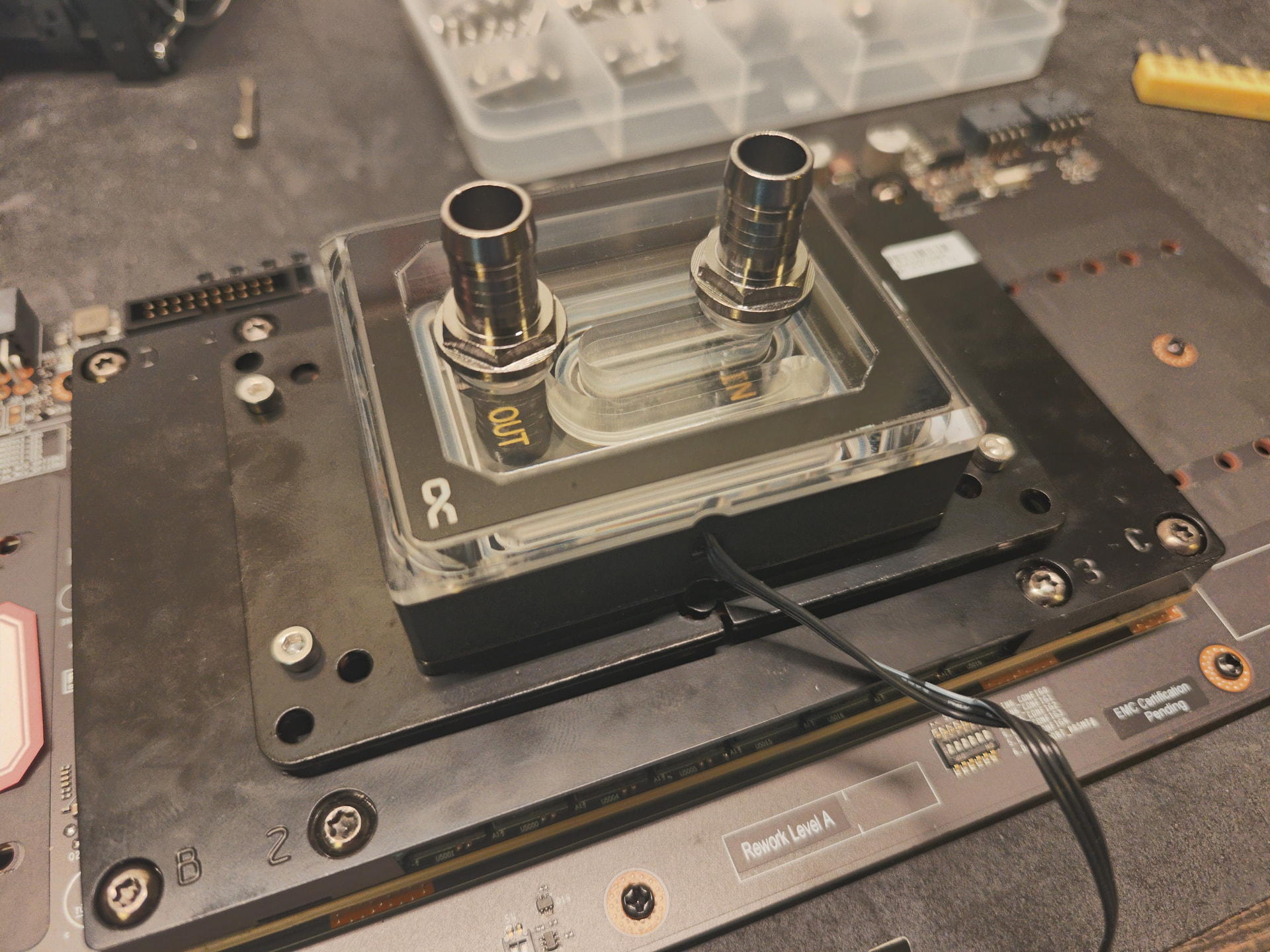

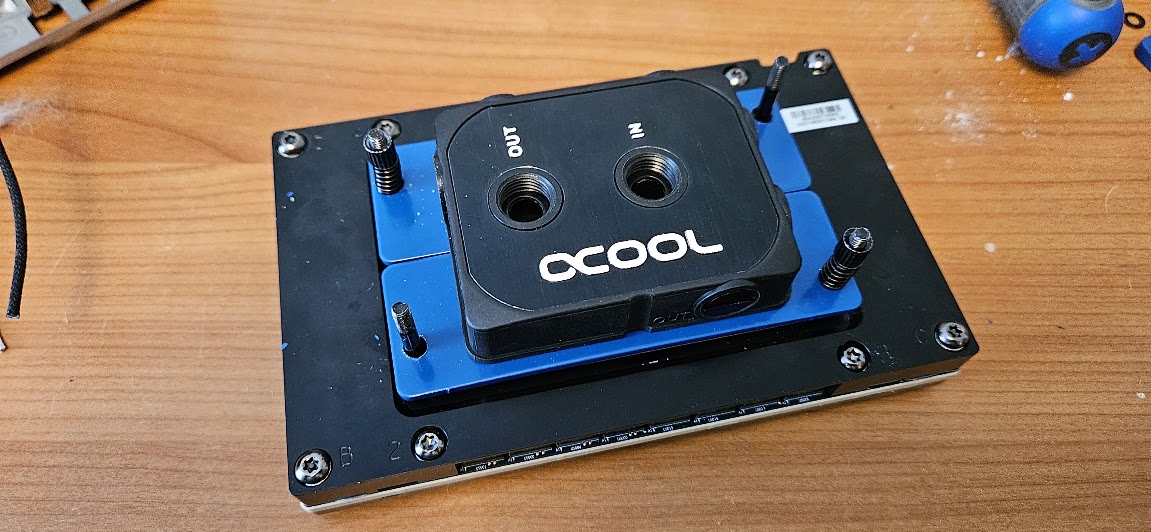

Yep, that’s the exact issue. I have a dwg of a waterjet cut adapter plate that fits the Alphacool XPX Pro 1U waterblock. This is first rev, I was off by about 1mm in each axis and had to drill the holes outs, but I revised it after that:

Simple waterjet in 0.1in material. Stainless 304 in this case - I didn’t want to run the risk of any aluminum/steel/copper galvanic issues, plus it may bend at that thickness. Powdercoating is optional but fun :wink:

My github username is the same as the one here if you want to add me as contributor. The gerbers are not nearly clean enough for anything production, but I’ve got a lot of design documentation I can contribute from my research, along with things like that adapter plate.

3 Likes

@gpufear and @GPUlover and @TsuKitsune and @matthock

I have setup a public GitHub, lets start with this if it brings heat we can make it private or move it somewhere more accepting of educational purposes research like this.

4 Likes


GPU on the pcie oam card wants about 150w when powered up.

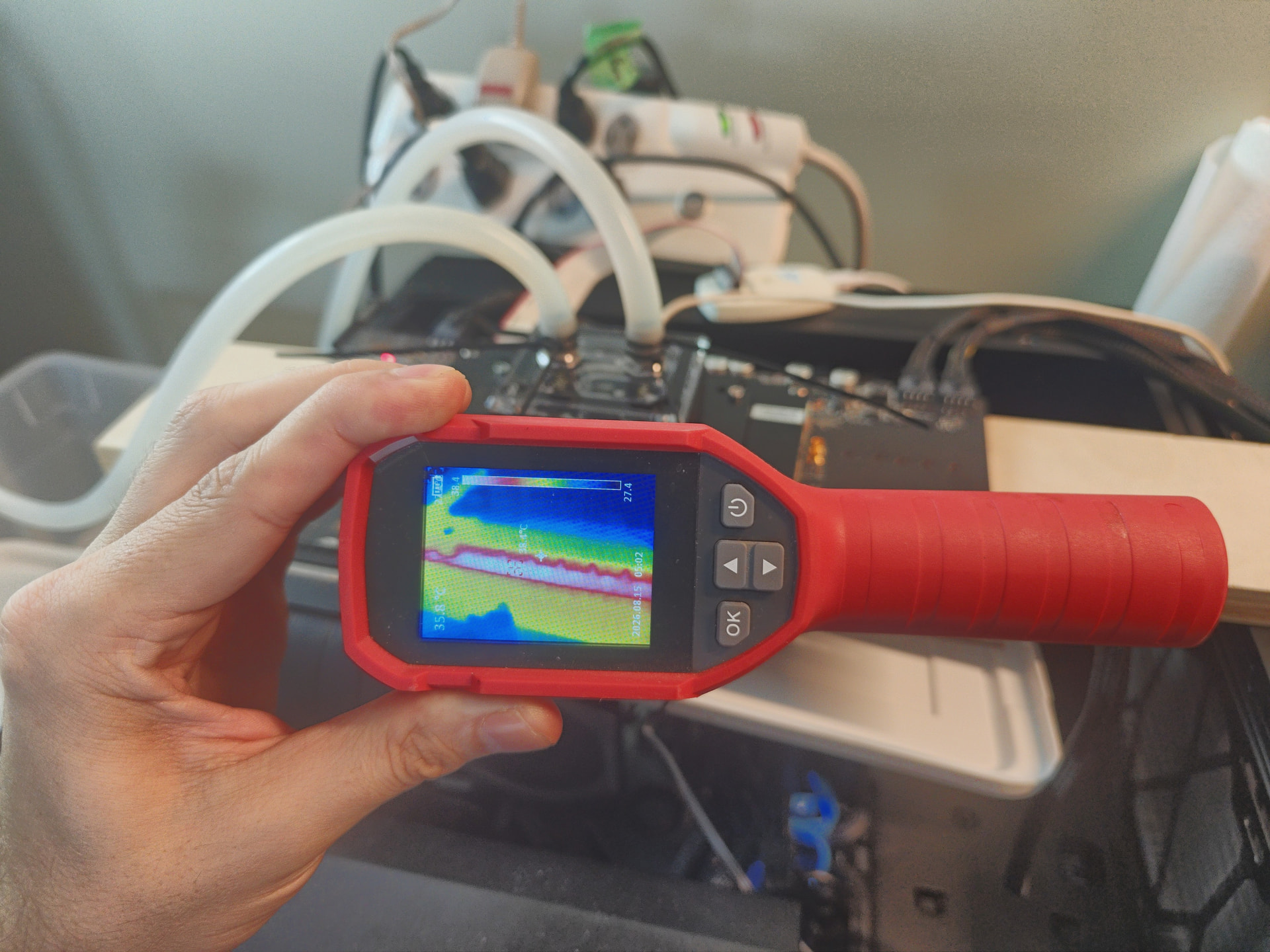

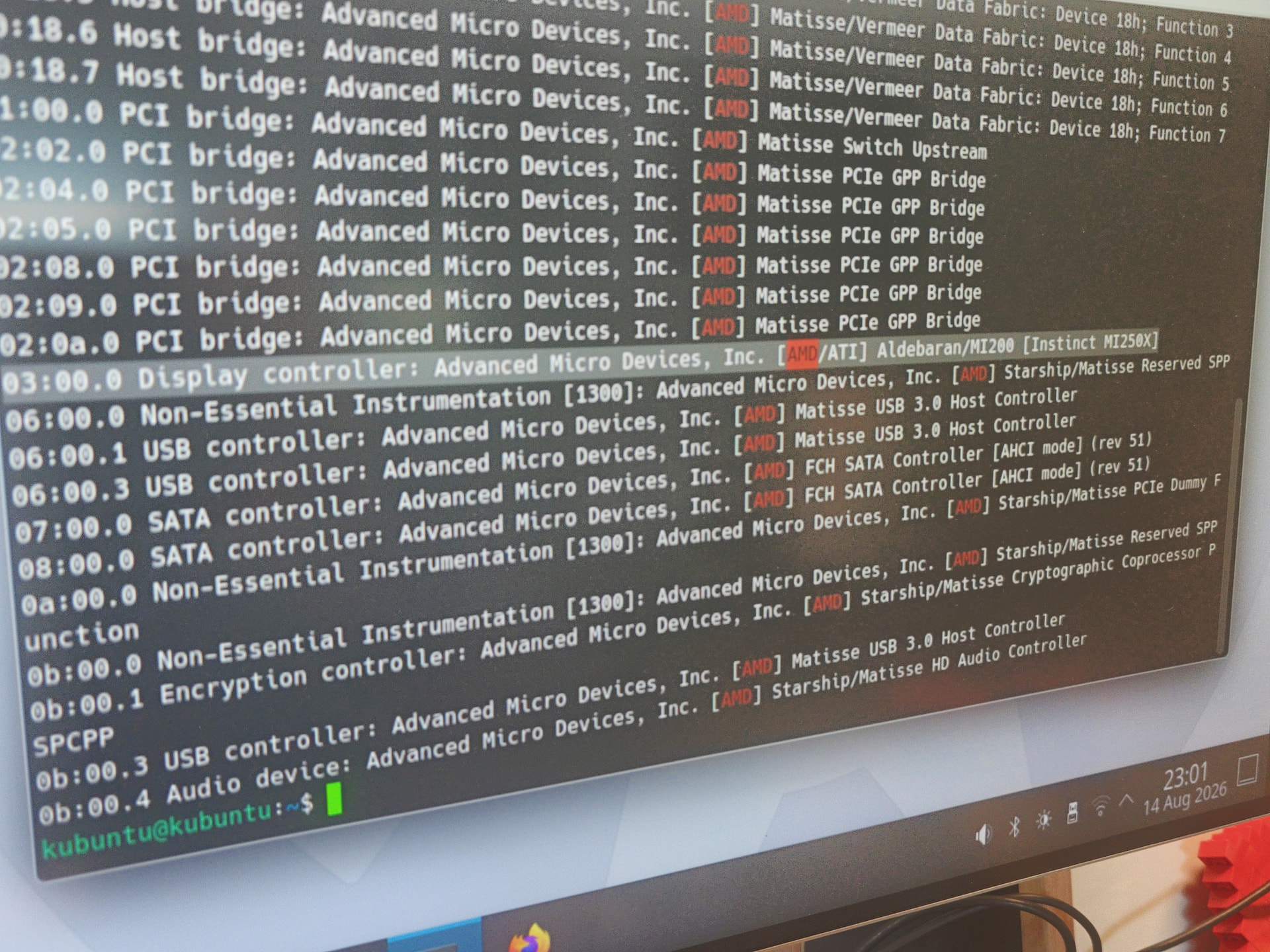

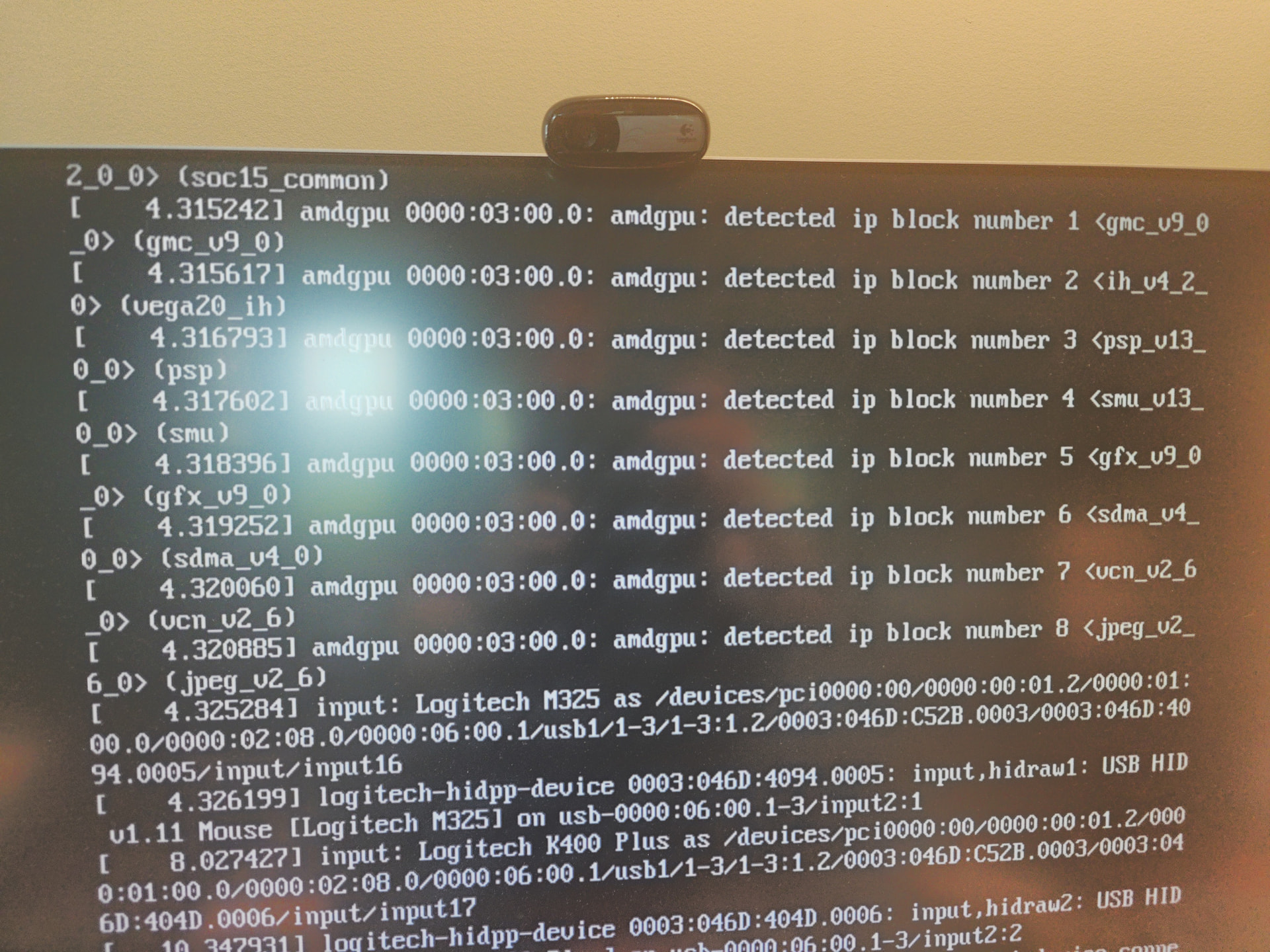

Tantalizing signs of life but crashes during amdgpu init still. Playing with kernel settings for now but I imagine others made it here.

6 Likes

Yes mine was chewing up 110W when powered up.

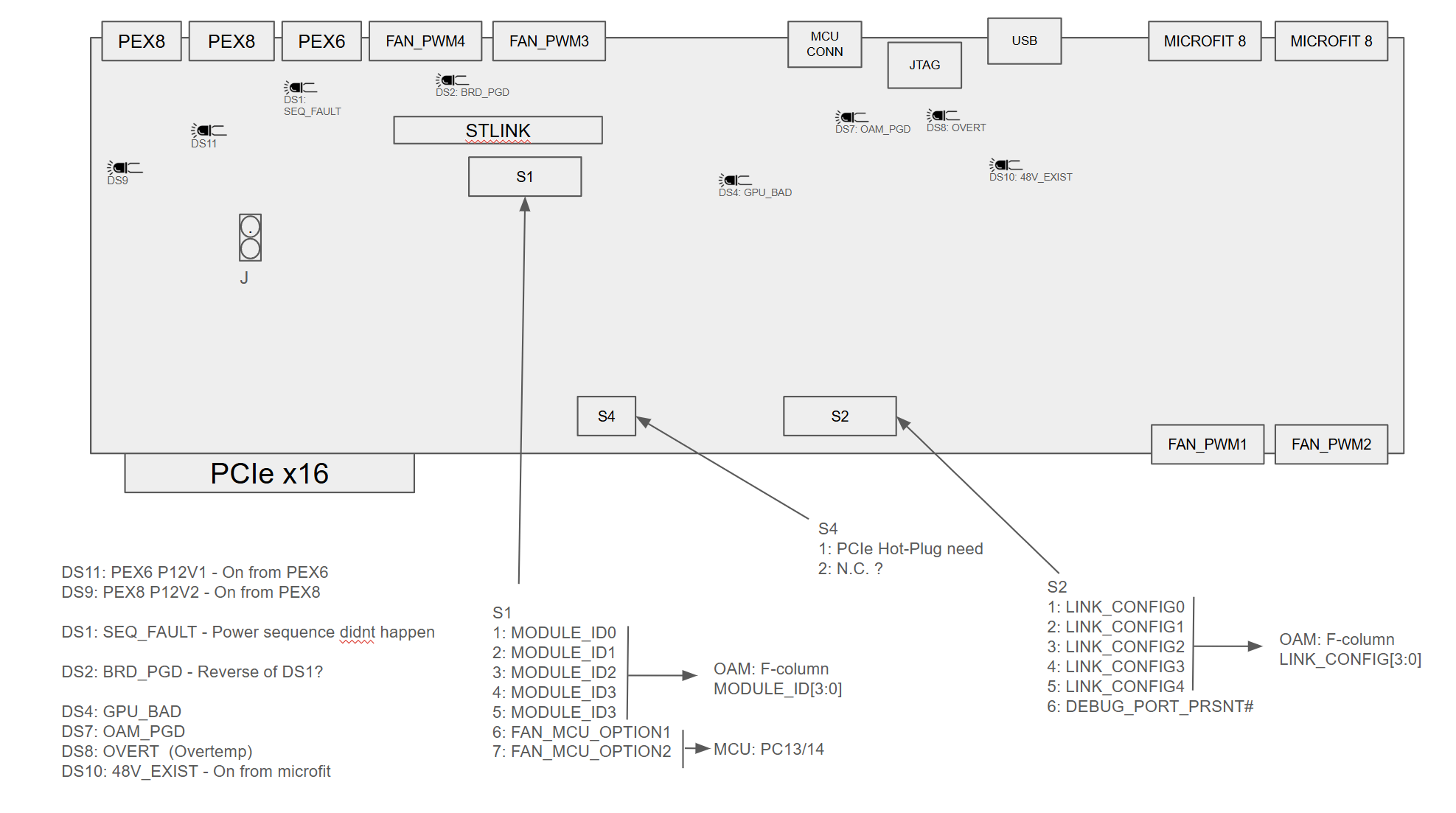

What are your link config bits set to? (the row of dip-switch switches near the PCIe DIP1..6)

2 Likes

the real question is if the AOM-MCM-Q will work

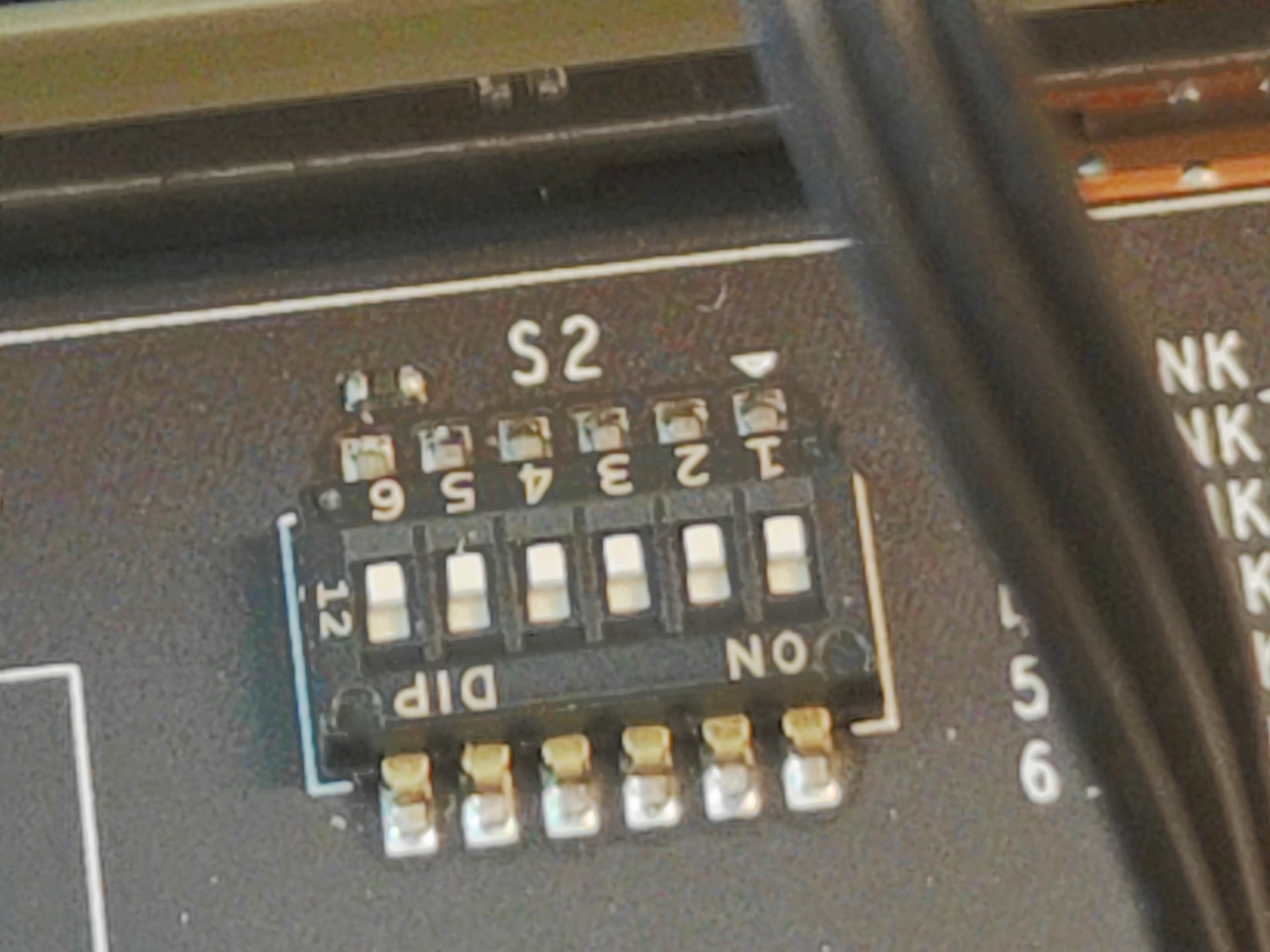

This set of dips?

Yeah unfortunately ebay mixed up the 54v power cable and sent me a Rainbow Dash MLP doll instead. Seller was nice though and is shipping me a new one.

3 Likes

Yeah unfortunately ebay mixed up the 54v power cable and sent me a Rainbow Dash MLP doll instead. Seller was nice though and is shipping me a new one.

LMAO!

Accident?


I wish I was joking I’d be testing it by now

5 Likes

:rofl::rofl::rofl::rofl::rofl::rofl::rofl::rofl::rofl::rofl::rofl::rofl::rofl:
IM DYING LOLOLOLOLOLOLOLOLOL

1 Like

Well I hope some bronie is happy with my overpriced rare CBL-PWEX-1280

1 Like

@bitbashers were you getting anything through the uart? My usb connection doesn’t act like a usb-uart. Wondering how to set that up.

Thanks, I didnt throw that last dip switch - let me try it. With Bit1=0 it doesnt power up the PCIe or draw >100W. But with Bit6 not set it doesnt show up. The GAUDI2 did so let me try setting it.

Dont feel so bad here is my first MI250X (effectively in my currency, it feels like 3-4000 usd purchase). Thank god i recorded its delivery from door opening to opening!!!

At first I was super excited, a shipping mistake that could be worth $60,000 - heh Monopoly bank makes error in your favor but after a bit of googling it was worth $900! I feel sorry for the excited nerd who received a $3000 usd GPU - he must have been very confused.

3 Likes

Is your FTDI USB chip populated, if not then its going to just be dead. Most of the boards being sold seem to be missing PEX8 12V sockets, and the FTDI USB chip, and the temp sensors.

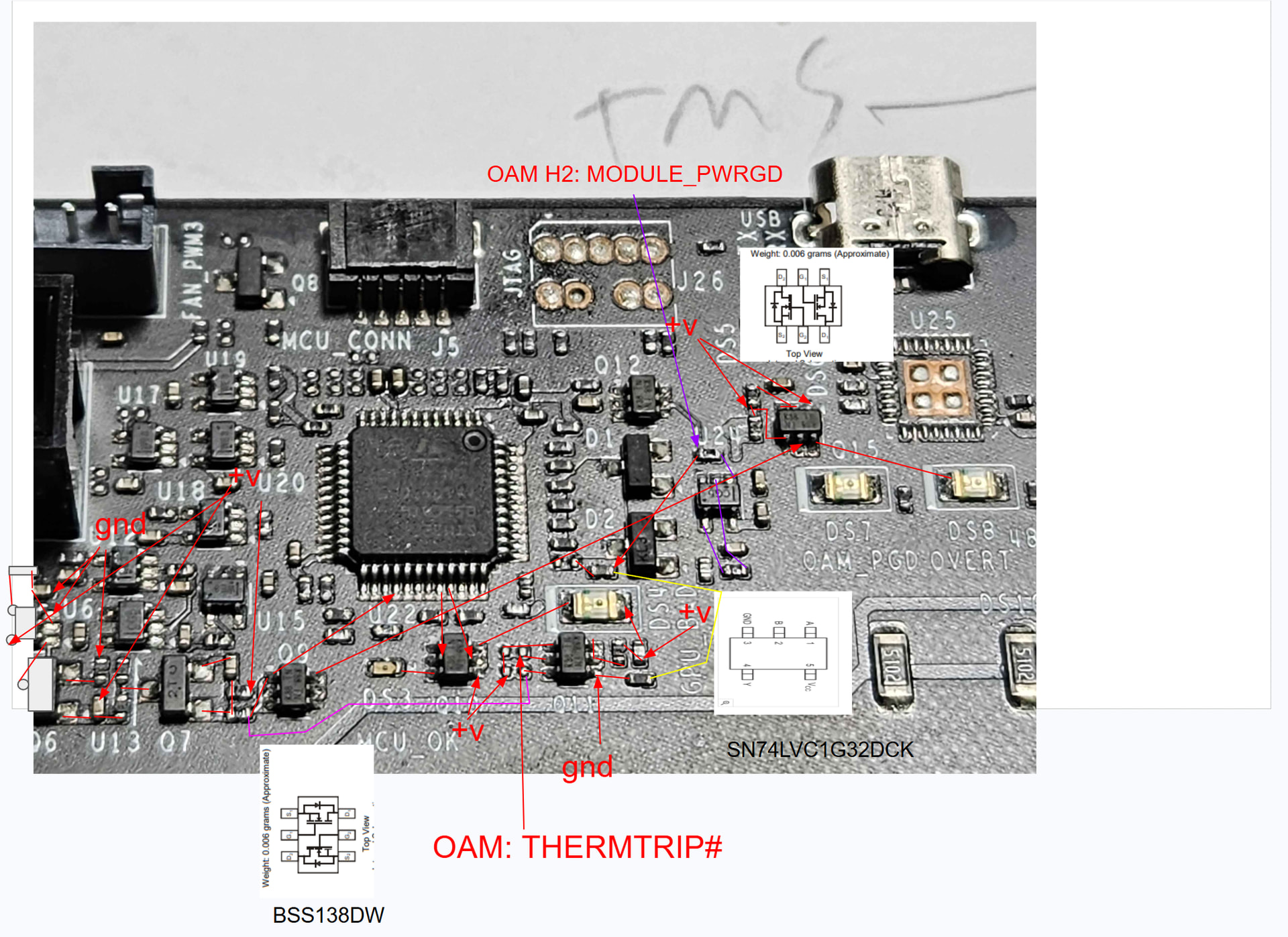

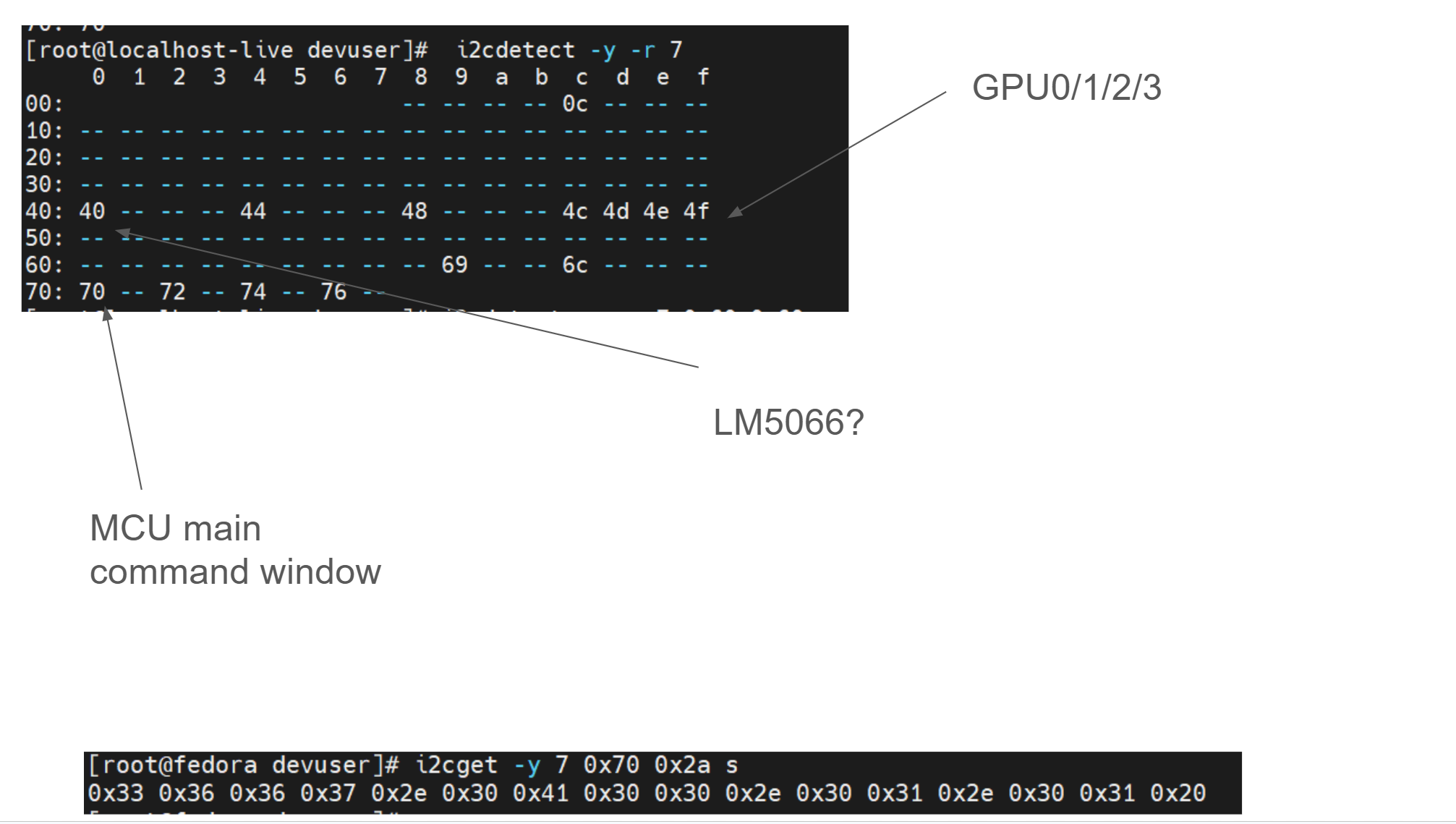

You can get most of what you want via the SMBus if your board supports SMBUS (not all do)

Its my Google doc on the nVidia OAM to PCIe card

2 Likes

Ah, so both boards I have are missing the FTDI. Do you have one? If so, is this an MCU we could dump?

If I ordered that part and soldered it on, flashed or otherwise, would I get a working uart?

And yeah every attempt I make at SMBus I get nothing over the board interface.

We didnt try that, the other thing you can do is connect one of those USB UART to the two pins. We also didnt try that but in theory that should work fine and maybe simpler than soldering down an FDTI chip. ( Something like this; Amazon.com: NITOMTYU USB to Serial TTL-232R-3V3 UART Converter Cable TTL 3.3V 6Pin Serial Cable +3.3V TTL Level UART Signals, Compatible with Windows Linux MAC OS, FT232 Chipset, 1.8m/5.9ft : Electronics )

I also didnt check the voltages, so not sure if its set for 3.3V / 5V / 1.8V … but i can check that in the firmware / MCU config if you want that.

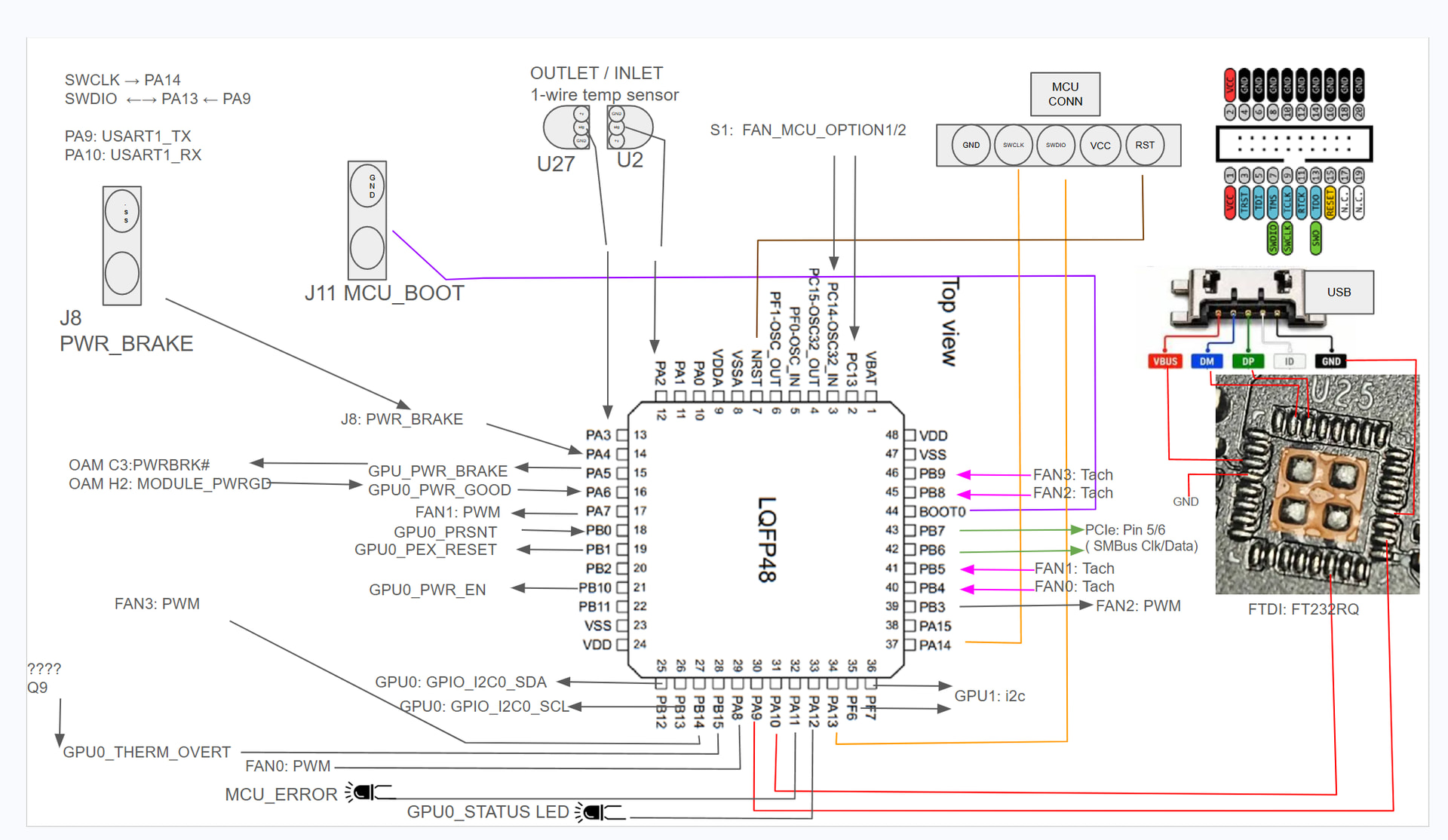

I did a full MCU dump and disassembly

2 Likes
