Are you aware of WiseassWolfOfYoitsu working on an adapter board in this discord thread:
might be worth a Colab / sharing notes etc.
Are you aware of WiseassWolfOfYoitsu working on an adapter board in this discord thread:
might be worth a Colab / sharing notes etc.
heres a share of the Claude project folder i started:
i ran a more focused sesion on just the firmware @GPUlover provided, results in /GPUlover/analysis
To my untrained eyes the power sequencing stuff in /GPUlover/analysis/decompile or /GPUlover/analysis/analysis look like they could be usfull.
im running a cross check against my slop post / the last session and results should land in /analysis/factcheck

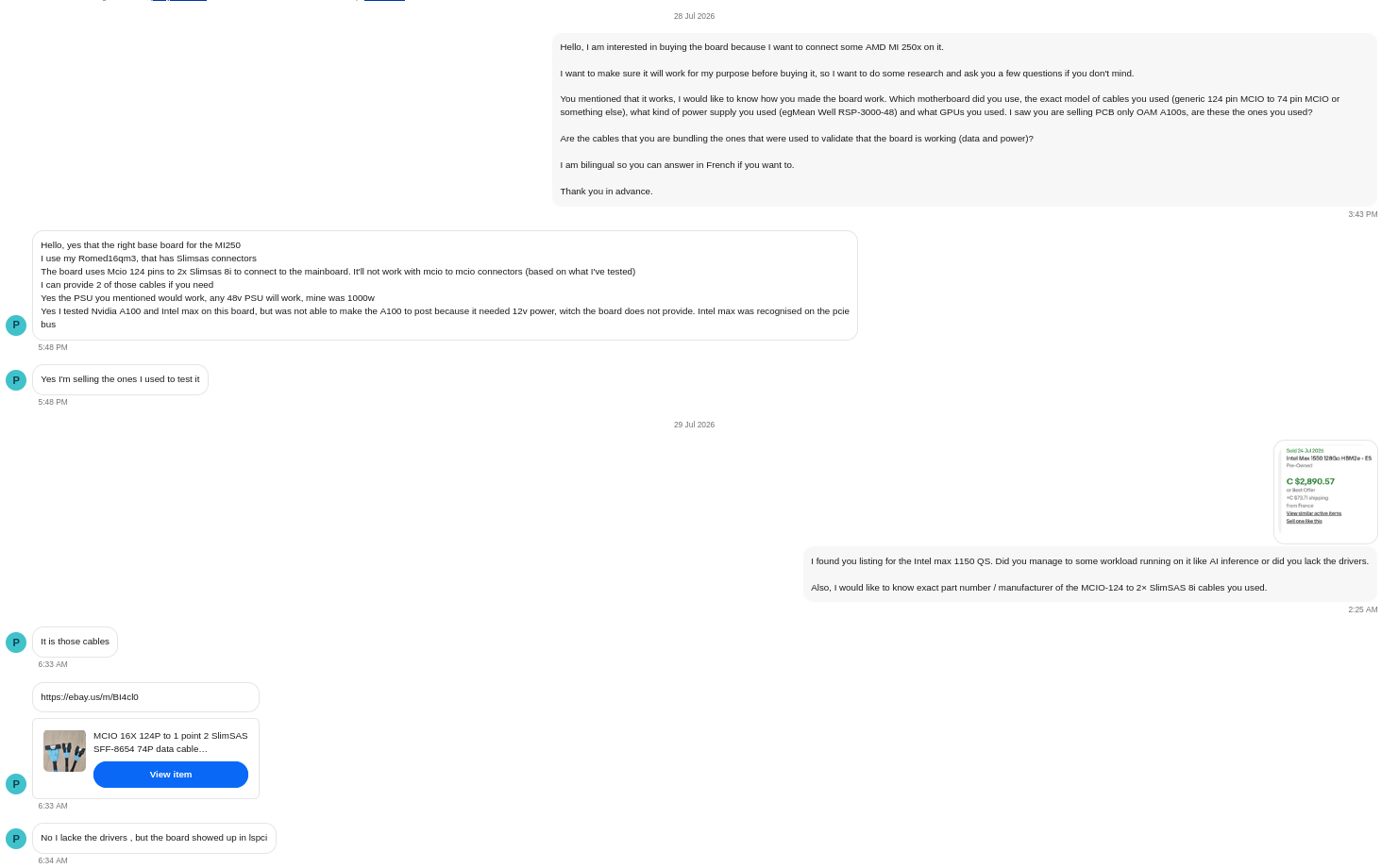

Thought I would share one of the conversations I had with a seller for a AOM-MCM-Q, which I was about to buy, but I was a bit too late.
It confirms that the AOM-MCM-Q can run a GPU, just not the mi 250x, yet…
Has anyone probed the blue connector on the AOM-MCM-Q to see what it connects to.
I wounder if it connects to the mi 250 somehow and it sets the mi 250s power state to on somehow.

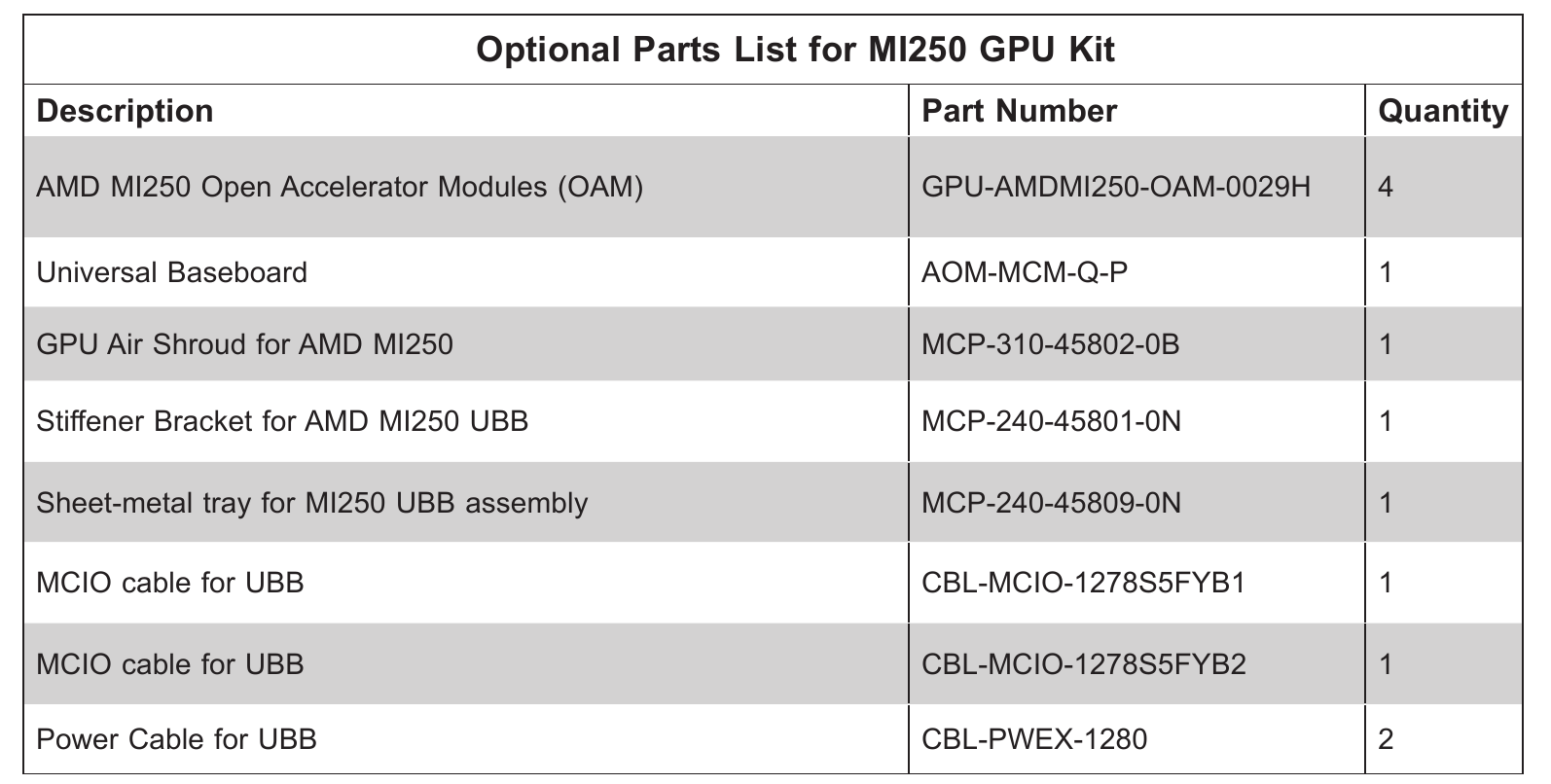

Yeah I’ve wondered about that connector too. It’s present on the H12DGQ-NT6 as well, but there’s no listed connector cable for it in the parts list from the server’s manual.
One thing worth ensuring if you pick up the AOM-MCM-Q is that it should come with a stiffener bracket, which the seller left out of mine. I’m most likely going to build one.
Here’s the server manual as well:
supermicro-AS-4124GQ-TNMI.pdf (47.5 MB)
When I was rereading the thread, I noticed you were talking the module, which I assume is the MI 250 or AOM-MCM-Q, is trying to read the master i2c bus of the motherboard (H12DGQ-NT6).
While I was extracting parts of the BIOS of the H12DGQ-NT6, I found a few mentions of "i2cmaster) inside of the BIOS.
Here is a list of this files I extracted. If you need any of them, let me know.
I don’t really want to setup a share, but if I have to I will.
The list:

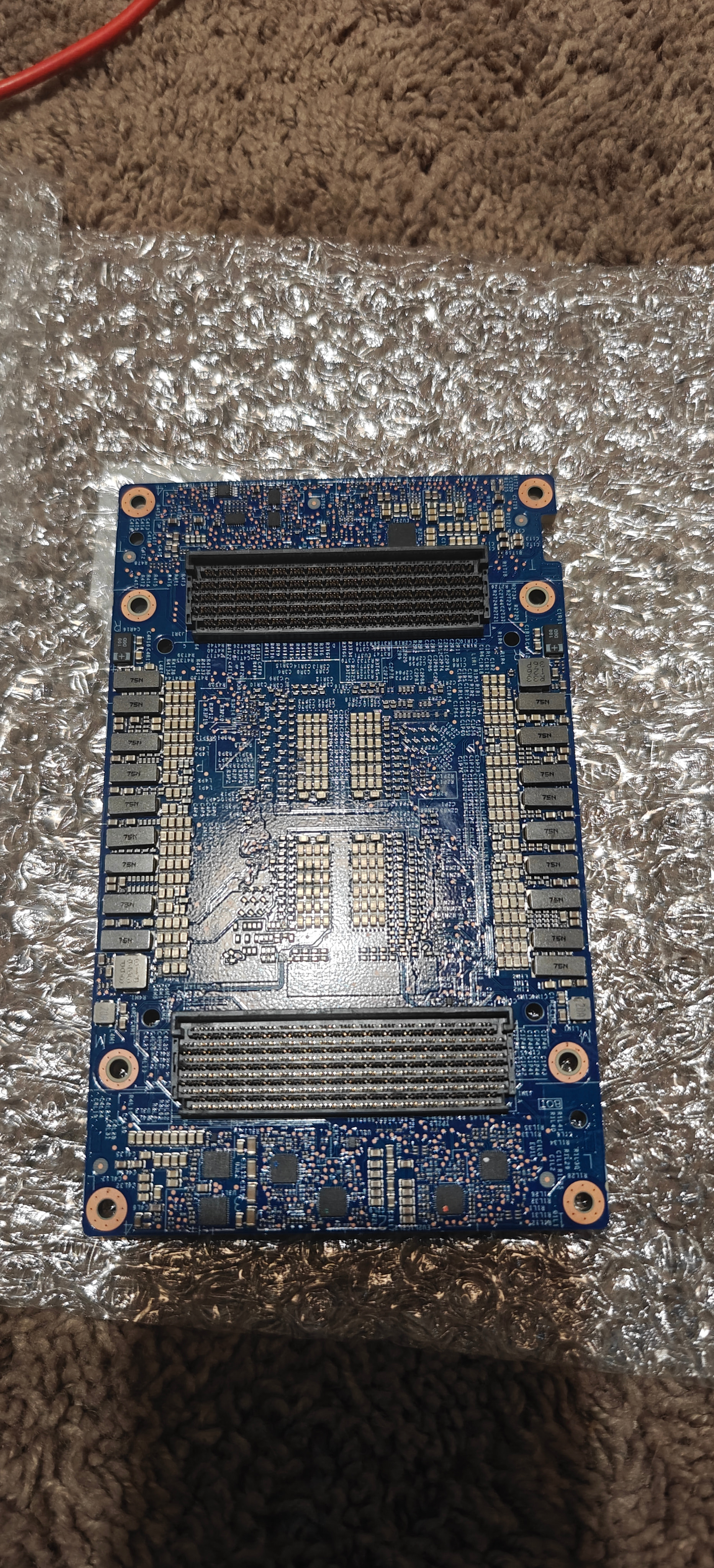

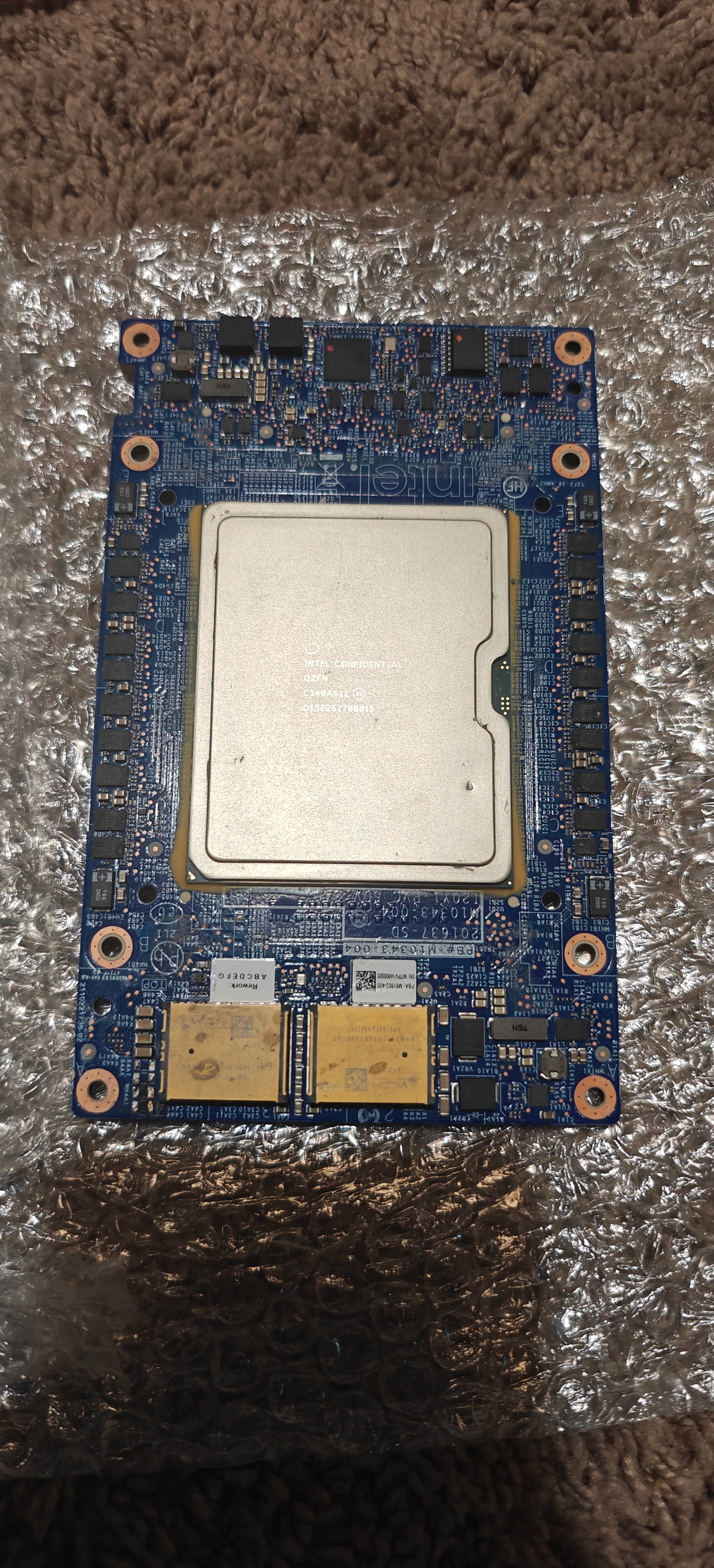

Hey guys, been reading through here, just interested because of OAM, but my card isn’t AMD, I have a Intel data center max 1550 oam card, I’ve been gathering information to best see about getting it to work in my system, which currently has a Intel max 1100 pcie card in it.
I got the MI210s up and running but I was reminded of the lack of AITER and 8 bit is… disappointing.
Someone talking ‘bout me?
I am the wiseass in question finally getting around to reading this thread…

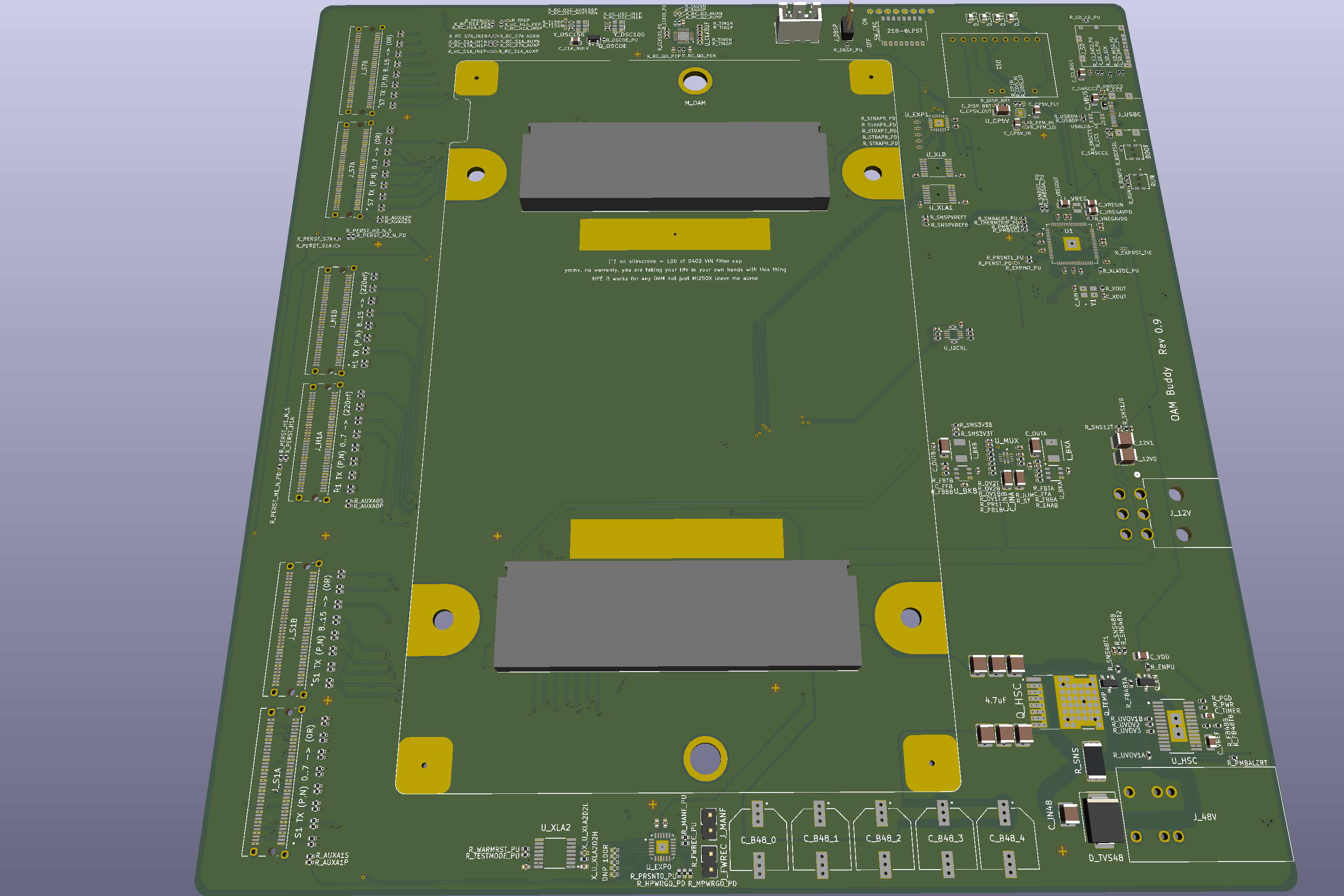

Anyway, yeah, $500 to JLCPCB later, I have a board on the way (well, five boards because that’s the minimum order quantity). ETA 2ish weeks since it’s a pretty complicated one to manufacture, then assembly (I have a little reflow oven in my garage). It’s a mini 1-oam dev baseboard - it wires up all the diagnostic and debug ports from the module through a microcontroller so that I can experiment with the various side channels in a way the commercial ones can’t. Implements the full OCP OAM spec for module management.
I have a hopeful running theory on how to get it working - I think there’s a way to put the modules into a recovery mode then sideband the firmware through the SMBus. As far as the psp - it checks for AMD signed blobs, but that’s exactly what I intend to use. The OAM recovery sequence state machine requires the firmware be signed, but in recovery mode it’s checked at next boot.
So the board has an SD card slot and my hope is that I can drop an official but working firmware on there, then sidechannel load it onto a module.
Am I 100% sure? Hell no. I could not in good conscience tell anyone to run out and buy them. But my confidence is high enough I bought myself three more after doing my work tearing down the first one.
some guy on the launch 80 discord added AITER support for some models
lol i think i know you. you’re the guy that bought an intel max 1550 QS/ES on eday right. apparently it was working on a AOM-MCM-Q.
well good luck with that because this is something completely different. i doubt anyone here will try to hack the firmware or/and drivers to get a one off working.
also quick type, force it to run at pcie gen 4 because all the available OAM boards cap out at this speed. might help with stability.
links? I need it in my veins lol
github com/davetha/aiter-cdna2
OAM v1 caps at Gen4, IIRC - that includes the MI250s. OAM v2 is needed for Gen5. Not sure about the MI3xxs - I am crazy but not drop 20k on that one on ebay to theoretically make it work 5 years before they’re available in bulk crazy. Although if someone wants to buy it for me I’ll totally try to get it working…
All of this is the work of a guy on discord.
INT8 W8A4 support:
github com/davetha/vllm-int8-moe-rocm
Here is the discord link:
discord gg/rKwAUrZEu
Yeah that’s me
I’m not really interested in the firmware part, I think I have most of that figured out. I’m more interested in the conversations about the mcio oam adapters, because I much rather have one of them than the PCIe adapter.
But the seller said it worked best with the Nvidia adapter, and I’ve been in contact with the guy in China on Reddit that has been making adapters boards. He said that gaudi is confirmed working.
I’m also just interested in OAM cards in general, and also interested in the supermicro ubb discussion that’s been going on in here, but it’s not like it matters since I’ve only found one oam 1550 so far ![]()
There are two OAM to MCIO designs being worked on as far as i know, but they are both for the v1 version of OAM, while your GPU uses the v2 version.
ETA is three weeks from what I understand.
Not sure how well they are compatible, but good luck with that.
btw did you get it working
According to Intel press release it should be oam 1.1v, but yeah I’m not sure if either one would work either. Intel stuck pretty closely to the OCP OAM standard so I guess I’m going to pick up a OAM to pcie carrier and get to work on getting it going. But I shouldn’t have to much of an issue with it, my current Intel max 1100 I have running is an ES/QS model.
But either way, still interested in what is happening here, the mi250x was another option I was considering until I found out there were versions with vendor locks
