SAS card (ideally 8 port) for home NAS server (proxmox)

Hi,

I have a home server I built on hardware from my old desktop and I decided that I want to have more disks in it.

I already have this card (it hink? the board looks really similar and I think this is the same controller model) I got from aliexpress, which is working fine so far, it’s getting really hot but I just ziptied a fan to it:

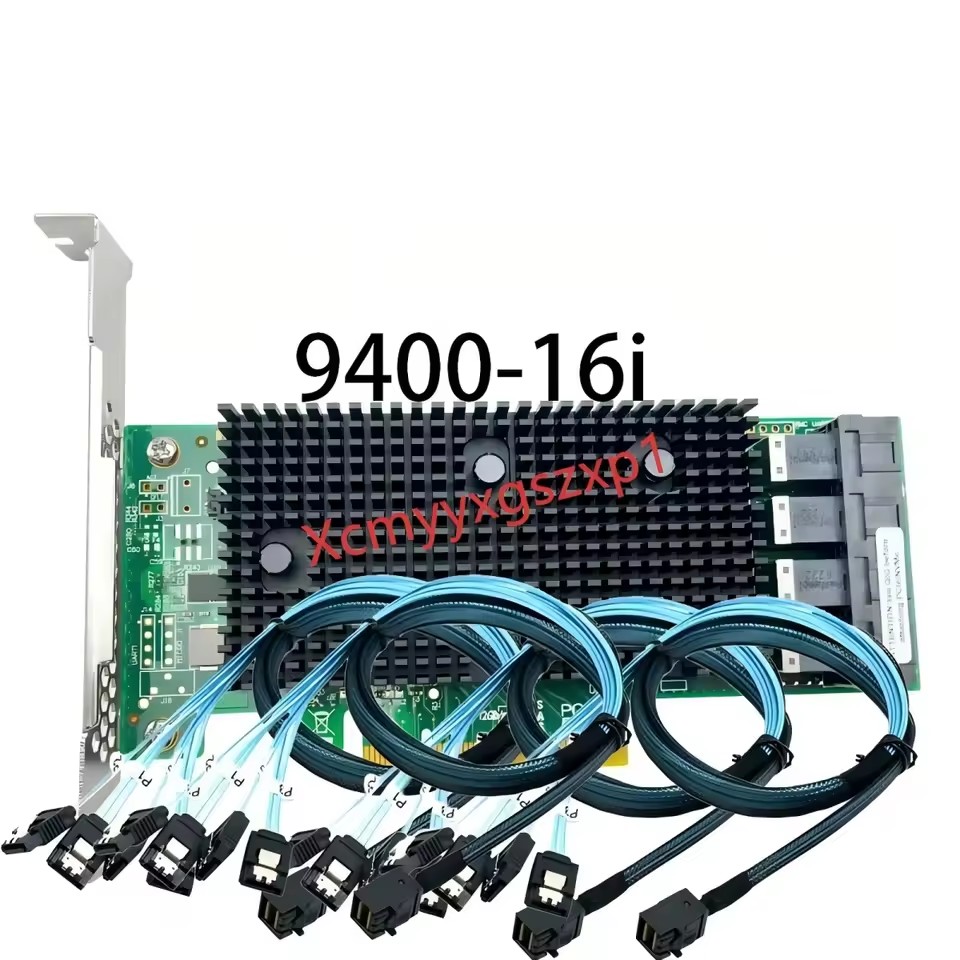

LSI 9400-16i SATA/SAS HBA

https://pl.aliexpress.com/item/1005012360215393.html

And I still have one PCI-E 3.0 x16 slot I could put stuff into, I was thinking about buying the same controller again but maybe there is a way to get more out of that x16 slot I have, ideally I’d like to have twice as many SAS ports on it.

I already tried looking on ali and the best I found is this:

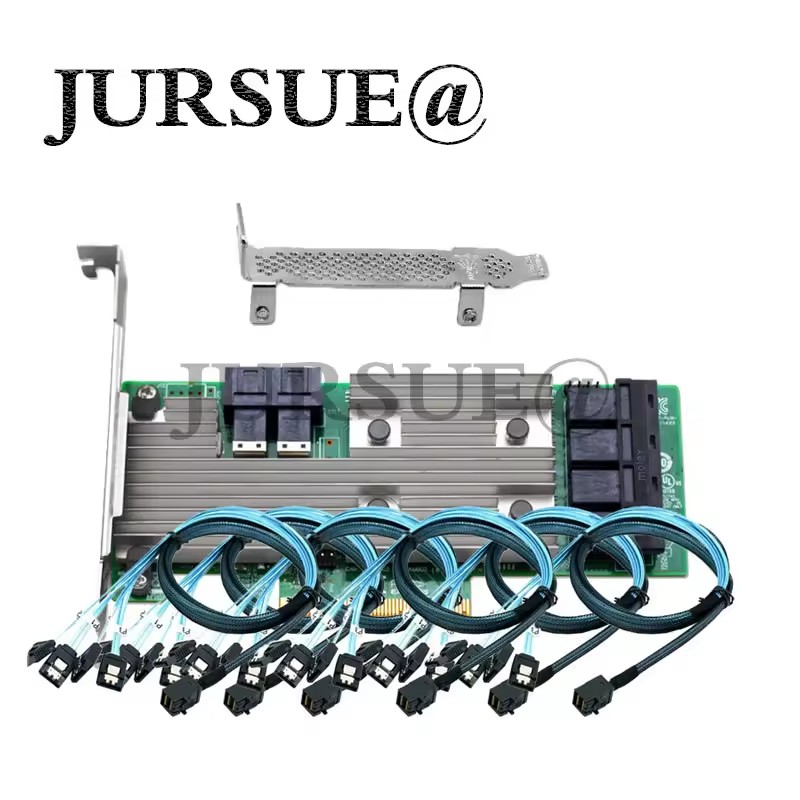

LSI Logic Mode IT 9305-24i 24 port

https://pl.aliexpress.com/item/1005010536121175.html

The problem is that I would pay more than twice as much for only 2 more SAS ports, pretty bad deal imo as I’m not that desperate to fit more disks into that NAS.

Do you guys know of any SAS cards with 8 ports?
What should I look for on aliexpress? Also, I’m from Europe (Poland) if that changes anything. The local ebay equivalent (allegro) doesn’t appear to have any good deals on any such hardware, I already tried looking.

you can get something like this (SAS expander)
https://www.ebay.com/itm/318149183779
https://www.ebay.com/itm/165623276632

Hm, won’t that x4 connection be a bottleneck on pci-e 3?

PCIE is just for power.
If you look at the AEC card it has a molex power connector too (have used that one assume its the same for others)

What do you mean? I’m not connecting this stuff to any external disk shelf all of this stuff is just plugged into the motherboard and then with SAS → 4xSATA cables to a bunch of second hand disks and I’m using software RAID (ZFS).

You would connect your LSI card into the expander card and then have more outputs for drives.

Here is a quick rundown on using a x4 card to add disks too

Think of the expanders as switches for drives

1 Like

Hm, I knew you can get basically a switch for SAS, I didn’t know they were internal onces.

I will look into that, thanks.

NP dont let the bandwidth bother you as while you could hit it, you generally are adding disks for redundancy / storage needs not speed.
