Pixel 6A battery removal and hardwire power "mod"

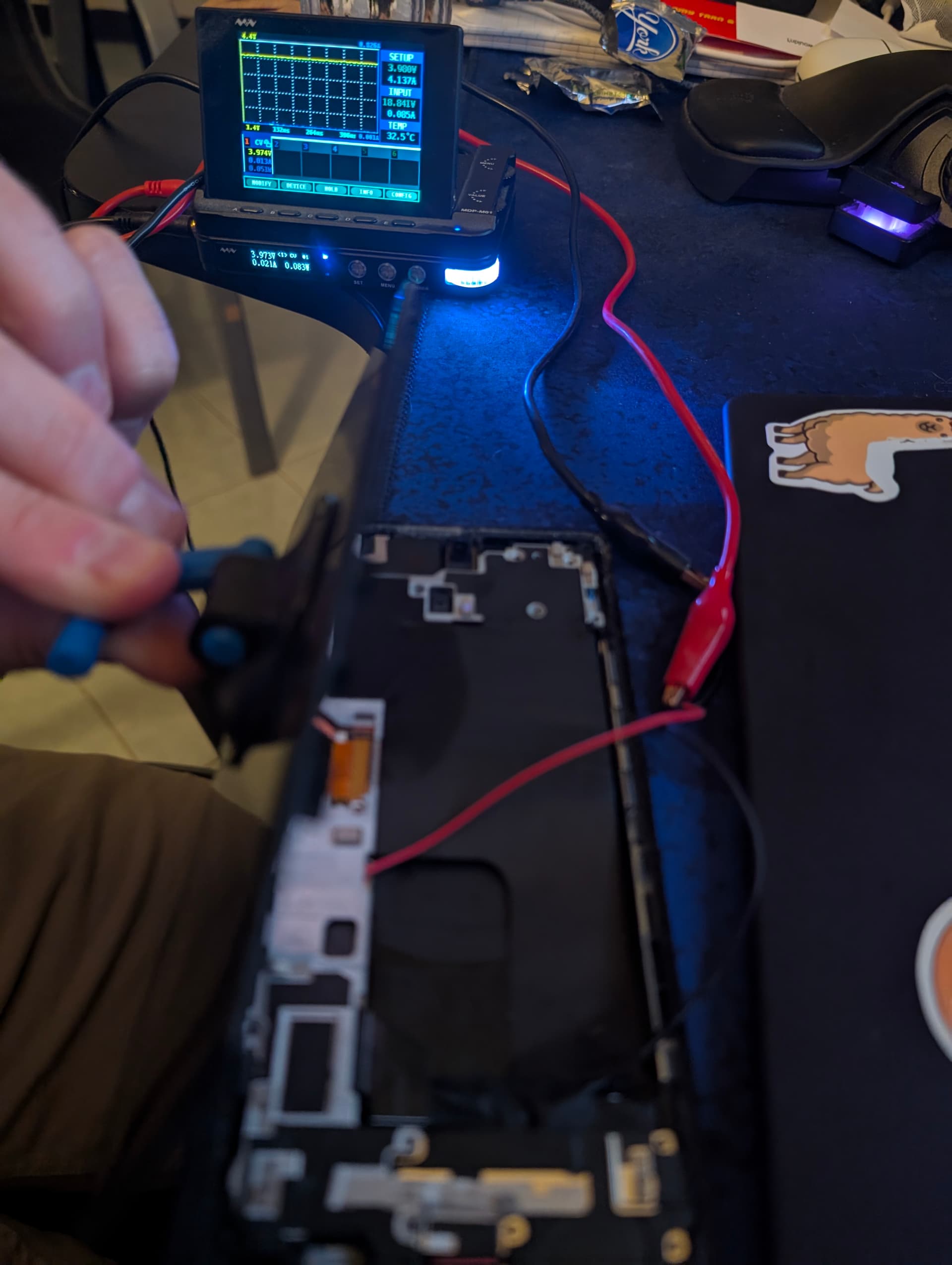

Pixel 6a has a bad battery so I removed it, removed the battery protection board from the batter and wired it up to my adjustable power supply and it turned on to my surprise. Still need to find a permanent solution for this.



2 Likes

thats sick! I have an old pixel that I use as a wall-mounted control panel for home assistant, and not needing a battery would be so nice.

1 Like

Nothing crazy needed to disassemble the phone just some plastic shims and an ifixit guide. I do have a bit of soldering experience nothing advanced though.

The phone will still think it has the old battery in it though.

Have you tried flashing Graphene or Lineage? Wondering if that makes any improvement.

I have not. its been a long time since I tried anything like that.

but the power efficiency was pretty damn good, I would want to baseline it with this OS then see if changing the OS makes a big difference in power consumption. Ill need some kind of benchmark.

Small update I took the battery board out and wired a new battery to it to keep it energized because some boards will kill themselves if they see the battery lost power completely(lots of laptops do this BS). I don’t really want to have to buy a new battery but if it stops working I will. its a great phone still.

1 Like

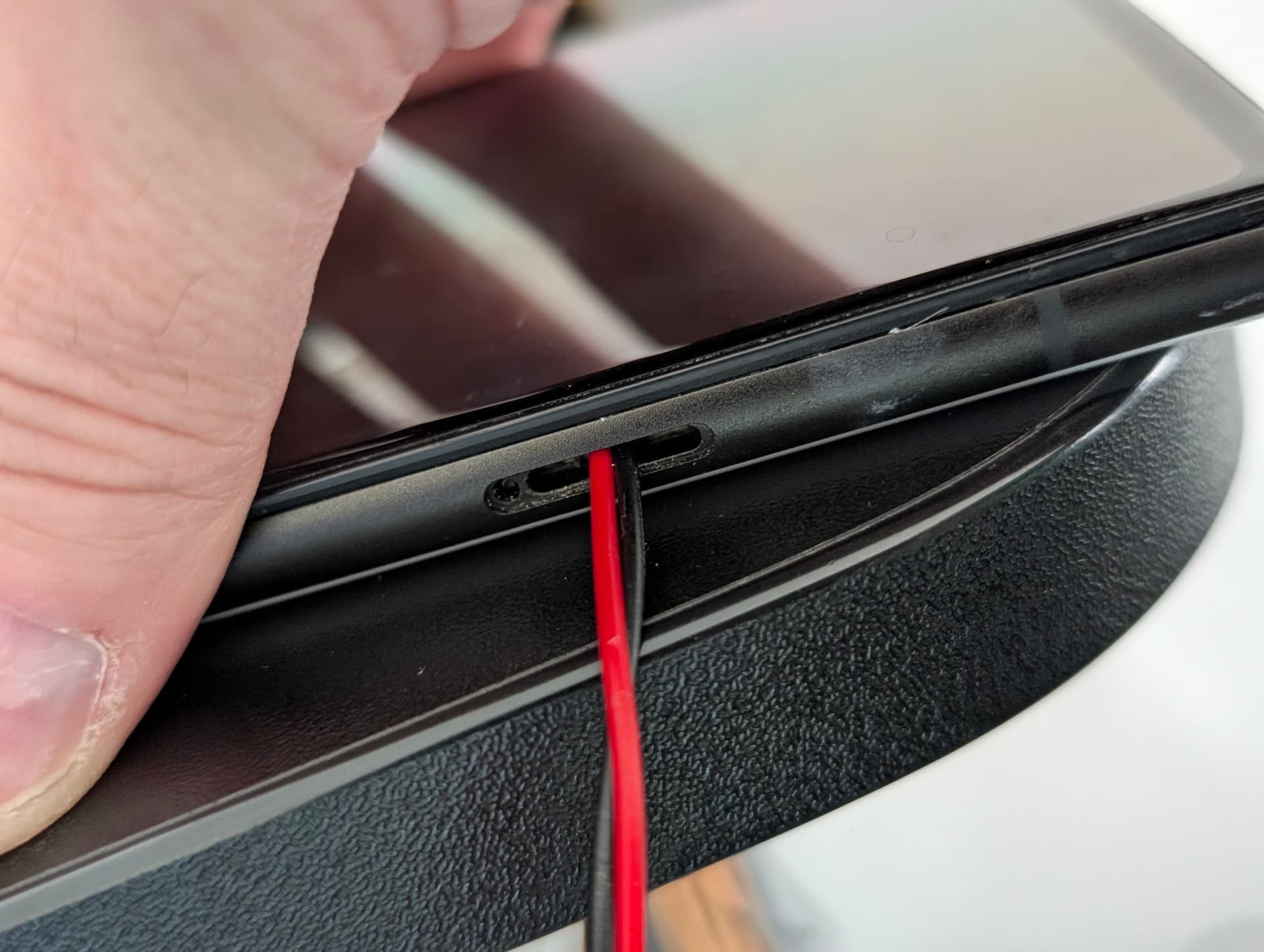

Here I am demonstrating that you can power it via the charging port no issue or via the BMS wires coming out of the sim card slot.

Update!!!

The mod is nearly complete and the BMS board that was part of the battery does not lock out when powered down at least only for a minute. So just need to screw seal it up! It’s exciting.

Edit: BMS board stays functional under long term power removal.
Take note laptop battery manufactures…

1 Like

So it will run from the charging port only with no other power supply? Like a USB-C charger only?

Or it needs to be both fed from the “spoofed” battery and the charging port?

1 Like

Yes it runs from the charging port only, with or without power to the battery, aka spoofed battery power.

when “charging” the phone heats up a lot, I need to see if I shorted out the SIM card slot as I smashed it a bit to get the wires out through there, this is not an issue when powered from the battery wires.

another note, the phone will not turn on if you are only giving it usb 3 power which is think its only 5v .5 amps I have not checked those numbers with a usb power dongle, however usbc fast charging boots the phone just fine. A combo of battery and low power usb works (except for the initial boot when the battery has been disconnected )

2 Likes

Cool! What oscilloscope is that?

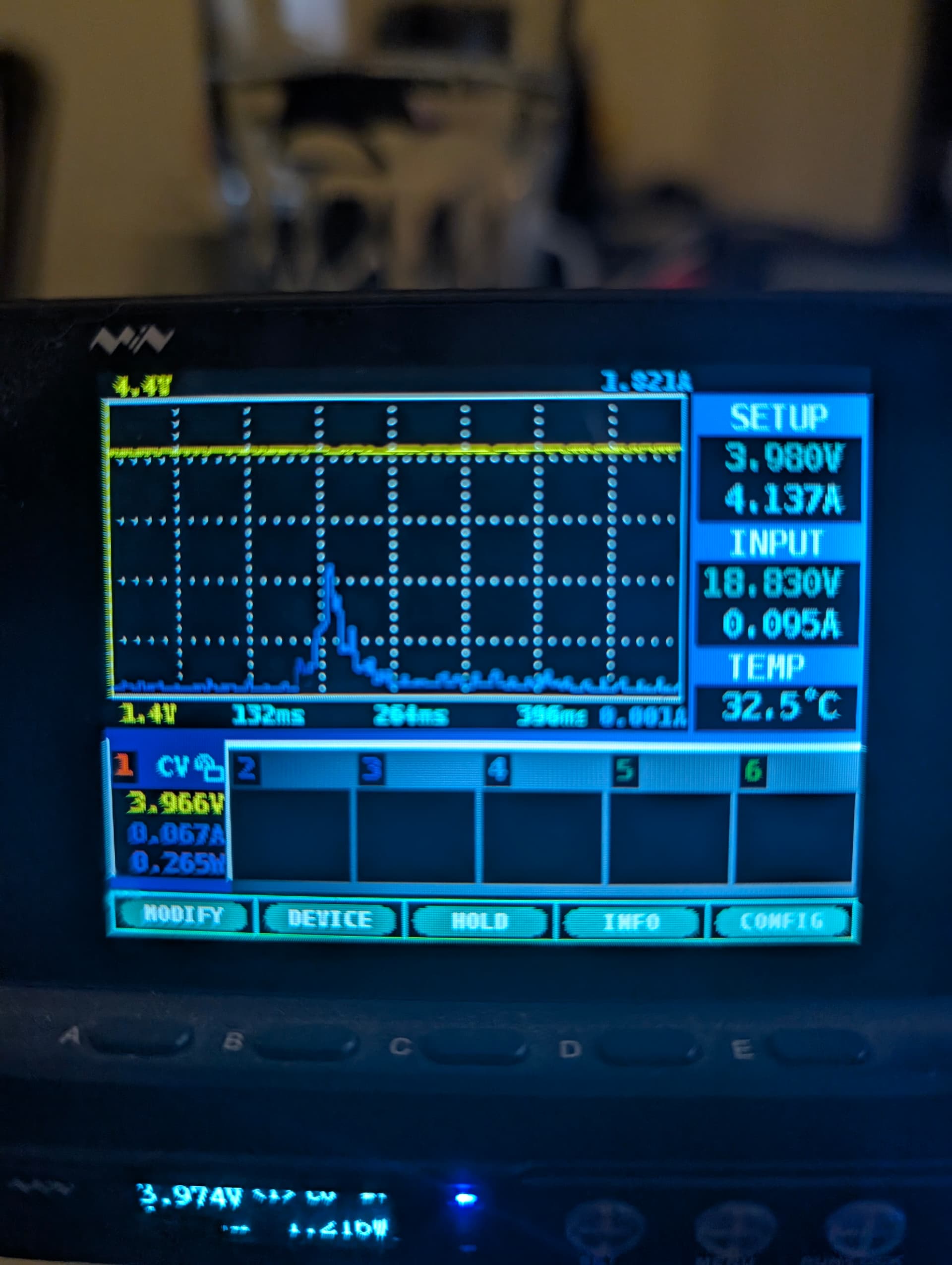

That is a Miniware MDP model power supply. not sure of the exact model number.
I wish I had an oscilloscope, it supplies power while giving readings over time of the voltage and current.

as seen in the video from top right going clockwise
SETUP: output power setting
INPUT: the power being supplied to the unit.
1 cv: this one is the output power as well as the power being read across the leads, this is normally in constant voltage mode it will not really do constant current unless the load allows it.

Edit: the difference between this and an oscilloscope being the resolution this would be an absolute trash oscilloscope. It’s sample rate is very low and not good for actually checking anything more than voltage.

1 Like

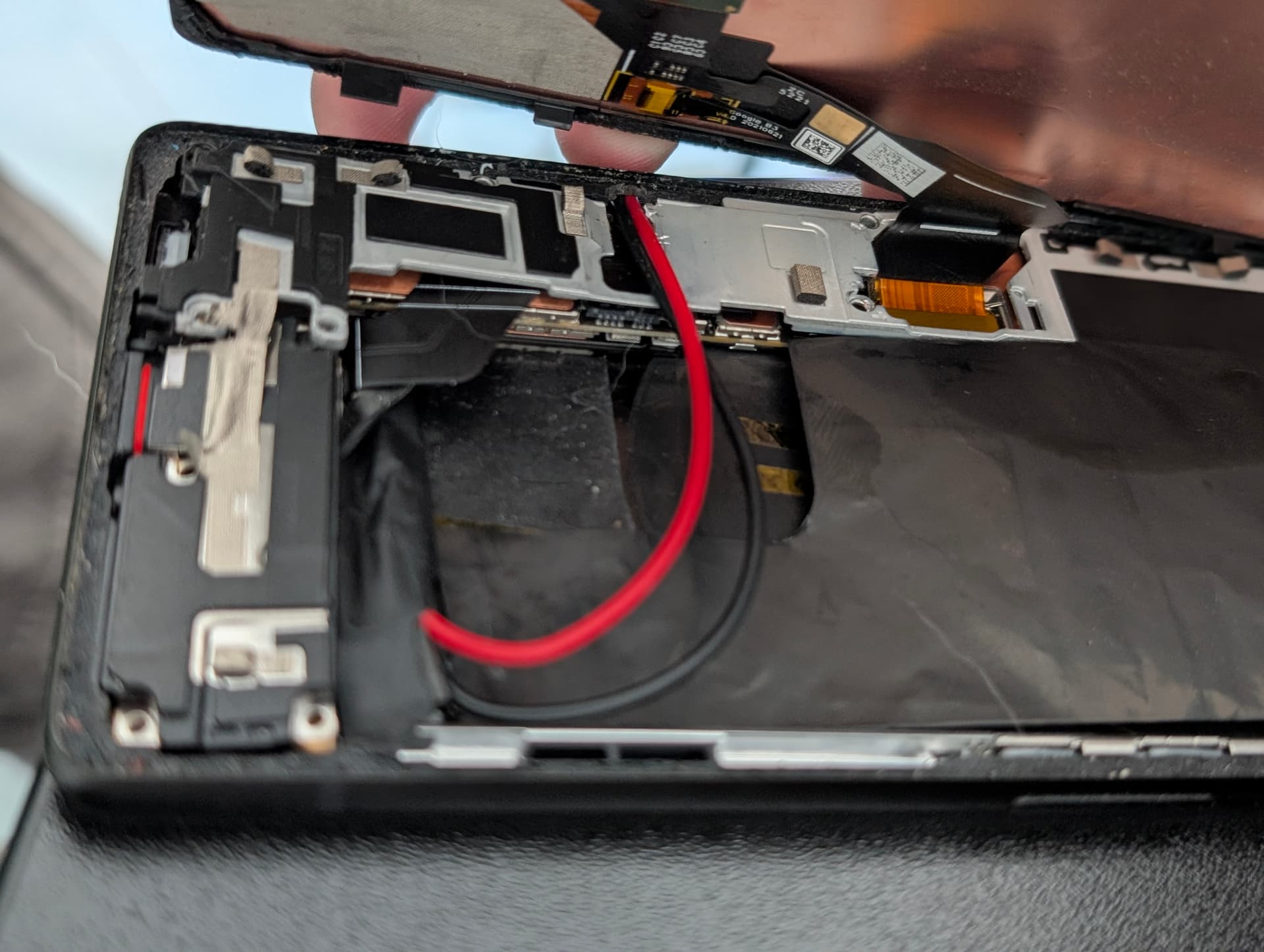

I removed the battery wire from the sim port and put the empty sim drawer back in and the heating up reduced dramatically. So yeah don’t use that unless you put a good insulator in there.
