Passthrough AverMedia Live Gamer 4K GC573

Software & Operating Systems Linux
1

I’m trying PCIe passthrough for AverMedia Live Gamer 4K GC573 (HDMI capture 4K@60p … PCIe4x 2.0 card). Passthrough and install ation driver/grab_SW in GuestOS looks succesfull. When I’m trying to use ReCentral4 (grab SW) it will freeze. Based on GRUB opts (irqpoll, …) ones of results is Stopping IRQ# in dmesg (probably thru sharing IRQ between HostOS and GuestOS).

HW: X399 Taichi, X1950, HostOS: Xubuntu 18.04 (vanilla 4.18.2+gnif patch), GuestOS: Windows 10 (passthrough GTX1080Ti + HD5770 + Avermedia … device 42:00).

1.PCIe 16x slot: GTX1080Ti (boot vga, passthrough to Win10)
2.PCIe 8x slot: Avermedia GC573
3.PCIe 16x slot: GTX960 (HostOS + proprietary drivers)
4.PCIe 8x slot: HD5770

I tried replace HD5770 with Avermedia (without IRQ sharing before GuestOS boot?). It doesn’t work too.

lspci -t
root@xub184:~# lspci -t
-+-[0000:40]-+-00.0
 |           +-00.2
 |           +-01.0
 |           +-01.1-[41]----00.0
 |           +-01.3-[42]----00.0
 |           +-02.0
 |           +-03.0
 |           +-03.1-[43]--+-00.0
 |           |            \-00.1
 |           +-04.0
 |           +-07.0
 |           +-07.1-[44]--+-00.0
 |           |            +-00.2
 |           |            \-00.3
 |           +-08.0
 |           \-08.1-[45]--+-00.0
 |                        \-00.2
 \-[0000:00]-+-00.0
             +-00.2
             +-01.0
             +-01.1-[01-07]--+-00.0
             |               +-00.1
             |               \-00.2-[02-07]--+-00.0-[03]--
             |                               +-04.0-[04]----00.0
             |                               +-05.0-[05]----00.0
             |                               +-06.0-[06]----00.0
             |                               \-07.0-[07]--+-00.0
             |                                            +-00.1
             |                                            \-00.2
             +-01.2-[08]----00.0
             +-01.3-[09]--+-00.0
             |            \-00.1
             +-02.0
             +-03.0
             +-03.1-[0a]--+-00.0
             |            \-00.1
             +-04.0
             +-07.0
             +-07.1-[0b]--+-00.0
             |            +-00.2
             |            \-00.3
             +-08.0
             +-08.1-[0c]--+-00.0
             |            +-00.2
             |            \-00.3
             +-14.0
             +-14.3
             +-18.0
             +-18.1
             +-18.2
             +-18.3
             +-18.4
             +-18.5
             +-18.6
             +-18.7
             +-19.0
             +-19.1
             +-19.2
             +-19.3
             +-19.4
             +-19.5
             +-19.6
             \-19.7
PCIe Groups
root@xub184:~# sh ./pci_group.sh
IOMMU Group 0 00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 1 00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 10 00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 59)
IOMMU Group 10 00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 11 00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1460]
IOMMU Group 11 00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1461]
IOMMU Group 11 00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1462]
IOMMU Group 11 00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1463]
IOMMU Group 11 00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1464]
IOMMU Group 11 00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1465]
IOMMU Group 11 00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric Device 18h Function 6 [1022:1466]
IOMMU Group 11 00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 [1022:1467]
IOMMU Group 12 00:19.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0 [1022:1460]
IOMMU Group 12 00:19.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1 [1022:1461]
IOMMU Group 12 00:19.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2 [1022:1462]
IOMMU Group 12 00:19.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3 [1022:1463]
IOMMU Group 12 00:19.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4 [1022:1464]
IOMMU Group 12 00:19.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5 [1022:1465]
IOMMU Group 12 00:19.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric Device 18h Function 6 [1022:1466]
IOMMU Group 12 00:19.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7 [1022:1467]
IOMMU Group 13 01:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43ba] (rev 02)
IOMMU Group 13 01:00.1 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b6] (rev 02)
IOMMU Group 13 01:00.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43b1] (rev 02)
IOMMU Group 13 02:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port [1022:43b4] (rev 02)
IOMMU Group 13 02:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port [1022:43b4] (rev 02)
IOMMU Group 13 02:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port [1022:43b4] (rev 02)
IOMMU Group 13 02:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port [1022:43b4] (rev 02)
IOMMU Group 13 02:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port [1022:43b4] (rev 02)
IOMMU Group 13 04:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03)
IOMMU Group 13 05:00.0 Network controller [0280]: Intel Corporation Device [8086:24fb] (rev 10)
IOMMU Group 13 06:00.0 Ethernet controller [0200]: Intel Corporation I211 Gigabit Network Connection [8086:1539] (rev 03)
IOMMU Group 13 07:00.0 Serial controller [0700]: MosChip Semiconductor Technology Ltd. PCIe 9912 Multi-I/O Controller [9710:9912]
IOMMU Group 13 07:00.1 Serial controller [0700]: MosChip Semiconductor Technology Ltd. PCIe 9912 Multi-I/O Controller [9710:9912]
IOMMU Group 13 07:00.2 Parallel controller [0701]: MosChip Semiconductor Technology Ltd. PCIe 9912 Multi-I/O Controller [9710:9912]
IOMMU Group 14 08:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961 [144d:a804]
IOMMU Group 15 09:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Juniper XT [Radeon HD 5770] [1002:68b8]
IOMMU Group 15 09:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Juniper HDMI Audio [Radeon HD 5700 Series] [1002:aa58]
IOMMU Group 16 0a:00.0 VGA compatible controller [0300]: NVIDIA Corporation GM206 [GeForce GTX 960] [10de:1401] (rev a1)
IOMMU Group 16 0a:00.1 Audio device [0403]: NVIDIA Corporation Device [10de:0fba] (rev a1)
IOMMU Group 17 40:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 18 40:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 19 40:01.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 2 00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 20 40:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 21 40:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 22 40:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 23 40:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 24 40:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 24 40:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B [1022:1454]
IOMMU Group 24 44:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:145a]
IOMMU Group 24 44:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor [1022:1456]
IOMMU Group 24 44:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller [1022:145c]
IOMMU Group 25 40:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 25 40:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B [1022:1454]
IOMMU Group 25 45:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:1455]
IOMMU Group 25 45:00.2 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
IOMMU Group 26 41:00.0 Non-Volatile memory controller [0108]: Device [1987:5007] (rev 01)
IOMMU Group 27 42:00.0 Multimedia video controller [0400]: Avermedia Technologies Inc Device [1461:0054]
IOMMU Group 28 43:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP102 [GeForce GTX 1080 Ti] [10de:1b06] (rev a1)
IOMMU Group 28 43:00.1 Audio device [0403]: NVIDIA Corporation GP102 HDMI Audio Controller [10de:10ef] (rev a1)
IOMMU Group 3 00:01.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 4 00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 5 00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 6 00:03.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge [1022:1453]
IOMMU Group 7 00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 8 00:07.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 8 00:07.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B [1022:1454]
IOMMU Group 8 0b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:145a]
IOMMU Group 8 0b:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor [1022:1456]
IOMMU Group 8 0b:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller [1022:145c]
IOMMU Group 9 00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge [1022:1452]
IOMMU Group 9 00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B [1022:1454]
IOMMU Group 9 0c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device [1022:1455]
IOMMU Group 9 0c:00.2 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
IOMMU Group 9 0c:00.3 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller [1022:1457]
lspci -kvn
root@xub184:~# lspci -kvn
00:00.0 0600: 1022:1450
	Subsystem: 1849:1450
	Flags: fast devsel, NUMA node 0

00:00.2 0806: 1022:1451
	Subsystem: 1022:1451
	Flags: bus master, fast devsel, latency 0, IRQ 26, NUMA node 0
	Capabilities: [40] Secure device <?>
	Capabilities: [64] MSI: Enable+ Count=1/4 Maskable- 64bit+
	Capabilities: [74] HyperTransport: MSI Mapping Enable+ Fixed+

00:01.0 0600: 1022:1452
	Flags: fast devsel, NUMA node 0

00:01.1 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, NUMA node 0
	Bus: primary=00, secondary=01, subordinate=07, sec-latency=0
	I/O behind bridge: 00003000-00005fff
	Memory behind bridge: ef200000-ef6fffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Capabilities: [3c4] #23
	Kernel driver in use: pcieport

00:01.2 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, NUMA node 0
	Bus: primary=00, secondary=08, subordinate=08, sec-latency=0
	Memory behind bridge: efc00000-efcfffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Capabilities: [3c4] #23
	Kernel driver in use: pcieport

00:01.3 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, NUMA node 0
	Bus: primary=00, secondary=09, subordinate=09, sec-latency=0
	I/O behind bridge: 00007000-00007fff
	Memory behind bridge: efb00000-efbfffff
	Prefetchable memory behind bridge: 00000000d0000000-00000000dfffffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Capabilities: [3c4] #23
	Kernel driver in use: pcieport

00:02.0 0600: 1022:1452
	Flags: fast devsel, NUMA node 0

00:03.0 0600: 1022:1452
	Flags: fast devsel, NUMA node 0

00:03.1 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, NUMA node 0
	Bus: primary=00, secondary=0a, subordinate=0a, sec-latency=0
	I/O behind bridge: 00006000-00006fff
	Memory behind bridge: ee000000-ef0fffff
	Prefetchable memory behind bridge: 00000000b0000000-00000000c1ffffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Capabilities: [3c4] #23
	Kernel driver in use: pcieport

00:04.0 0600: 1022:1452
	Flags: fast devsel, NUMA node 0

00:07.0 0600: 1022:1452
	Flags: fast devsel, NUMA node 0

00:07.1 0604: 1022:1454 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 24, NUMA node 0
	Bus: primary=00, secondary=0b, subordinate=0b, sec-latency=0
	Memory behind bridge: ef700000-ef9fffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot-), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1454
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Kernel driver in use: pcieport

00:08.0 0600: 1022:1452
	Flags: fast devsel, NUMA node 0

00:08.1 0604: 1022:1454 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 28, NUMA node 0
	Bus: primary=00, secondary=0c, subordinate=0c, sec-latency=0
	Memory behind bridge: efa00000-efafffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot-), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1454
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Kernel driver in use: pcieport

00:14.0 0c05: 1022:790b (rev 59)
	Subsystem: 1849:ffff
	Flags: 66MHz, medium devsel, NUMA node 0
	Kernel driver in use: piix4_smbus
	Kernel modules: i2c_piix4, sp5100_tco

00:14.3 0601: 1022:790e (rev 51)
	Subsystem: 1849:ffff
	Flags: bus master, 66MHz, medium devsel, latency 0, NUMA node 0

00:18.0 0600: 1022:1460
	Flags: fast devsel, NUMA node 0

00:18.1 0600: 1022:1461
	Flags: fast devsel, NUMA node 0

00:18.2 0600: 1022:1462
	Flags: fast devsel, NUMA node 0

00:18.3 0600: 1022:1463
	Flags: fast devsel, NUMA node 0
	Kernel driver in use: k10temp
	Kernel modules: k10temp

00:18.4 0600: 1022:1464
	Flags: fast devsel, NUMA node 0

00:18.5 0600: 1022:1465
	Flags: fast devsel, NUMA node 0

00:18.6 0600: 1022:1466
	Flags: fast devsel, NUMA node 0

00:18.7 0600: 1022:1467
	Flags: fast devsel, NUMA node 0

00:19.0 0600: 1022:1460
	Flags: fast devsel, NUMA node 0

00:19.1 0600: 1022:1461
	Flags: fast devsel, NUMA node 0

00:19.2 0600: 1022:1462
	Flags: fast devsel, NUMA node 0

00:19.3 0600: 1022:1463
	Flags: fast devsel, NUMA node 0
	Kernel driver in use: k10temp
	Kernel modules: k10temp

00:19.4 0600: 1022:1464
	Flags: fast devsel, NUMA node 0

00:19.5 0600: 1022:1465
	Flags: fast devsel, NUMA node 0

00:19.6 0600: 1022:1466
	Flags: fast devsel, NUMA node 0

00:19.7 0600: 1022:1467
	Flags: fast devsel, NUMA node 0

01:00.0 0c03: 1022:43ba (rev 02) (prog-if 30 [XHCI])
	Subsystem: 1b21:1142
	Flags: bus master, fast devsel, latency 0, IRQ 38, NUMA node 0
	Memory at ef6a0000 (64-bit, non-prefetchable) [size=32K]
	Capabilities: [50] MSI: Enable+ Count=1/8 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [200] #19
	Capabilities: [300] Latency Tolerance Reporting
	Capabilities: [400] L1 PM Substates
	Kernel driver in use: xhci_hcd

01:00.1 0106: 1022:43b6 (rev 02) (prog-if 01 [AHCI 1.0])
	Subsystem: 1b21:1062
	Flags: bus master, fast devsel, latency 0, IRQ 57, NUMA node 0
	Memory at ef680000 (32-bit, non-prefetchable) [size=128K]
	Expansion ROM at ef600000 [disabled] [size=512K]
	Capabilities: [50] MSI: Enable+ Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Kernel driver in use: ahci
	Kernel modules: ahci

01:00.2 0604: 1022:43b1 (rev 02) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 29, NUMA node 0
	Bus: primary=01, secondary=02, subordinate=07, sec-latency=0
	I/O behind bridge: 00003000-00005fff
	Memory behind bridge: ef200000-ef5fffff
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Upstream Port, MSI 00
	Capabilities: [c0] Subsystem: 1b21:0201
	Capabilities: [100] Advanced Error Reporting
	Kernel driver in use: pcieport

02:00.0 0604: 1022:43b4 (rev 02) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 30, NUMA node 0
	Bus: primary=02, secondary=03, subordinate=03, sec-latency=0
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Downstream Port (Slot+), MSI 00
	Capabilities: [c0] Subsystem: 1b21:3306
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [200] #19
	Capabilities: [400] L1 PM Substates
	Kernel driver in use: pcieport

02:04.0 0604: 1022:43b4 (rev 02) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 30, NUMA node 0
	Bus: primary=02, secondary=04, subordinate=04, sec-latency=0
	I/O behind bridge: 00005000-00005fff
	Memory behind bridge: ef500000-ef5fffff
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Downstream Port (Slot+), MSI 00
	Capabilities: [c0] Subsystem: 1b21:3306
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [200] #19
	Capabilities: [400] L1 PM Substates
	Kernel driver in use: pcieport

02:05.0 0604: 1022:43b4 (rev 02) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 31, NUMA node 0
	Bus: primary=02, secondary=05, subordinate=05, sec-latency=0
	Memory behind bridge: ef400000-ef4fffff
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Downstream Port (Slot+), MSI 00
	Capabilities: [c0] Subsystem: 1b21:3306
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [200] #19
	Capabilities: [400] L1 PM Substates
	Kernel driver in use: pcieport

02:06.0 0604: 1022:43b4 (rev 02) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 29, NUMA node 0
	Bus: primary=02, secondary=06, subordinate=06, sec-latency=0
	I/O behind bridge: 00004000-00004fff
	Memory behind bridge: ef300000-ef3fffff
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Downstream Port (Slot+), MSI 00
	Capabilities: [c0] Subsystem: 1b21:3306
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [200] #19
	Capabilities: [400] L1 PM Substates
	Kernel driver in use: pcieport

02:07.0 0604: 1022:43b4 (rev 02) (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 32, NUMA node 0
	Bus: primary=02, secondary=07, subordinate=07, sec-latency=0
	I/O behind bridge: 00003000-00003fff
	Memory behind bridge: ef200000-ef2fffff
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Downstream Port (Slot+), MSI 00
	Capabilities: [c0] Subsystem: 1b21:3306
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [200] #19
	Capabilities: [400] L1 PM Substates
	Kernel driver in use: pcieport

04:00.0 0200: 8086:1539 (rev 03)
	Subsystem: 1849:1539
	Flags: bus master, fast devsel, latency 0, IRQ 30, NUMA node 0
	Memory at ef500000 (32-bit, non-prefetchable) [size=128K]
	I/O ports at 5000 [size=32]
	Memory at ef520000 (32-bit, non-prefetchable) [size=16K]
	Capabilities: [40] Power Management version 3
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
	Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
	Capabilities: [a0] Express Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [140] Device Serial Number 70-85-c2-ff-ff-53-61-f7
	Capabilities: [1a0] Transaction Processing Hints
	Kernel driver in use: igb
	Kernel modules: igb

05:00.0 0280: 8086:24fb (rev 10)
	Subsystem: 8086:2110
	Flags: bus master, fast devsel, latency 0, IRQ 80, NUMA node 0
	Memory at ef400000 (64-bit, non-prefetchable) [size=8K]
	Capabilities: [c8] Power Management version 3
	Capabilities: [d0] MSI: Enable+ Count=1/1 Maskable- 64bit+
	Capabilities: [40] Express Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [140] Device Serial Number 1c-4d-70-ff-ff-62-6f-1a
	Capabilities: [14c] Latency Tolerance Reporting
	Capabilities: [154] L1 PM Substates
	Kernel driver in use: iwlwifi
	Kernel modules: iwlwifi

06:00.0 0200: 8086:1539 (rev 03)
	Subsystem: 1849:1539
	Flags: bus master, fast devsel, latency 0, IRQ 29, NUMA node 0
	Memory at ef300000 (32-bit, non-prefetchable) [size=128K]
	I/O ports at 4000 [size=32]
	Memory at ef320000 (32-bit, non-prefetchable) [size=16K]
	Capabilities: [40] Power Management version 3
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable+ 64bit+
	Capabilities: [70] MSI-X: Enable+ Count=5 Masked-
	Capabilities: [a0] Express Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [140] Device Serial Number 70-85-c2-ff-ff-53-61-f9
	Capabilities: [1a0] Transaction Processing Hints
	Kernel driver in use: igb
	Kernel modules: igb

07:00.0 0700: 9710:9912 (prog-if 02 [16550])
	Subsystem: a000:1000
	Flags: bus master, fast devsel, latency 0, IRQ 32, NUMA node 0
	I/O ports at 3000 [size=8]
	Memory at ef200000 (32-bit, non-prefetchable) [size=4K]
	Memory at ef201000 (32-bit, non-prefetchable) [size=4K]
	Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Virtual Channel
	Capabilities: [800] Advanced Error Reporting
	Kernel driver in use: serial

07:00.1 0700: 9710:9912 (prog-if 02 [16550])
	Subsystem: a000:1000
	Flags: bus master, fast devsel, latency 0, IRQ 30, NUMA node 0
	I/O ports at 3008 [size=8]
	Memory at ef202000 (32-bit, non-prefetchable) [size=4K]
	Memory at ef203000 (32-bit, non-prefetchable) [size=4K]
	Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Kernel driver in use: serial

07:00.2 0701: 9710:9912 (prog-if 03 [IEEE1284])
	Subsystem: a000:2000
	Flags: bus master, fast devsel, latency 0, IRQ 31, NUMA node 0
	I/O ports at 3010 [size=8]
	I/O ports at 3018 [size=8]
	Memory at ef204000 (32-bit, non-prefetchable) [size=4K]
	Memory at ef205000 (32-bit, non-prefetchable) [size=4K]
	Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Power Management version 3
	Capabilities: [80] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Kernel driver in use: parport_serial
	Kernel modules: parport_serial

08:00.0 0108: 144d:a804 (prog-if 02 [NVM Express])
	Subsystem: 144d:a801
	Flags: bus master, fast devsel, latency 0, IRQ 34, NUMA node 0
	Memory at efc00000 (64-bit, non-prefetchable) [size=16K]
	Capabilities: [40] Power Management version 3
	Capabilities: [50] MSI: Enable- Count=1/32 Maskable- 64bit+
	Capabilities: [70] Express Endpoint, MSI 00
	Capabilities: [b0] MSI-X: Enable+ Count=8 Masked-
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [148] Device Serial Number 00-00-00-00-00-00-00-00
	Capabilities: [158] Power Budgeting <?>
	Capabilities: [168] #19
	Capabilities: [188] Latency Tolerance Reporting
	Capabilities: [190] L1 PM Substates
	Kernel driver in use: nvme

09:00.0 0300: 1002:68b8 (prog-if 00 [VGA controller])
	Subsystem: 1002:2543
	Flags: fast devsel, IRQ 11, NUMA node 0
	Memory at d0000000 (64-bit, prefetchable) [disabled] [size=256M]
	Memory at efb20000 (64-bit, non-prefetchable) [disabled] [size=128K]
	I/O ports at 7000 [disabled] [size=256]
	Expansion ROM at efb00000 [disabled] [size=128K]
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Legacy Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: vfio-pci
	Kernel modules: radeon

09:00.1 0403: 1002:aa58
	Subsystem: 1002:aa58
	Flags: bus master, fast devsel, latency 0, IRQ 10, NUMA node 0
	Memory at efb40000 (64-bit, non-prefetchable) [size=16K]
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Legacy Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: vfio-pci
	Kernel modules: snd_hda_intel

0a:00.0 0300: 10de:1401 (rev a1) (prog-if 00 [VGA controller])
	Subsystem: 1043:8520
	Flags: bus master, fast devsel, latency 0, IRQ 73, NUMA node 0
	Memory at ee000000 (32-bit, non-prefetchable) [size=16M]
	Memory at b0000000 (64-bit, prefetchable) [size=256M]
	Memory at c0000000 (64-bit, prefetchable) [size=32M]
	I/O ports at 6000 [size=128]
	[virtual] Expansion ROM at ef000000 [disabled] [size=512K]
	Capabilities: [60] Power Management version 3
	Capabilities: [68] MSI: Enable+ Count=1/1 Maskable- 64bit+
	Capabilities: [78] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Virtual Channel
	Capabilities: [250] Latency Tolerance Reporting
	Capabilities: [258] L1 PM Substates
	Capabilities: [128] Power Budgeting <?>
	Capabilities: [420] Advanced Error Reporting
	Capabilities: [600] Vendor Specific Information: ID=0001 Rev=1 Len=024 <?>
	Capabilities: [900] #19
	Kernel driver in use: nvidia
	Kernel modules: nvidiafb, nouveau, nvidia_drm, nvidia

0a:00.1 0403: 10de:0fba (rev a1)
	Subsystem: 1043:8520
	Flags: bus master, fast devsel, latency 0, IRQ 81, NUMA node 0
	Memory at ef080000 (32-bit, non-prefetchable) [size=16K]
	Capabilities: [60] Power Management version 3
	Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Express Endpoint, MSI 00
	Kernel driver in use: snd_hda_intel
	Kernel modules: snd_hda_intel

0b:00.0 1300: 1022:145a
	Subsystem: 1022:145a
	Flags: bus master, fast devsel, latency 0, NUMA node 0
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19

0b:00.2 1080: 1022:1456
	Subsystem: 1022:1456
	Flags: bus master, fast devsel, latency 0, IRQ 74, NUMA node 0
	Memory at ef800000 (32-bit, non-prefetchable) [size=1M]
	Memory at ef900000 (32-bit, non-prefetchable) [size=8K]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/2 Maskable- 64bit+
	Capabilities: [c0] MSI-X: Enable+ Count=2 Masked-
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: ccp
	Kernel modules: ccp

0b:00.3 0c03: 1022:145c (prog-if 30 [XHCI])
	Subsystem: 1022:d102
	Flags: bus master, fast devsel, latency 0, IRQ 40, NUMA node 0
	Memory at ef700000 (64-bit, non-prefetchable) [size=1M]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable+ Count=1/8 Maskable- 64bit+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: xhci_hcd

0c:00.0 1300: 1022:1455
	Subsystem: 1022:1455
	Flags: bus master, fast devsel, latency 0, NUMA node 0
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19

0c:00.2 0106: 1022:7901 (rev 51) (prog-if 01 [AHCI 1.0])
	Subsystem: 1849:ffff
	Flags: bus master, fast devsel, latency 0, IRQ 59, NUMA node 0
	Memory at efa08000 (32-bit, non-prefetchable) [size=4K]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable+ Count=1/16 Maskable- 64bit+
	Capabilities: [d0] SATA HBA v1.0
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: ahci
	Kernel modules: ahci

0c:00.3 0403: 1022:1457
	Subsystem: 1849:1220
	Flags: bus master, fast devsel, latency 0, IRQ 83, NUMA node 0
	Memory at efa00000 (32-bit, non-prefetchable) [size=32K]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable+ Count=1/1 Maskable- 64bit+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: snd_hda_intel
	Kernel modules: snd_hda_intel

40:00.0 0600: 1022:1450
	Subsystem: 1022:1450
	Flags: fast devsel

40:00.2 0806: 1022:1451
	Subsystem: 1022:1451
	Flags: bus master, fast devsel, latency 0, IRQ 27
	Capabilities: [40] Secure device <?>
	Capabilities: [64] MSI: Enable+ Count=1/4 Maskable- 64bit+
	Capabilities: [74] HyperTransport: MSI Mapping Enable+ Fixed+

40:01.0 0600: 1022:1452
	Flags: fast devsel

40:01.1 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0
	Bus: primary=40, secondary=41, subordinate=41, sec-latency=0
	Memory behind bridge: ad700000-ad7fffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Kernel driver in use: pcieport

40:01.3 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0
	Bus: primary=40, secondary=42, subordinate=42, sec-latency=0
	Memory behind bridge: ad600000-ad6fffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Kernel driver in use: pcieport

40:02.0 0600: 1022:1452
	Flags: fast devsel

40:03.0 0600: 1022:1452
	Flags: fast devsel

40:03.1 0604: 1022:1453 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0
	Bus: primary=40, secondary=43, subordinate=43, sec-latency=0
	I/O behind bridge: 0000f000-0000ffff
	Memory behind bridge: ac000000-ad0fffff
	Prefetchable memory behind bridge: 0000000090000000-00000000a1ffffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot+), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1453
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Capabilities: [2a0] Access Control Services
	Capabilities: [370] L1 PM Substates
	Capabilities: [380] Downstream Port Containment
	Kernel driver in use: pcieport

40:04.0 0600: 1022:1452
	Flags: fast devsel

40:07.0 0600: 1022:1452
	Flags: fast devsel

40:07.1 0604: 1022:1454 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 25
	Bus: primary=40, secondary=44, subordinate=44, sec-latency=0
	Memory behind bridge: ad200000-ad4fffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot-), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1454
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Kernel driver in use: pcieport

40:08.0 0600: 1022:1452
	Flags: fast devsel

40:08.1 0604: 1022:1454 (prog-if 00 [Normal decode])
	Flags: bus master, fast devsel, latency 0, IRQ 33
	Bus: primary=40, secondary=45, subordinate=45, sec-latency=0
	Memory behind bridge: ad500000-ad5fffff
	Capabilities: [50] Power Management version 3
	Capabilities: [58] Express Root Port (Slot-), MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [c0] Subsystem: 1022:1454
	Capabilities: [c8] HyperTransport: MSI Mapping Enable+ Fixed+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19
	Kernel driver in use: pcieport

41:00.0 0108: 1987:5007 (rev 01) (prog-if 02 [NVM Express])
	Subsystem: 1987:5007
	Flags: bus master, fast devsel, latency 0, IRQ 36, NUMA node 0
	Memory at ad700000 (64-bit, non-prefetchable) [size=16K]
	Capabilities: [40] Power Management version 3
	Capabilities: [50] MSI: Enable- Count=1/8 Maskable- 64bit+
	Capabilities: [70] Express Endpoint, MSI 07
	Capabilities: [b0] MSI-X: Enable+ Count=8 Masked-
	Capabilities: [100] Advanced Error Reporting
	Capabilities: [148] Device Serial Number 00-00-00-00-00-00-00-00
	Capabilities: [158] Power Budgeting <?>
	Capabilities: [168] Alternative Routing-ID Interpretation (ARI)
	Capabilities: [178] #19
	Capabilities: [198] Latency Tolerance Reporting
	Capabilities: [1a0] L1 PM Substates
	Kernel driver in use: nvme

42:00.0 0400: 1461:0054
	Subsystem: 1461:5730
	Flags: bus master, fast devsel, latency 0, IRQ 11
	Memory at ad600000 (32-bit, non-prefetchable) [size=512K]
	Capabilities: [40] Power Management version 3
	Capabilities: [60] Express Endpoint, MSI 00
	Capabilities: [100] Device Serial Number 00-00-00-01-01-00-0a-35
	Kernel driver in use: vfio-pci

43:00.0 0300: 10de:1b06 (rev a1) (prog-if 00 [VGA controller])
	Subsystem: 1043:85ea
	Flags: bus master, fast devsel, latency 0, IRQ 86
	Memory at ac000000 (32-bit, non-prefetchable) [size=16M]
	Memory at 90000000 (64-bit, prefetchable) [size=256M]
	Memory at a0000000 (64-bit, prefetchable) [size=32M]
	I/O ports at f000 [size=128]
	Expansion ROM at 000c0000 [disabled] [size=128K]
	Capabilities: [60] Power Management version 3
	Capabilities: [68] MSI: Enable+ Count=1/1 Maskable- 64bit+
	Capabilities: [78] Express Legacy Endpoint, MSI 00
	Capabilities: [100] Virtual Channel
	Capabilities: [250] Latency Tolerance Reporting
	Capabilities: [128] Power Budgeting <?>
	Capabilities: [420] Advanced Error Reporting
	Capabilities: [600] Vendor Specific Information: ID=0001 Rev=1 Len=024 <?>
	Capabilities: [900] #19
	Kernel driver in use: vfio-pci
	Kernel modules: nvidiafb, nouveau, nvidia_drm, nvidia

43:00.1 0403: 10de:10ef (rev a1)
	Subsystem: 1043:85ea
	Flags: bus master, fast devsel, latency 0, IRQ 85
	Memory at ad080000 (32-bit, non-prefetchable) [size=16K]
	Capabilities: [60] Power Management version 3
	Capabilities: [68] MSI: Enable- Count=1/1 Maskable- 64bit+
	Capabilities: [78] Express Endpoint, MSI 00
	Capabilities: [100] Advanced Error Reporting
	Kernel driver in use: vfio-pci
	Kernel modules: snd_hda_intel

44:00.0 1300: 1022:145a
	Subsystem: 1022:145a
	Flags: bus master, fast devsel, latency 0
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19

44:00.2 1080: 1022:1456
	Subsystem: 1022:1456
	Flags: bus master, fast devsel, latency 0, IRQ 77
	Memory at ad300000 (32-bit, non-prefetchable) [size=1M]
	Memory at ad400000 (32-bit, non-prefetchable) [size=8K]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable- Count=1/2 Maskable- 64bit+
	Capabilities: [c0] MSI-X: Enable+ Count=2 Masked-
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: ccp
	Kernel modules: ccp

44:00.3 0c03: 1022:145c (prog-if 30 [XHCI])
	Subsystem: 1022:145c
	Flags: bus master, fast devsel, latency 0, IRQ 42
	Memory at ad200000 (64-bit, non-prefetchable) [size=1M]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable+ Count=1/8 Maskable- 64bit+
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: xhci_hcd

45:00.0 1300: 1022:1455
	Subsystem: 1022:1455
	Flags: bus master, fast devsel, latency 0
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Capabilities: [270] #19

45:00.2 0106: 1022:7901 (rev 51) (prog-if 01 [AHCI 1.0])
	Subsystem: 1849:ffff
	Flags: bus master, fast devsel, latency 0, IRQ 61
	Memory at ad500000 (32-bit, non-prefetchable) [size=4K]
	Capabilities: [48] Vendor Specific Information: Len=08 <?>
	Capabilities: [50] Power Management version 3
	Capabilities: [64] Express Endpoint, MSI 00
	Capabilities: [a0] MSI: Enable+ Count=1/16 Maskable- 64bit+
	Capabilities: [d0] SATA HBA v1.0
	Capabilities: [100] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
	Capabilities: [150] Advanced Error Reporting
	Kernel driver in use: ahci
	Kernel modules: ahci

Does anybody have any ideas?

2

It’s an FPGA. FPGAs require firmware to be loaded onto it at boot or upon the first request to the FPGA. Passthrough doesn’t passthrough FPGA firmware to the actual FPGA.

You’re better off testing if a UVC based USB 3.0 4K capture solution works like the AVio 4K.

I tested the Intensity Pro capture card in passthrough and it doesn’t work because the FPGA firmware couldn’t be loaded from the drivers in the VM to be passed to the card itself.

You also have to turn off PCI ASPM in Grub for Threadripper.

3

Thanks. I have been thinking the same thing.

I’m using pcie_aspm=off already.

4

I can confirm that UVC capture devices will work on a high amperage USB 3.0 controller card with direct PCI-E lanes to the CPU. So you can get a Epiphan AVio HD and then passthrough a USB 3.0 controller like a Renesas one with optional SATA power connected and then use that capture card in the VM. Make sure to set the AVio HD before hand to “use input signal resolution” in the AVio Config utility outside of the VM.

5

Now, I’m trying BlackMagic Intensity 4K Pro with very cheap FullHD camcorder Canon Legria R806 (EU/UK version HF Vixia R800?) with clean HDMI output (without OSD etc).
Screanshot (OBS Studio 22)

BlackMagic Intensity 4K Pro has own Linux driver (blackmagic-io?). I think, It isn’t compatible with UVC/V4L2.

BlackMagic Intensity 4K Pro home page

I wasn’t lucky with 4K, probably due lack of HDMI output 2160p30 4:2:2.

6

Problem with the Blackmagic Intensity Pro 4K is it converts HDMI to Displayport for capture, then converts Displayport back to HDMI for output. This is why so many people had issues.

Your better bet is to get a Gefen HDMI 2.0 splitter and the Blackmagic Decklink Mini Recorder 4K, because that takes in native HDMI, rather than converting it to Displayport for capture.

7

Thanks.

Now I’m out of PCIe slots (GTX1080Ti:HostOS, GTX 960:GuestOS, HD5770:GuestOS2, PCIe8x->riser->Blackmagic).

Asrock X399 Taichi UEFI has some option for 4x PCIe 4x mode. Probably for PCIe 16x card with 4x NVMe PCIe 3.0 4x slots? Do you thing, It’s possible use it with M.2->PCIe 4x risers for standalone cards? They will share IRQ probably.

8

YES.

Wendell did exactly that for the Intensity Pro 4K. Same would apply to the Decklink Mini Recorder 4K.

9

I just updated BIOS from 2.0 -> over 2.30 -> to 3.30. Uff, I hate it! :wink:

Options are now:
PCIE1(16x) mode 16x or 4x4x4x4x
PCIE2(8x) mode 8x or 4x4x
PCIE4(16x) mode 16x or 4x4x4x4x
PCIE5(8x) mode 8x or 4x4x

Other idea:

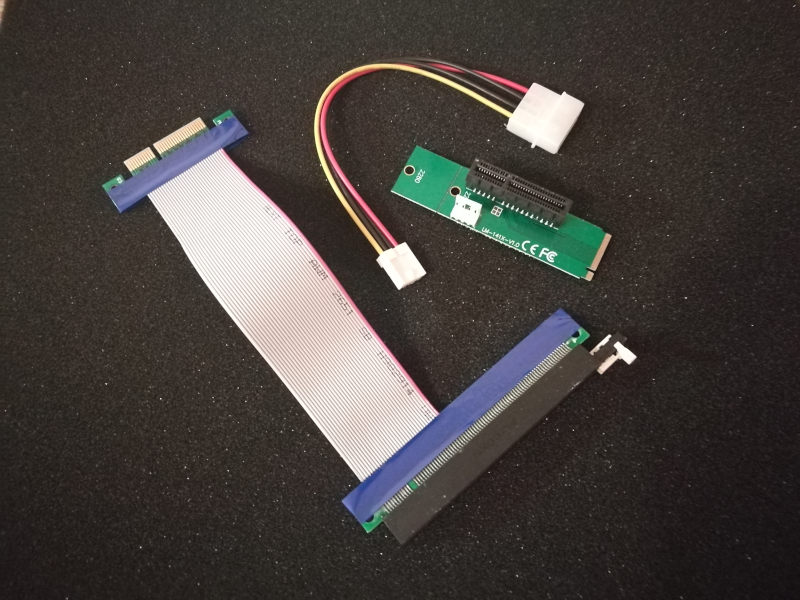

I’m using only two of tree M.2 PCIe 4x slot, I’ll try to use these. Avaliable on market probably thanks to cryptomania, for PCIe 4x 2.0 device it will be probably enough.

10

With new BIOS, I was able even passthrough Blackmagic Intensity 4K Pro (Windows 10 GuestIS), but grabbing was with lost/black frames. I switched GPU Guest/Host too (maybe some IRQ share issue before).

I’ll try passthrough of AverMedia GC573 again. … Without luck: IRQ# 33 is shared between PCI:40.00.0(Host) and 42:00.0(Guest).

11

BM Decklink Mini Recorder 4K works. Result is soft, chroma subsampling 4:2:2 is bitch. :wink:
TIF sample

12

Dude, what? I thought HDMI and DP were just different implementations of the same protocol.

I’ve got an Intensity Pro 4k and a 1950x. Let me see if I can give you a hand.

13

The Decklink Mini Recorder 4K can take in RGB over HDMI. I was surprised when it took in RGB from a PS3.

If you have a Windows Guest, you can try to get 1080p RGB out of one of your cards.

14

2 sgtawesomesauce:
Thanks for hope! :wink:

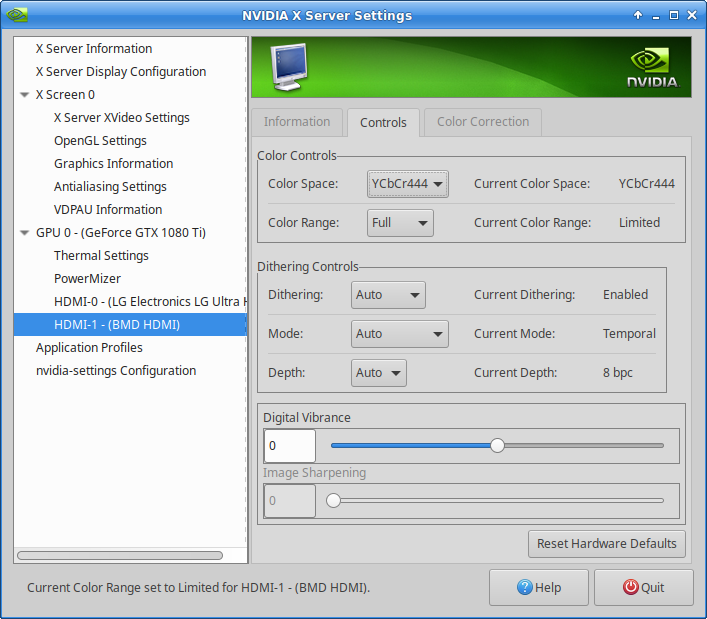

Done. Fullscreen playback, bitrate is huge. I had force YCbCr444 on output.
Left 4K is screenshot of fullscreen playback

Now I’ll try Intensity 4K Pro too.
…

Intensity 4K Pro don’t accept YCbCr 4:4:4 or 4:2:2 on output (VM Win10@GTX960) , with RGB there is no picture (2160p30) in Media Express(HostOS).

Thanks to both.

P.S. I don’t see problem with 1080p60 RGB (Intensity or Recorder).
P.P.S. OBS Studio 22.0.2 same results.
P.P.P.S I think, >1080p60 is probably 4:2:0, but I can live with that. Speciification says about SDI limitation 4:2:0, maybe is same for HDMI.
https://www.blackmagicdesign.com/products/decklink/techspecs/W-DLK-33

15

No, the limitation is 4K resolutions are limited to 10bit 4:2:2. 1080p can accept full RGB, and you have to actually output RGB from the GPU. I get around 4K issues by using Nvidia DSR at 4K with 1080p RGB output.

Intensity Pro 4K still has that Displayport conversion wackyness.

16

Chroma subsampling limitation is 4:2:2? Even better.

Now I’ll can probably use Intensity 4K Pro for 1080p camera and Recorder 4K for GPU output simultaneously. It depends on m.2->pcie 4x riser funcionality, or sacrificing third GPU(GuesOS XP) only.

17

With Intesity 4K Pro I was cabable capture 2160p30 HDMI output of GTX 1080Ti in Linux/Win10. Only YCbCr4:4:4 output of GPU was needed. Result at 2160p30 https://www.monitos.cz/tmp/Intensity_4K_Pro_avi_mjpg_to_png.png.

1 Like
18

Still has that Displayport conversion weirdness, adding to input delay if you’re doing a passthrough HDMI. A HDMI 2.0 Splitter is what the Elgato 4K60 uses on the card itself to do passthrough.

19

Hi,

I want to report that I got PCIe passthrough working with the AVerMedia Live Gamer 4K (GC 573) in unRAID 6.9.2 to a W10 VM. (Tested this November 2021)
HW: Gigabyte x570 Master - 5950X.

When I got the card in May 2020, it was not even detected in Proxmox (Was using the latest PVE at that time and different hardware). But since the latest firmware updates, it is visible in Linux. (unRAID 6.9.2 uses kernel 5.10.28).

Recording in a VM was not so successful because I didn’t have an Nvidia GPU available. Also did not test HDR.

@PetebLazar I don’t know if you still have the GC573 since this was posted in 2018. Otherwise, you may have more luck now.

If there is still some interest I am willing to start experimenting again with the card.
