OBS-Studio FFMPEG VAAPI Plugin


#1

Hi guys. So over the past weekend, I wanted to be able to encode using my amd gpu on obs instead of x264. I found a plugin patch made by obs forum user w23 which had basic h264 support, with hard coded device path and a few other hard coded things. I took it and ran with it - added selectable device for multiple gpus, full vaapi codec support (hevc, h264, mpeg2, vp8, vp9) if your card supports it, all the necessary profiles and options added as well. It still needs a lot of tweaking, and any input would be nice. For now I was successfully able to test h264 with main profile on amdgpu with mesa.

Patch:

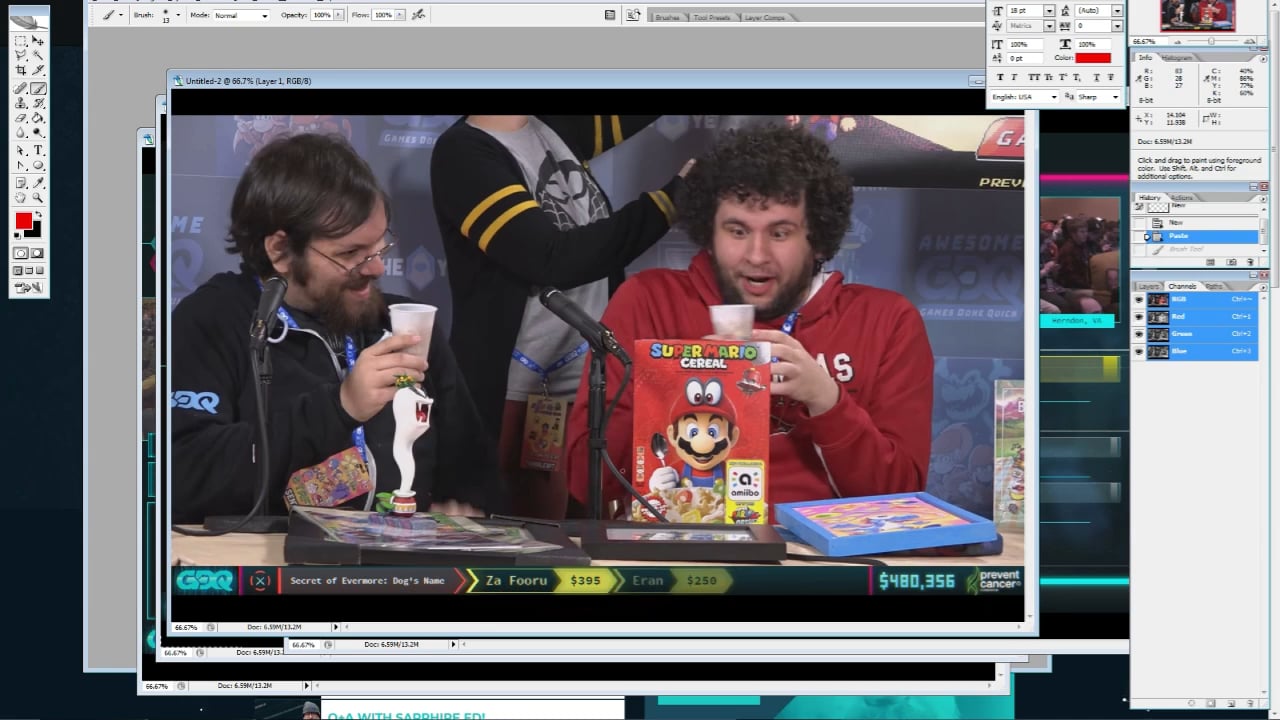

youtube video (made before i added support for other codecs):

Screenshot of options:

In particular, i need testing results for other profiles, bframes, other encoder types, specifically on intel. on amdgpu i was only able to use h264 with my vega card, would be interested to see if more options work on rx 5x cards or lower.

Please note: this does not work with nvidia cards. For those cards you’ll need to use nvenc, i am unsure if it works for nouveau


#2

How is this just a single post with no responses?
Actually…
How is this not included in the OBS build yet.

I spent 30minutes looking for this everywhere else.

I mean Yeah i have to manually resolve patch conflicts. But heck I’ll take it.


#3

Made a fork with this built in.

Going to try and get it to a state where it can be merged into upstream.

Here’s a new patch:

From 6567d75ad75a34c097a8580cff9d325758e2afc6 Mon Sep 17 00:00:00 2001
From: rigred <[email protected]>
Date: Sun, 21 Jan 2018 17:53:40 +0200
Subject: [PATCH] Add GPU accelerated video encoding via va-api on linux. Based
 on patch found here, with minor tweaks.

https://raw.githubusercontent.com/GloriousEggroll/arch-obs-studio-latest-ffmpeg-vaapi/master/ffmpeg-vaapi.patch
---
 plugins/obs-ffmpeg/CMakeLists.txt     |   1 +
 plugins/obs-ffmpeg/obs-ffmpeg-vaapi.c | 669 ++++++++++++++++++++++++++++++++++
 plugins/obs-ffmpeg/obs-ffmpeg.c       |  11 +
 3 files changed, 681 insertions(+)
 create mode 100644 plugins/obs-ffmpeg/obs-ffmpeg-vaapi.c

diff --git a/plugins/obs-ffmpeg/CMakeLists.txt b/plugins/obs-ffmpeg/CMakeLists.txt
index 4c04ab1e..83c52cd0 100644
--- a/plugins/obs-ffmpeg/CMakeLists.txt
+++ b/plugins/obs-ffmpeg/CMakeLists.txt
@@ -17,6 +17,7 @@ set(obs-ffmpeg_SOURCES
 	obs-ffmpeg.c
 	obs-ffmpeg-audio-encoders.c
 	obs-ffmpeg-nvenc.c
+	obs-ffmpeg-vaapi.c
 	obs-ffmpeg-output.c
 	obs-ffmpeg-mux.c
 	obs-ffmpeg-source.c)
diff --git a/plugins/obs-ffmpeg/obs-ffmpeg-vaapi.c b/plugins/obs-ffmpeg/obs-ffmpeg-vaapi.c
new file mode 100644
index 00000000..40fb3b5f
--- /dev/null
+++ b/plugins/obs-ffmpeg/obs-ffmpeg-vaapi.c
@@ -0,0 +1,669 @@
+/******************************************************************************
+    Copyright (C) 2016 by Hugh Bailey <[email protected]>
+
+    This program is free software: you can redistribute it and/or modify
+    it under the terms of the GNU General Public License as published by
+    the Free Software Foundation, either version 2 of the License, or
+    (at your option) any later version.
+
+    This program is distributed in the hope that it will be useful,
+    but WITHOUT ANY WARRANTY; without even the implied warranty of
+    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
+    GNU General Public License for more details.
+
+    You should have received a copy of the GNU General Public License
+    along with this program.  If not, see <http://www.gnu.org/licenses/>.
+******************************************************************************/
+
+#include <util/darray.h>
+#include <util/dstr.h>
+#include <util/base.h>
+#include <media-io/video-io.h>
+#include <obs-module.h>
+#include <obs-avc.h>
+
+#include <unistd.h>
+
+#include <libavutil/opt.h>
+#include <libavutil/pixdesc.h>
+#include <libavutil/hwcontext.h>
+#include <libavutil/hwcontext_vaapi.h>
+#include <libavformat/avformat.h>
+#include <libavfilter/avfilter.h>
+
+#include "obs-ffmpeg-formats.h"
+
+#define do_log(level, format, ...) \
+	blog(level, "[FFMPEG VAAPI encoder: '%s'] " format, \
+			obs_encoder_get_name(enc->encoder), ##__VA_ARGS__)
+
+#define warn(format, ...)  do_log(LOG_WARNING, format, ##__VA_ARGS__)
+#define info(format, ...)  do_log(LOG_INFO,    format, ##__VA_ARGS__)
+#define debug(format, ...) do_log(LOG_DEBUG,   format, ##__VA_ARGS__)
+
+struct vaapi_encoder {
+	obs_encoder_t                  *encoder;
+
+	AVBufferRef                    *vadevice_ref;
+	AVBufferRef                    *vaframes_ref;
+
+	AVCodec                        *vaapi;
+	AVCodecContext                 *context;
+
+	AVPicture                      dst_picture;
+	AVFrame                        *vframe;
+
+	DARRAY(uint8_t)                buffer;
+
+	uint8_t                        *header;
+	size_t                         header_size;
+
+	uint8_t                        *sei;
+	size_t                         sei_size;
+
+	int                            height;
+	bool                           first_packet;
+	bool                           initialized;
+};
+
+static const char *vaapi_getname(void *unused)
+{
+	UNUSED_PARAMETER(unused);
+	return "FFMPEG VAAPI";
+}
+
+static inline bool valid_format(enum video_format format)
+{
+	/* NV12 is the only supported format by current VAAPI backends */
+	return format == VIDEO_FORMAT_NV12;
+}
+
+static void vaapi_video_info(void *data, struct video_scale_info *info)
+{
+	struct vaapi_encoder *enc = data;
+	enum video_format pref_format;
+
+	pref_format = obs_encoder_get_preferred_video_format(enc->encoder);
+
+	if (!valid_format(pref_format)) {
+		pref_format = valid_format(info->format) ?
+			info->format : VIDEO_FORMAT_NV12;
+	}
+
+	info->format = pref_format;
+}
+
+static bool vaapi_init_codec(struct vaapi_encoder *enc)
+{
+	int ret;
+
+
+
+	ret = av_hwdevice_ctx_create(&enc->vadevice_ref, AV_HWDEVICE_TYPE_VAAPI, "/dev/dri/renderD128", NULL, 0);
+	if (ret < 0) {
+		warn("Failed to create VAAPI device context: %s", av_err2str(ret));
+		return false;
+	}
+
+	enc->vaframes_ref = av_hwframe_ctx_alloc(enc->vadevice_ref);
+	if (!enc->vaframes_ref) {
+		warn("Failed to alloc HW frames context");
+		return false;
+	}
+
+	AVHWFramesContext *frames_ctx = (AVHWFramesContext*)enc->vaframes_ref->data;
+	frames_ctx->format = AV_PIX_FMT_VAAPI;
+	frames_ctx->sw_format = enc->context->pix_fmt; /* FIXME constraint ? */
+	frames_ctx->width = enc->context->width;
+	frames_ctx->height = enc->context->height;
+
+	ret = av_hwframe_ctx_init(enc->vaframes_ref);
+	if (ret < 0 ) {
+		warn("Failed to init HW frames context: %s", av_err2str(ret));
+		return false;
+	}
+
+	/* 2. Create software frame and picture */
+	enc->vframe = av_frame_alloc();
+	if (!enc->vframe) {
+		warn("Failed to allocate video frame");
+		return false;
+	}
+
+	enc->vframe->format = enc->context->pix_fmt;
+	enc->vframe->width = enc->context->width;
+	enc->vframe->height = enc->context->height;
+
+	enc->vframe->colorspace = enc->context->colorspace;
+	enc->vframe->color_range = enc->context->color_range;
+
+	ret = avpicture_alloc(&enc->dst_picture, enc->context->pix_fmt,
+			enc->context->width, enc->context->height);
+	if (ret < 0) {
+		warn("Failed to allocate dst_picture: %s", av_err2str(ret));
+		return false;
+	}
+
+	/* 3. set up codec */
+	enc->context->pix_fmt = AV_PIX_FMT_VAAPI;
+	enc->context->hw_frames_ctx = av_buffer_ref(enc->vaframes_ref);
+
+	ret = avcodec_open2(enc->context, enc->vaapi, NULL);
+	if (ret < 0) {
+		warn("Failed to open VAAPI codec: %s", av_err2str(ret));
+		return false;
+	}
+
+	enc->initialized = true;
+
+	*((AVPicture*)enc->vframe) = enc->dst_picture;
+	return true;
+}
+
+static bool vaapi_update(void *data, obs_data_t *settings)
+{
+	struct vaapi_encoder *enc = data;
+
+	int codec = (int)obs_data_get_string(settings, "vaapi_codec");
+
+	int profile = (int)obs_data_get_int(settings, "profile");
+	int bf = (int)obs_data_get_int(settings, "bf");
+
+	int level = (int)obs_data_get_int(settings, "level");
+	int bitrate = (int)obs_data_get_int(settings, "bitrate");
+	int keyint_sec = (int)obs_data_get_int(settings, "keyint_sec");
+
+	int qp = (int)obs_data_get_int(settings, "qp");
+	int quality = (int)obs_data_get_int(settings, "quality");
+	int lfl = (int)obs_data_get_int(settings, "lfl");
+	int lfs = (int)obs_data_get_int(settings, "lfs");
+
+	if(codec==AV_CODEC_ID_H264 || codec==AV_CODEC_ID_HEVC) {
+		av_opt_set_int(enc->context->priv_data, "qp", qp, 0);
+	}
+
+	if(codec==AV_CODEC_ID_H264) {
+		av_opt_set_int(enc->context->priv_data, "quality", quality, 0);
+	}
+
+	if(codec==AV_CODEC_ID_VP8 || codec==AV_CODEC_ID_VP9 || codec==AV_CODEC_ID_MPEG2VIDEO) {
+		enc->context->global_quality = quality;
+	}
+
+	if(codec==AV_CODEC_ID_VP8 || codec==AV_CODEC_ID_VP9) {
+		av_opt_set_int(enc->context->priv_data, "loop_filter_level", lfl, 0);
+		av_opt_set_int(enc->context->priv_data, "loop_filter_sharpness", lfs, 0);
+	}
+
+	video_t *video = obs_encoder_video(enc->encoder);
+	const struct video_output_info *voi = video_output_get_info(video);
+	struct video_scale_info info;
+
+	info.format = voi->format;
+	info.colorspace = voi->colorspace;
+	info.range = voi->range;
+
+	vaapi_video_info(enc, &info);
+
+	if(codec!=AV_CODEC_ID_VP8) {
+		enc->context->profile = profile;
+		enc->context->max_b_frames = bf;
+	}
+
+	enc->context->level = level;
+	enc->context->bit_rate = bitrate * 1000;
+
+	enc->context->width = obs_encoder_get_width(enc->encoder);
+	enc->context->height = obs_encoder_get_height(enc->encoder);
+
+	/* for h.264, 1080 isn't devisable by 16, so we must lower */
+	/* height to prevent green or black bars */
+
+	if(enc->context->height == 1080 && codec==AV_CODEC_ID_H264) {
+		enc->context->height = 1072;
+	}
+
+	enc->context->time_base = (AVRational){voi->fps_den, voi->fps_num};
+	enc->context->pix_fmt = obs_to_ffmpeg_video_format(info.format);
+	enc->context->colorspace = info.colorspace == VIDEO_CS_709 ?
+		AVCOL_SPC_BT709 : AVCOL_SPC_BT470BG;
+	enc->context->color_range = info.range == VIDEO_RANGE_FULL ?
+		AVCOL_RANGE_JPEG : AVCOL_RANGE_MPEG;
+
+	if (keyint_sec > 0) {
+		enc->context->gop_size = keyint_sec * voi->fps_num / voi->fps_den;
+	} else {
+		enc->context->gop_size = 120;
+	}
+
+	enc->height = enc->context->height;
+
+	info("settings:\n"
+	     "\tqp:           %d\n"
+	     "\tquality:      %d\n"
+	     "\tprofile:      %d\n"
+	     "\tlevel:        %d\n"
+	     "\tbitrate:      %d\n"
+	     "\tkeyint:       %d\n"
+	     "\twidth:        %d\n"
+	     "\theight:       %d\n"
+	     "\tb-frames:     %d\n"
+	     "\tloop-filter-level:     %d\n"
+	     "\tloop-filter-sharpness:     %d\n",
+             qp, quality, profile, level,
+	     bitrate, enc->context->gop_size,
+	     enc->context->width, enc->context->height,
+	     enc->context->max_b_frames,lfl,lfs);
+
+	return vaapi_init_codec(enc);
+}
+
+static void vaapi_destroy(void *data)
+{
+	struct vaapi_encoder *enc = data;
+
+	if (enc->initialized) {
+		AVPacket pkt = {0};
+		int r_pkt = 1;
+
+		while (r_pkt) {
+			if (avcodec_encode_video2(enc->context, &pkt, NULL,
+						&r_pkt) < 0)
+				break;
+
+			if (r_pkt)
+				av_free_packet(&pkt);
+		}
+	}
+
+	avcodec_close(enc->context);
+	av_frame_free(&enc->vframe);
+	avpicture_free(&enc->dst_picture);
+	av_buffer_unref(&enc->vaframes_ref);
+	av_buffer_unref(&enc->vadevice_ref);
+	da_free(enc->buffer);
+	bfree(enc->header);
+	bfree(enc->sei);
+
+	bfree(enc);
+}
+
+static void *vaapi_create(obs_data_t *settings, obs_encoder_t *encoder)
+{
+	struct vaapi_encoder *enc;
+	avcodec_register_all();
+
+	enc = bzalloc(sizeof(*enc));
+	enc->encoder = encoder;
+
+	int vaapi_codec = (int)obs_data_get_int(settings, "vaapi_codec");
+
+	if(vaapi_codec==AV_CODEC_ID_HEVC) {
+		enc->vaapi = avcodec_find_encoder_by_name("hevc_vaapi");
+	}
+	if(vaapi_codec==AV_CODEC_ID_H264) {
+		enc->vaapi = avcodec_find_encoder_by_name("h264_vaapi");
+	}
+	if(vaapi_codec==AV_CODEC_ID_MPEG2VIDEO) {
+		enc->vaapi = avcodec_find_encoder_by_name("mpeg2_vaapi");
+	}
+	if(vaapi_codec==AV_CODEC_ID_VP8) {
+		enc->vaapi = avcodec_find_encoder_by_name("vp8_vaapi");
+	}
+	if(vaapi_codec==AV_CODEC_ID_VP9) {
+		enc->vaapi = avcodec_find_encoder_by_name("vp9_vaapi");
+	}
+
+	enc->first_packet = true;
+
+	blog(LOG_INFO, "---------------------------------");
+
+	if (!enc->vaapi) {
+		warn("Couldn't find encoder");
+		goto fail;
+	}
+
+	enc->context = avcodec_alloc_context3(enc->vaapi);
+	if (!enc->context) {
+		warn("Failed to create codec context");
+		goto fail;
+	}
+
+	if (!vaapi_update(enc, settings))
+		goto fail;
+
+	return enc;
+
+fail:
+	vaapi_destroy(enc);
+	return NULL;
+}
+
+static inline void copy_data(AVPicture *pic, const struct encoder_frame *frame,
+		int height, enum AVPixelFormat format)
+{
+	int h_chroma_shift, v_chroma_shift;
+	av_pix_fmt_get_chroma_sub_sample(format, &h_chroma_shift, &v_chroma_shift);
+	for (int plane = 0; plane < MAX_AV_PLANES; plane++) {
+		if (!frame->data[plane])
+			continue;
+
+		int frame_rowsize = (int)frame->linesize[plane];
+		int pic_rowsize   = pic->linesize[plane];
+		int bytes = frame_rowsize < pic_rowsize ?
+			frame_rowsize : pic_rowsize;
+		int plane_height = height >> (plane ? v_chroma_shift : 0);
+
+		for (int y = 0; y < plane_height; y++) {
+			int pos_frame = y * frame_rowsize;
+			int pos_pic   = y * pic_rowsize;
+
+			memcpy(pic->data[plane] + pos_pic,
+			       frame->data[plane] + pos_frame,
+			       bytes);
+		}
+	}
+}
+
+static bool vaapi_encode(void *data, struct encoder_frame *frame,
+		struct encoder_packet *packet, bool *received_packet)
+{
+	struct vaapi_encoder *enc = data;
+	AVFrame *hwframe;
+	AVPacket av_pkt = {0};
+	int got_packet;
+	int ret;
+
+	hwframe = av_frame_alloc();
+	if (!hwframe) {
+		warn("vaapi_encode: failed to allocate hw frame");
+		return false;
+	}
+
+	ret = av_hwframe_get_buffer(enc->vaframes_ref, hwframe, 0);
+	if (ret < 0) {
+		warn("vaapi_encode: failed to get buffer for hw frame: %s", av_err2str(ret));
+		return false;
+	}
+
+	copy_data(&enc->dst_picture, frame, enc->height, enc->context->pix_fmt);
+	enc->vframe->pts = frame->pts;
+	hwframe->pts = frame->pts;
+	hwframe->width = enc->vframe->width;
+	hwframe->height = enc->vframe->height;
+
+	ret = av_hwframe_transfer_data(hwframe, enc->vframe, 0);
+	if (ret < 0) {
+		warn("vaapi_encode: failed to upload hw frame: %s", av_err2str(ret));
+		return false;
+	}
+
+	ret = av_frame_copy_props(hwframe, enc->vframe);
+	if (ret < 0) {
+		warn("vaapi_encode: failed to copy props to hw frame: %s", av_err2str(ret));
+		return false;
+	}
+
+	av_init_packet(&av_pkt); /* FIXME leaks on errors? */
+
+	ret = avcodec_encode_video2(enc->context, &av_pkt, hwframe,
+			&got_packet);
+	if (ret < 0) {
+		warn("vaapi_encode: Error encoding: %s", av_err2str(ret));
+		return false;
+	}
+
+	if (got_packet && av_pkt.size) {
+		if (enc->first_packet) {
+			uint8_t *new_packet;
+			size_t size;
+
+			enc->first_packet = false;
+			obs_extract_avc_headers(av_pkt.data, av_pkt.size,
+					&new_packet, &size,
+					&enc->header, &enc->header_size,
+					&enc->sei, &enc->sei_size);
+
+			da_copy_array(enc->buffer, new_packet, size);
+			bfree(new_packet);
+		} else {
+			da_copy_array(enc->buffer, av_pkt.data, av_pkt.size);
+		}
+
+		packet->pts = av_pkt.pts;
+		packet->dts = av_pkt.dts;
+		packet->data = enc->buffer.array;
+		packet->size = enc->buffer.num;
+		packet->type = OBS_ENCODER_VIDEO;
+		packet->keyframe = obs_avc_keyframe(packet->data, packet->size);
+		*received_packet = true;
+	} else {
+		*received_packet = false;
+	}
+
+	av_free_packet(&av_pkt);
+	av_frame_free(&hwframe);
+	return true;
+}
+
+static void set_visible(obs_properties_t *ppts, const char *name, bool visible)
+{
+	obs_property_t *p = obs_properties_get(ppts, name);
+	obs_property_set_visible(p, visible);
+}
+
+
+static void vaapi_defaults(obs_data_t *settings)
+{
+	obs_data_set_default_string(settings, "vaapi_device", "/dev/dri/renderD128");
+	obs_data_set_default_int(settings, "vaapi_codec", AV_CODEC_ID_H264);
+	obs_data_set_default_int(settings, "profile", FF_PROFILE_H264_BASELINE);
+	obs_data_set_default_int(settings, "level", 31);
+	obs_data_set_default_int(settings, "bitrate", 2500);
+	obs_data_set_default_int(settings, "keyint_sec", 0);
+	obs_data_set_default_int(settings, "bf", 0);
+	obs_data_set_default_int(settings, "qp", 20);
+	obs_data_set_default_int(settings, "quality", 0);
+	obs_data_set_default_int(settings, "rendermode", 0);
+	obs_data_set_default_int(settings, "lfl", 16);
+	obs_data_set_default_int(settings, "lfs", 4);
+}
+
+static bool profile_modified(obs_properties_t *ppts, obs_property_t *p,
+		obs_data_t *settings)
+{
+	UNUSED_PARAMETER(p);
+
+	int profile_type = (int)obs_data_get_int(settings, "profile");
+
+	set_visible(ppts, "bf", false);
+
+	if(profile_type!=FF_PROFILE_H264_BASELINE || profile_type != FF_PROFILE_H264_MAIN) {
+		set_visible(ppts, "bf", true);
+		obs_data_set_default_int(settings, "bf", 0);
+	}
+
+
+	return true;
+}
+
+static bool codec_modified(obs_properties_t *ppts, obs_property_t *p,
+		obs_data_t *settings)
+{
+	UNUSED_PARAMETER(p);
+
+	int codec_type = (int)obs_data_get_int(settings, "vaapi_codec");
+
+	set_visible(ppts, "quality", false);
+	set_visible(ppts, "bf", false);
+	set_visible(ppts, "lfl", false);
+	set_visible(ppts, "lfs", false);
+
+	if (codec_type!=AV_CODEC_ID_HEVC) {
+		set_visible(ppts, "quality", true);
+		if (codec_type==AV_CODEC_ID_H264) {
+			obs_data_set_default_int(settings, "quality", 0);
+		}
+
+		if (codec_type==AV_CODEC_ID_MPEG2VIDEO) {
+			obs_data_set_default_int(settings, "quality", 10);
+		}
+
+		if (codec_type==AV_CODEC_ID_VP8 || codec_type==AV_CODEC_ID_VP9) {
+			obs_data_set_default_int(settings, "quality", 40);
+			set_visible(ppts, "lfl", true);
+			set_visible(ppts, "lfs", true);
+		}
+	}
+
+	return true;
+}
+
+static bool rendermode_modified(obs_properties_t *ppts, obs_property_t *p,
+		obs_data_t *settings)
+{
+	UNUSED_PARAMETER(p);
+
+	int rendermode = (int)obs_data_get_int(settings, "rendermode");
+
+	set_visible(ppts, "qp", false);
+	set_visible(ppts, "bitrate", true);
+	obs_data_set_default_int(settings, "bitrate", 2500);
+
+	if (rendermode > 0) {
+		set_visible(ppts, "qp", true);
+		set_visible(ppts, "bitrate", false);
+		obs_data_set_default_int(settings, "bitrate", 0);
+	}
+
+	return true;
+}
+
+static obs_properties_t *vaapi_properties(void *unused)
+{
+	UNUSED_PARAMETER(unused);
+
+	obs_properties_t *props = obs_properties_create();
+	obs_property_t *list;
+
+	list = obs_properties_add_list(props, "vaapi_device", "VAAPI Device",
+			OBS_COMBO_TYPE_LIST, OBS_COMBO_FORMAT_STRING);
+	char path[128] = "/dev/dri/renderD1";
+	for (int i = 28;; i++) {
+		sprintf(path, "/dev/dri/renderD1%d", i);
+		if (access(path, F_OK) == 0) {
+			char card[128] = "Card: ";
+			sprintf(card, "Card%d: %s", i-28, path);
+			obs_property_list_add_string(list, card, path);
+		} else {
+			break;
+		}
+	}
+
+	list = obs_properties_add_list(props, "vaapi_codec", "VAAPI Codec",
+			OBS_COMBO_TYPE_LIST, OBS_COMBO_FORMAT_INT);
+
+	obs_property_list_add_int(list, "HEVC", AV_CODEC_ID_HEVC);
+	obs_property_list_add_int(list, "H.264 (default)", AV_CODEC_ID_H264);
+	obs_property_list_add_int(list, "MPEG-2", AV_CODEC_ID_MPEG2VIDEO);
+	obs_property_list_add_int(list, "VP8", AV_CODEC_ID_VP8);
+	obs_property_list_add_int(list, "VP9", AV_CODEC_ID_VP9);
+
+	obs_property_set_modified_callback(list, codec_modified);
+
+	list = obs_properties_add_list(props, "profile", "Profile",
+			OBS_COMBO_TYPE_LIST, OBS_COMBO_FORMAT_INT);
+
+	obs_property_list_add_int(list, "h264-baseline", FF_PROFILE_H264_BASELINE);
+	obs_property_list_add_int(list, "h264-main", FF_PROFILE_H264_MAIN);
+	obs_property_list_add_int(list, "h264-high", FF_PROFILE_H264_HIGH);
+	obs_property_list_add_int(list, "hevc-main", FF_PROFILE_HEVC_MAIN);
+	obs_property_list_add_int(list, "hevc-main10", FF_PROFILE_HEVC_MAIN_10);
+	obs_property_list_add_int(list, "hevc-main-still-picture", FF_PROFILE_HEVC_MAIN_STILL_PICTURE);
+	obs_property_list_add_int(list, "hevc-main-rext", FF_PROFILE_HEVC_REXT);
+	obs_property_list_add_int(list, "mpeg2-aac-low", FF_PROFILE_MPEG2_AAC_LOW);
+	obs_property_list_add_int(list, "mpeg2-aac-he", FF_PROFILE_MPEG2_AAC_HE);
+	obs_property_list_add_int(list, "mpeg2-422", FF_PROFILE_MPEG2_422);
+	obs_property_list_add_int(list, "mpeg2-high", FF_PROFILE_MPEG2_HIGH);
+	obs_property_list_add_int(list, "mpeg2-ss", FF_PROFILE_MPEG2_SS);
+	obs_property_list_add_int(list, "mpeg2-snr-scalable", FF_PROFILE_MPEG2_SNR_SCALABLE);
+	obs_property_list_add_int(list, "mpeg2-main", FF_PROFILE_MPEG2_MAIN);
+	obs_property_list_add_int(list, "mpeg2-simple", FF_PROFILE_MPEG2_SIMPLE);
+	obs_property_list_add_int(list, "vp9-0", FF_PROFILE_VP9_0);
+	obs_property_list_add_int(list, "vp9-1", FF_PROFILE_VP9_1);
+	obs_property_list_add_int(list, "vp9-2", FF_PROFILE_VP9_2);
+	obs_property_list_add_int(list, "vp9-3", FF_PROFILE_VP9_3);
+
+	obs_property_set_modified_callback(list, profile_modified);
+
+	list = obs_properties_add_list(props, "level", "Level",
+			OBS_COMBO_TYPE_LIST, OBS_COMBO_FORMAT_INT);
+	obs_property_list_add_int(list, "480p30 (3.0)", 30);
+	obs_property_list_add_int(list, "720p30/480p60  (3.1 default)", 31);
+	obs_property_list_add_int(list, "720p60/1080p30 (4.1)", 41);
+	obs_property_list_add_int(list, "1080p60 (4.2)", 42);
+
+	list = obs_properties_add_list(props, "rendermode", "Render Mode",
+			OBS_COMBO_TYPE_LIST, OBS_COMBO_FORMAT_INT);
+	obs_property_list_add_int(list, "Bitrate", 0);
+	obs_property_list_add_int(list, "QP", 1);
+
+	obs_property_set_modified_callback(list, rendermode_modified);
+
+	obs_properties_add_int(props, "bitrate",
+			obs_module_text("Bitrate"), 0, 300000, 50);
+
+	obs_properties_add_int(props, "keyint_sec",
+			obs_module_text("Keyframe Interval (seconds)"), 0, 20, 1);
+
+	obs_properties_add_int(props, "bf", obs_module_text("B-frames (Not supported on AMD, set 0)"),
+			0, 4, 1);
+
+	obs_properties_add_int(props, "qp",
+			obs_module_text("QP"), 0, 51, 1);
+
+	obs_properties_add_int(props, "quality",
+			obs_module_text("Quality"), 0, 40, 1);
+
+	obs_properties_add_int(props, "lfl",
+			obs_module_text("Loop Filter Level"), 0, 16, 1);
+
+	obs_properties_add_int(props, "lfs",
+			obs_module_text("Loop Filter Sharpness"), 0, 4, 1);
+
+	return props;
+}
+
+static bool vaapi_extra_data(void *data, uint8_t **extra_data, size_t *size)
+{
+	struct vaapi_encoder *enc = data;
+
+	*extra_data = enc->header;
+	*size       = enc->header_size;
+	return true;
+}
+
+static bool vaapi_sei_data(void *data, uint8_t **extra_data, size_t *size)
+{
+	struct vaapi_encoder *enc = data;
+
+	*extra_data = enc->sei;
+	*size       = enc->sei_size;
+	return true;
+}
+
+
+struct obs_encoder_info vaapi_encoder_info = {
+	.id             = "ffmpeg_vaapi",
+	.type           = OBS_ENCODER_VIDEO,
+	.codec          = "h264",
+	.get_name       = vaapi_getname,
+	.create         = vaapi_create,
+	.destroy        = vaapi_destroy,
+	.encode         = vaapi_encode,
+	.get_defaults   = vaapi_defaults,
+	.get_properties = vaapi_properties,
+	.get_extra_data = vaapi_extra_data,
+	.get_sei_data   = vaapi_sei_data,
+	.get_video_info = vaapi_video_info
+};
diff --git a/plugins/obs-ffmpeg/obs-ffmpeg.c b/plugins/obs-ffmpeg/obs-ffmpeg.c
index 3ccef9ba..b56e6ebe 100644
--- a/plugins/obs-ffmpeg/obs-ffmpeg.c
+++ b/plugins/obs-ffmpeg/obs-ffmpeg.c
@@ -16,6 +16,7 @@ extern struct obs_output_info  replay_buffer;
 extern struct obs_encoder_info aac_encoder_info;
 extern struct obs_encoder_info opus_encoder_info;
 extern struct obs_encoder_info nvenc_encoder_info;
+extern struct obs_encoder_info vaapi_encoder_info;

 static DARRAY(struct log_context {
 	void *context;
@@ -158,6 +159,12 @@ cleanup:

 #endif

+static bool vaapi_supported(void)
+{
+	AVCodec *vaenc = avcodec_find_encoder_by_name("h264_vaapi");
+	return !!vaenc;
+}
+
 bool obs_module_load(void)
 {
 	da_init(active_log_contexts);
@@ -176,6 +183,10 @@ bool obs_module_load(void)
 		blog(LOG_INFO, "NVENC supported");
 		obs_register_encoder(&nvenc_encoder_info);
 	}
+	if (vaapi_supported()) {
+		blog(LOG_INFO, "FFMPEG VAAPI supported");
+		obs_register_encoder(&vaapi_encoder_info);
+	}
 #endif
 	return true;
 }
--
2.16.0


#4

Screw It. I’m going for it boldly.


#5

Gonna test this tomorrow on my fury system.


#6

Hey, AGDQ boldly asked of Jim from the OBS team and the OBS team delivered. They got custom builds to do specific layouts which I’m not sure if they merged it.

It is kind of incredible they ran a PC with OBS for 7 days non stop with Avermedia and Elgato cards.


#7

1080p 60fps gives me serious framedrop for some reason.
Happens on my Rx550 and my Rx580.

1080p 30fps is fine though as well as any other lower resolutions for that matter.
Set a keyframe interval of 2 also.
Would love it for others to also test and report back with any findings/bugs. :smiley:


#8

Any link to a story on that?
Just curious :slight_smile:


#9

They just said at the end of the stream “Thanks to Jim from the OBS team for giving us special builds at the last minute.”

Edit: Here’s some original research based on what I saw in the beginning of the Mass Effect VOD. A capture card lost sync so a camera was blank, in troubleshooting it, the MIXER PC rebooted and the stream encoding PC kept going…

That’s how they did it. The PC doing all the graphics and mixing all the capture cards was only connected to the net to poll donation incentives, total donation count, and read tweets. It was not streaming. That PC then had the OBS canvas projected to a secondary monitor which was then hooked up to another Elgato capture card to stream out the stream… Unfortunately, I think that’s why the stream was 1600x900, because it was using the OBS default resolution of what was likely a dedicated encoding laptop, with a screen resolution of 1600x900. Also, Elgato and Avermedia capture cards meant they could only use Windows, not Linux (If it was purely Blackmagic capture cards, they could use Linux)

They may have had a hardware mixer for the interview set though, and that was on it’s own dedicated capture card input.

I personally would have used OBS for overlays (Downstream keyers) by a feature I would like so that OBS can project using 2 fullscreen projectors both the fill (graphics with color) and the key (Alpha channel represented as white brightness values) and feed that into a hardware mixer via 2 secondary monitors.


#10

I did some musings on it in my own video:
