Need help with power supply for L1 KVM

Hi! I am completely new to this thread and pretty new to L1 KVMs… I just purchased a very lightly used one with power delivery at a good/fair price, but didn’t realize it didn’t come with a power supply… yes, I know :rofl: no judgement please

This is what I bought: USB-C KVM Switch v3 (with USB Power Delivery / 135watts): USB-C KVM Switch v3 (with USB Power Delivery / 135watts) — Level1Techs Store

Please bear with my complete ignorance here, but I have researched and am having a really hard time figuring out where I can buy a replacement power supply that will work for this, that has the right size connector for in the back… Hopefully I’m posting this in the right place and someone will take pity on me and help direct me to a link or answer!

I’m not able find/see the system specs either. I moved this to the Level1 KVM helpdesk for ya. Someone who owns one or works for Level1 should be able to assist.

I’m looking at purchasing this same KVM. Based on my research on the forums, it’s sold with a 70W power supply (screenshot from [0]).

Screenshot 2026-01-06 at 08.31.45

If you’d like to use a more powerful PS, there’s been some recommendations of some HP bricks, but most I’ve found don’t have the specific barrel plug needed to plug into the KVM.

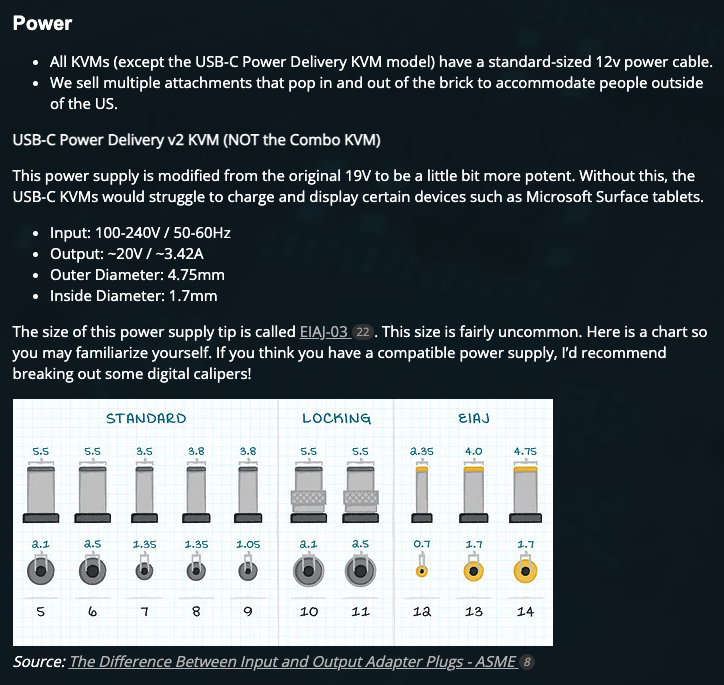

The specific barrel plug is the EIAJ-03 (4.75mm OD, 1.7mm ID), screenshot from [1].

My question for @wendell : If I buy a 150W or higher PS, is there a specific current limiter in the KVM to prevent exceeding 135W draw?

Last, I’ll note that I’ve found the barrel plugs in stock at Mouser [2], just make sure the power supply is greater than 120W, and delivers 19.5V DC. When soldering, ensure the polarity matches what the KVM is expecting.

[0] forumDOTlevel1techsDOTcom/t/official-l1techs-products-technical-information-wip/204530#rear-controls-usb-c-27
[1] forumDOTlevel1techsDOTcom/t/official-l1techs-kvm-faq-ultimate-guide-help/186196#power-11
[2] mouserDOTcom, search “PP-014”

@Level1_Amber

oops we missed this somehow. it’s easy to order power bricks from us but there’s been some evolution of the USBC pd kvms over time as we keep going up in wattage and changing the barrel size as a result

so pics help

Hi I can get this information updated in the FAQ and provide some context here. The current v3 USBC KVM has a 135w power supply, which it does comes with.

The discontinued v2 USBC KVM is compatible up to 120Hz, however, they were only packaged with a 70w power supply.

Anyone who would like to purchase a power supply can submit a support ticket for purchasing info!

For the casual buyer (not intending to be any sort of active community member), I gotta admit that not having all the critical info on the product page is a real confidence killer.

If I want to know the design history of the USB-C KVMs? yeah, point to video or blog post. The nuances of HDMI vs DP v1.2 v DP v1.4? blog post. Why no ethernet? blog post.

While I admit I’m not the average consumer, I’d still argue that most of your customers are of the sort that would like to see all the product info in one place.

Awesome, thanks for clearing that up!

ah so the kvm is pretty forgiving on voltage too from 19 to 21 volts, too. Microsoft surface devices like to have about 20-21 volts, it seems, which we discovered in the Trial By Fire with Microsoft devices.

So the power brick can actually make a difference (and this is true of any usbc kvm or dock) in a very very narrow windows, surprisingly. I like the newer model usbc pd kvms a lot more than the old ones. Also it seems like the blink of an eye devices went from ~65w to ~250w.

I am hoping future designs just do a usbc port for usbc passthrough charging. I’m noticing that laptops that do usbc high wattage charging have buggy AF or non-existent passthrough (see also DGX spark… HP G1A and more) when in charge mode.

Good point, thank you for that. Would be nice to have more specifics on the actual page instead of referring to the FAQ. I appreciate the feedback!

Edit: articles/posts are being worked on and coming soon™ so the store pages can link there instead of being all on the product page. It’s a work in progress atm.

? This KVM does have a power supply. The power delivery aspect applies to the laptops being charged while plugged into the KVM via USBC.
