Need help tuning my RAM on Ryzen

Hardware CPU
1

Hello everyone,

I just build myself a new computer with an AMD Ryzen R7 1700 on an ASUS Crosshair VI Hero with 32GB of Corsair Dominator Platinum 3200MHz (2x 16GB).
When I try to activate the D.O.C.P and make it run on 3200MHz my PC won’t even post. So what I did was setting the D.O.C.P profile but reducing the clock speed to 2933MHz. From all the Ryzen related Videos on YouTube I understood that the overall performance of my system depends on the Infinity Fabric which is said to run at half the RAM speed. I’d like to know if I can to something to get my RAM working in spec.
Correct me if I’m wrong, but I think I could tune the timings and get it to run at a higher frequency then. I just don’t have a clue how to tune my RAM timings so they make sense and work.

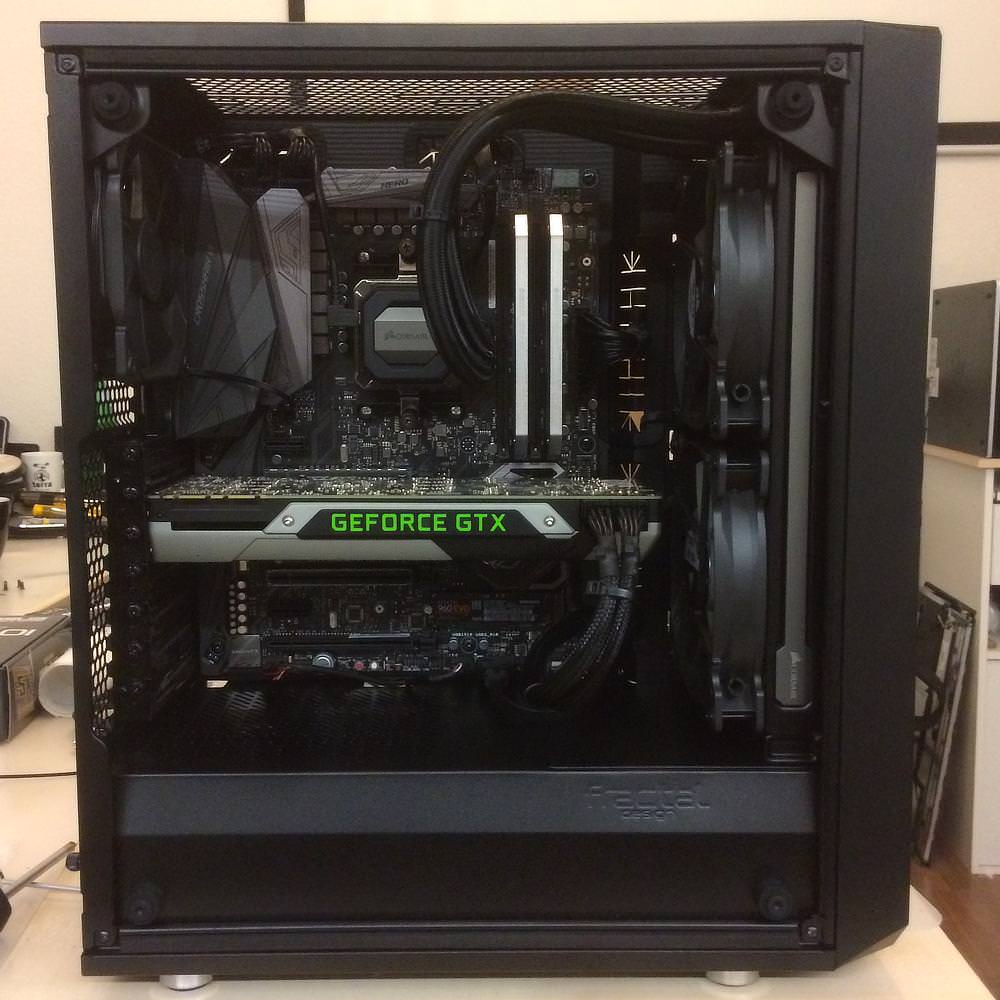

If you’re interested, this is what the system looks like:

I’m asking you for help.

Tytan64

2

Have you updated your BIOS?

And Ryzen still prefers certain RAM dies unfortunately, so some RAM models simply won’t hit their rated speeds on Ryzen no matter what you do.

3

That ram isn’t on the QVL. It’s my personal belief that the Crosshair VI Hero is one of the worst motherboards ASUS as ever made. I have one and hate it. Literally hate it. I’ve had better luck with open box ECS motherboards from Frys.

On the other hand, my Asrock Taichi is (nearly) flawless.

4

If 2933 is running stable, leave it at that and wait for Ryzen 2. I would bet memory support is one of the two main points to be addressed by the second gen. Ryzen 2 is supposed to be coming in Q1 2018.

If you want to get the fastest speeds now, Samsung B-die is the only way. I have a kit Trident-Z 3200 (non-RGB) running flawlessly just by activating D.O.C.P.

I am running the Prime X370 Pro with a 1700 @ 3.8GHz in that system.

5

On my Asus B350 Strix, I found that I had to increase the CAS latency above it’s rated value (15 to 16) in order to run my RAM at it’s rated speed

6

I’m on the second latest BIOS. I didn’t update to the latest one because ASUS claims it only adds support for upcoming processors.

7

I don’t know what your experience with the Crosshair VI Hero is but I had the MSI B350 PC MATE before this and after about 5 weeks it died for no reason and I send it back to amazon. After that I got the Crosshair Vi Hero and for me coming from the ASUS Z97-Pro Gamer it was a pleasant experience so far. I don’t blame the memory incompatibility on ASUS but more on AMD for the memory controller on the CPU though.

8

@Aldegund Is it only one value or are those several values I’d need to change?

Also sorry for reading this. I just figured out how to reply to several topics at once …

9

I have GSkill Ripjaws V 2x8GB 3200 RAM attached to the STrix X370-F Gaming ATX board, Ryzen 7 and I have settled at 2933. Sometimes I could get it a bit faster… maybe 3022 or some odd variant but would have issues posting every once in awhile. BIOS was updated right after I got the box. Box works well, does what I need it too, streams like a beast so I haven’t pushed it.

10

A recent BIOS update resolved that issue. Now D.O.C.P works just fine :slight_smile:
