I love the MS-01 but its way too loud and the bottom fan (NVME) is not well designed or thought out.
The fist step is to repast the CPU. MINISForum thermal past is horrendous.
Next. remove the mesh inside the metal sleave, on the bottom of the case. Its unnecessary.
Next I purchased the below: (~$14 total)

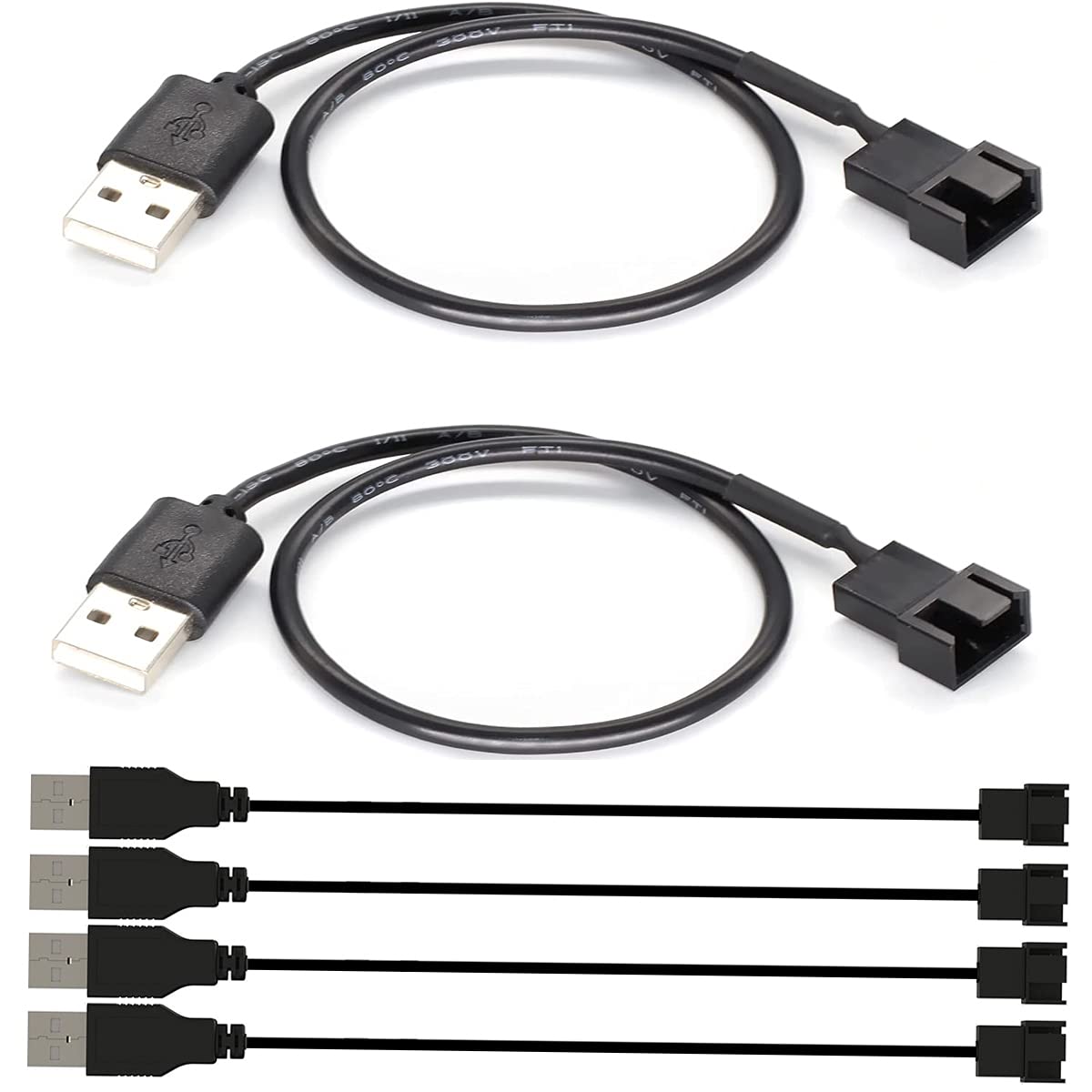

USB to fan header:

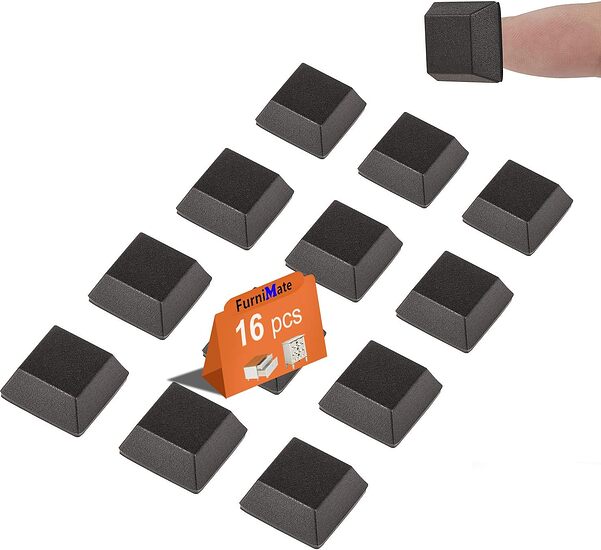

Rubber stick on feet:

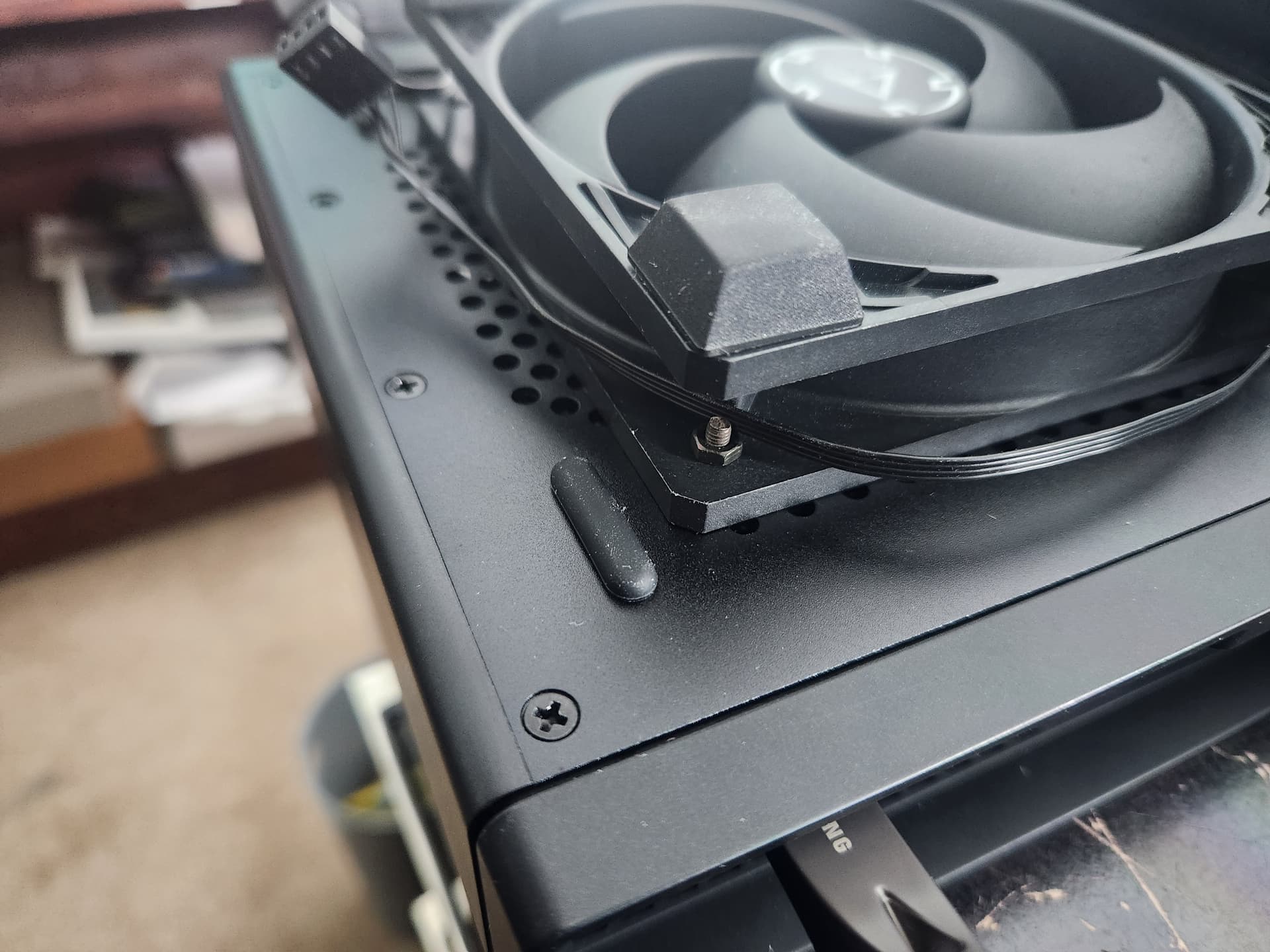

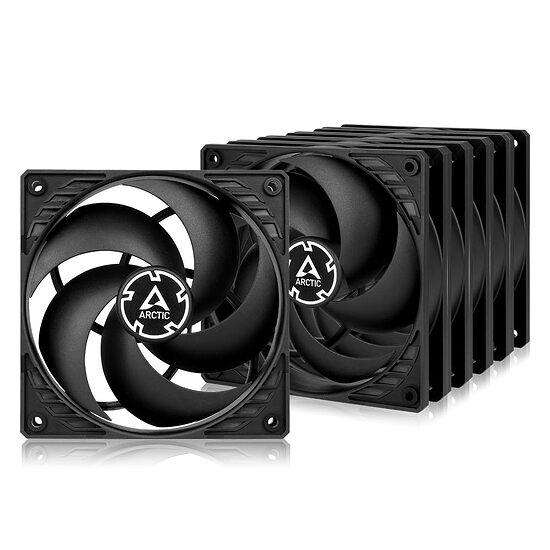

I used some M3 screws to attach a 120mm Arctic P120 fan to the bottom (extra credit, I used the fan with the “PWM sharing technology” (daisy chain):
For those like me, you can square the fan by attaching at two diagonal holes.

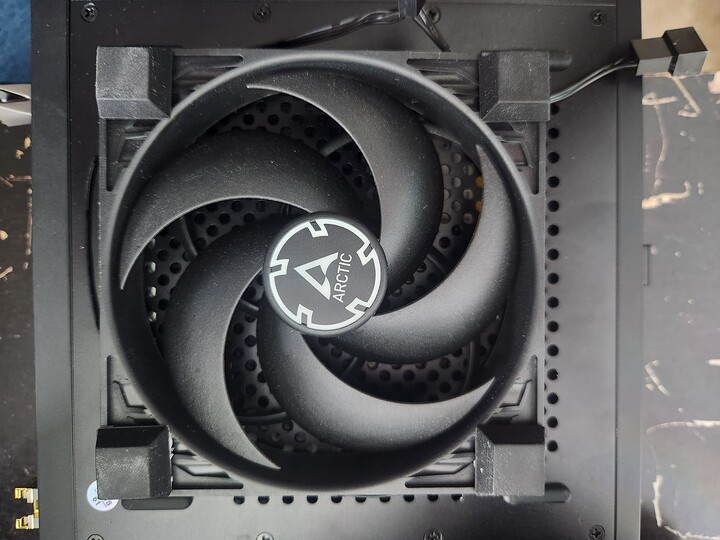

Add the rubber feet to the bottom of the fan and you get a quiet (and cool) running MS-01.

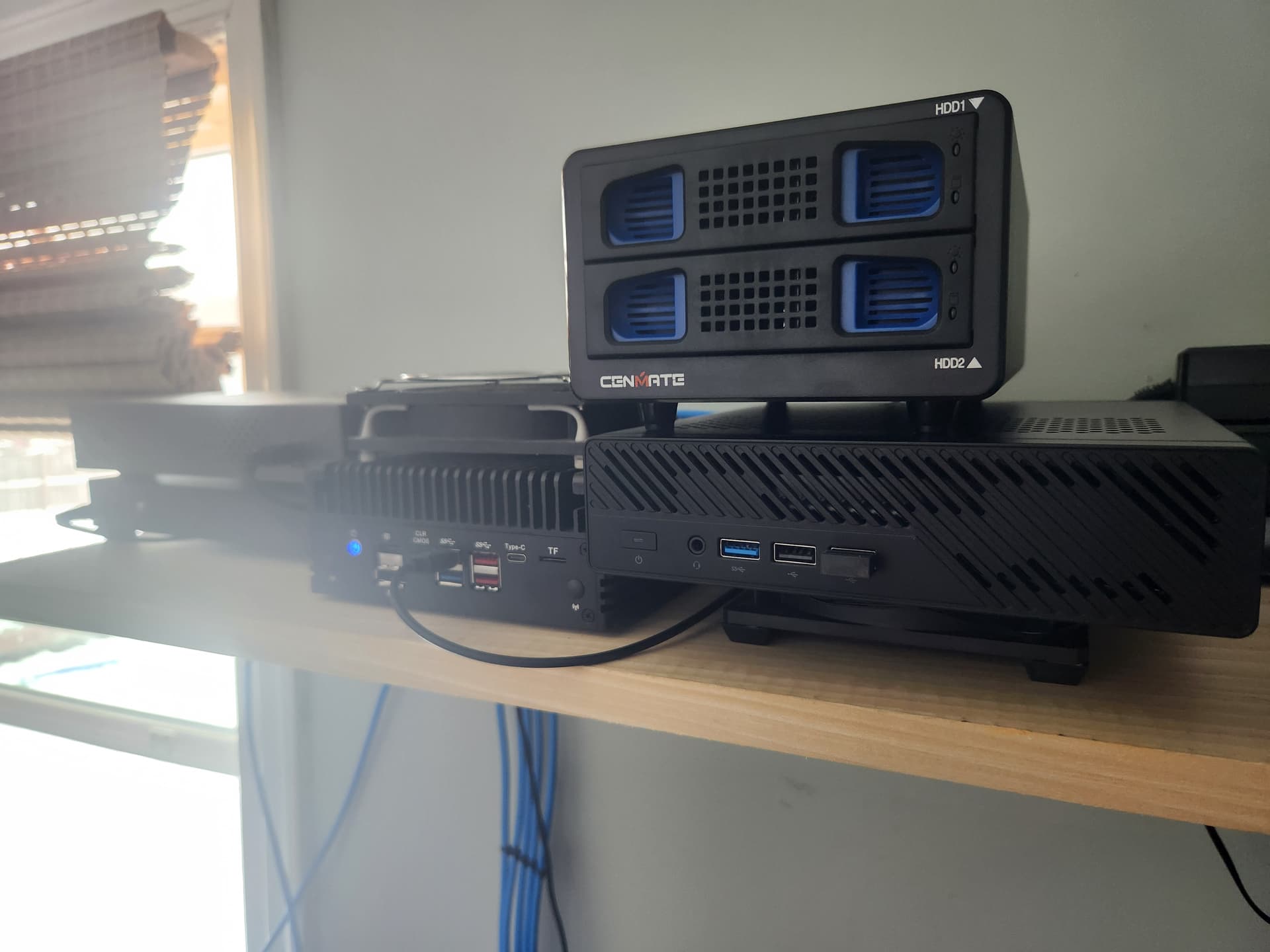

I used the daisy chain to add a fan on top of my “fanless” firewall PC.
