I thought I’d share my findings on how to make a quiet 2U cooler for AM5 systems that have a server socket orientation (inline with airflow).

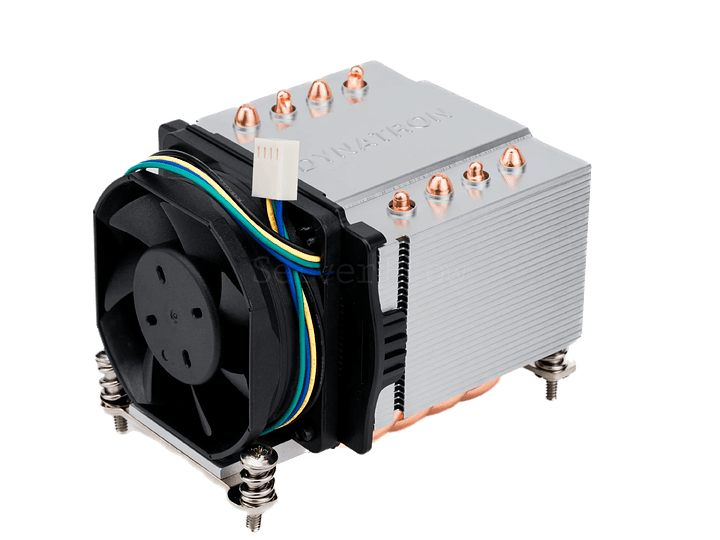

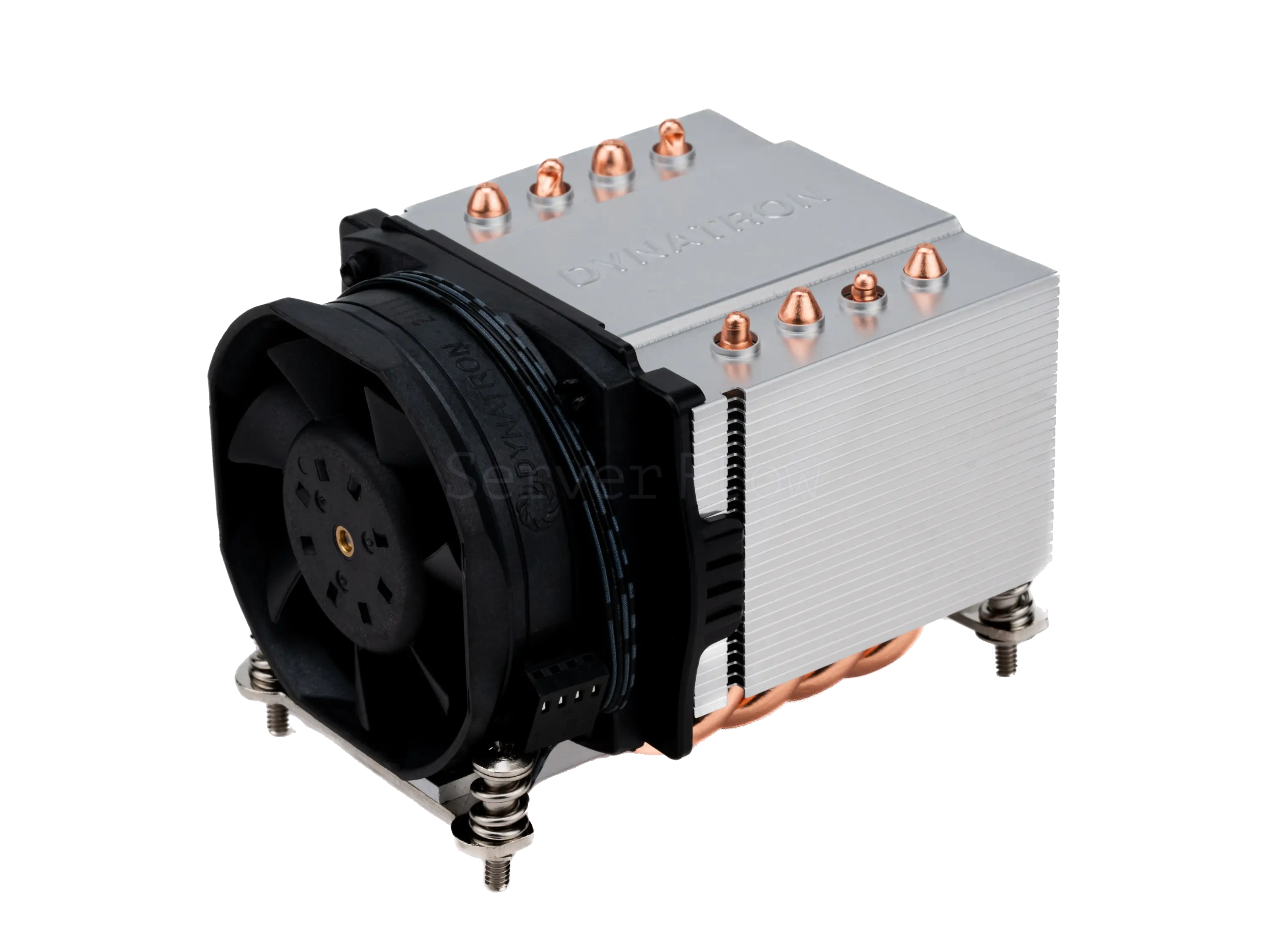

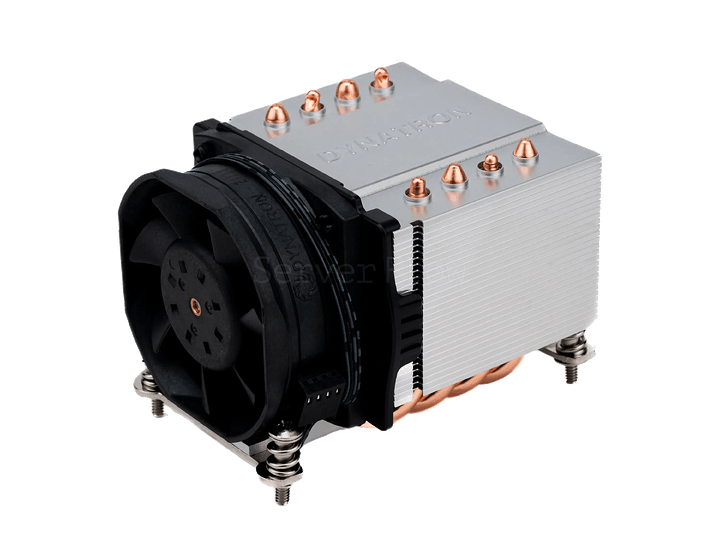

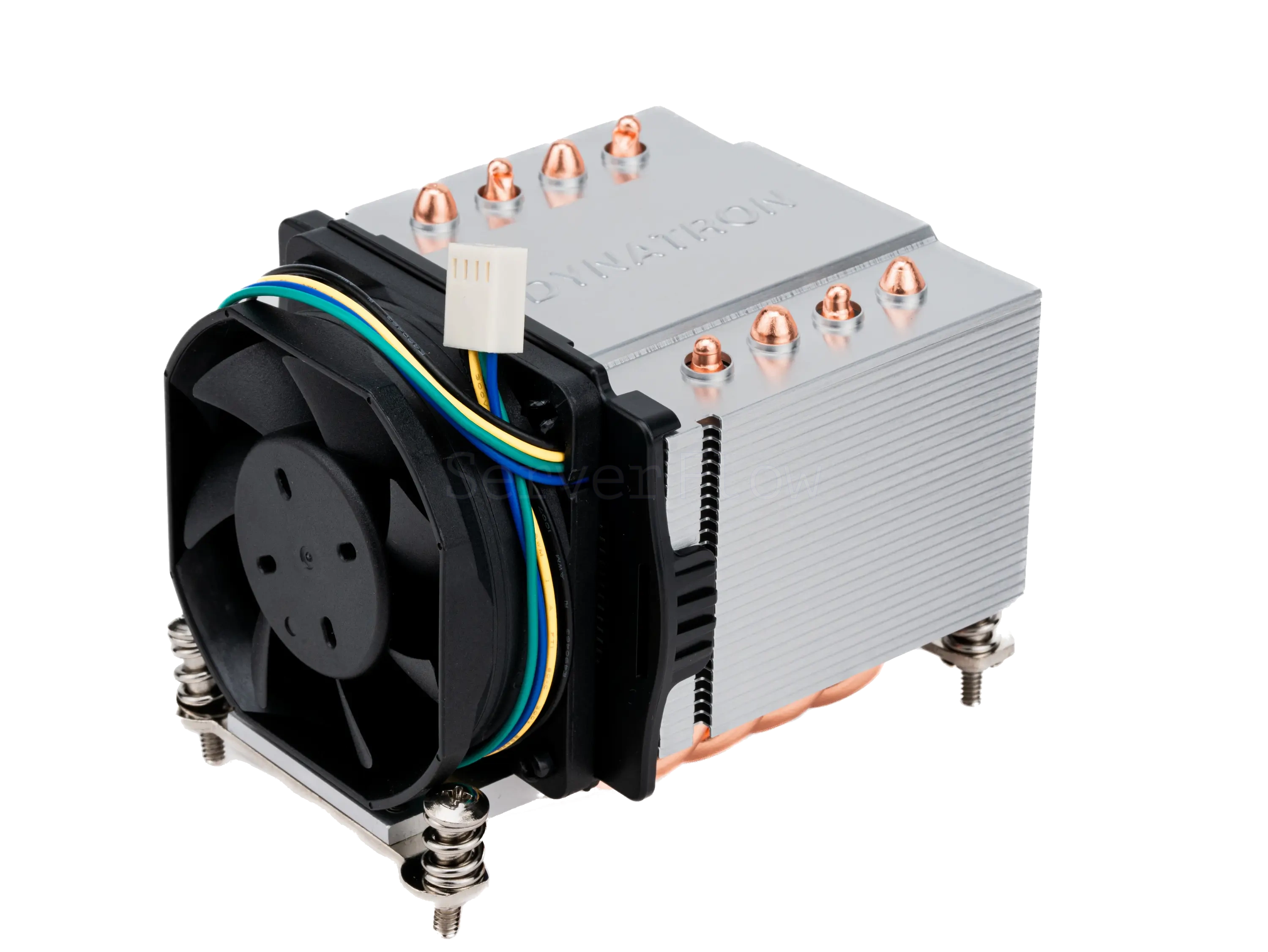

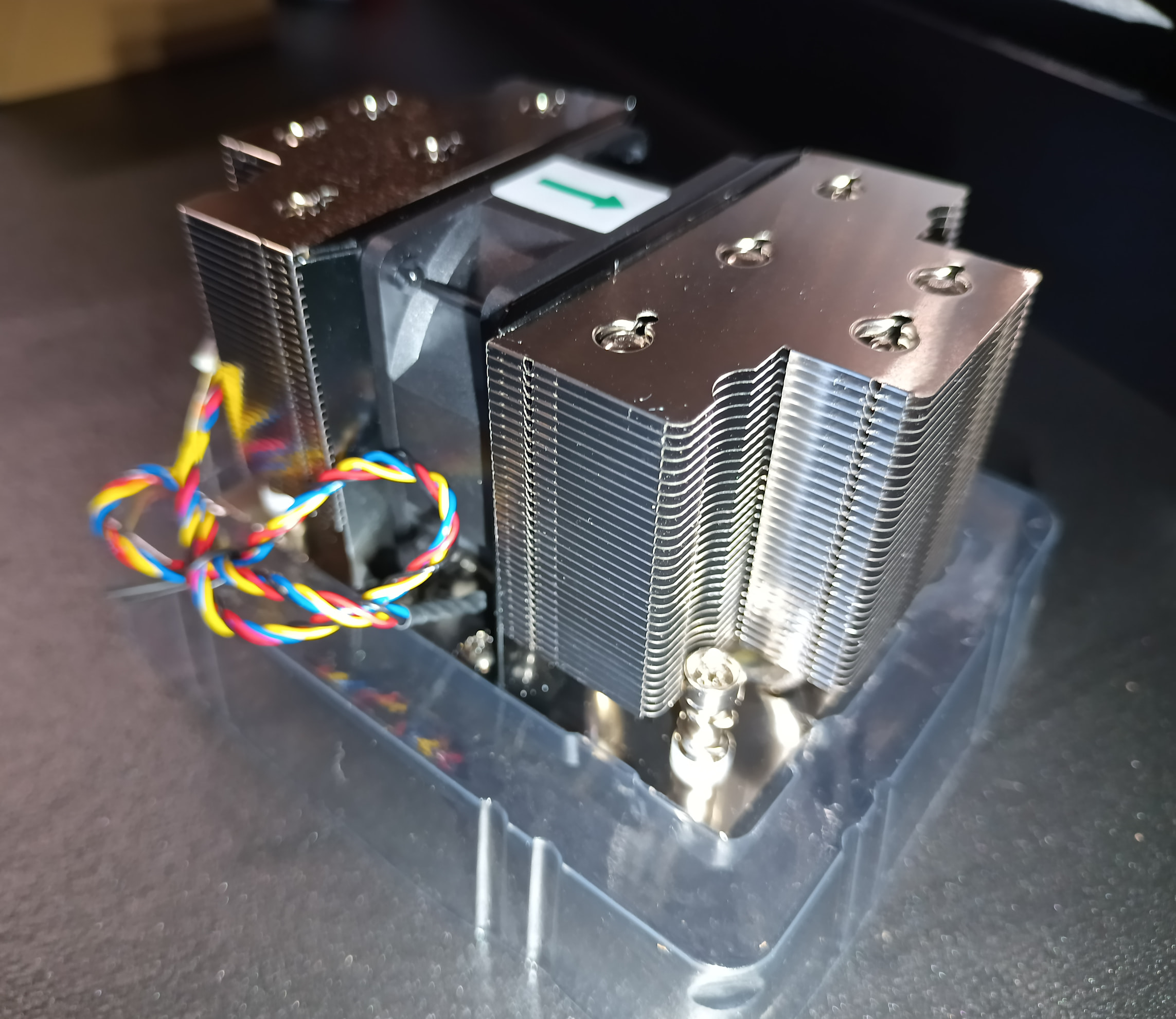

Dynatron is basically the only commercial option available, they offer the A24:
coolers with the only difference between them being a faster fan on the A47.
Fan performance as claimed by manufacturer
9RA fan 7700rpm 38.8cfm 0.52inh2o @ 41dba
A25 fan 7000rpm 40.53cfm 0.56inh2o @ 51.2dba
A47 fan 11000rpm 58.31cfm 1.13inh2o @ 59.8dba

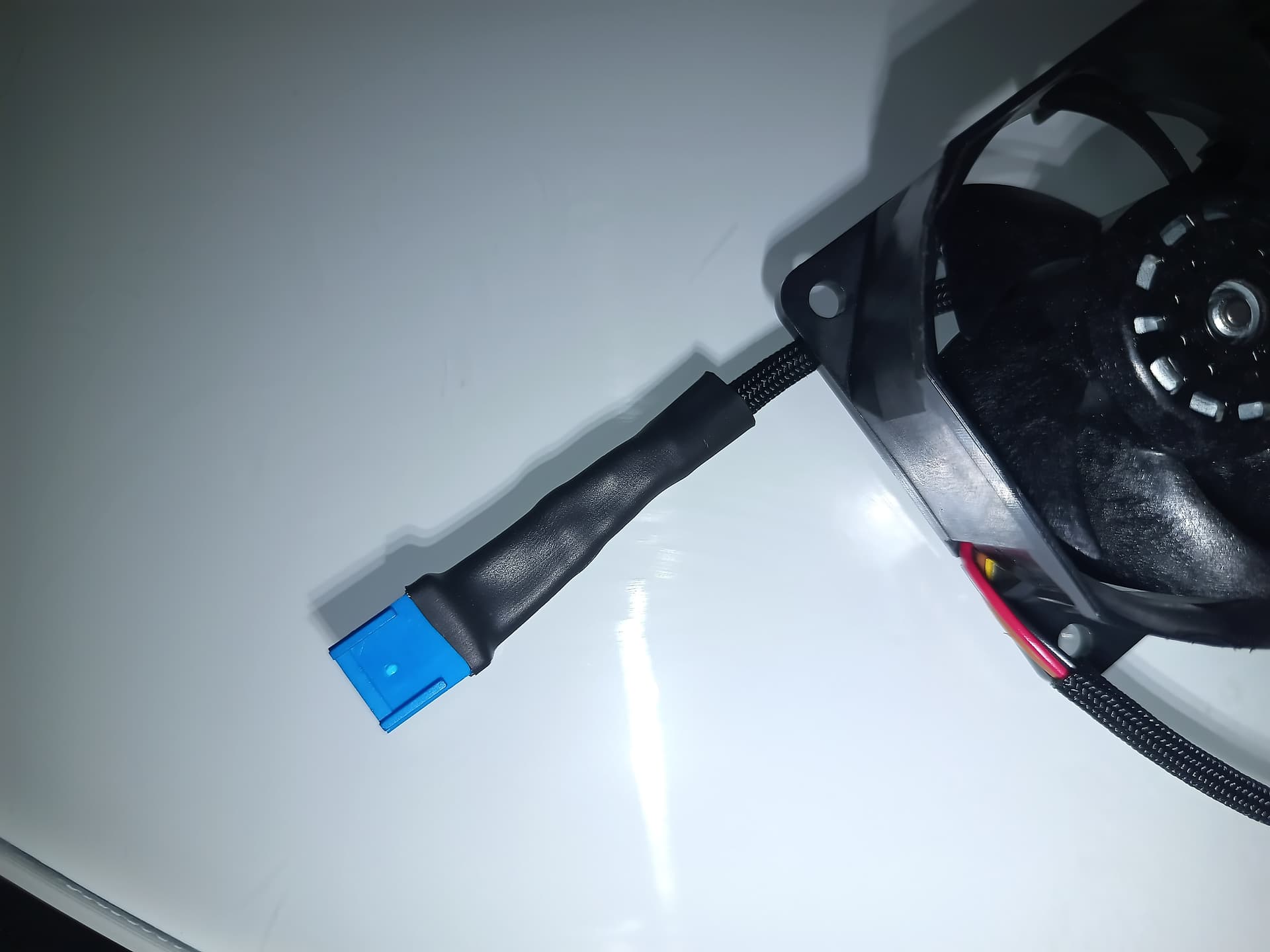

The noise to performance ratio of these stock fans is bad so a 9RA fan can be substituted to improve the situation.

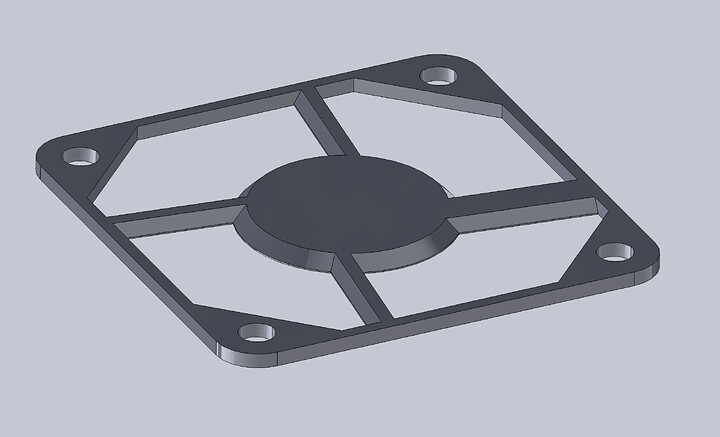

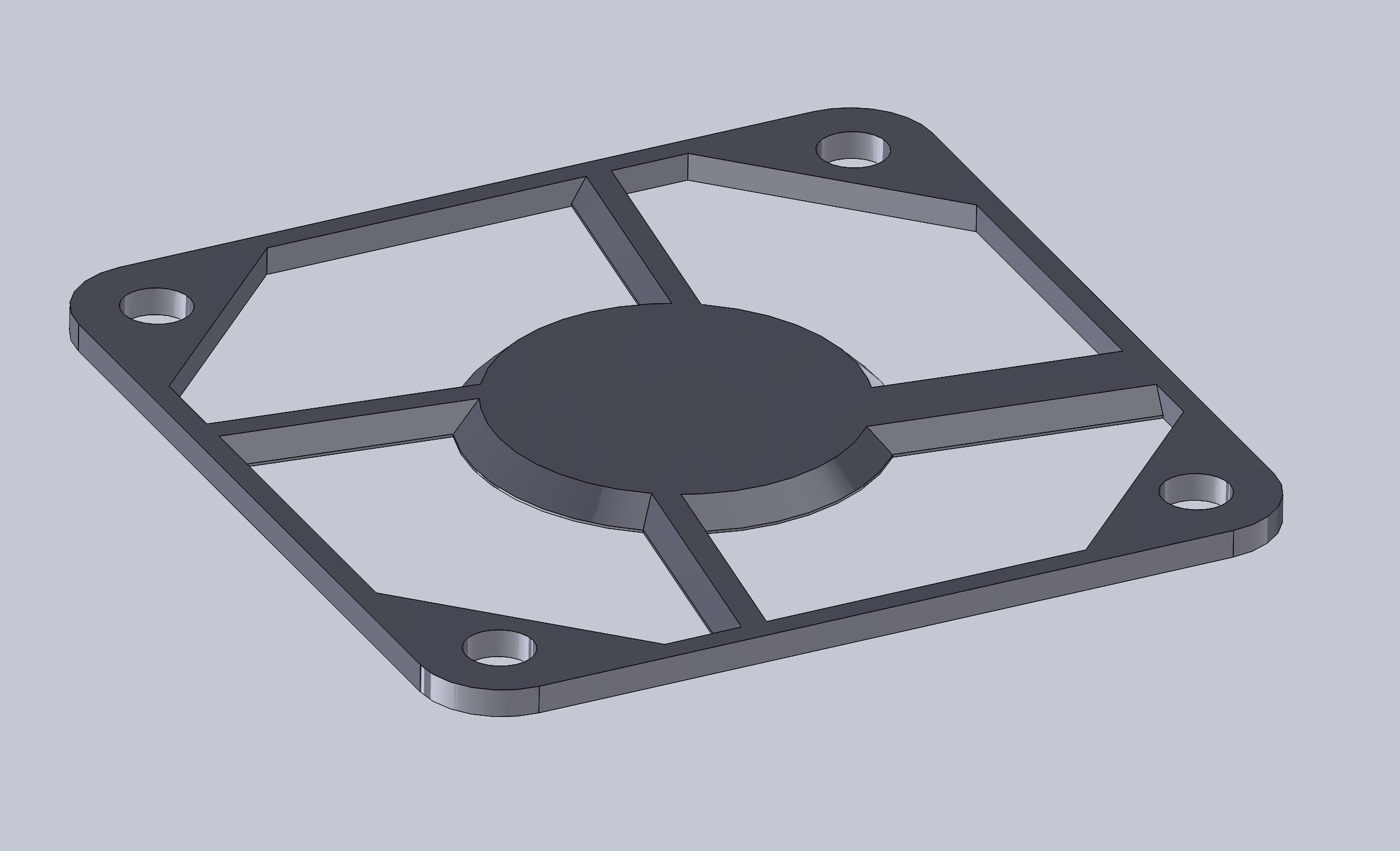

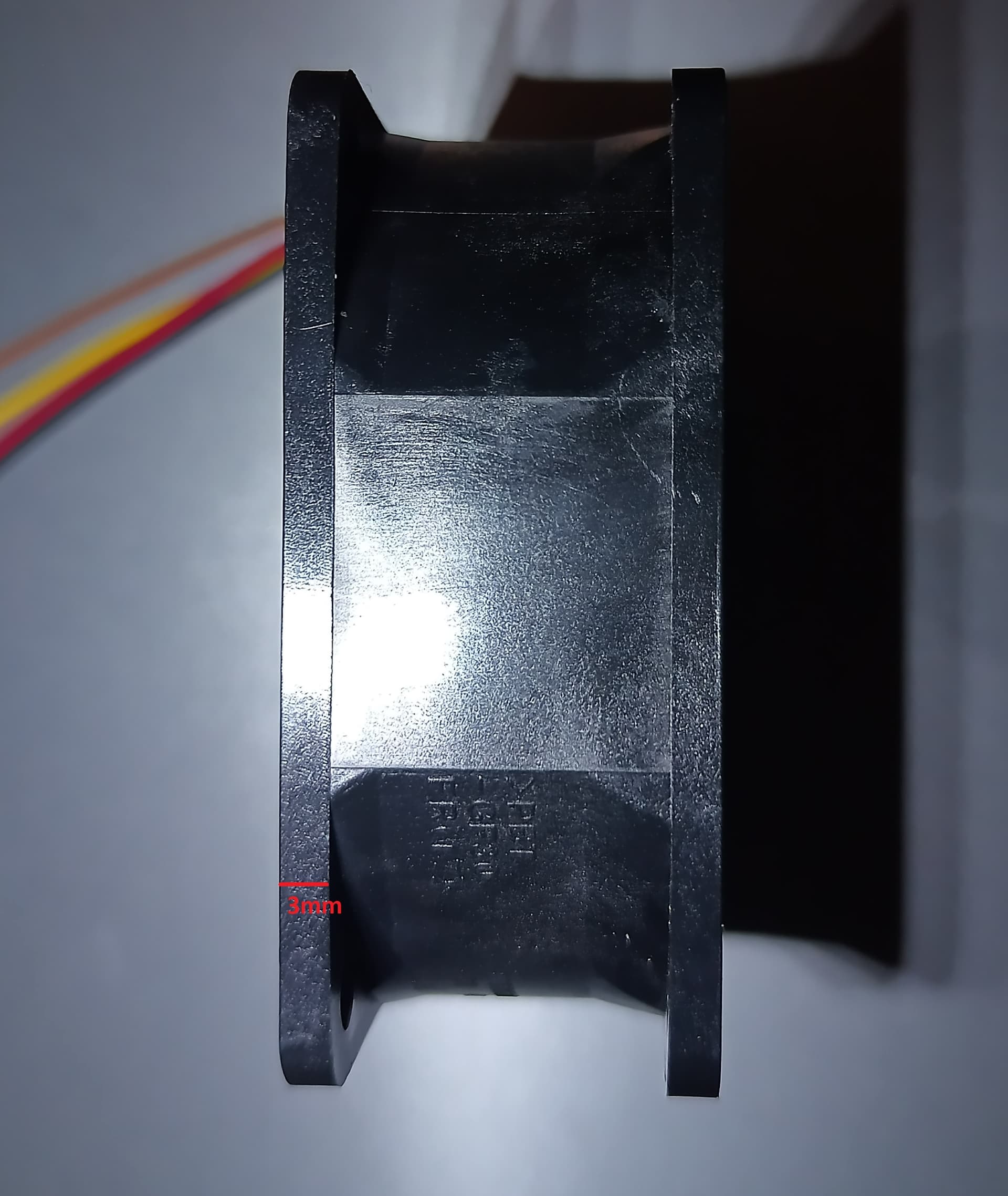

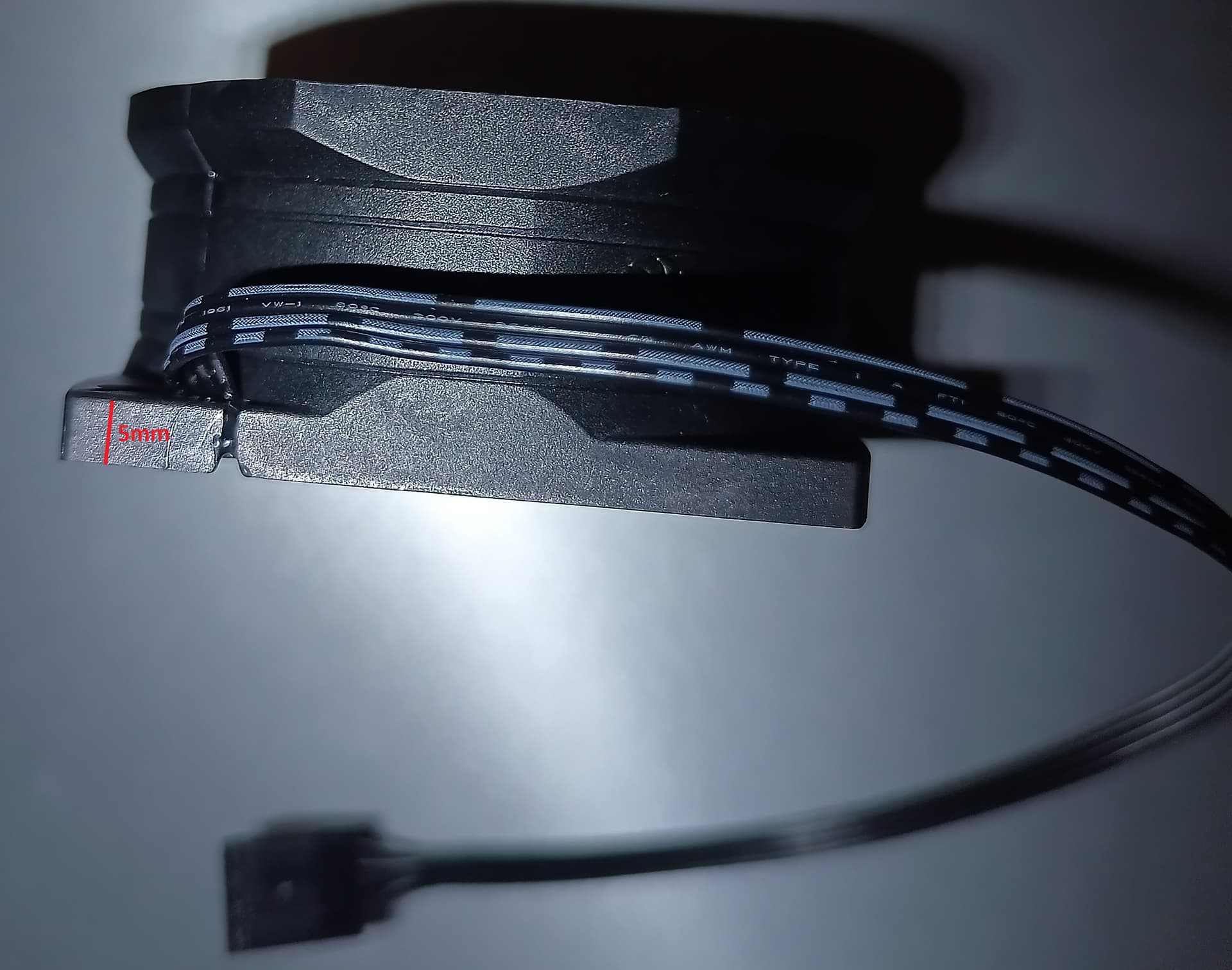

The issue that arises with fan replacement is that the Dynatron fan is constructed with an extra thick, non-standard mounting flange that causes a normal 60mm fan to incorrectly mount to the heatsink:

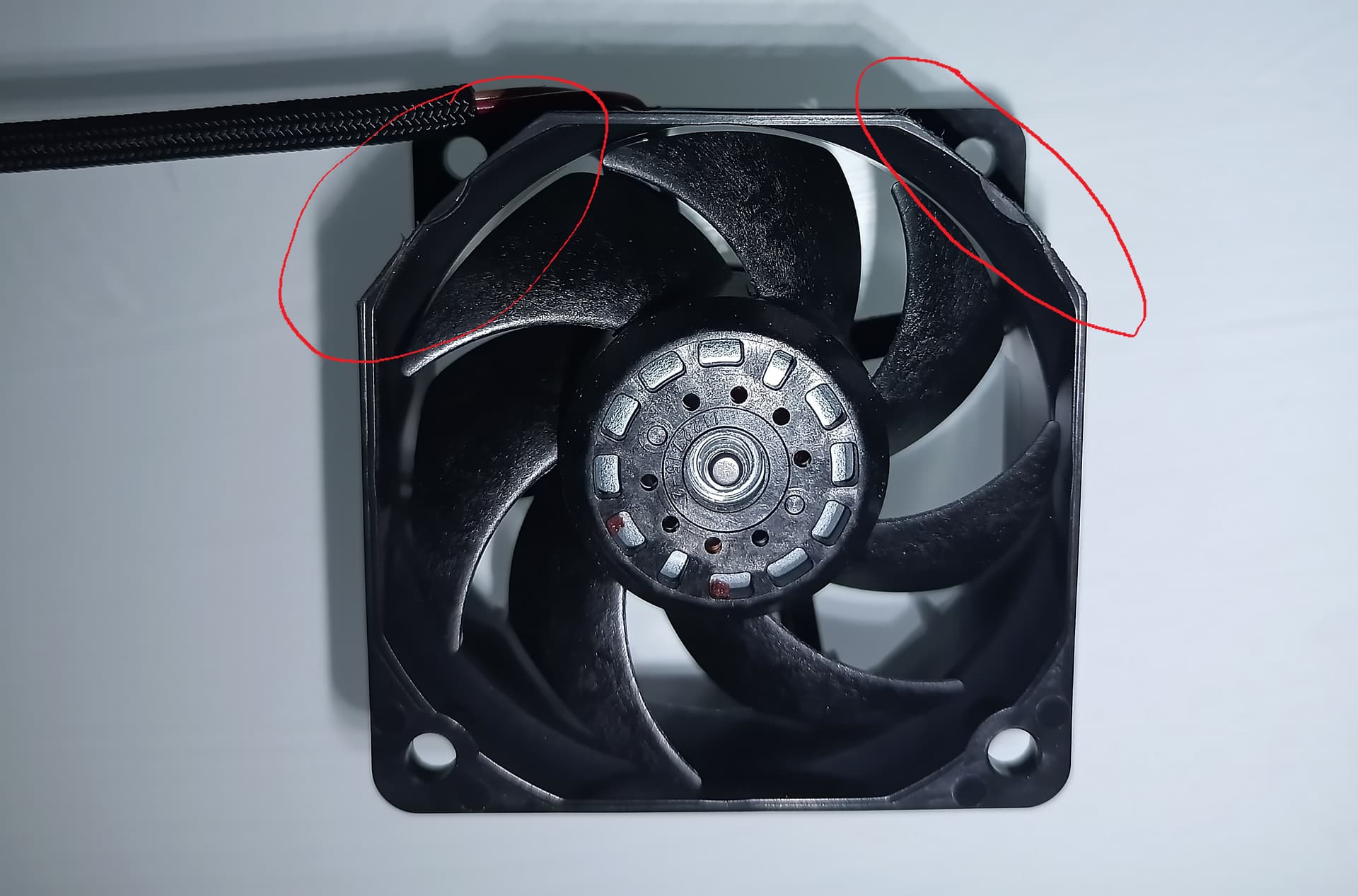

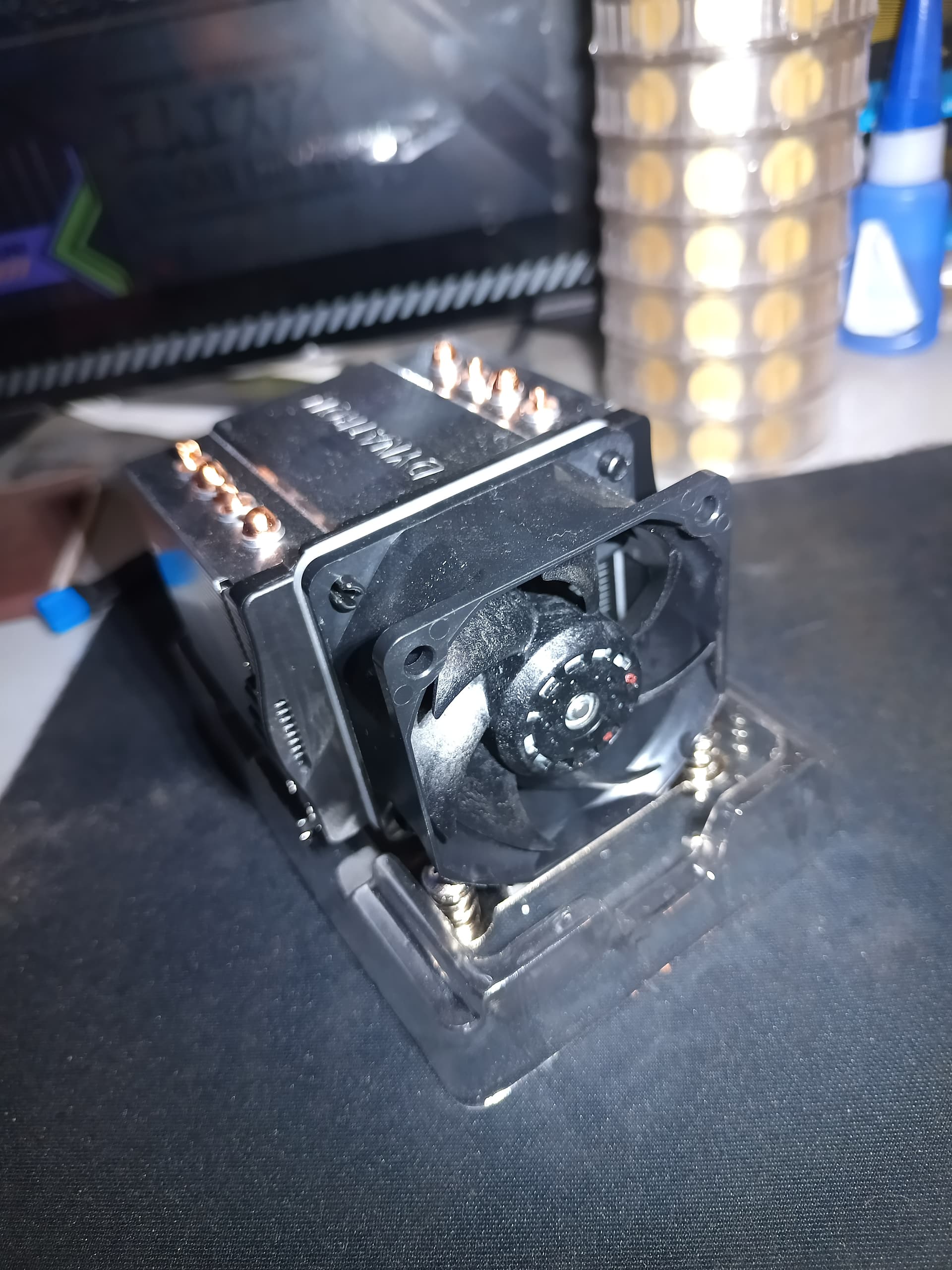

After this spacer is installed onto the heatsink, the two bottom flanges on the intake side of the fan need trimmed with a rotary tool to make room for the AM5 mounting screws:

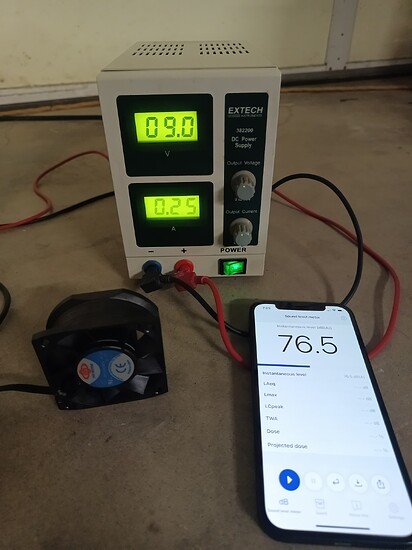

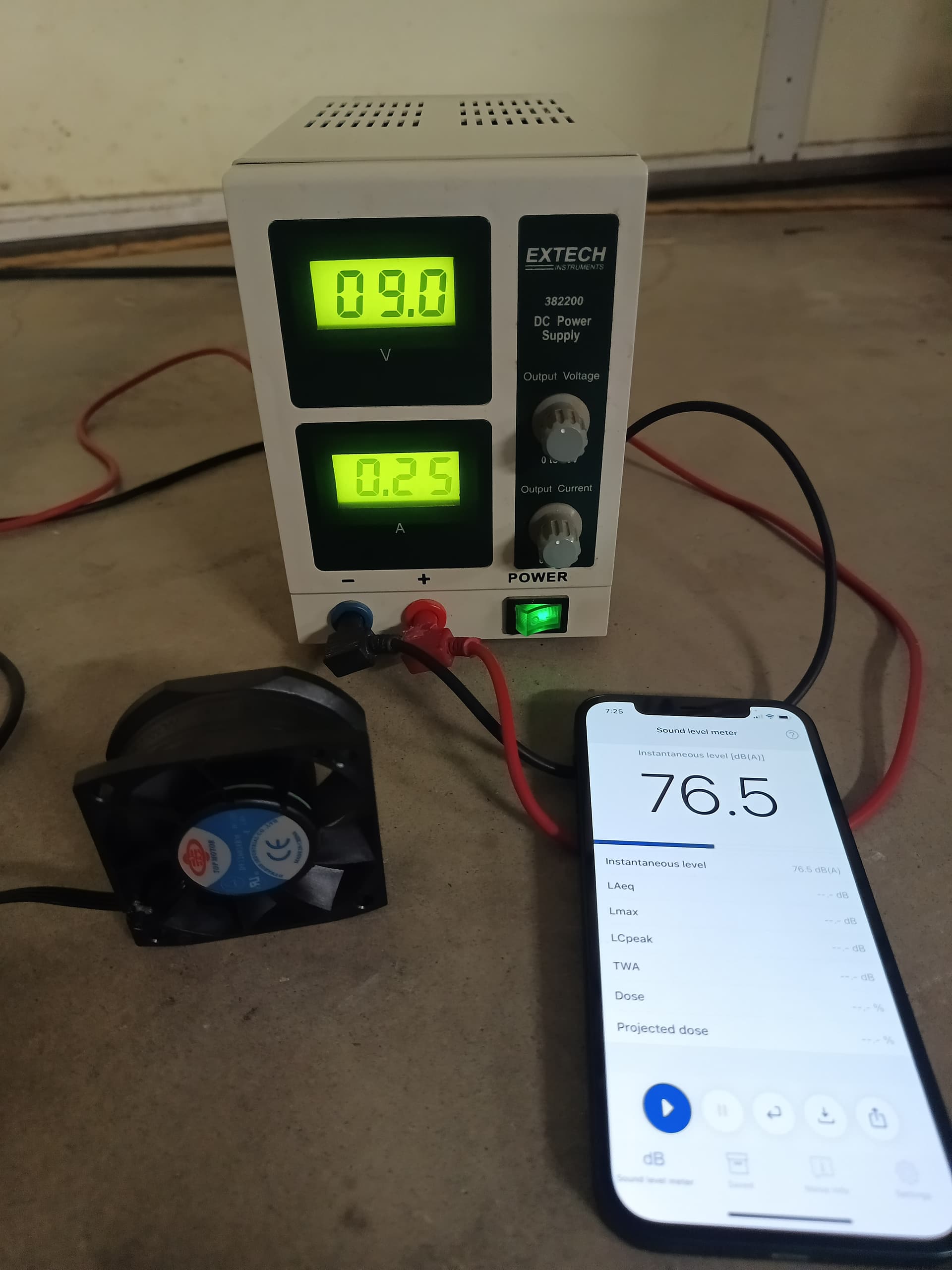

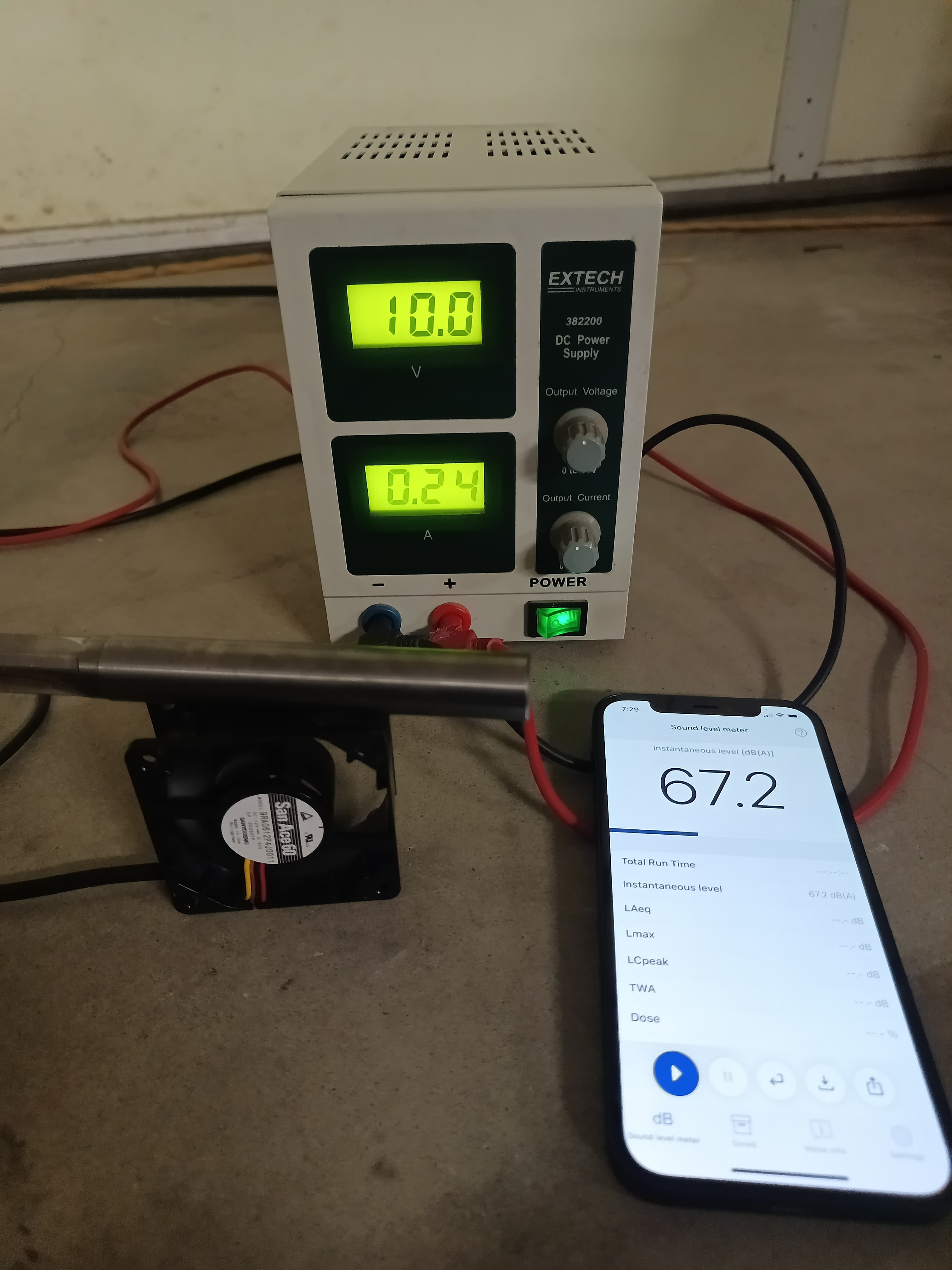

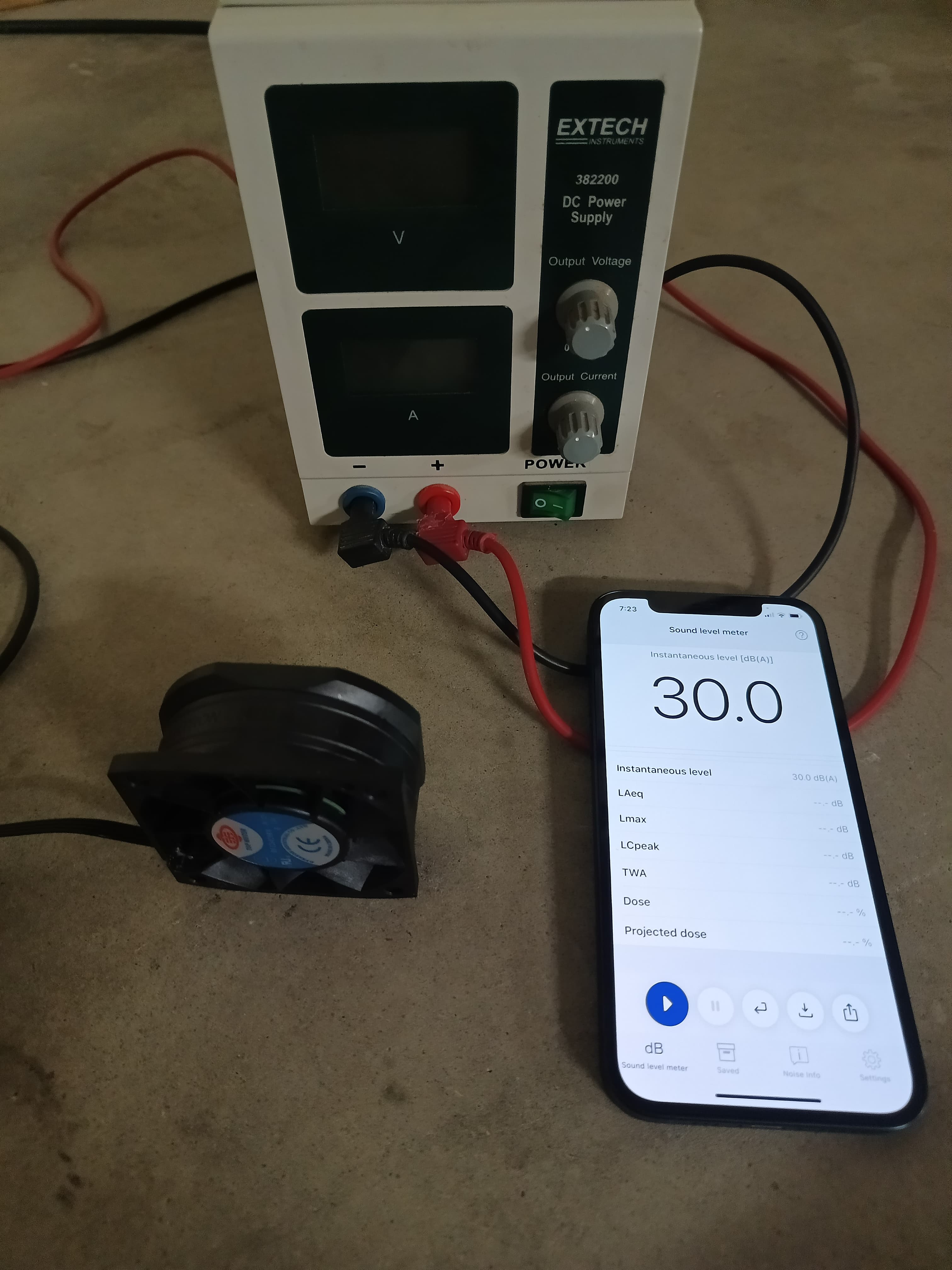

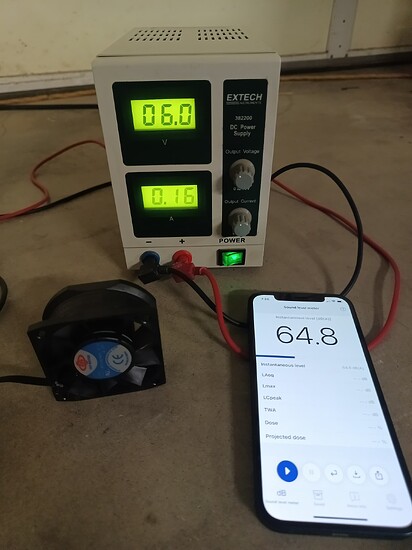

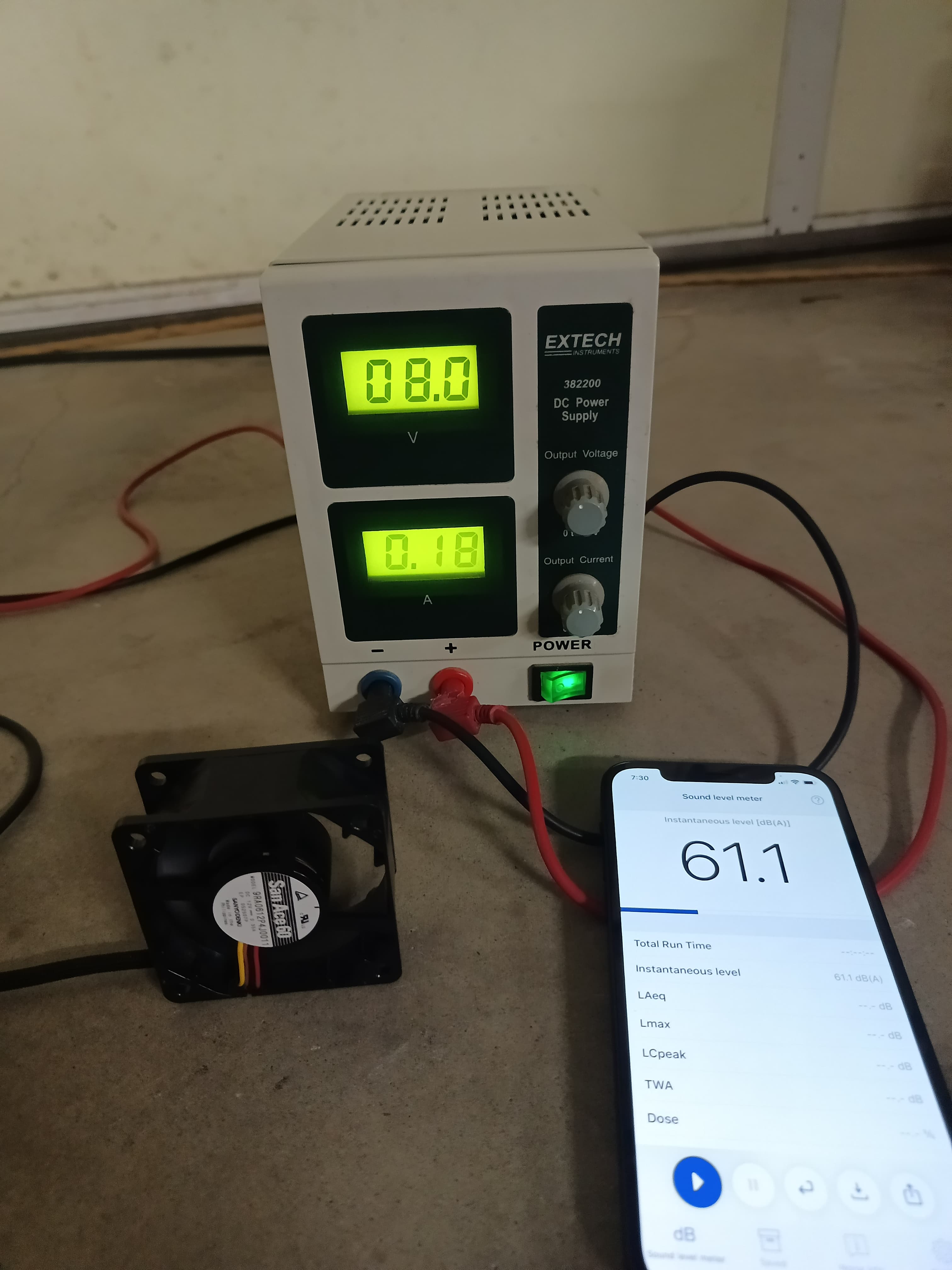

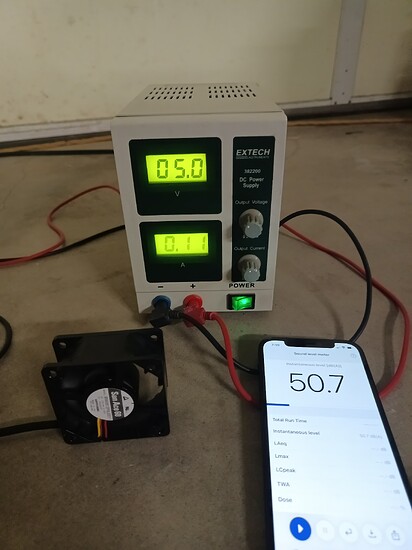

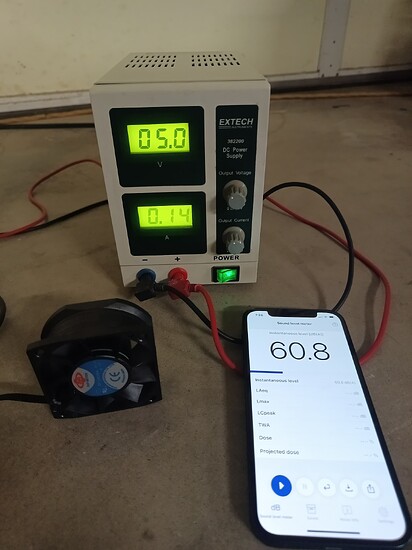

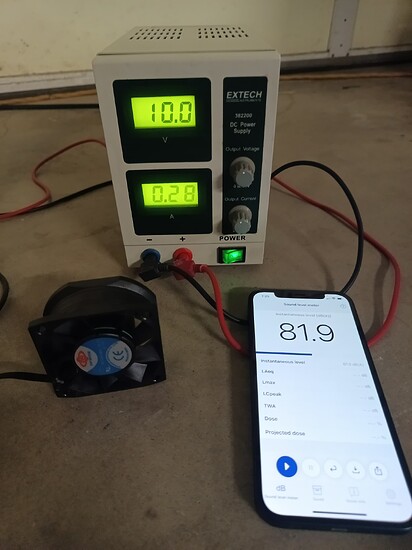

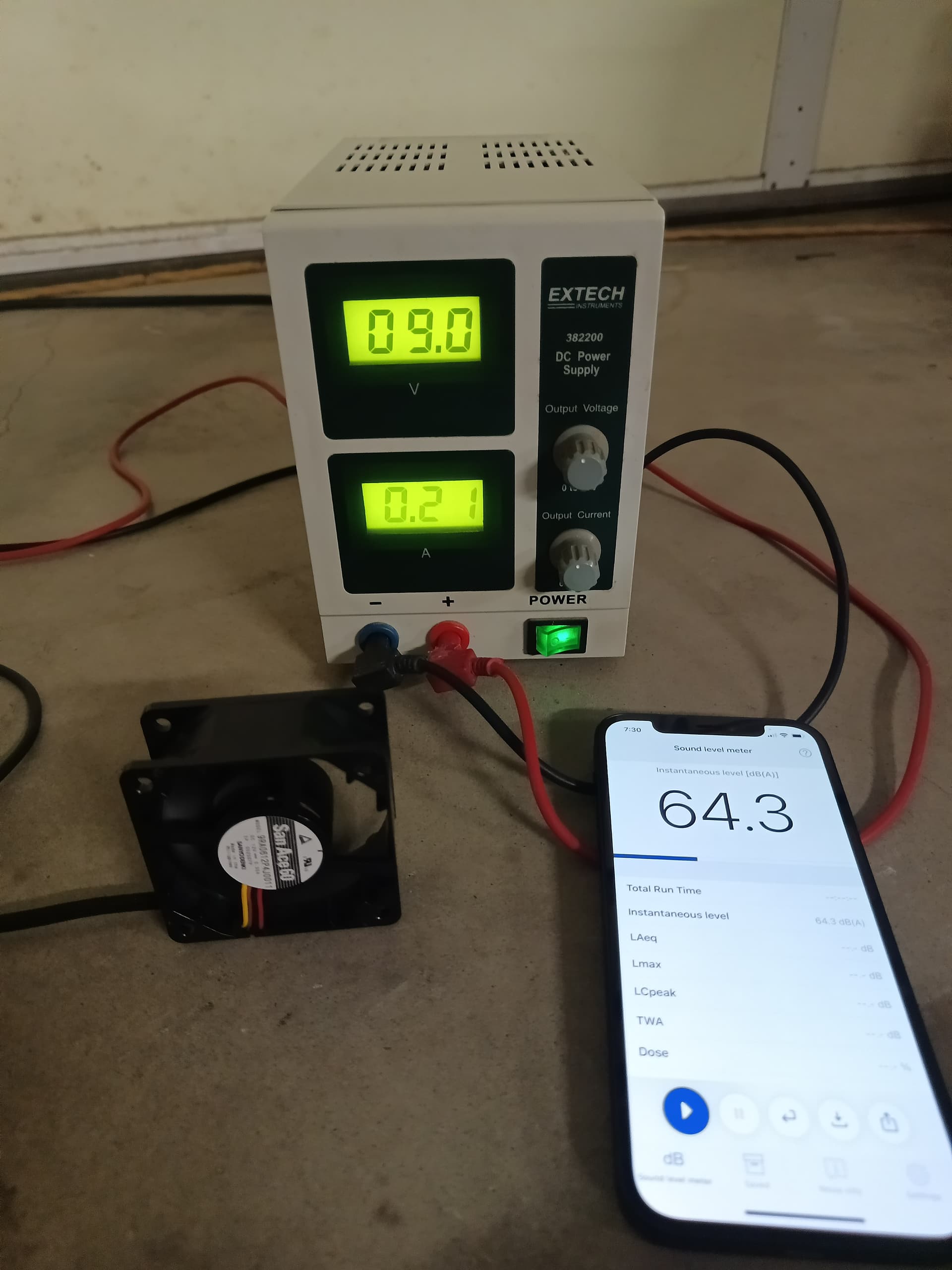

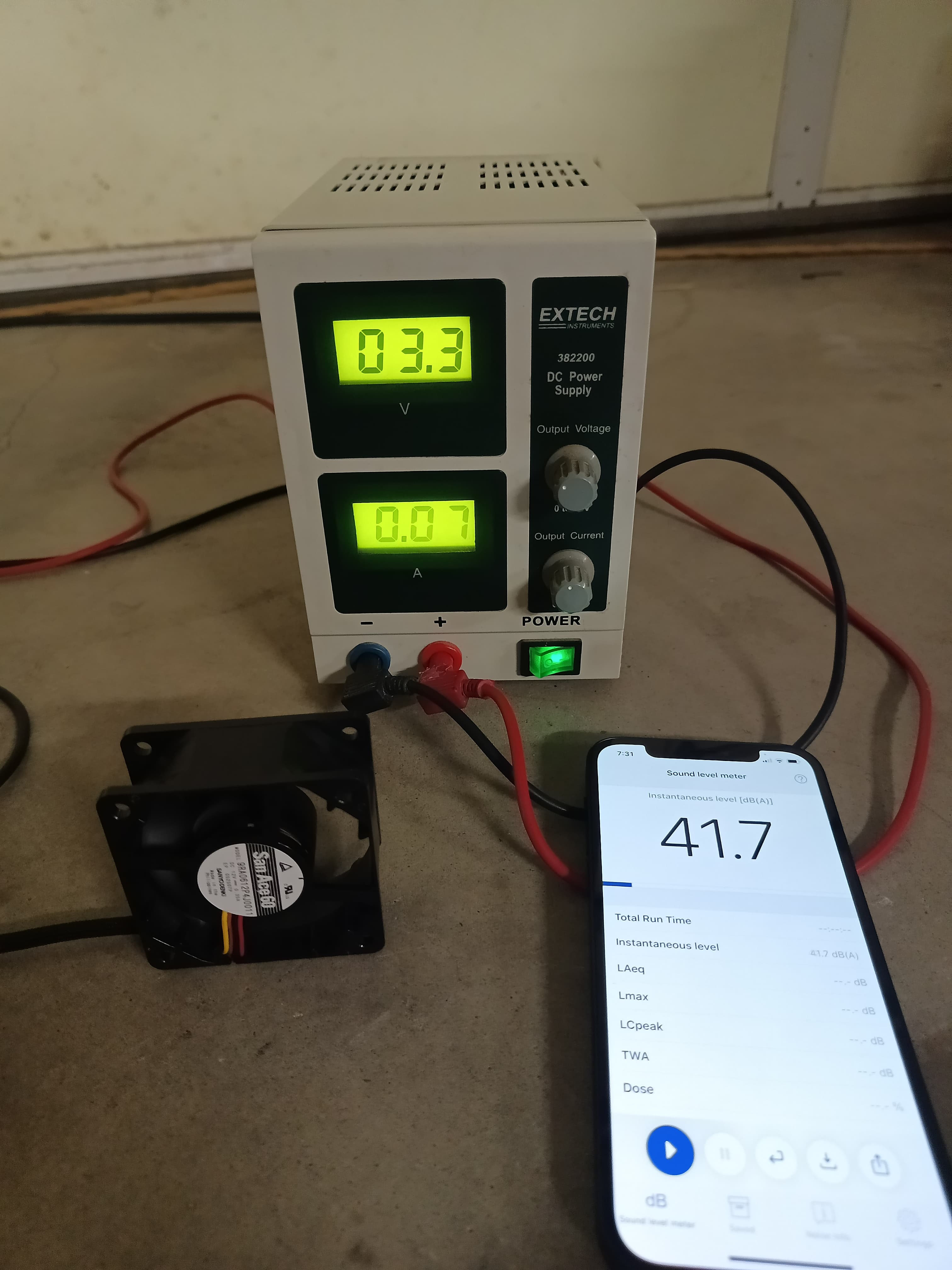

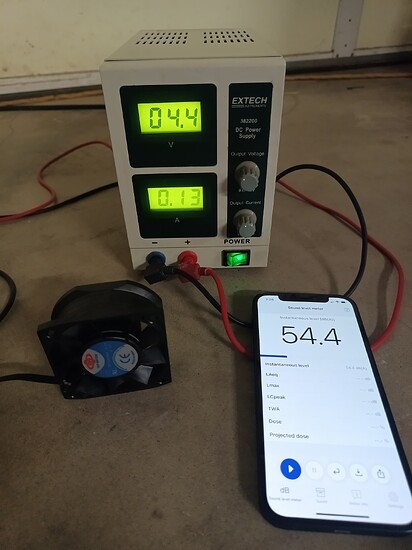

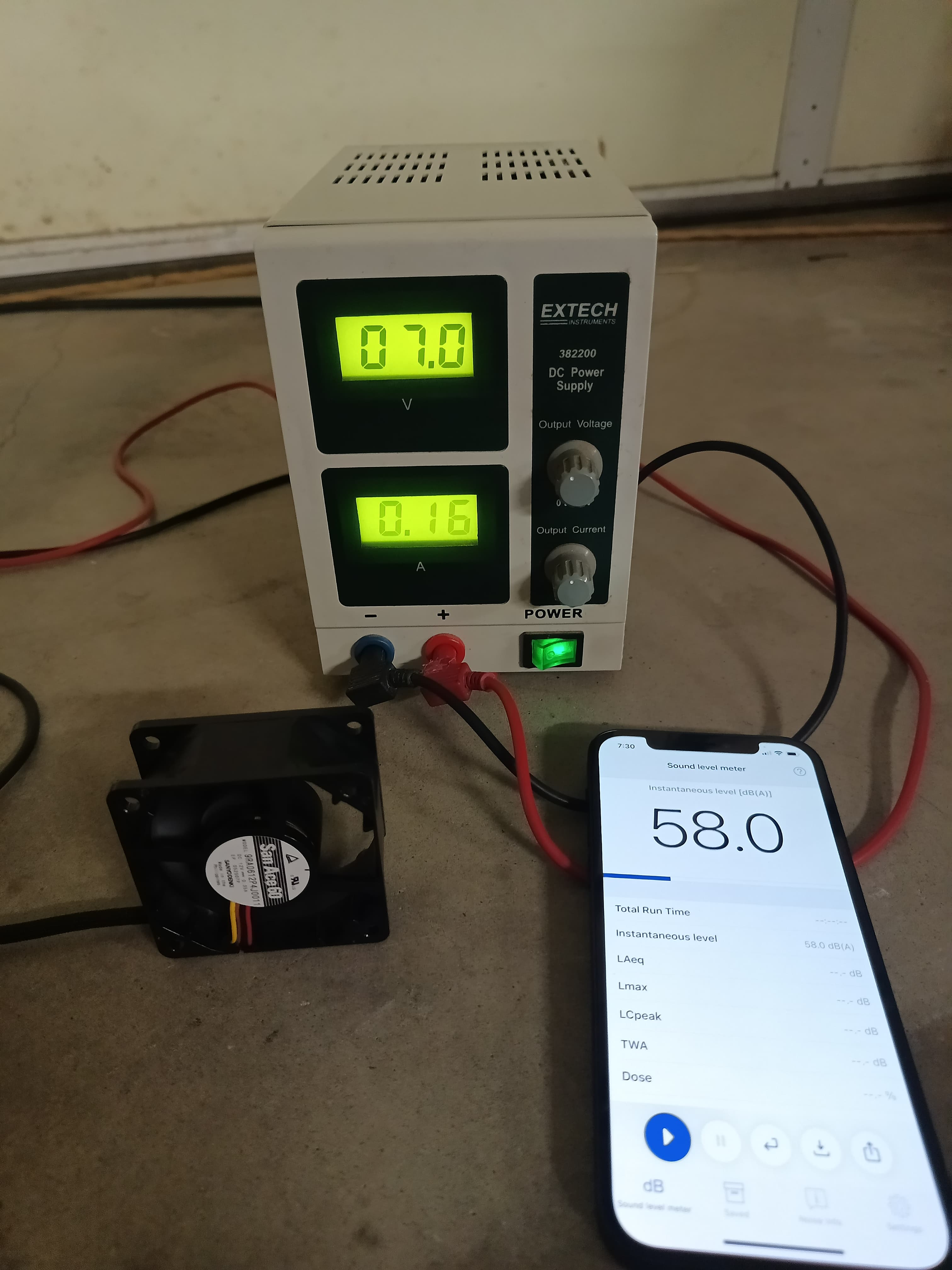

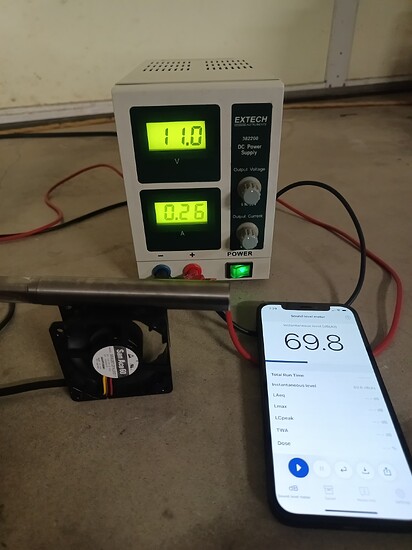

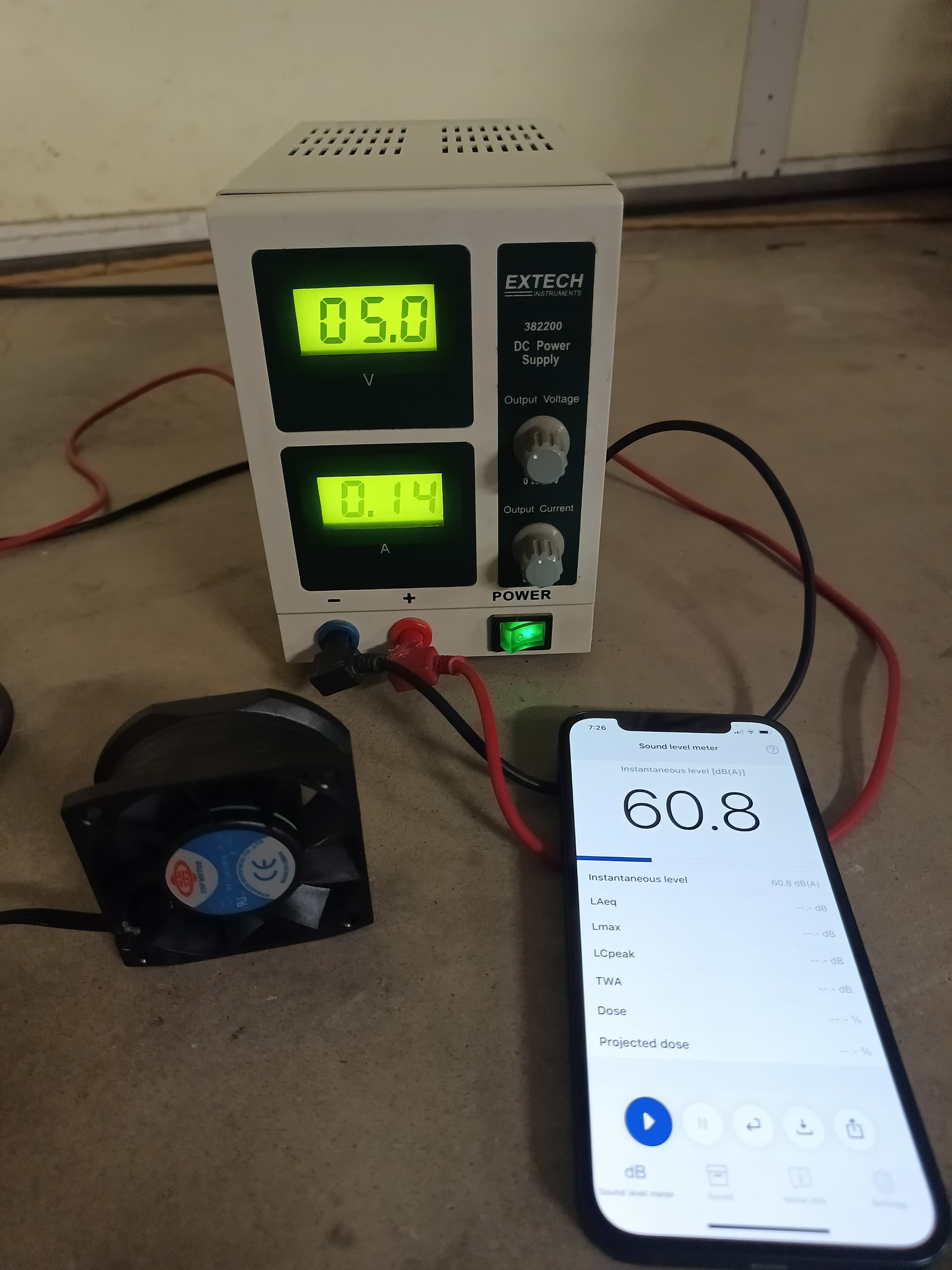

I don’t have a way to measure static pressure or flow, although my hand tells me that the 9RA might have a slight edge in flow volume, but I can measure the sound level and electrical load of the fans in the same position and orientation.

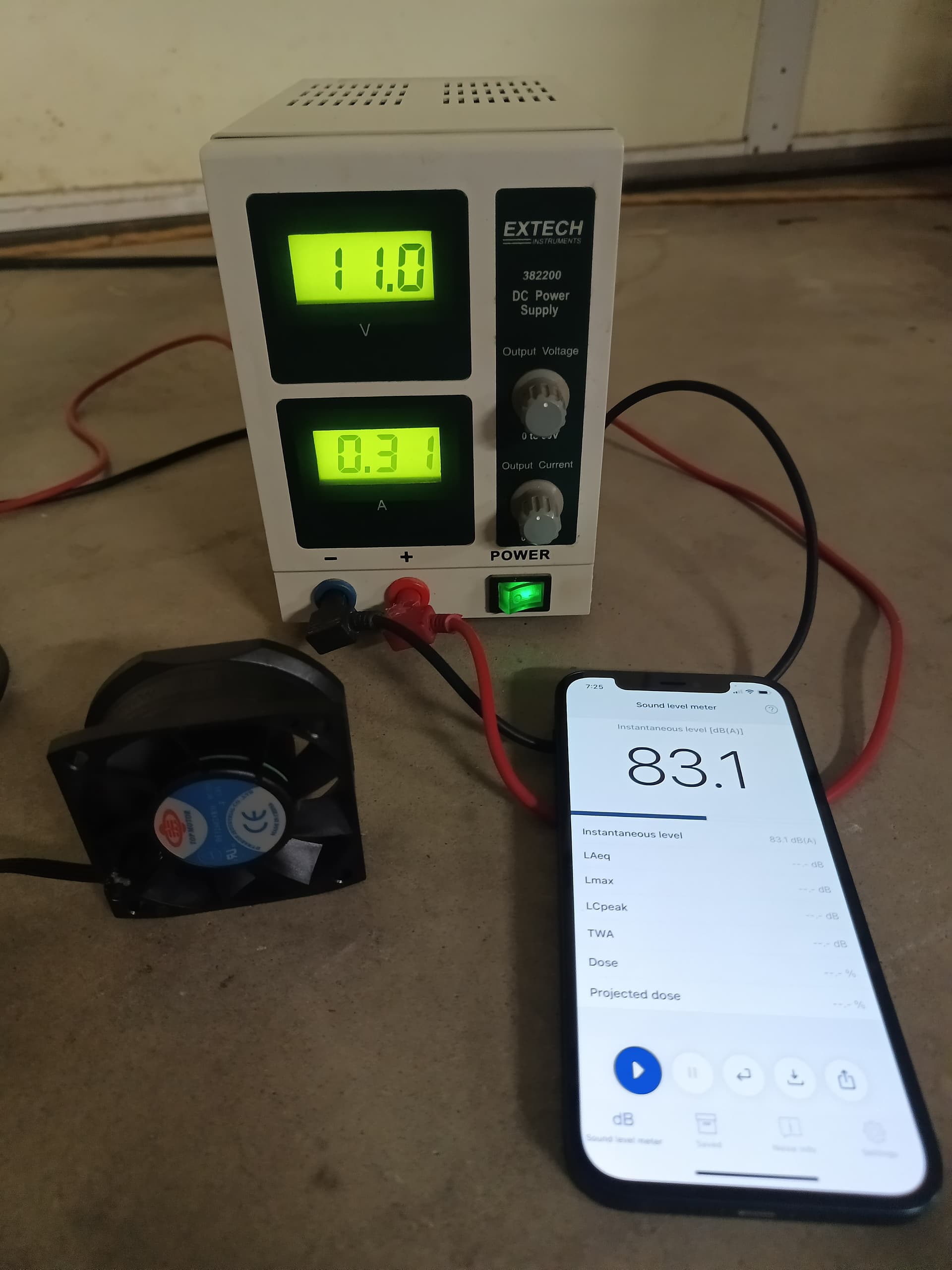

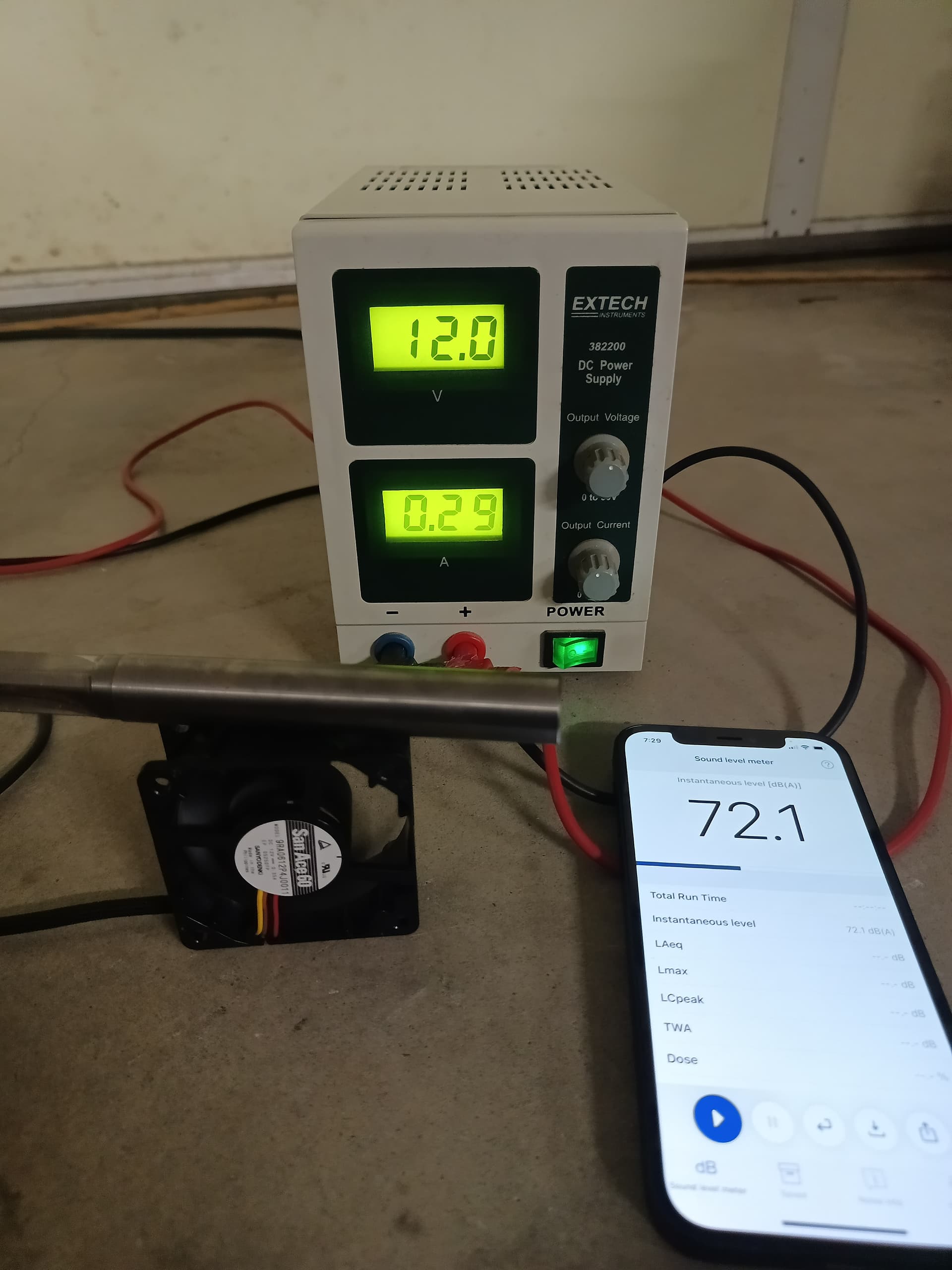

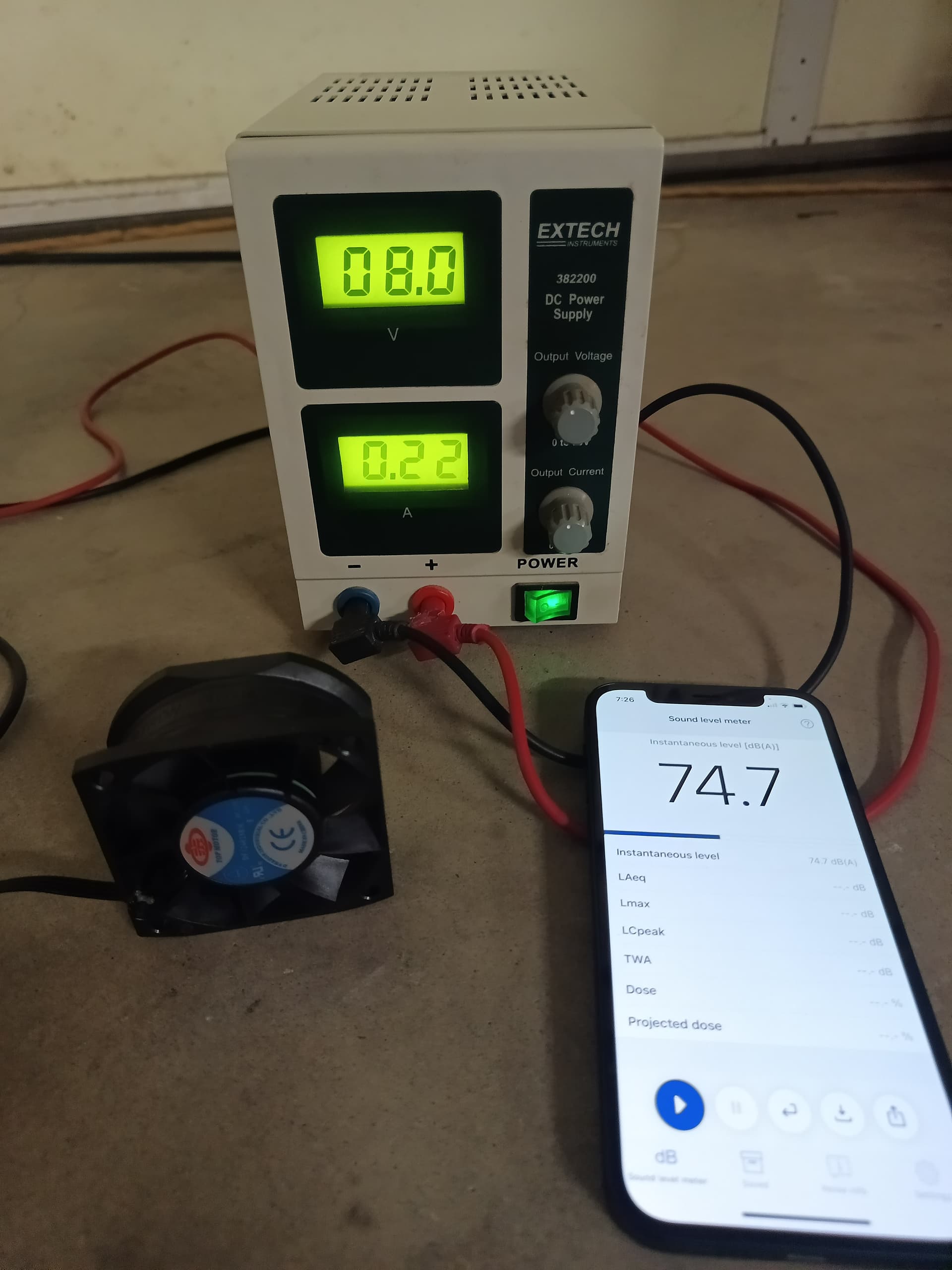

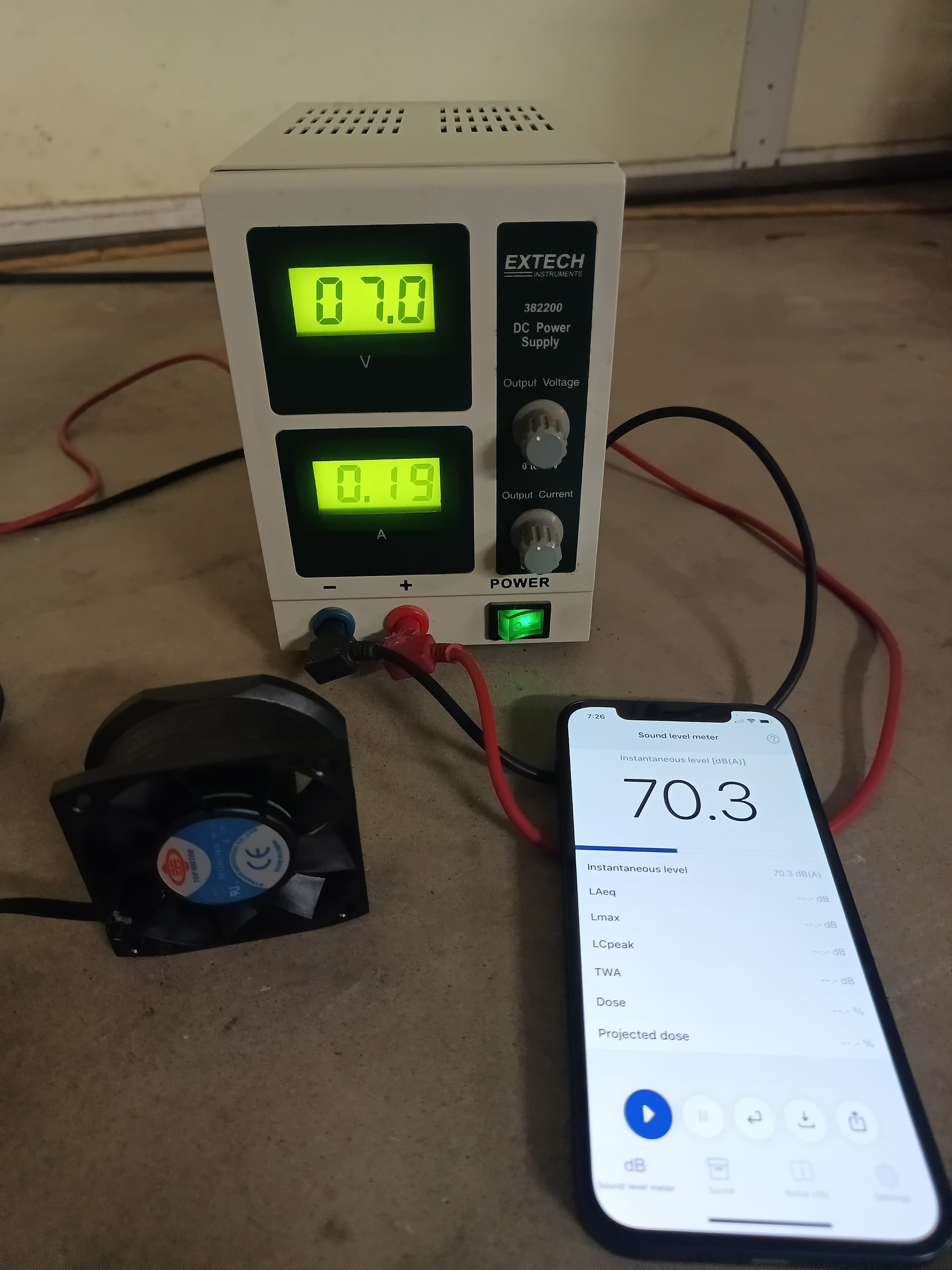

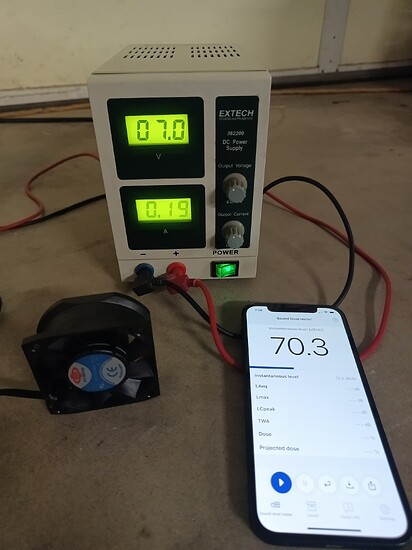

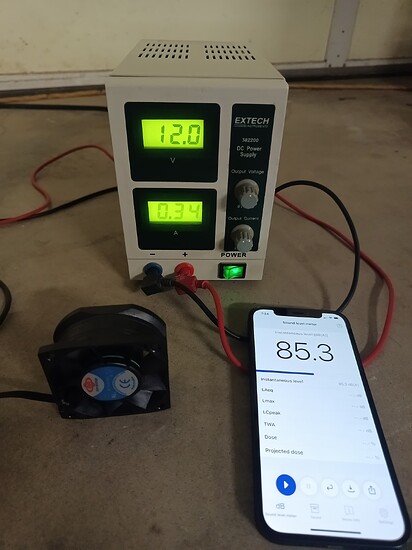

On the 12, 11 and 10 volt measurements of the 9RA fan I had to put some weight on top of it to prevent it from moving or knocking itself over, it wasn’t necessarily because it was making more thrust, but that it’s base was less stable on a flat surface than the A24’s was. The 9RA fan will also run at 1.1v lower than the A24 fan will.
To my surprise I noticed the stock fan is different between the AM5 version and the LGA4677 version (XE02-4677). Considering how similar the coolers are I thought they’d be the same, the LGA4677 version’s fan is quieter and less performant than the AM5 version, I don’t understand why AM5 would need more cooling than LGA4677.
Dynatron still sells a passive 2U AM5 heatsink, and it’s superior to Arctic Cooling’s since it has heat pipes
