HDMI -> USB-C monitor

Good afternoon everybody,

I have a P1425 Dell portable monitor. It’s neat but it only has usb-c connections. The issue is that I have a raspberry pi 1 with only hdmi output. I tried to put a dongle between but it seems that “normal” usb-c → hdmi adapters only work one way, i.e. from the output to the monitor.

My question: Is there a special kind of hdmi to usb-c connector that I need to put in between there ?

Try searching for HDMI (Source) to USB-C (Display). They normally have a USB and HDMI on one end and USBC on the other. Or a USB port on the HDMI end.

You’ll want a cable that’s specific to the data flow. I’ve used a few at work where the hdmi side is the output and the USB side is the input.

Yes. This is unfortunately the case, as USB-C utilizes the Displayport protocol.

Now, this is important because it has bitten me too in the past. Most HDMI → DP adapters have a fixed refresh frequency and resolution. Make sure the resolution is compatible with your monitor.

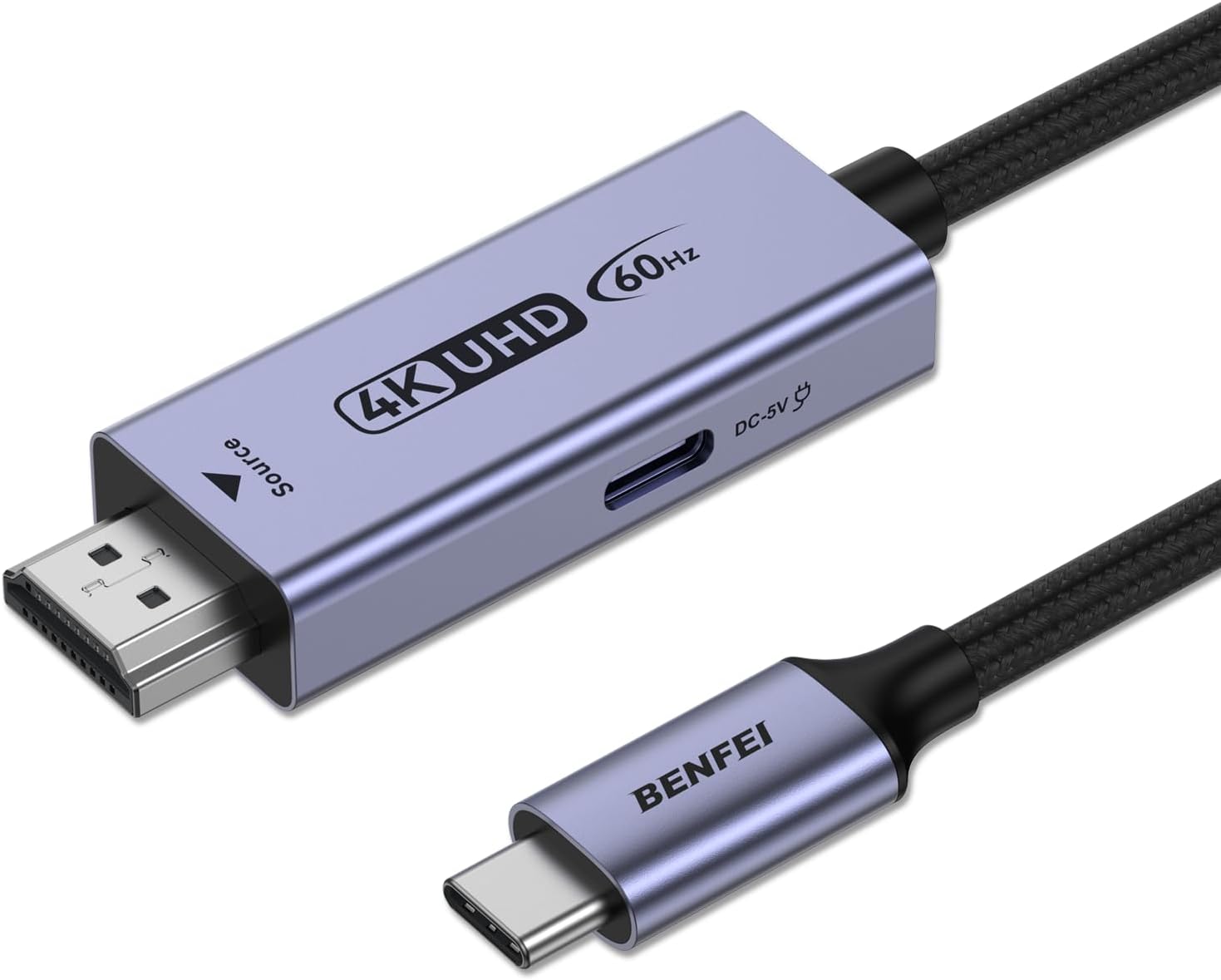

Here is one for 4k@60Hz, but feel free to shop around:
