CPU Model
RK3188
No. of Cores
4
CPU Operating Frequency
1.4GHz
DAC
ES9018S
Keyboard
Virtual QWERTY keyboard
Input Method
Touchscreen

Special features

Dual Android / Pure Music operating modes, symmetrical remappable keys, separate interchangeable amp modules, USB DAC, docking connector, etc.
User Interface
Android 4.4.4 / FiiO Music

Connectivity

WIFI
2.4GHz IEEE802.11 b/g/n standards supported
Bluetooth
2.4GHz Bluetooth V4.0 + EDR
USB
Micro USB2.0

Display

Display Size
3.97 inches
Number of Colours
16.7 million colors
Display Type
IPS TFT
Viewable Angle
178°
Resolution
480×800
Pixel Density
233 ppi
Touchscreen
Tracks up to 5 simultaneous touch points

Sensors

Light Sensor (Included)
NFC (Not included)
Accelerometer (Included)

Storage

RAM
1GB
Total ROM
32GB
Storage Expansion Type
Micro SD
ROM Available to User
About 27G
Maximum Storage Expansion
128GB

Buttons and Ports

Buttons
Side buttons + touchscreen
Custom Key Mapping
Supported (track and volume controls)
Headphone Out
3.5mm TRRS (supports in-line remotes)
Balanced Output
Supported (balanced amp module sold separately)
Line out / Coaxial Out
3.5mm TRRS composite port
USB Connection
Micro USB2.0 (charging / data transfer / docking function / USB DAC)

General

Color
Titanium
Dimensions
130 mm× 64 mm× 16.6 mm
Weight
220g
Volume Control
120 steps +/- button control (via analog-domain controller
Recommended headphone Impedance
16~300 Ω (depending on fitted amp module)
Equalizer
10-band EQ (±6dB), 8 presets+custom preset, freestyle EQ curve drawing planned
Bass Boost
N/A
Treble Control
N/A
Balance Control
Max. 10 dB bias
Gain Control
Low / High
USB DAC
Up to 384kHz/32bit supported, DSD supported (driver installation required on computer)

Power Specifications

USB Power Adapter
DC5V 2A recommended
Battery
Internal 3500 mAh Li-polymer battery
Charging Indication
Via LCD display and pulse LED
Battery Indication
Yes (Accurate battery % readings)
Charging Time
＜4.5h (using USB 5V 2A charger)

Battery Life & Test Conditions
Headphone amplifier module AM1 ( Battery Life：≥ 9h)
Screen: OFF
EQ: OFF
Load: M3 open earbuds (27 Ω)
Volume: 55
Gain
L
Test File
MP3, 44.1kHz/16bit (download link)
Headphone amplifier module AM2 ( Battery Life：≥ 8h)
Screen: OFF
EQ: OFF
Load: M3 open earbuds (27 Ω)
Volume: 52
Gain
L
Test File
MP3, 44.1kHz/16bit (download link)
Headphone amplifier module AM5 ( Battery Life：≥ 6h)
Screen: OFF
EQ: OFF
Load: M3 open earbuds (27 Ω)
Volume: 54
Gain
L
Test File
MP3, 44.1kHz/16bit (Download link)
Headphone amplifier module AM3
Batter life
>6 h (3.5mm)
Load
M3 open earbuds (27 Ω) (3.5mm)
>6 h (2.5mm TRRS balanced)
SE846+Balanced cable (16Ω) (2.5mm TRRS balanced)
Volume
58 (3.5mm)
EQ
OFF
50 (2.5mm TRRS balanced)
Screen
OFF
Gain
L
Test File
MP3, 44.1kHz/16bit (Download link)
Others
Firmware upgrade
Supported both via zip file and OTA
Font Size
Changeable

Partial Performance Parameters for Line Output
THD+N
＜0.0007% (10 KΩ/1 kHz)
SNR
≥115 dB (A-weighted)
Frequency Response
10 Hz~62 kHz(-3dB)
Dynamic Range
>115 dB
Channel Separation
＞100 dB (10 KΩ/1 kHz)
Line Level
>1.4 Vrms (10 KΩ/1 kHz)

Partial Performance Parameters 1 for Headphone Output
(Specifications with AM1 headamp module (bundled low-gain module for sensitive headphones and IEMs; OPA1612+AD8397 amp+buffer. ±3.1V voltage supply, software gain))
Output Power 1
>100 mW(32Ω/1 kHz)
Output Impedance
＜0.5 Ω（32Ω load）
Output Power 2
>200 mW(16Ω/1 kHz)
Channel Separation
＞73 dB(32Ω/1 kHz)
Output Power 3
>10 mW(300Ω/1 kHz)
THD+N
＜0.0008% (32Ω/1 kHz)
Frequency Response
10 Hz~76 kHz(-3dB)
Peak Output Voltage
＞5.2 Vp-p
SNR
≥115 dB (A-weighted)
Max. Output Current
＞250 mA（For reference）
Drive Ability
16~100Ω (Recommended)

Partial Performance Parameters 2 for Headphone Output
(Specifications with AM2 headamp module (Medium-power type; MUSES02+BUF634 amp+buffer. ±7.5/5.3V voltage supply, hardware gain))
Output Power 1
>300 mW(32Ω/1 kHz)
Output Impedance
＜0.5Ω（32Ω load）
Output Power 2
>350 mW(16Ω/1 kHz)
Channel Separation
＞72 dB(32Ω/1 kHz)
Output Power 3
>30 mW(300Ω/1 kHz)
THD+N
＜0.001% (32Ω/1 kHz)
Frequency Response
10 Hz~51 kHz(-3dB)
Peak Output Voltage
＞8.8 Vp-p
SNR
≥118 dB (A-weighted)
Max. Output Current
＞250 mA（For reference）
Drive Ability
16~150Ω (Recommended)

Partial Performance Parameters 3 for Headphone Output
(Specifications with AM5 headamp module (High-power type; MUSES02+TPA6120A2 amp+buffer. ±9/5.3V voltage supply, hardware gain))
Output Power 1
>500 mW(32Ω/1 kHz)
Output Impedance
＜0.5Ω（32Ω load）
Output Power 2
>800 mW(16Ω/1 kHz)
Channel Separation
＞72 dB(32Ω/1 kHz)
Output Power 3
>55mW(300Ω/1 kHz)
THD+N
＜0.001% (32Ω/1 kHz)
Frequency Response
9 Hz~84 kHz(-3dB)
Peak Output Voltage
＞11 Vp-p
SNR
≥120 dB (A-weighted)
Max. Output Current
＞250 mA（For reference）
Drive Ability
16~300Ω (Recommended)

Partial Performance Parameters 4 for Headphone Output
(Specifications with AM3 headamp module (Balanced type; OPA1622*6 amp+buffer. ±5V voltage supply, software gain))
3.5mm headphone output
Output Power 1
＞250mW(16Ω/1kHz)
Output Impedance
＜0.3 Ω（32Ω load）
Output Power 2
>190 mW(32Ω/1 kHz)
Channel Separation
≥72dB (A-weighted)
Output Power 3
>25 mW(300Ω/1 kHz)
THD+N
＜0.001% (32Ω/1 kHz)
Frequency Response
5 Hz~83 kHz (-3dB)
Peak Output Voltage
＞7 Vp-p
SNR
≥115dB (A-weighted)
Max. Output Current
＞80 mA（For reference）
Drive Ability
16~150Ω (Recommended)

2.5mm TRRS balanced headphone output
Output Power 1
＞420mW(16Ω/1kHz)
Output Impedance
＜0.3 Ω（32Ω load）
Output Power 2
＞540mW(32Ω/1kHz)
Channel Separation
＞110 dB(32Ω/1 kHz)
Output Power 3
＞70mW(300Ω/1kHz)
THD+N
＜0.0008% (32Ω/1 kHz)
Frequency Response
5 Hz~83 kHz (-3dB)
Peak Output Voltage
＞11 Vp-p
SNR
≥115dB (A-weighted)
Max. Output Current
＞160 mA（For reference）
Drive Ability
16~300Ω (Recommended)

Audio Formats Supported

Lossless：
DSD：DSD64/128（“.iso”、“.dsf”、“.dff”）DXD：352.8KAPE FAST/High/Normal：384kHz/24bit（MAX）APE Extra High：192kHz/24bit（MAX）APE Insane：48kHz/24bit（MAX）Apple Lossless：384kHz/24bit（MAX）AIFF：384kHz/24bit（MAX）FLAC：384kHz/24bit（MAX）WAV：384kHz/64bit（MAX）WMA LOSSLESS：96kHz/24bit（MAX）

Lossy Compression：
MP2、MP3、AAC、ALAC、WMA、OGG...


This is a companion discussion topic for the original entry at https://teksyndicate.com/videos/fiio-x7-high-end-portable-music-player-overview
1 Like
2

Very few audiophile DAPs that are actually in the affordable price range out there, and FiiO is one of them that makes high quality DAPs out there at a realistic price. Another one I'd recommend checking out @Logan is iBasso DX80, it's their successor to DX90 which I own and enjoy.

3

watches video

How interesting! I've always been looking for a music player that can replace my smartphone, thing just doesn't have enough memory.

checks price

Okay that is obscene.

All jokes aside, I had no idea there was such thing as a high end portable music player. Not for me, but still really cool.

2 Likes
4

It's not just that, there's a market that feeds obsession with portable highend amplifiers and dacs.

5

I was looking at their X1 model just for something to use other than my phone to help conserve battery life. I then found a 7th gen Ipod classic on craigslist and picked that up. First time I ever bought an Apple product actually however I hate using iTunes. Thought about rockboxing it but according to the wiki on the rockbox page it shouldn't work with the 7th gen. Is this bs or am i fucked with iTunes?

6

Fiio does make some good stuff indeed. I absolutely love my X5ii (with E12A).

I'd like the X7's touchscreen because a large music collection and a scrollwheel are not an ideal combination. However the Wifi and bluetooth are killing the deal for me. Some people obviously want all that connectivity, but I'm not one of them.

7

I'm afraid only classic iPod 5th gen supports Rockbox, but you can still convert FLACs to Apple Lossless, you're not compressing audio files when converting, just changing the type of container to the lossless audio goes into. Think of FLAC/ALAC as Zip/RAR. The 7th gen does have a better headphone output over the classic 5th which under utilizes its Wolfson DAC with an inferior headphone output, but if you want to get even better audio to power your headphones you can stack a portable headphone amplifier/dac. Also you can install an SSD and larger battery mAh capacity.

8

Is there a portable AMP/DAC you'd suggest? I was kind of looking at the E17k from Fiio but I'm open to other suggestions.

9

@Wendell what is with you posting that wall of text? Is it in honor of Trump becoming the next president of the United States? : O

Update: Oh I see you fixed it but man it is still a long load of information in that post. LOL!

10

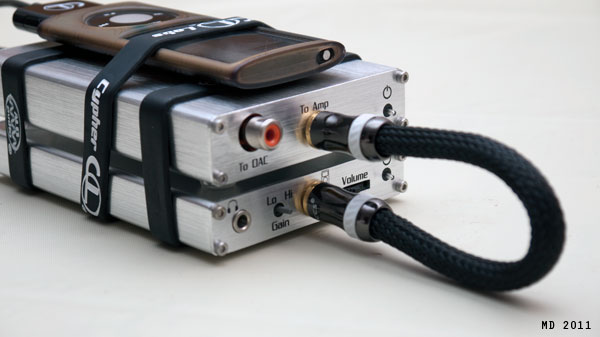

If you're planning on using a headphone that requires a little bit more power over IEMs, I'd say FiiO E17k is a great affordable choice. If you're little bit more obsessive there are obscenely expensive alternatives out there that I personally think is overkill since you're not gonna be doing critical listening on a portable scenario.

11

I gave up on high end portable audio before trying. I just don't see it matching a home listening experience in a quiet room with no distractions.

That isn't to say I wouldn't try something like this given the chance (without buying).

12

Not if you're talking custom in-ear monitors. You can mold high end in ear monitors to fit your custom ear mold which creates a seal. Even the universal in-ear monitors, you can get comply foam tips to create a really good seal.

13

Walking in the park, at work (if you have the option to listen to music there), working in the garden, while shopping etc etc.

True, it's not going to make much of a difference on a bus, in a car or on a bicycle or when walking in a city during rush hour.
When I go riding my bicycle I tend to use a midrange Sony MP3 player with headphones that don't seal at all (so I can hear the traffic better) instead of my Hi-res audio stuff.

14

High end IEM is definitely on my list of things to try.

That is the thing. I feel I generally need to be somewhat aware of my surroundings while out. I don't know how often I would want to wear something that completely blocks outside noise.

15

@mythicalcreature

Put the KSE1500 in your list, it's the first Electrostatic IEM. Insane.

@EarthMadeOfGlass

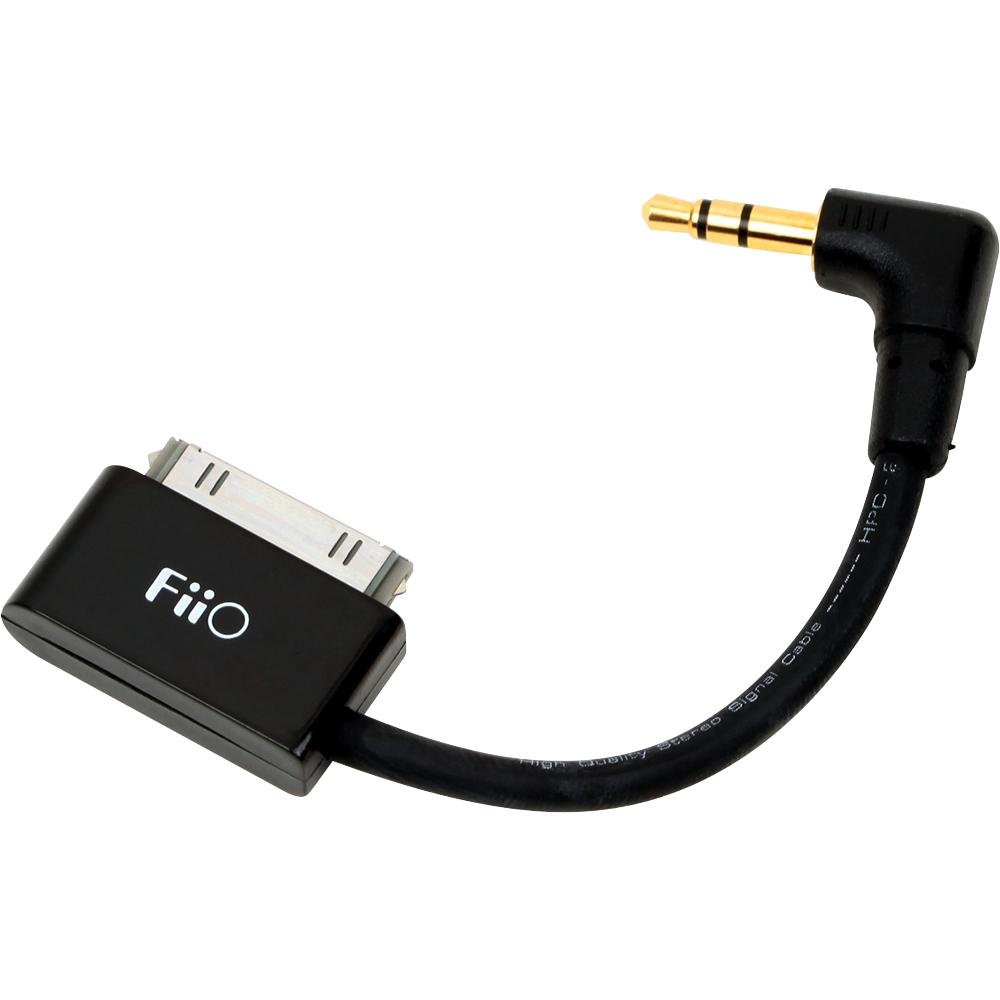

Since you're gonna be using an external amp I'd also look into FiiO Kunlun E18 since you're only gonna be using it with an iPod Classic 7 through Auxiliary connection. It's cheaper.

16

Yes :) I'm aware of that product. Insane indeed. I know the price, I should not be tempted but I've always been interested in what they could have done with electrostat in an IEM..

17

The FiiO E18 is great. I am using that one with my OnePlus X. I also just got a FiiO X1 but I haven't tried it yet.

The X7 seems to be a killer device but ... the price, man.

18

What ever happened to your ciems, @Logan?

19

Hmmph .. interesting video this is.

More audio stuff on the Tek pls

20

Rock a E17K and really like it have the K5 Amp Dock and it makes sweet desktop DAC/AMP combo.

The X1/3/5/7 also works with the K5.

You should check it out. @logan
