Changing door position and adding small bit of wall

The fun of no old building being straight forward. So making a room larger by sacrificing a toilet. Cut some board to check stud arrangement.

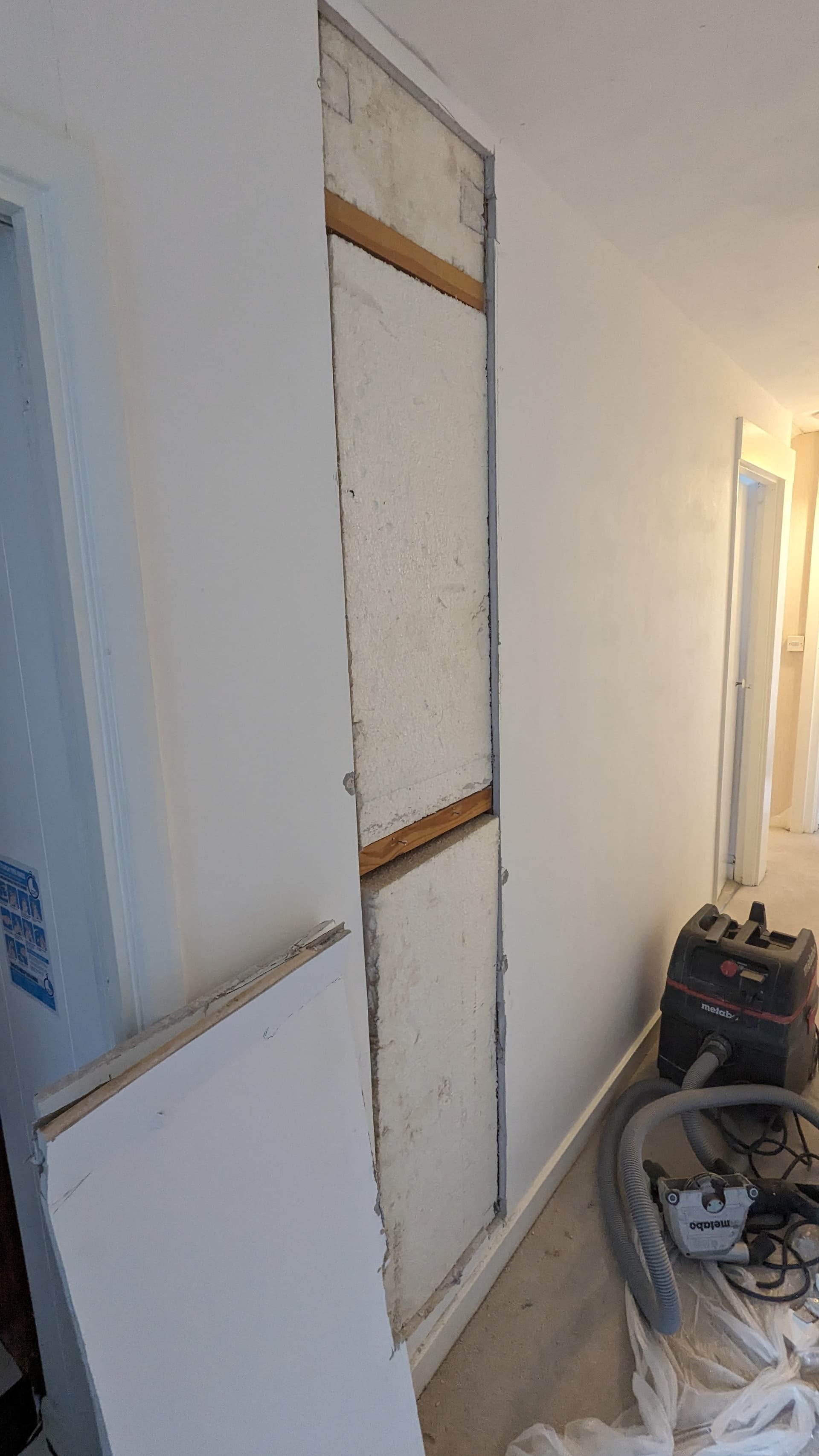

Cut the board away

remove poly insulation and cut some new pieces to support the new door and wall, and another piece to support the replacement plasterboard

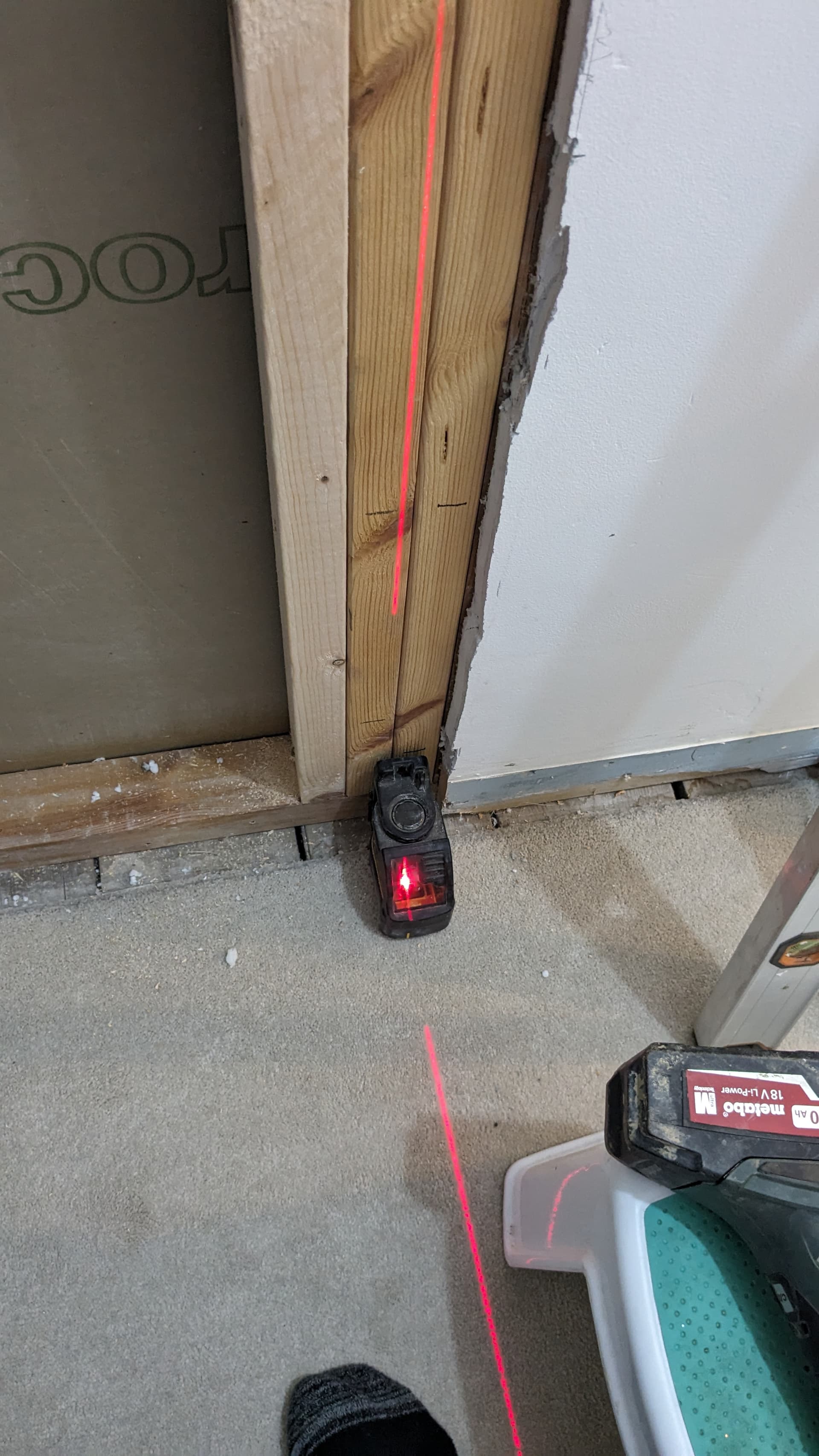

getting a good perp line

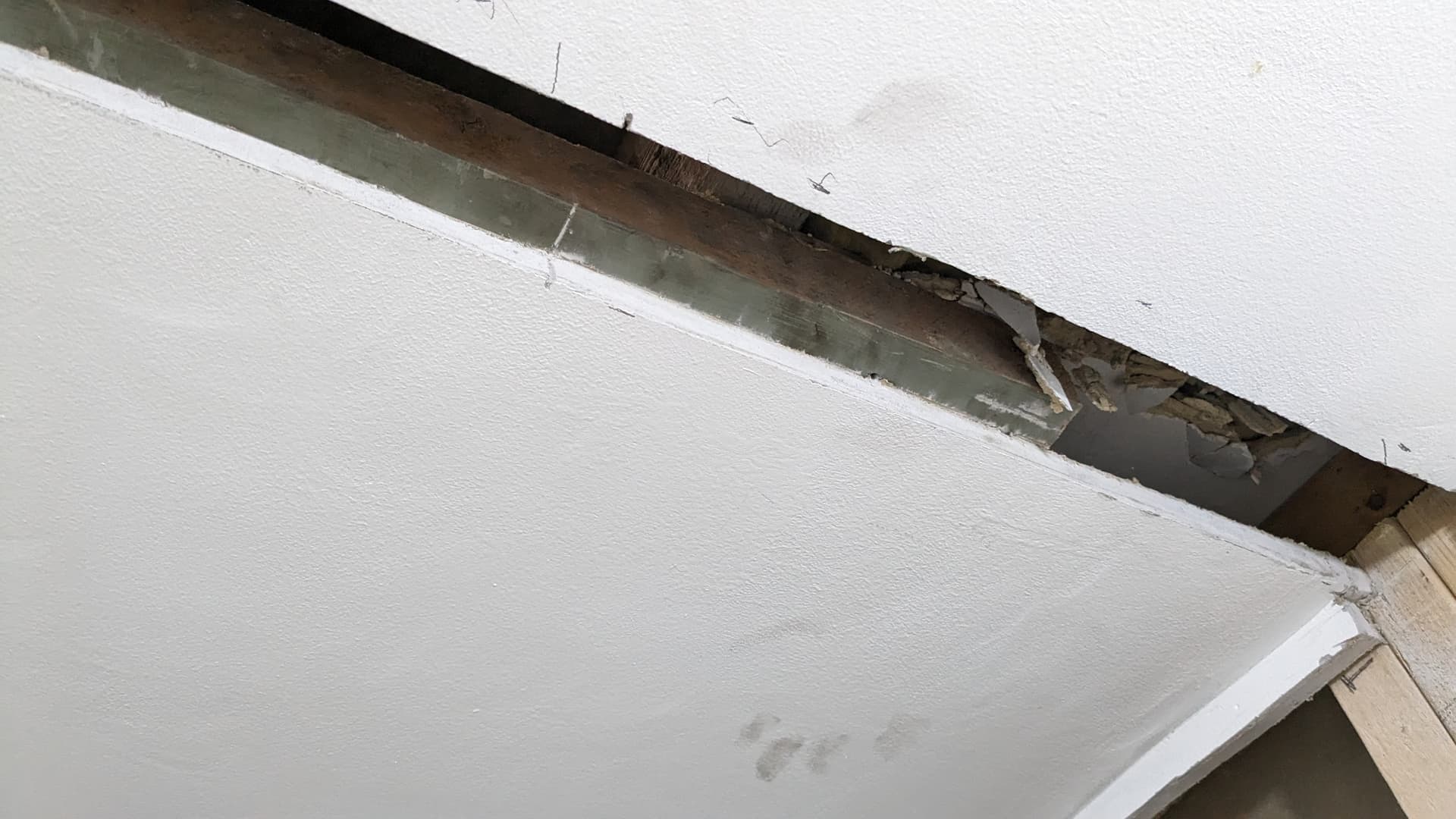

cut the ceiling out ready for the header

other wall is masonry with solid plaster (not board), set out chase

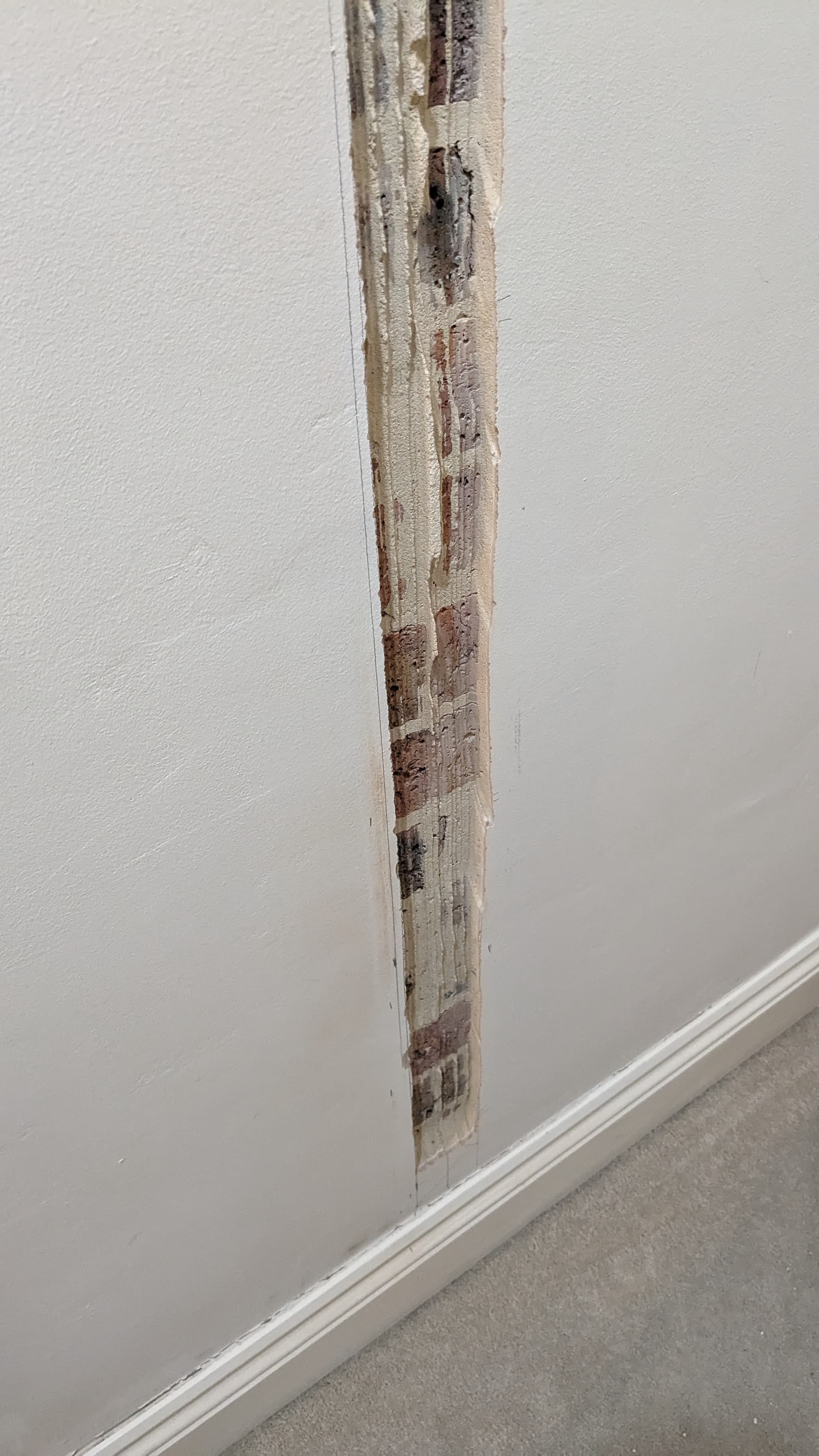

set depth and started chasing, will have to finish off top of bottom by hand

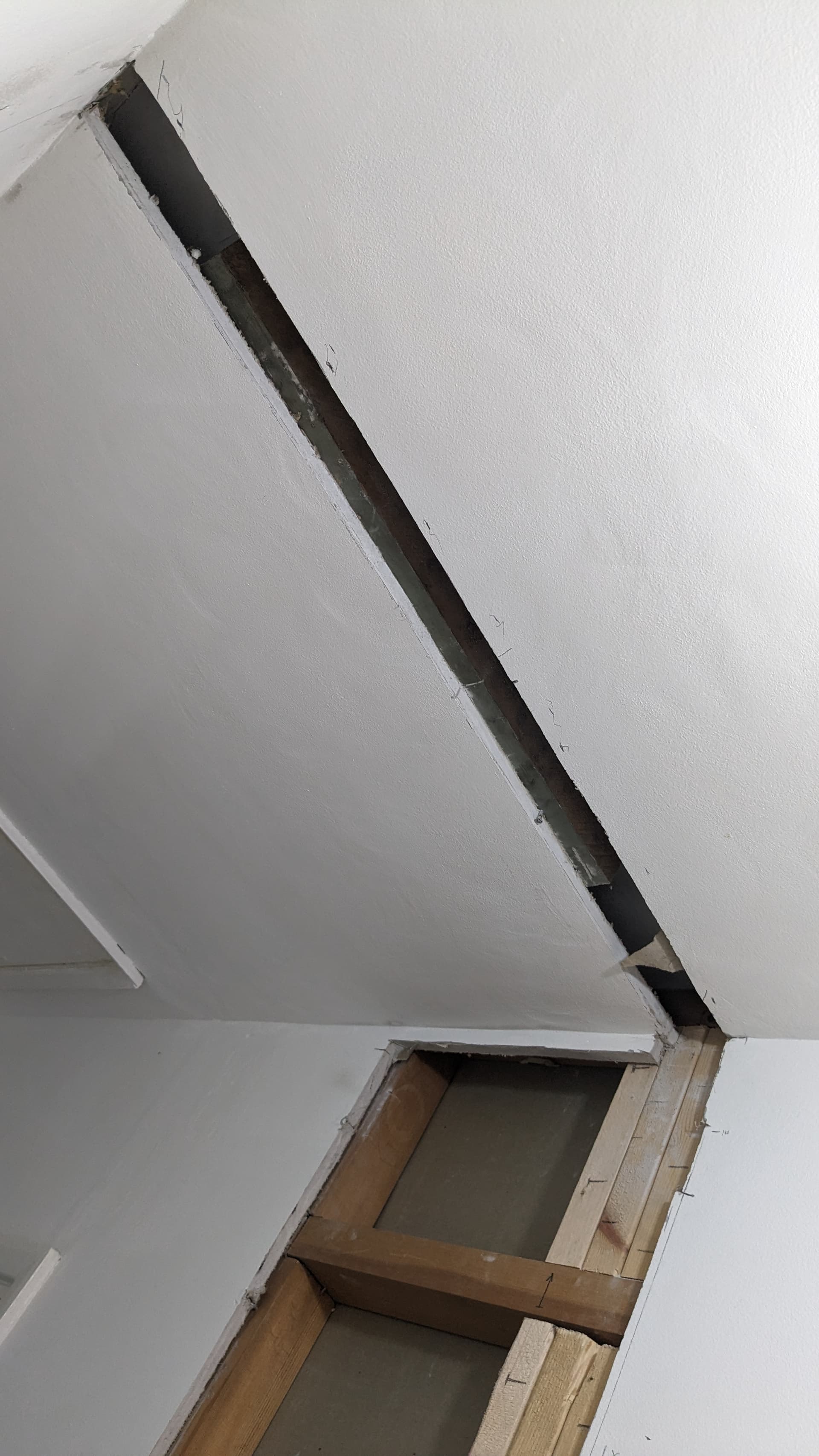

back to head, the visible board is false and attached to short timbers that’s then attached to the under side of the true joists

sods law but that piece of timber isn’t wide enough for fixing the new header timber as it needs fixing to something solid. got access from the loft space, this gave access to the original plaster under the original joists. cleared it away ready to take a new timber length

(this is looking from loft, down - what’s more fun is that the original joists have counter timbers over them, probably to allow boarding out of loft where pipes were in the way.

only if this is vaguely interesting, I’ll keep posting :slight_smile:

4 Likes

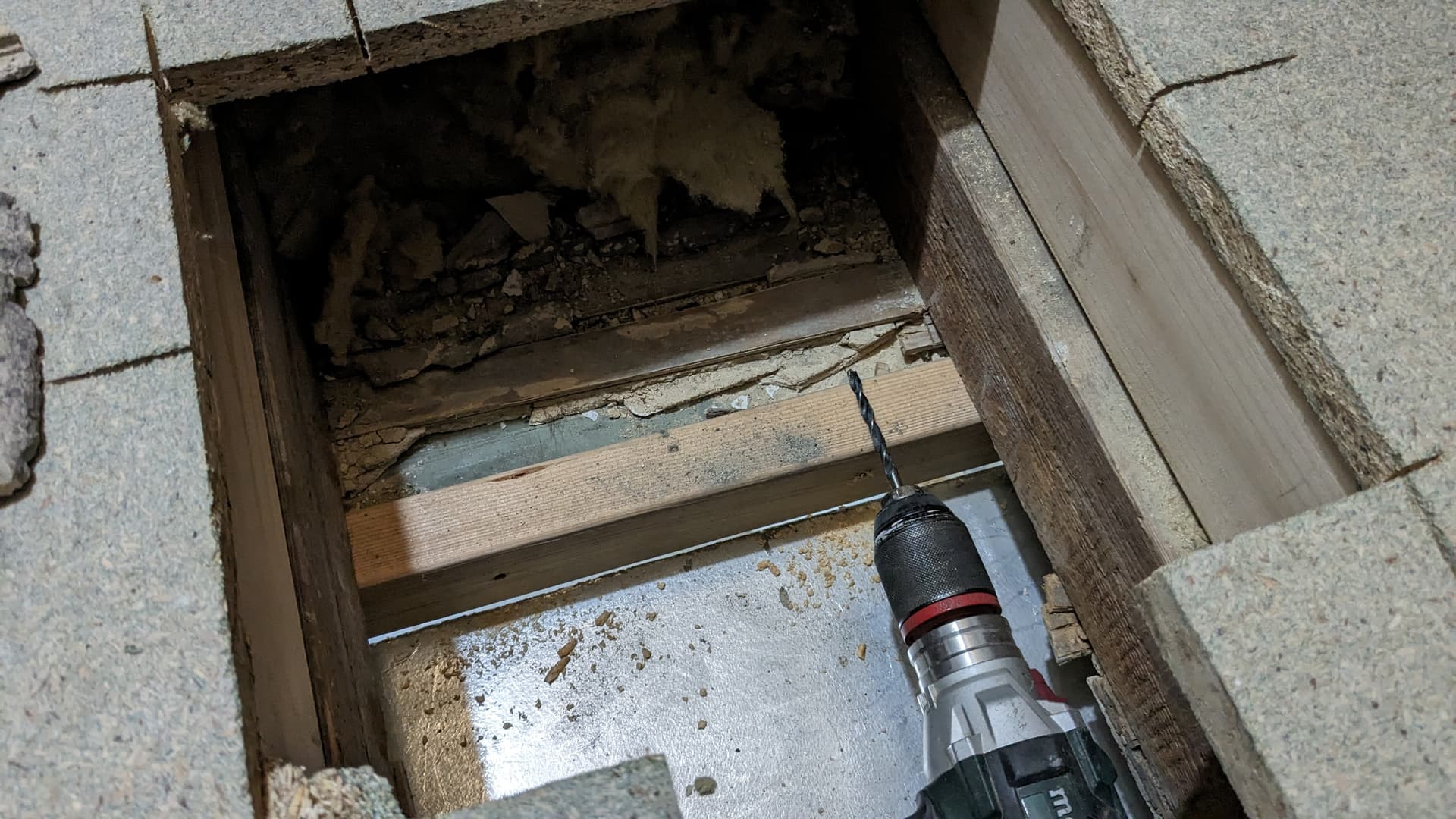

fitted new timber next to existing and 6 inch screws attached to real joists

Didn’t have faith it wouldn’t separate, so drilled screw hole for additional screwing to existing cross batten

had to cut a bigger hole to get impact driver and drill in

1 Like

header is on, ceiling is so on the p**s so had to pack it

2 Likes

Not much progress, masonry wall was a pig getting the masonry screws to bite
