Benchmarking AI Box Performance?

[esologic]

Hello! I’ve been eBay-accumulating parts for a dedicated GPU appliance for my homelab. At this point I have 3 NVidia P100’s and I’m looking to spot other bottlenecks in my system via benchmarking.

I’ve used gpu-burn to validate power delivery, this works no problem. There are a few pieces of software related to pytorch image processing that I’ve written which also use the GPUs and run really quickly on the P100s. What I’m missing is a more standardized suite of tests.

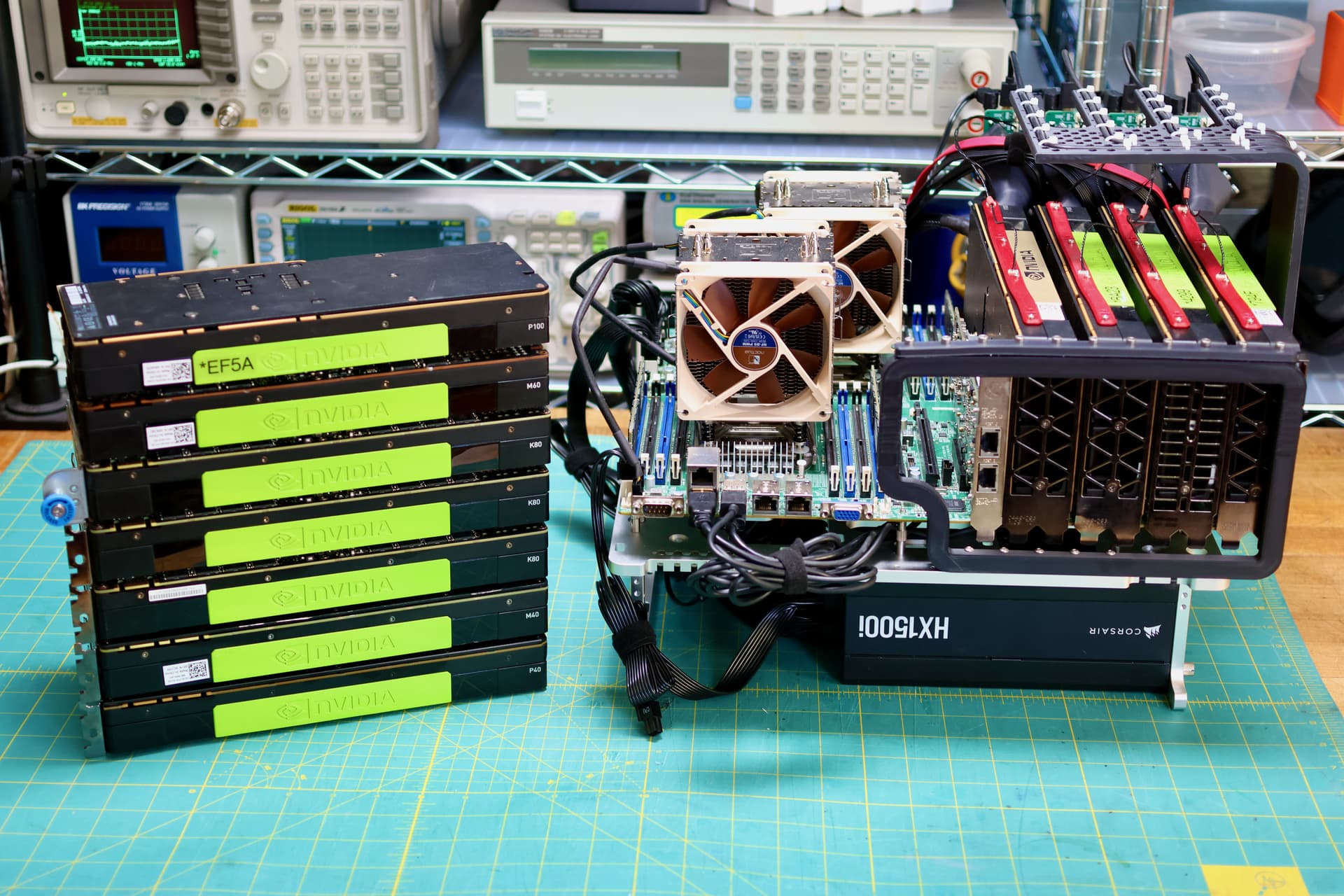

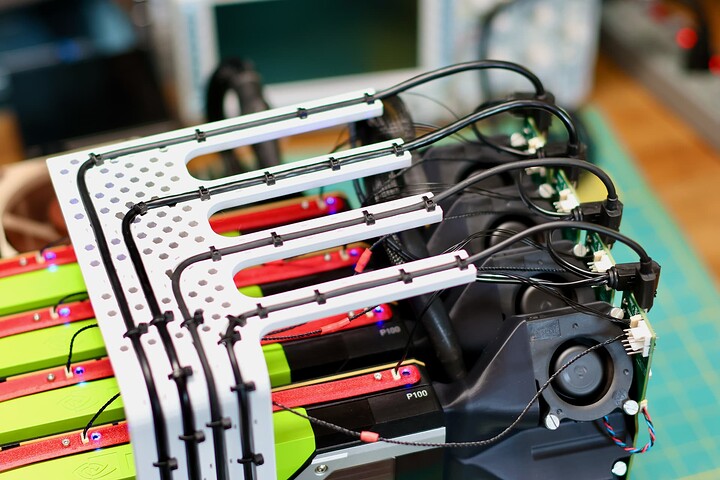

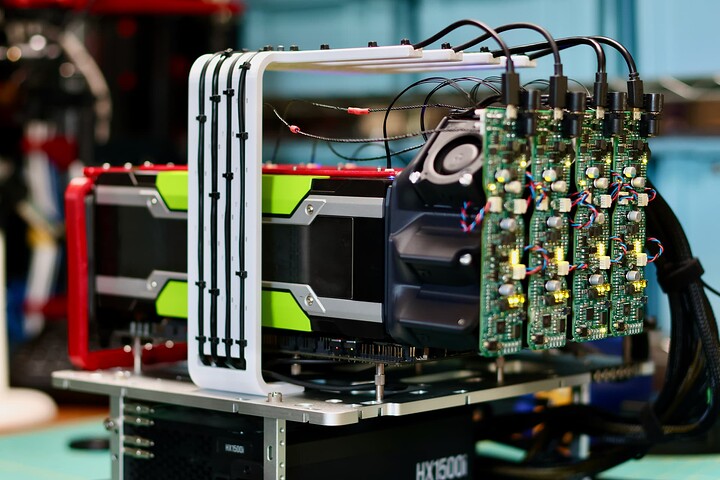

Does anyone working in this area have suggestions? Baby photos of the build attached.

[esologic]

I’ve posted about this problem in a few more places online and gathered a set of tests I’ll be running soon. This is the plan so far, anything I’m missing or things you’d want to see?

GPUs:

• 1x, 2x, 3x K80 (Will cause PCIe speed downgrades)
• 1x M10
• 1x M40
• 1x M60
• 1x M40 + 1x M60
• 1x P40
• 1x, 2x, 3x, 4x P100 (Will cause PCIe speed downgrades)
• 1x V100
• 1x V100 + 1x P100

I’ll re-run the interesting results from the above sets of hardware on these different CPUs to see what changes:

CPUs:

• Intel Xeon E5-2687W v4 12-Core @ 3.00GHz (40 PCIe Lanes)
• Intel Xeon E5-1680 v4 8-Core @ 3.40GHz (40 PCIe Lanes)

As for the actual tests, I’ll hopefully be able to come up with an ansible playbook that runs the following:

• vLLM throughput with llama3-8b weights
• Folding@Home, BIONIC, Einstein@Home and Asteroids@Home
• ai-benchmark.com
• llama-bench
• I’ll probably also write something to test raw ViT throughput as well.

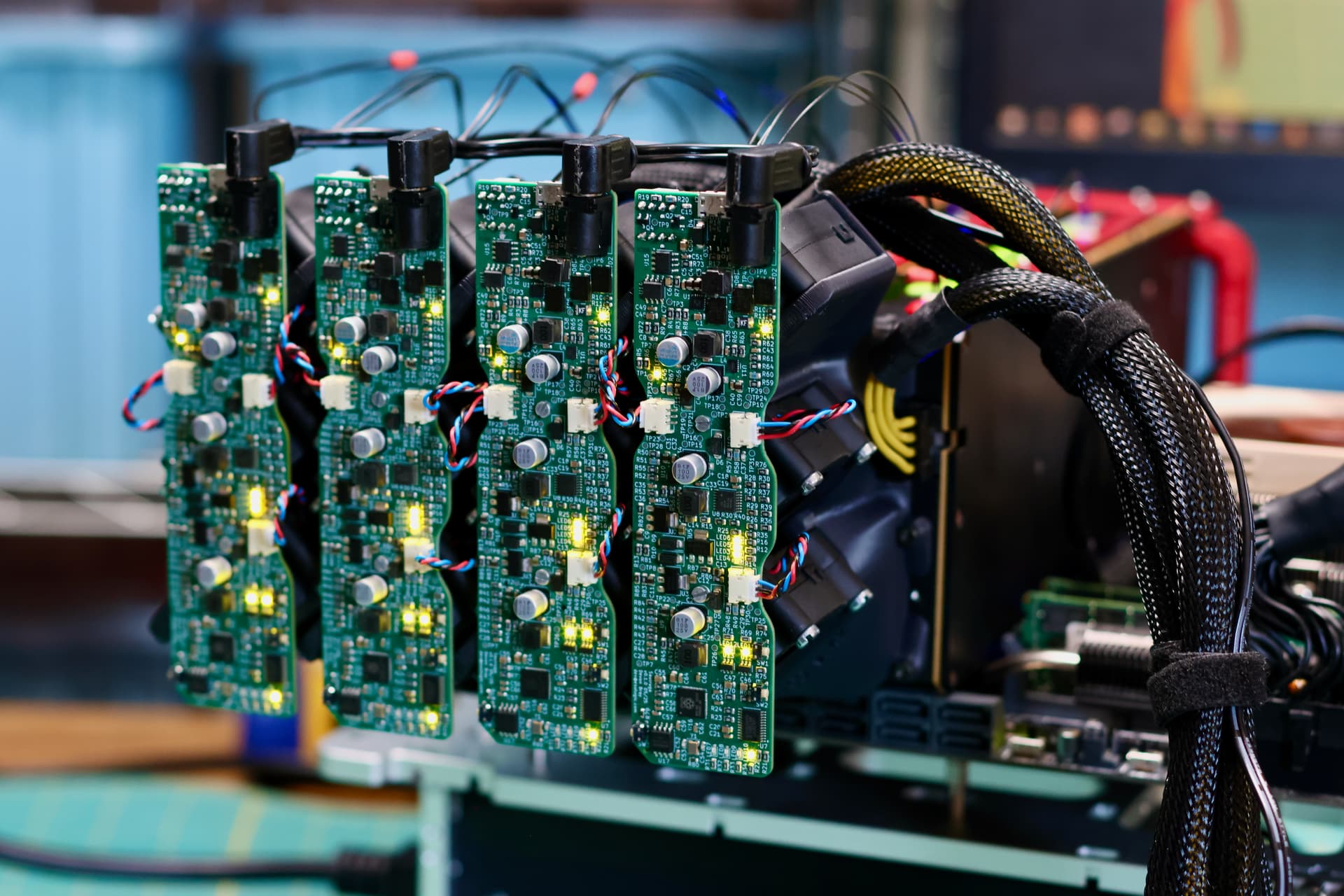

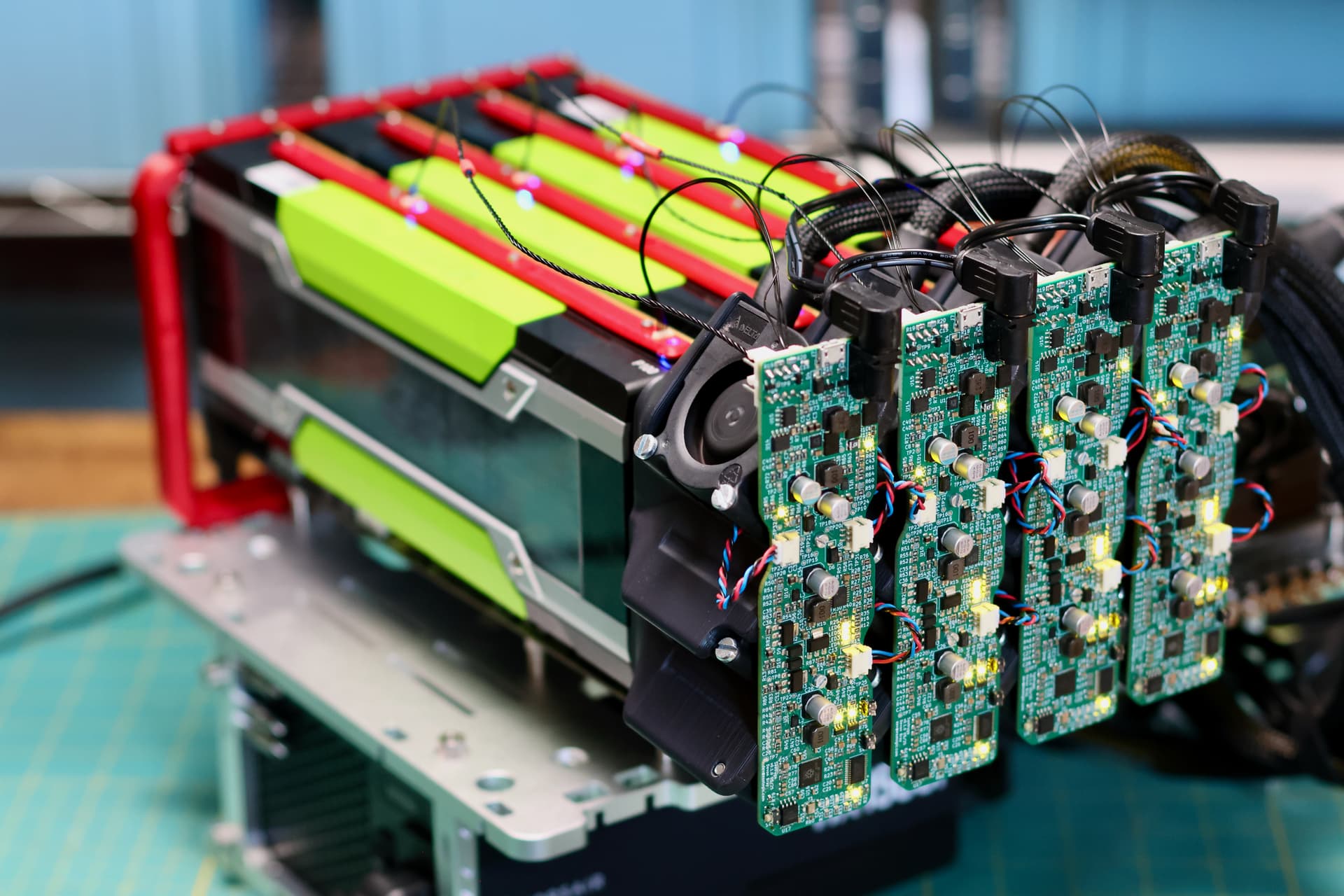

There’s also been a bunch of progress made on the cooler:

There’s more about the cooler here, I want to keep this thread about the build and benchmarking effort.

[igormp]

mmapeak and mamf-finder are two tools that I like to run for raw GPU perf, specially for GEMM perf, but I’m not sure how well those will run on GPUs without tensor cores (if at all):

GitHub - ReinForce-II/mmapeak

GitHub - shisa-ai/mamf-finder

I also used to use tensorflow’s restnet benchmarks, but that repo has been archived last year and I’ve been mostly using pytorch nowadays:

benchmarks/scripts/tf_cnn_benchmarks at master · tensorflow/benchmarks

[jkyamog]

Wow cool build. I have also done a multi GPU build recently. For LLMs I have use nVidia’s GenAI perf which I used here at 4:33
My AI server build
If you keep on watching for ML Training I have used ResNet50 and forked M Burke’s benchmark and added some torch distributed code to do multi GPU which I started 2 years ago with 1080 GPUs here. forked pytorch test at github

[esologic]

Finally got the time to build a benchmarking tool that wraps all the suggested tests. Here’s GPU Box Benchmark. It uses:

• ResNet50
• Llama-Bench
• Blender Benchmark
• FAHBench
• AI-Benchmark
• Whisper throughput

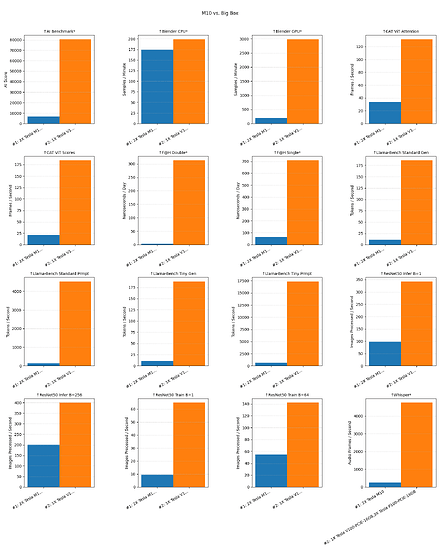

And a few other tests more relevant to my usecase. Here’s a sample comparison between a single M10 core and my big GPU box (3x P100 + 1x V100):

Visualization of output are still draft quality I’d say

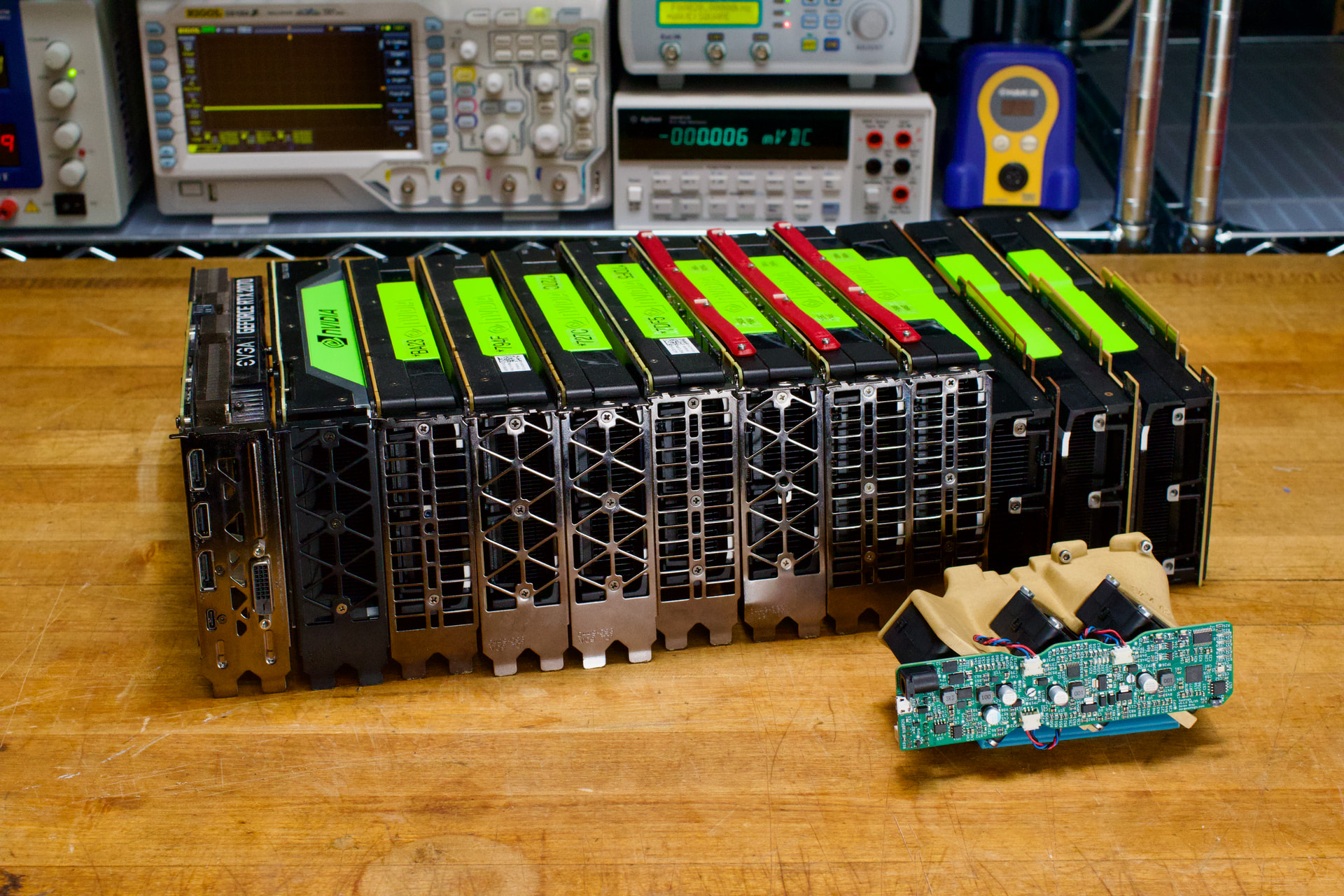

Next is actually working through the mountain of Tesla’s I’ve accumulated for this occasion:

Wish me Luck…

[esologic]

Okay! Finally able to close the loop on this and post results.

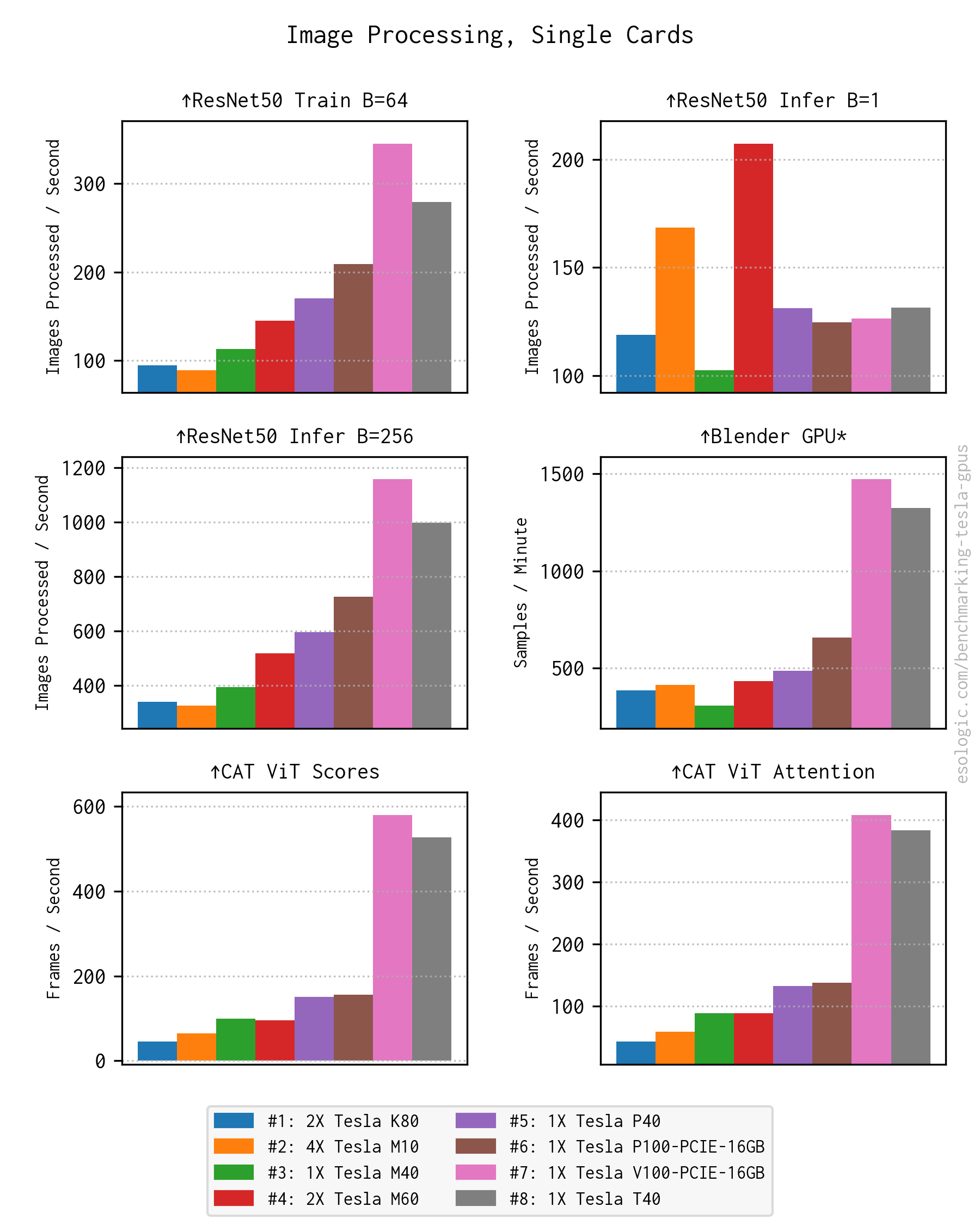

• The V100 is the Sweet Spot: The V100 (16GB) surprised me. Its performance hangs right up there with the much more expensive T40 and was a big improvement over the incrementally improving previous generations.

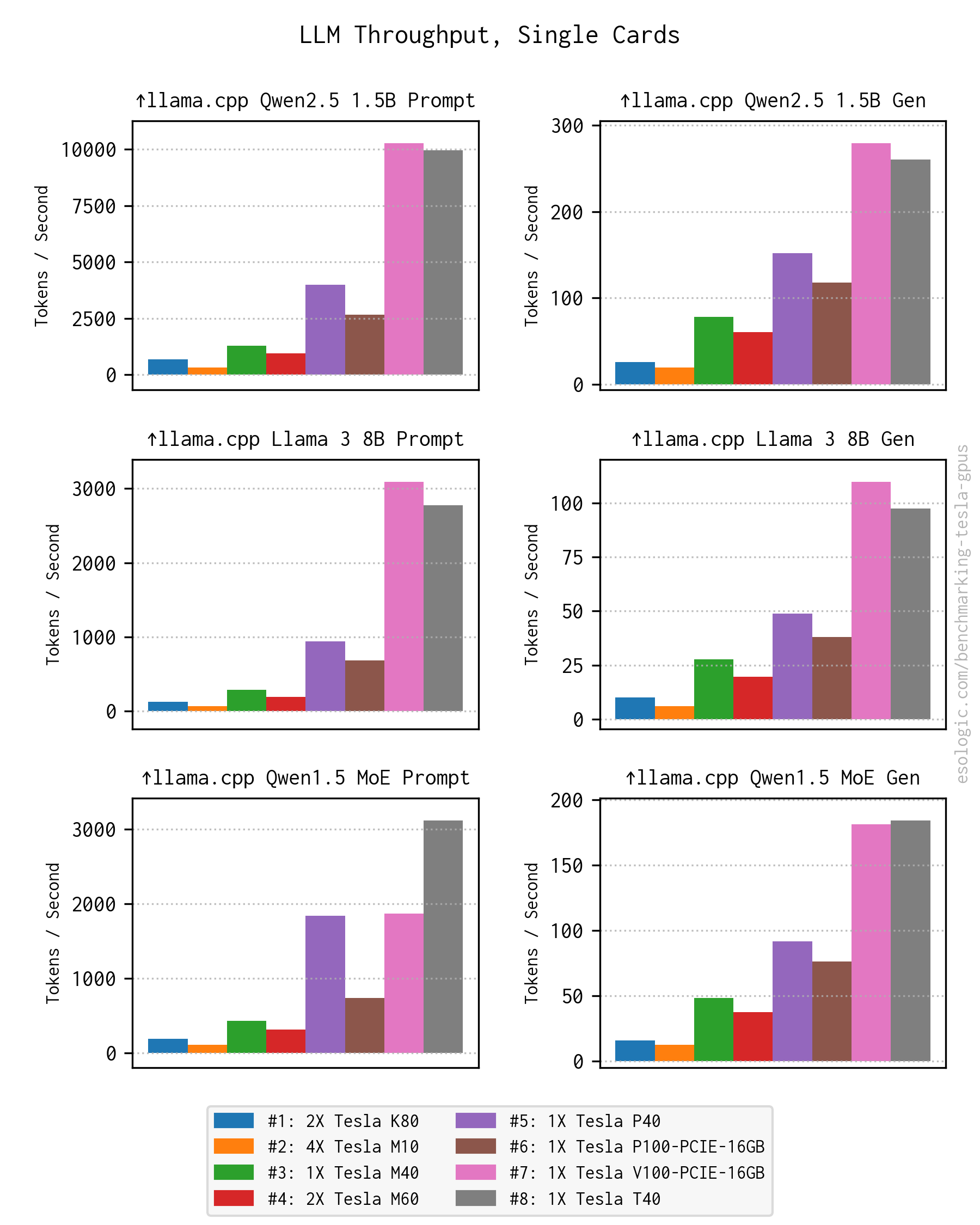

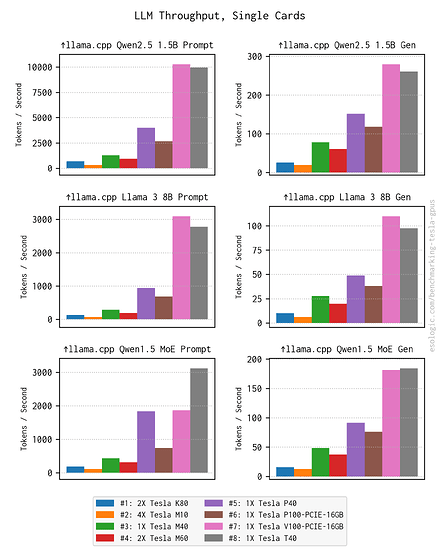

• P40 > P100 for LLMs: The community consensus holds true here. If you specifically want to run Large Language Models, with Pascal, use P40.

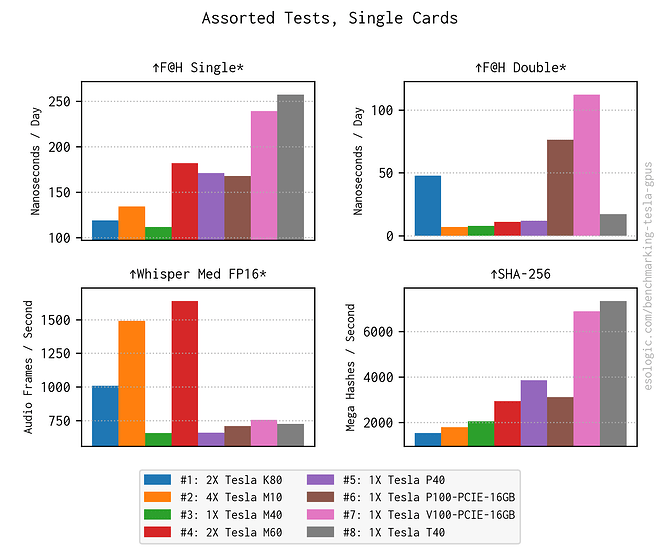

• M60 is a Whisper Beast: If you have a ton of audio transcription to do, the M60 is shockingly capable (beating even V100) and can be had for only $50.

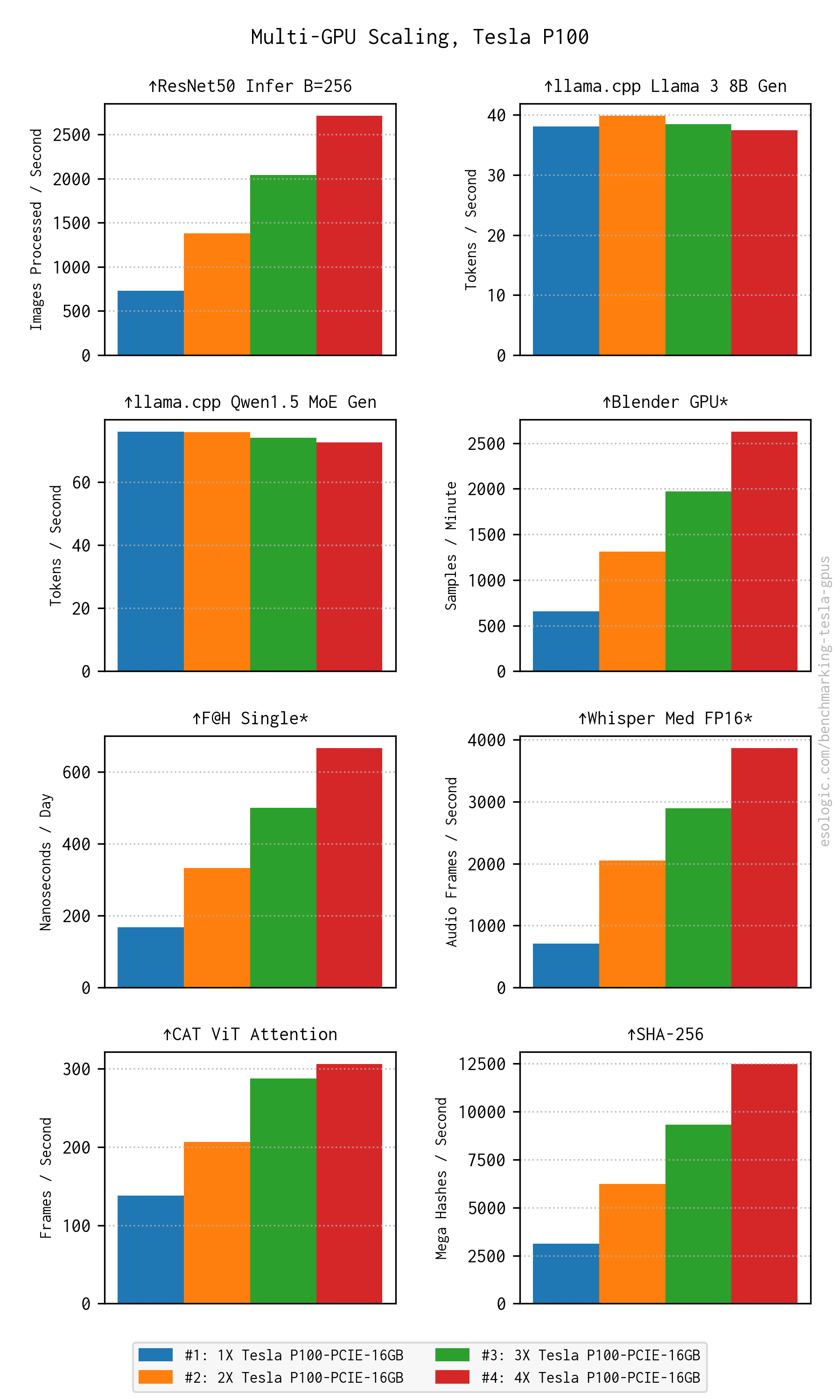

• Scaling is mostly Linear: Stacking cards doesn’t hit a wall of diminishing returns within a 4U chassis. More GPUs generally equal linear performance scaling, though if you mix generations, slower cards will bottleneck your faster ones in LLM setups.

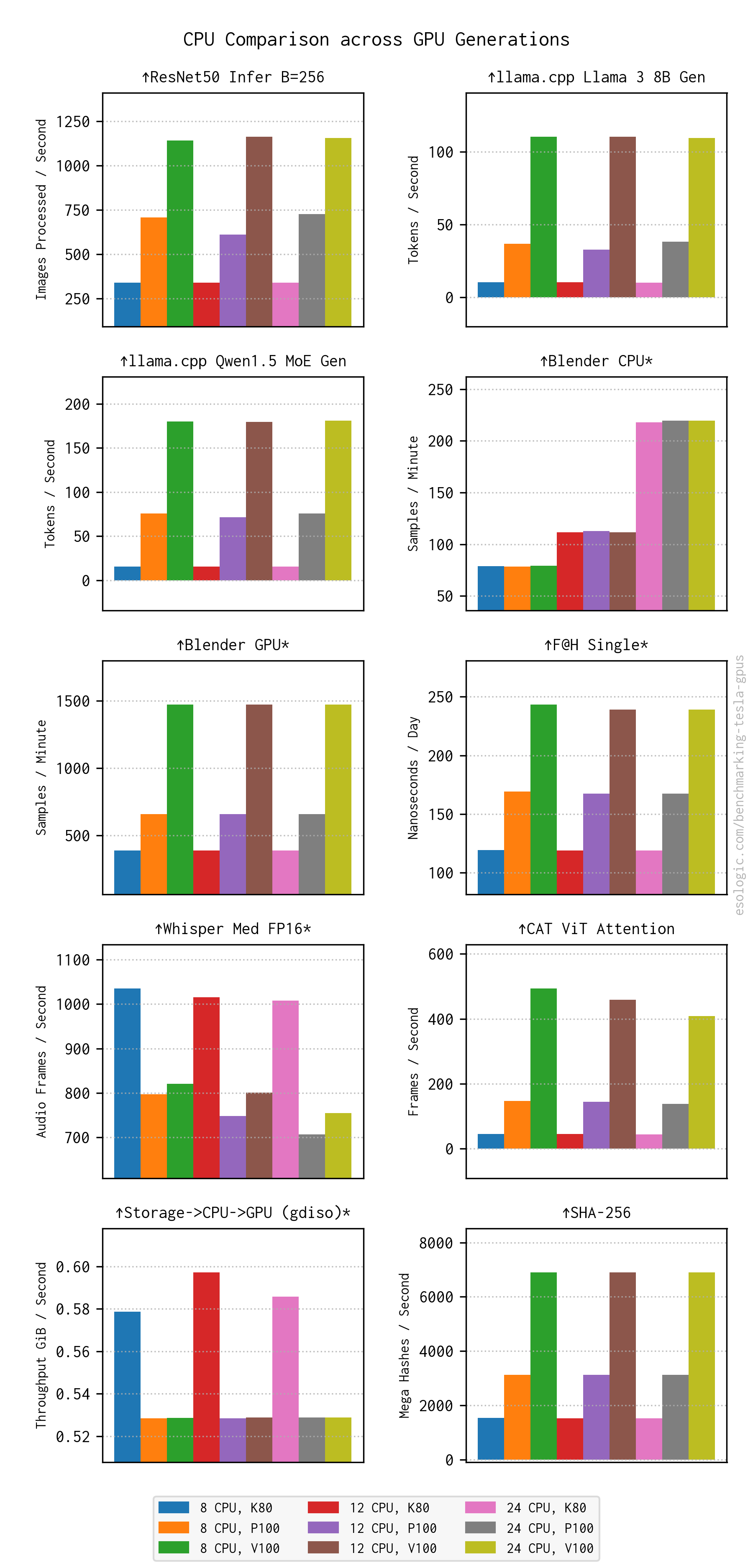

• CPU/Mobo Choice: Faster single-core CPU speeds help slightly for tasks like Whisper and Vision Transformers, but generally, any cheap X99 board and high-lane Xeon will feed these GPUs perfectly fine.

The complete set of graphs and findings are on my blog. Now that I have the setup and tooling, I’d love to benchmark more workloads, anything missing from my findings?

[igormp]

@esologic

• P40 > P100 for LLMs: The community consensus holds true here. If you specifically want to run Large Language Models, with Pascal, use P40.

I found this interesting given that the P100 has way more mem BW when compared to the P40, so in theory it should be faster when it comes to TG.

@esologic

Scaling is mostly Linear: Stacking cards doesn’t hit a wall of diminishing returns within a 4U chassis. More GPUs generally equal linear performance scaling, though if you mix generations, slower cards will bottleneck your faster ones in LLM setups.

For the LLM tests with mGPU, I see that you do have code for ikllama using graph mode:

benchmark_dockerfiles/ik_llama_bench/run_llama_bench.sh

However, for llama.cpp that does not seem to be the case:

benchmark_dockerfiles/llama_bench/run_llama_bench.sh

Meaning that it defaults to “layer” split mode, which is only useful to run models larger than the VRAM of a single GPU, but does not provide any compute improvements. You could give the newest “tensor” mode a try to see how performance scales. Although not as good as ikllama’s “graph” mode, it should still provide a perf uplift across GPUs. Reference:

benchmark_dockerfiles/llama_bench/run_llama_bench.sh

Or, if possible, it’d be nice to see tests with ikllama.cpp as well.

[esologic]

Ahh interesting. I actually didn’t see much performance difference between regular llama.cpp and ik_llama, so I only included the llama.cpp benchmarks in my testing.

I have gotten feedback in other places as well that has made it clear I should do another batch of testing, specifically with bigger models. I can re-address the parallelization then.
