12U Mini-Rack Build - Just Showing off

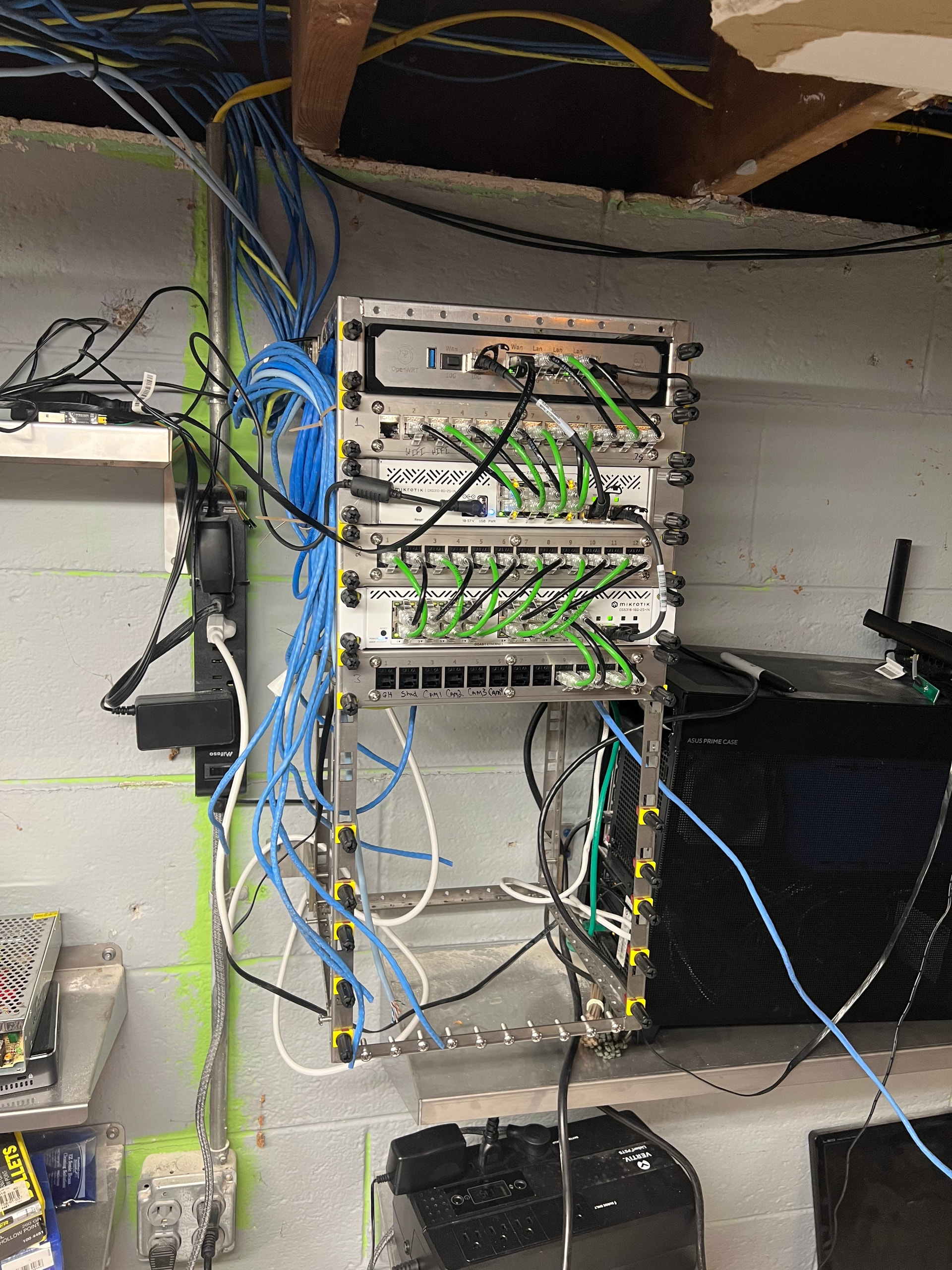

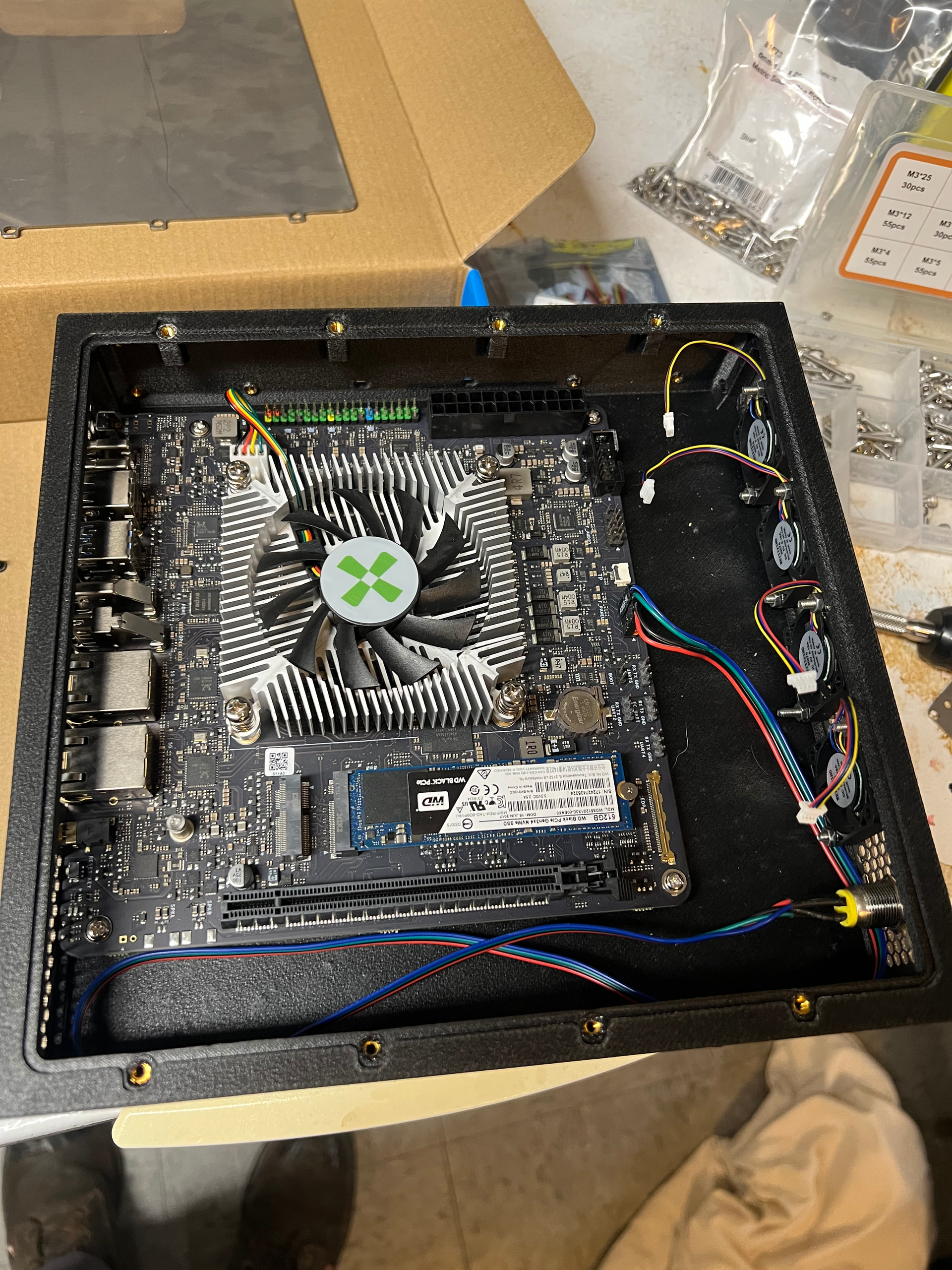

Well Here is my current mini rack setup, WIP. All laser cut or 3d printed, Milled the heat sink for my bpi-r4.
Solar Powered, Grid / Solar (Battery)
Getting fiber installed soon, finally coming into my area 5g/5g.

I fabbed this out of 16ga 304 Stainless for the frame, 3/16 304 Stainless for the wall brackets.
Tapped everything out to 10-32 for side and bottom.
Rack Studs for the front.

Iv been finally running new wifi6 access points running openwrt with fast transission. Thats what the yellow cat6 that isnt tied up is.

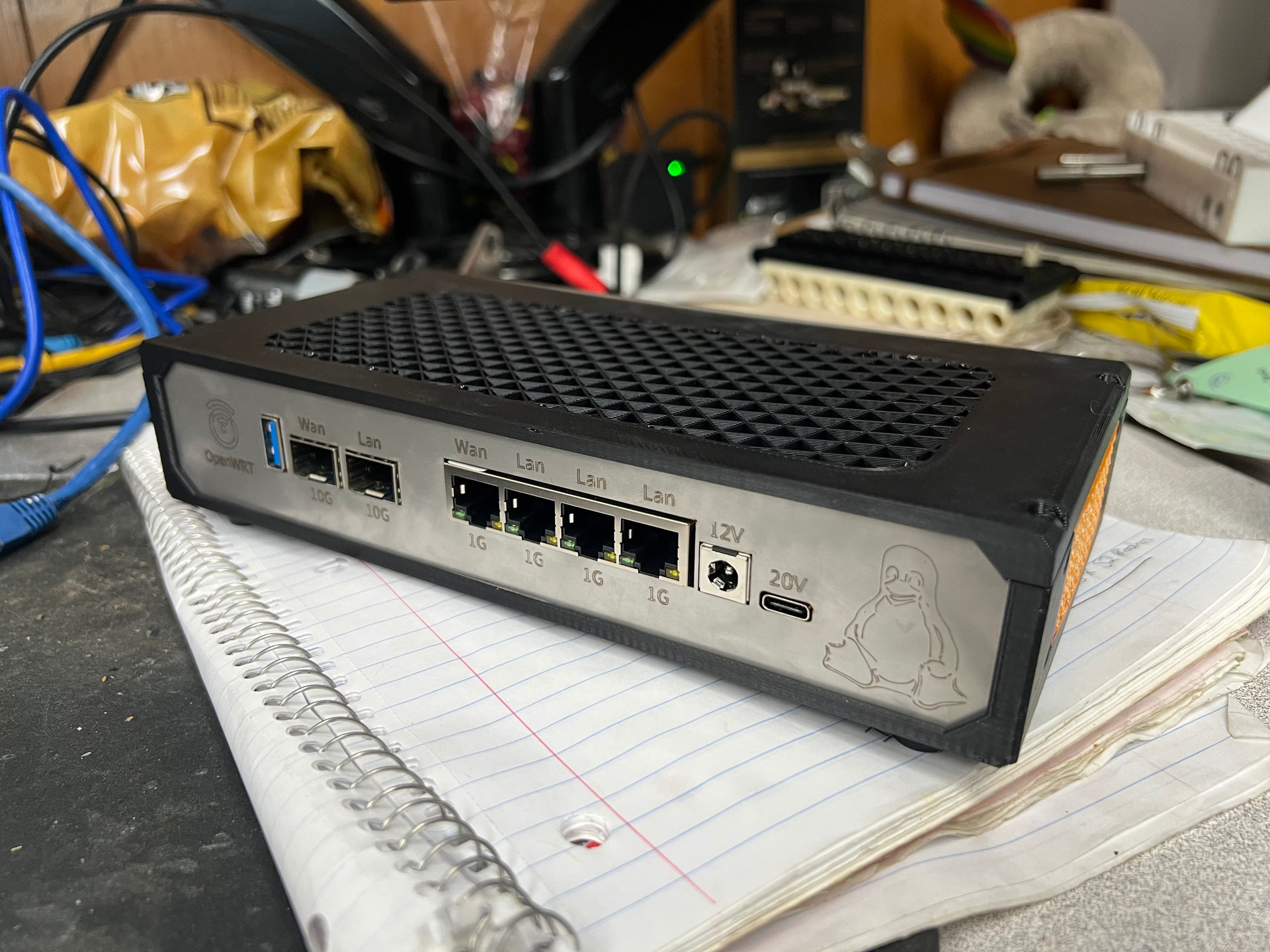

Top is my router a BPI-R4 running openwrt
Patch Panel cat 6
MikroTik CRS310-8G+2S+in 2.5GB Managed Switch
Patch Panel Cat 6
MikroTik CSS318-16G-2S+in 1Gb Managed Switch
Patch Panel Cat 6
NICGIGA 8 Port 2.5Gbe + 2 10g Poe Switch
Orion O6 1U Server 32gb
4U Server with ( ASRockRack AM5D4ID-2T/BCM, AMD Ryzen 5 7600X 6-Core Processor, 64GB ECC DDR5, Intel arc 310 4tb nvme, 5X 12Tb HDD, 1Tb WD Blue)

Roast me, Praise me, what ever. I want to do more stuff with it like condense the patch panels in to having double in the 1U size so I can add my other orion o6 16gb.

I have the models on my cults profile if anyone wants any other files on it let me know and ill upload them. https://cults3d.com/en/users/ocpistol/3d-models
I model in inventor if you want to edit it otherwise you can import them into fusion 360 easiest but most cad should open.

4 Likes

Man, makes me wish I had the chops to do stuff like this.

Right now I’m waffling between buying a smaller rack than what I have now (Tripp-Lite 24U NEMA, giant POS that it is), building one out of extruded aluminum frame (lots of math for this), or heavily modifying a Husky side tool cabinet thing (which would be yet another toolbox I own not being used for tools).

Rack studs are a pretty nice QOL improvement for lighter stuff.

its a little cheating for me because I am a fabricator with a laser, press break, laser welder. Also a cnc mill, oh and a couple 3d printers.
Id assume you can get your own rails and attach them to extruded aluminium or something similar. Or 3d Print corners to attach them to something you can source.

I really like the mini rack stuff until it comes to trying to fit HDDs into the mix, thats why the bottom one ended up being 4u
