Intro
I want to connect my NAS to my plex server directly with a faster subnet. I’m currently using a 2.5GbE connection, but as we all know, the faster the better.
Neither have any PCIE slots available, or this would be straightforward..

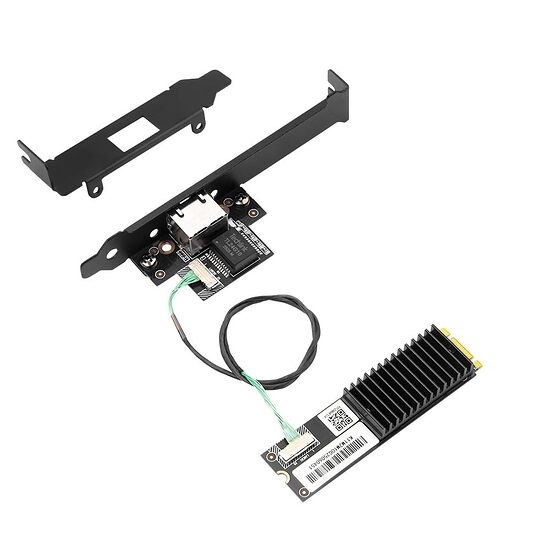

My plex server is using an m.2 to 10GbE adapter:

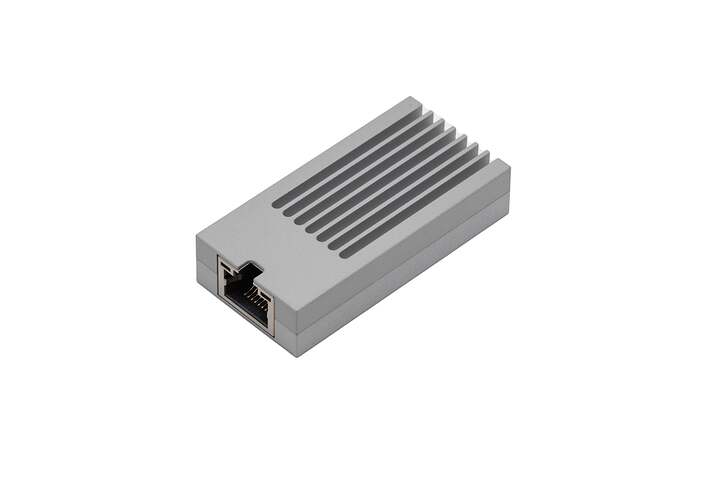

My NAS is using a USBC to 10GbE adapter courtesy of wendell for testing:
I wanted to test this out after seeing Jeff Geerling’s article from earlier this year on USBC to 10GbE speeds; apparently it varies quite a lot depending on your setup!
iperf3 Data
| Unraid NAS (big-boss) | Plex/Tdarr server (little-boss) | |
|---|---|---|
| 10GbE NIC | USB-C to 10GbE adapter (WisdPi) | M.2 to PCIe 10GbE card |
| Chipset | Realtek USB 10G controller (USB ID 0bda:815a), community Realtek drivers installed | Aquantia AQC113 (10G) |
| 10GbE IP | 10.1.2.100/24 | 10.1.2.101/24 |
| Link | 10000 Mb/s, full duplex | 10000 Mb/s, full duplex |
iperf3 -c 10.1.2.101
Connecting to host 10.1.2.101, port 5201
[ 5] local 10.1.2.100 port 55032 connected to 10.1.2.101 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 935 MBytes 7.83 Gbits/sec 0 1.03 MBytes
[ 5] 1.00-2.00 sec 936 MBytes 7.85 Gbits/sec 0 877 KBytes
[ 5] 2.00-3.00 sec 933 MBytes 7.83 Gbits/sec 0 829 KBytes
[ 5] 3.00-4.00 sec 926 MBytes 7.77 Gbits/sec 0 1.43 MBytes
[ 5] 4.00-5.00 sec 929 MBytes 7.79 Gbits/sec 0 1.56 MBytes
[ 5] 5.00-6.00 sec 942 MBytes 7.89 Gbits/sec 0 1.21 MBytes
[ 5] 6.00-7.00 sec 932 MBytes 7.82 Gbits/sec 0 888 KBytes
[ 5] 7.00-8.00 sec 938 MBytes 7.87 Gbits/sec 0 913 KBytes
[ 5] 8.00-9.00 sec 933 MBytes 7.82 Gbits/sec 0 1.17 MBytes
[ 5] 9.00-10.00 sec 927 MBytes 7.77 Gbits/sec 0 5.66 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 9.11 GBytes 7.83 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 9.10 GBytes 7.81 Gbits/sec receiver
iperf Done.
iperf3 -c 10.1.2.100 -R
Connecting to host 10.1.2.100, port 5201
Reverse mode, remote host 10.1.2.100 is sending
[ 5] local 10.1.2.101 port 58844 connected to 10.1.2.100 port 5201
[ ID] Interval Transfer Bitrate
[ 5] 0.00-1.00 sec 921 MBytes 7.72 Gbits/sec
[ 5] 1.00-2.00 sec 936 MBytes 7.85 Gbits/sec
[ 5] 2.00-3.00 sec 922 MBytes 7.74 Gbits/sec
[ 5] 3.00-4.00 sec 923 MBytes 7.74 Gbits/sec
[ 5] 4.00-5.00 sec 932 MBytes 7.83 Gbits/sec
[ 5] 5.00-6.00 sec 928 MBytes 7.78 Gbits/sec
[ 5] 6.00-7.00 sec 930 MBytes 7.80 Gbits/sec
[ 5] 7.00-8.00 sec 927 MBytes 7.78 Gbits/sec
[ 5] 8.00-9.00 sec 936 MBytes 7.85 Gbits/sec
[ 5] 9.00-10.00 sec 927 MBytes 7.77 Gbits/sec
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.01 sec 9.09 GBytes 7.80 Gbits/sec 1 sender
[ 5] 0.00-10.00 sec 9.08 GBytes 7.80 Gbits/sec receiver
iperf Done.
iperf3 -c 10.1.2.101
Connecting to host 10.1.2.101, port 5201
[ 5] local 10.1.2.100 port 55032 connected to 10.1.2.101 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 935 MBytes 7.83 Gbits/sec 0 1.03 MBytes
[ 5] 1.00-2.00 sec 936 MBytes 7.85 Gbits/sec 0 877 KBytes
[ 5] 2.00-3.00 sec 933 MBytes 7.83 Gbits/sec 0 829 KBytes
[ 5] 3.00-4.00 sec 926 MBytes 7.77 Gbits/sec 0 1.43 MBytes
[ 5] 4.00-5.00 sec 929 MBytes 7.79 Gbits/sec 0 1.56 MBytes
[ 5] 5.00-6.00 sec 942 MBytes 7.89 Gbits/sec 0 1.21 MBytes
[ 5] 6.00-7.00 sec 932 MBytes 7.82 Gbits/sec 0 888 KBytes
[ 5] 7.00-8.00 sec 938 MBytes 7.87 Gbits/sec 0 913 KBytes
[ 5] 8.00-9.00 sec 933 MBytes 7.82 Gbits/sec 0 1.17 MBytes
[ 5] 9.00-10.00 sec 927 MBytes 7.77 Gbits/sec 0 5.66 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 9.11 GBytes 7.83 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 9.10 GBytes 7.81 Gbits/sec receiver
iperf Done.
iperf3 -c 10.1.2.100 -P 4
Connecting to host 10.1.2.100, port 5201 [ 5] local 10.1.2.101 port 33862 connected to 10.1.2.100 port 5201 [ 7] local 10.1.2.101 port 33878 connected to 10.1.2.100 port 5201 [ 9] local 10.1.2.101 port 33890 connected to 10.1.2.100 port 5201 [ 11] local 10.1.2.101 port 33900 connected to 10.1.2.100 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 136 MBytes 1.14 Gbits/sec 0 580 KBytes [ 7] 0.00-1.00 sec 163 MBytes 1.36 Gbits/sec 0 584 KBytes
[ 9] 0.00-1.00 sec 420 MBytes 3.52 Gbits/sec 0 1.13 MBytes
[ 11] 0.00-1.00 sec 130 MBytes 1.09 Gbits/sec 0 479 KBytes
[SUM] 0.00-1.00 sec 848 MBytes 7.11 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 1.00-2.00 sec 150 MBytes 1.26 Gbits/sec 0 580 KBytes [ 7] 1.00-2.00 sec 150 MBytes 1.26 Gbits/sec 0 615 KBytes
[ 9] 1.00-2.00 sec 418 MBytes 3.51 Gbits/sec 0 1.25 MBytes
[ 11] 1.00-2.00 sec 119 MBytes 1.00 Gbits/sec 0 479 KBytes
[SUM] 1.00-2.00 sec 837 MBytes 7.02 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 2.00-3.00 sec 149 MBytes 1.25 Gbits/sec 0 611 KBytes
[ 7] 2.00-3.00 sec 149 MBytes 1.25 Gbits/sec 0 615 KBytes
[ 9] 2.00-3.00 sec 419 MBytes 3.51 Gbits/sec 0 1.25 MBytes
[ 11] 2.00-3.00 sec 120 MBytes 1.01 Gbits/sec 0 479 KBytes
[SUM] 2.00-3.00 sec 838 MBytes 7.03 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 3.00-4.00 sec 149 MBytes 1.25 Gbits/sec 0 611 KBytes
[ 7] 3.00-4.00 sec 149 MBytes 1.25 Gbits/sec 0 615 KBytes
[ 9] 3.00-4.00 sec 418 MBytes 3.51 Gbits/sec 0 1.31 MBytes
[ 11] 3.00-4.00 sec 119 MBytes 1.00 Gbits/sec 0 479 KBytes
[SUM] 3.00-4.00 sec 836 MBytes 7.01 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 4.00-5.00 sec 150 MBytes 1.26 Gbits/sec 0 639 KBytes
[ 7] 4.00-5.00 sec 149 MBytes 1.25 Gbits/sec 0 615 KBytes
[ 9] 4.00-5.00 sec 419 MBytes 3.51 Gbits/sec 0 1.31 MBytes
[ 11] 4.00-5.00 sec 119 MBytes 1.00 Gbits/sec 0 479 KBytes
[SUM] 4.00-5.00 sec 838 MBytes 7.03 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 5.00-6.00 sec 154 MBytes 1.29 Gbits/sec 0 669 KBytes
[ 7] 5.00-6.00 sec 148 MBytes 1.24 Gbits/sec 0 615 KBytes
[ 9] 5.00-6.00 sec 418 MBytes 3.51 Gbits/sec 0 1.31 MBytes
[ 11] 5.00-6.00 sec 117 MBytes 985 Mbits/sec 0 479 KBytes
[SUM] 5.00-6.00 sec 838 MBytes 7.03 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 6.00-7.00 sec 150 MBytes 1.26 Gbits/sec 0 906 KBytes
[ 7] 6.00-7.00 sec 129 MBytes 1.08 Gbits/sec 0 773 KBytes
[ 9] 6.00-7.00 sec 410 MBytes 3.44 Gbits/sec 0 1.60 MBytes
[ 11] 6.00-7.00 sec 147 MBytes 1.23 Gbits/sec 1 946 KBytes
[SUM] 6.00-7.00 sec 836 MBytes 7.02 Gbits/sec 1
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 7.00-8.00 sec 145 MBytes 1.22 Gbits/sec 0 906 KBytes
[ 7] 7.00-8.00 sec 122 MBytes 1.02 Gbits/sec 0 773 KBytes
[ 9] 7.00-8.00 sec 419 MBytes 3.51 Gbits/sec 0 1.60 MBytes
[ 11] 7.00-8.00 sec 150 MBytes 1.26 Gbits/sec 0 946 KBytes
[SUM] 7.00-8.00 sec 836 MBytes 7.01 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 8.00-9.00 sec 147 MBytes 1.23 Gbits/sec 0 906 KBytes
[ 7] 8.00-9.00 sec 120 MBytes 1.01 Gbits/sec 0 773 KBytes
[ 9] 8.00-9.00 sec 418 MBytes 3.51 Gbits/sec 0 1.60 MBytes
[ 11] 8.00-9.00 sec 151 MBytes 1.27 Gbits/sec 0 946 KBytes
[SUM] 8.00-9.00 sec 837 MBytes 7.03 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ 5] 9.00-10.00 sec 145 MBytes 1.22 Gbits/sec 0 906 KBytes
[ 7] 9.00-10.00 sec 122 MBytes 1.02 Gbits/sec 0 773 KBytes
[ 9] 9.00-10.00 sec 419 MBytes 3.51 Gbits/sec 0 1.60 MBytes
[ 11] 9.00-10.00 sec 150 MBytes 1.26 Gbits/sec 0 946 KBytes
[SUM] 9.00-10.00 sec 836 MBytes 7.00 Gbits/sec 0
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.00 sec 1.44 GBytes 1.24 Gbits/sec 0 sender
[ 5] 0.00-10.00 sec 1.44 GBytes 1.24 Gbits/sec receiver
[ 7] 0.00-10.00 sec 1.37 GBytes 1.18 Gbits/sec 0 sender
[ 7] 0.00-10.00 sec 1.37 GBytes 1.17 Gbits/sec receiver
[ 9] 0.00-10.00 sec 4.08 GBytes 3.50 Gbits/sec 0 sender [ 9] 0.00-10.00 sec 4.08 GBytes 3.50 Gbits/sec receiver
[ 11] 0.00-10.00 sec 1.29 GBytes 1.11 Gbits/sec 1 sender [ 11] 0.00-10.00 sec 1.29 GBytes 1.11 Gbits/sec receiver
[SUM] 0.00-10.00 sec 8.18 GBytes 7.03 Gbits/sec 1 sender
[SUM] 0.00-10.00 sec 8.17 GBytes 7.02 Gbits/sec receiver
iperf Done.
Results
| Test | Result | Retransmits |
|---|---|---|
| Single stream, Plex → Unraid, 10 s | 7.03 Gbit/s (8.18 GB) | 0 |
Single stream, Unraid → Plex (-R) |
7.80 Gbit/s (9.09 GB) | 1 |
| Single stream, Unraid as client → Plex | 7.83 Gbit/s (9.11 GB) | 0 |
| 4 parallel streams, total | 7.03 Gbit/s | 1 |
| Individual streams in the parallel test | ~1.2, ~1.2, ~3.5, ~1.1 Gbit/s | n/a |
Speed guide
| Reference point | Speed |
|---|---|
| 1GbE in practice | ~0.94 Gbit/s (~110 MB/s) |
| 10GbE theoretical TCP maximum (1500 MTU) | ~9.4 Gbit/s (~1.17 GB/s) |
| USB 10GbE adapters, typical | 6-8 Gbit/s |
| THIS TEST | 7.0-7.8 Gbit/s (~875-975 MB/s) |
Speed benefit
| Unraid source/target | Typical speed | Benefit vs 1GbE |
|---|---|---|
| Single HDD in array (read) | 150-250 MB/s | ~1.5-2x |
| Array write with parity | 40-100 MB/s | None (parity limits) |
| SATA SSD cache | ~500 MB/s | ~4-5x |
| NVMe cache | up to ~875 MB/s (link-limited) | ~7-8x |
Summary
- Tdarr: pulling source files to the node and pushing finished files back runs at NVMe speed, and multiple workers no longer fight over one gigabit link. The transcode itself is still limited by the encoder.
- Downloads and moves: files on the NVMe pool transfer to the Plex box or between systems at near link speed. The final move to the HDD array is still limited by the drives and parity.
- Isolation: bulk traffic runs on its own cable and does not compete with Plex streaming, Pi-hole or Tailscale on the main LAN.
- Plex extras: faster library scans, thumbnail and intro detection, and snappier seeking in very large files.
Where it does not help: live Plex transcoding speed is set by the GPU, not the network.
