Halogen Flash Server on Strix Halo — Deployment & Tuning Guide

I dunno that this will become a video, theres so many videos but I wanted to share this with the community as its my notes from experimenting with the “Halogen” engine on the Strix Halo platform.

Maybe I’ll tweet about it.

What’s Halogen? It’s this sort of interesting optimized server for running qwen 3.8 flash next on Strix halo. You should read about the project, it’s interesting.

This was tested on several Strix Halo platforms including the ASUS ROG Flow Z13.

Original project: github.com/peonist-ai/halogen-flash-server — the fastest way to run Qwen3.8-Flash-Next on AMD Strix Halo (gfx1151).
Model: peonist-ai/halogen-qwen3.8-flash-next on Hugging Face.
Platform: AMD Ryzen AI MAX+ 395 (Radeon 8060S, 128 GB unified memory).

This guide covers a real-world deployment on a Strix Halo mini-PC. Normally I use Ubuntu LTS with Docker, but I decided to try Podman on Debian 13 this time around.

We walk through the stock launch, power tuning, YaRN 1M context extension, and the amd_iommu=off kernel parameter that’s good for about +10% perf uplift. Each step includes the commands, the reasoning, and the performance impact.


Table of Contents

  1. Prerequisites & Hardware
  2. Stock Launch (Reference)
  3. Power Tuning: Platform Profile & CPU Governor
  4. YaRN 1M Context Extension
  5. amd_iommu=off – The Secret Sauce
  6. Container Management
  7. Performance Results
  8. Troubleshooting
  9. Appendix: Rollback & Recovery

1. Prerequisites & Hardware

Hardware

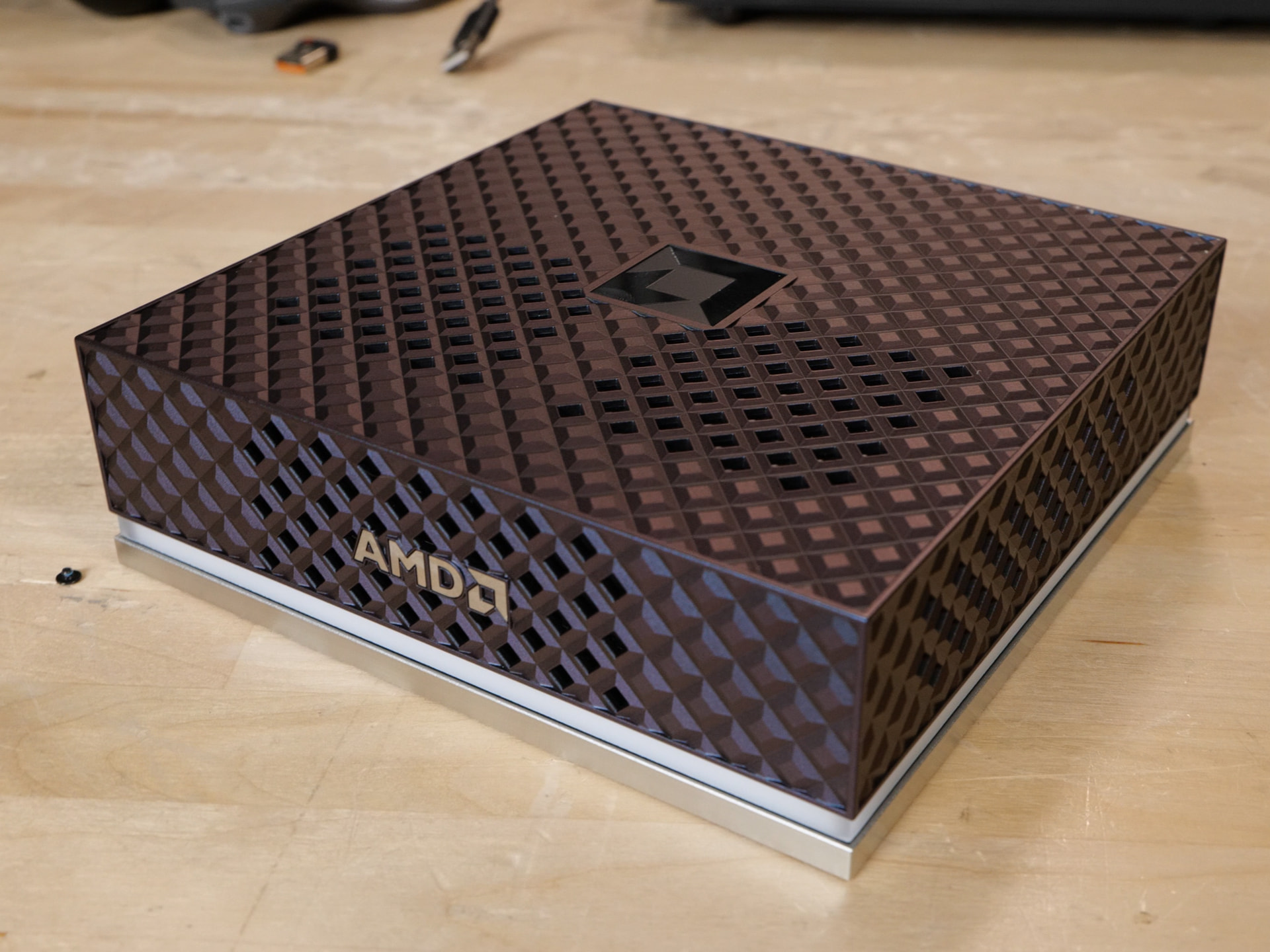

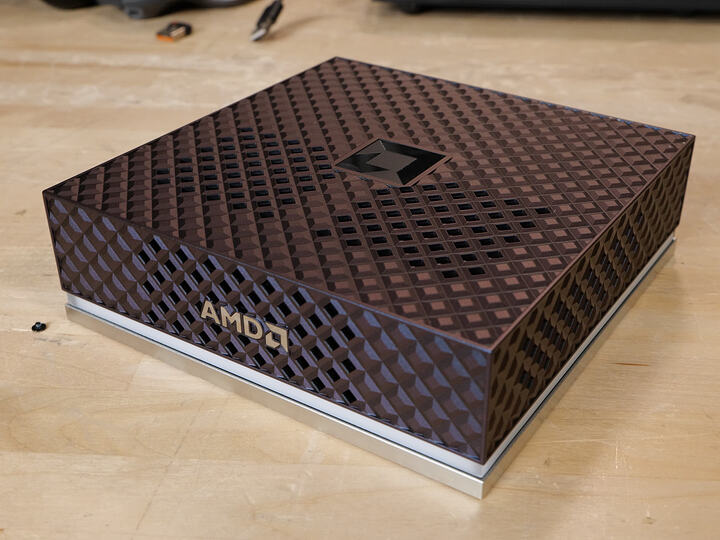

AMD Ryzen AI Halo

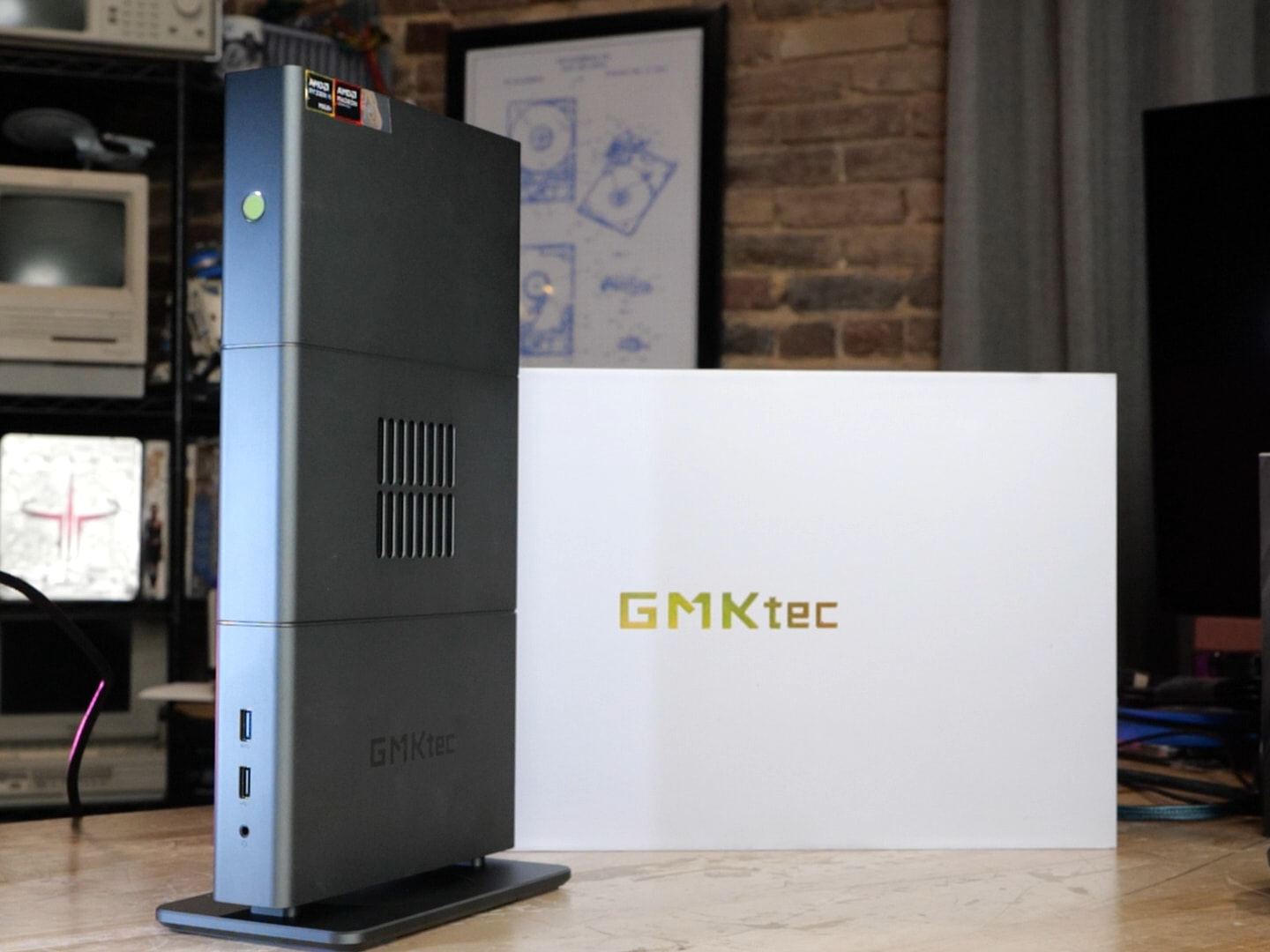

GMKtec

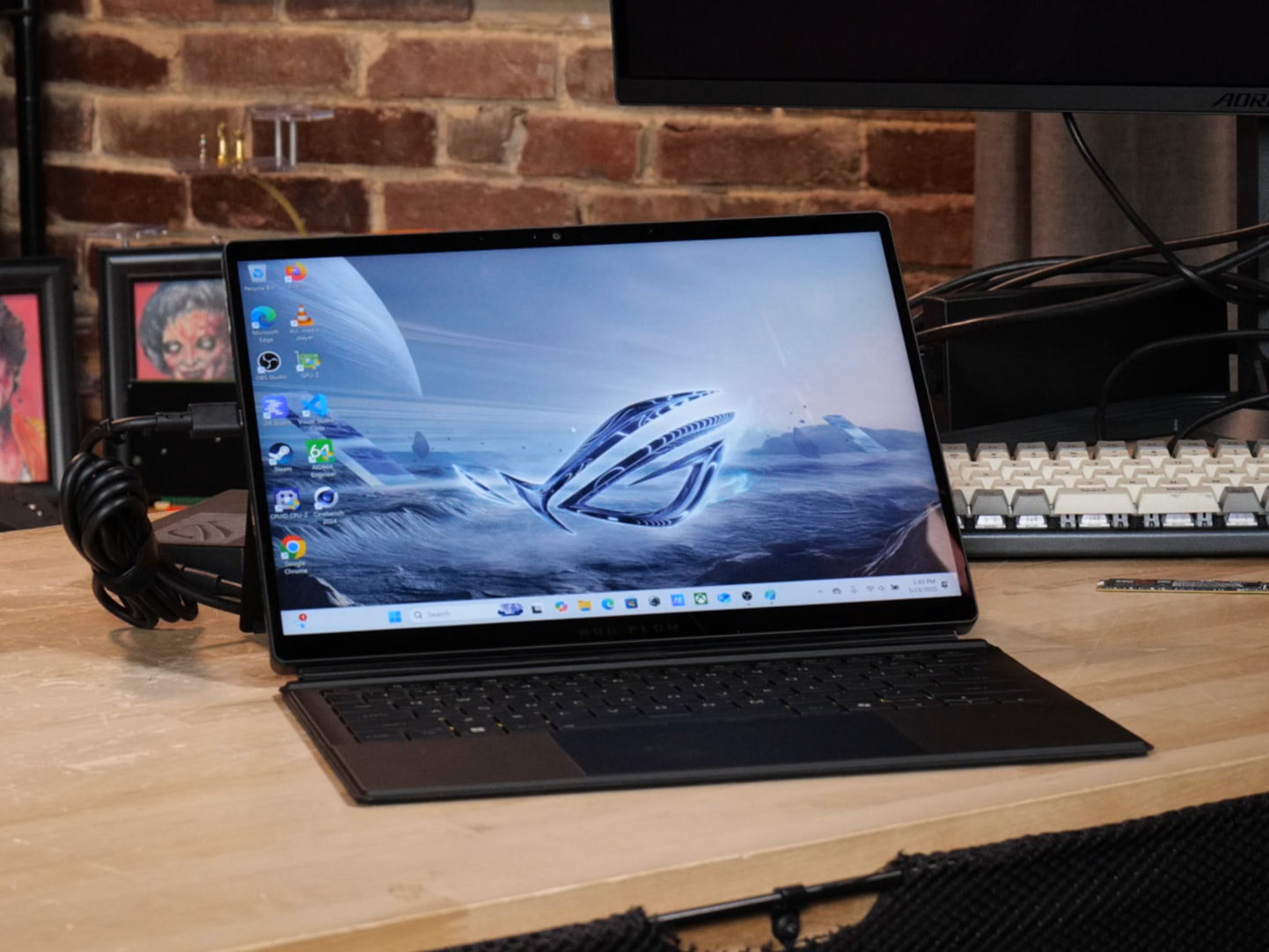

ROG Flow Z13

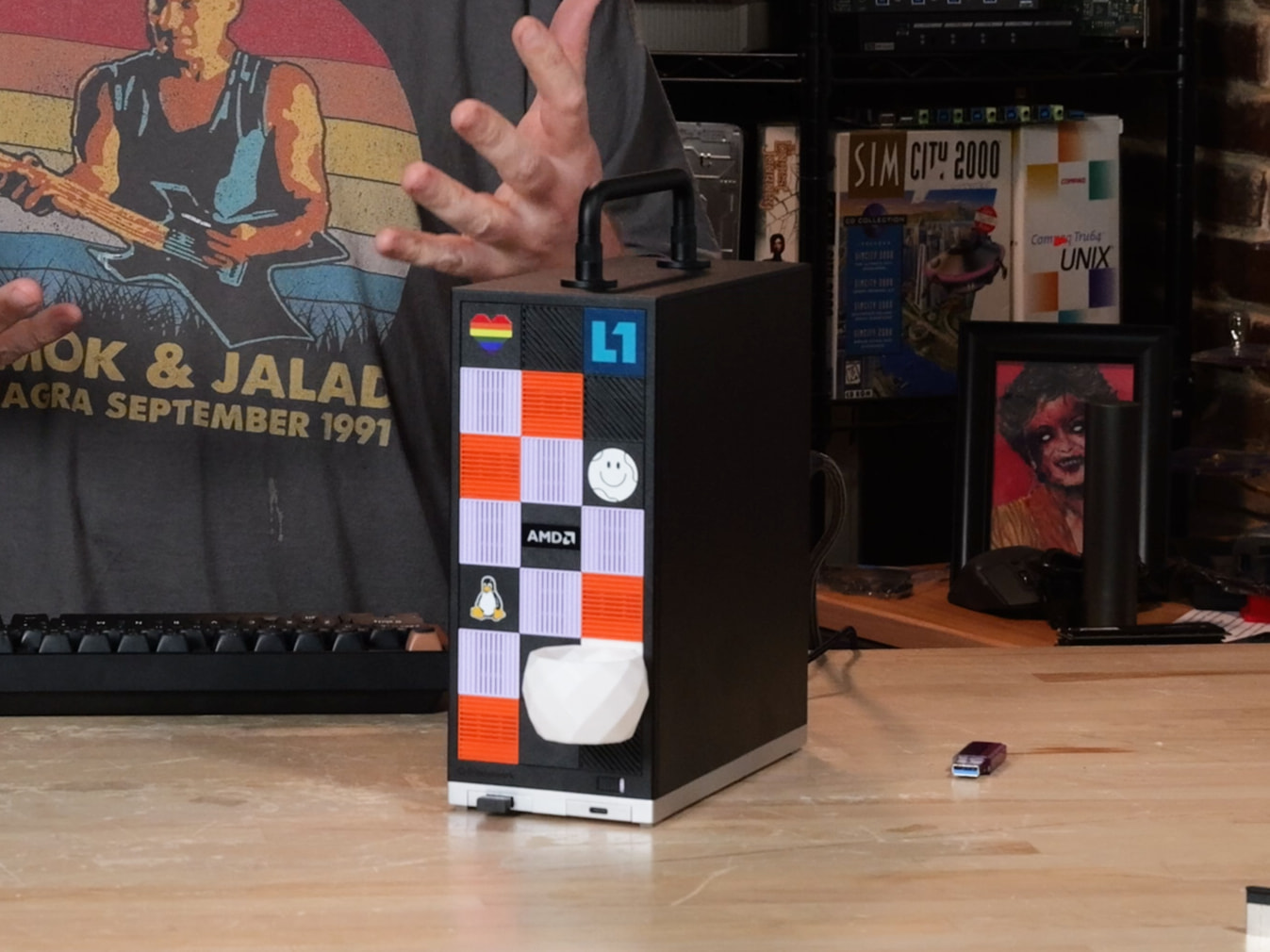

Framework Desktop

These systems are all bananas. The software has made the story. This should all work on AMD’s Gorgon Halo as well – 400 series with 192gb ram.

These all had 128gb LPDDR5 unified memory.

Component Detail
CPU/APU AMD Ryzen AI MAX+ 395 (16C/32T)
GPU Radeon 8060S (gfx1151, integrated, 128 GB unified memory)
RAM 128 GB LPDDR5X (shared CPU/GPU pool)
Storage NVMe SSD
Platform Mini-PC (ASUS ROG Flow Z13)

Software

  • OS: Debian 13 “Trixie” (or any recent Linux with ROCm 7.14 support)
  • Container runtime: Podman (Docker works too; adjust --group-add accordingly)
  • ROCm: 7.14 (shipped with the halogen-flash-server image)
  • Kernel: 6.18.44+rex+5-amd64 (vendor kernel from AMD on the AI Halo, but CachyOS kernel tested and works too.)

Model Files

Download the model weights and n-gram table from Hugging Face (~111 GB total):

# Install huggingface-cli if needed
pip install huggingface-hub

# Download model
huggingface-cli download peonist-ai/halogen-qwen3.8-flash-next \
  --local-dir ~/halogen-models

^ strictly speaking this isn’t needed as the halogen github link, at first run, downloads the model. I like to do this to ensure that “extra” downloads across test runs do not happen. Save my precious bandwidth.

Expected files:

File Size Purpose
qwen38-flash-next-v2.hgn 63 GiB Main checkpoint (weights)
qwen38-flash-next-ngram.hgn 48 GiB N-gram lookup table for speculative decoding
qwen38-flash-next-vision.hgn 857 MiB Vision sidecar (optional, not loaded by default)
tokenizer/ — Tokenizer files

If you aren’t read in on the whole N-gram thing, this is a “new” thing where part of the model is designed to run from dram at dram speeds. This is a unified memory platform so it manifests as a speed benefit, but the N-gram model work should be exciting to everyone since it promises decent performance on “normal” systems that have fast vram (faster than LPDDR5) and slower system memory.

2. Stock Launch (Reference)

This is the baseline from the GitHub README. Run the container as-is, no tuning:

podman run -d --name halogen-flash-server \
  -p 8731:8731 \
  --device /dev/kfd --device /dev/dri \
  --group-add keep-groups \
  --ipc=host \
  --ulimit memlock=-1:-1 \
  -v ~/halogen-models:/models \
  ghcr.io/peonist-ai/halogen-flash-server:0.15.0

The server listens on port 8731. Check health:

curl -s http://localhost:8731/health | python3 -m json.tool

Key observations at stock:

  • Platform profile: balanced
  • CPU governor: powersave
  • GPU clocks: ~2000 MHz under load
  • GPU power: ~60W
  • Context: 262,144 tokens (native, no YaRN)
  • Output cap: 65,536 tokens

3. Power Tuning — Platform Profile & CPU Governor

The stock balanced profile and powersave governor leave a lot of performance on the table. I suspect some of the benchmarks posted on github on strix halo were run with a conservative CPU governor. The GPU can hit 2900 MHz and 130W, but the power envelope needs to be opened up. The GMKtek has been tuned for > 150W, too, but I have omitted the results from this writeup to keep it from being confusing (it was only worth about 2% more, at best, performance).

Check Current State

cat /sys/firmware/acpi/platform_profile
# → balanced

cat /sys/devices/system/cpu/cpufreq/policy*/scaling_governor | sort -u
# → powersave

cat /sys/class/drm/card0/device/pp_dpm_sclk
# 0: 600Mhz *
# 1: 1100Mhz
# 2: 2900Mhz

Apply Tuning

# Set platform profile to performance
sudo -S sh -c 'echo performance > /sys/firmware/acpi/platform_profile'

# Set all CPU governors to performance
for f in /sys/devices/system/cpu/cpufreq/policy*/scaling_governor; do
  sudo -S sh -c "echo performance > \"$f\""
done

Verify

cat /sys/firmware/acpi/platform_profile    # → performance
cat /sys/devices/system/cpu/cpufreq/policy0/scaling_governor  # → performance

What Changed

Parameter Before After
Platform profile balanced performance
CPU governor powersave performance
GPU clock under load ~2000 MHz ~2850 MHz
GPU power under load ~60W ~130W

Revert

   sudo -S sh -c 'echo balanced > /sys/firmware/acpi/platform_profile'
for f in /sys/devices/system/cpu/cpufreq/policy*/scaling_governor; do
   sudo -S sh -c "echo powersave > \"$f\""
done

Note: These settings are ephemeral — they reset on reboot. See the Post-Reboot Automation section to persist them.


4. YaRN 1M Context Extension

The model’s native context is 262,144 tokens. With YaRN (Yet another RoPE extensioN) at factor 4, we extend this to 1,048,576 tokens (~1M). This requires a larger KV cache pool — about 28.8 GiB of the 128 GiB unified memory.

Launch with YaRN

podman run -d --name halogen-flash-server \
  -p 8731:8731 \
  --device /dev/kfd --device /dev/dri \
  --group-add keep-groups \
  --ipc=host \
  --ulimit memlock=-1:-1 \
  -e HALOGEN_ROPE_YARN=4 \
  -e HALOGEN_CTX=1048576 \
  -e HALOGEN_MAX_THINKING_TOKENS=262144 \
  -e HALOGEN_MAX_TOKENS_DEFAULT=393216 \
  -e HALOGEN_MAX_TOKENS_CAP=393216 \
  -v ~/halogen-models:/models \
  ghcr.io/peonist-ai/halogen-flash-server:0.15.0

Environment Variables Explained

Variable Value Purpose
HALOGEN_ROPE_YARN=4 4 YaRN scaling factor. 4 × 262K native = 1,048,576 context
HALOGEN_CTX=1048576 1,048,576 Max context length (KV pool positions)
HALOGEN_MAX_THINKING_TOKENS=262144 262,144 Reasoning budget cap (256K tokens for thinking)
HALOGEN_MAX_TOKENS_DEFAULT=393216 393,216 Default total output budget (thinking + answer)
HALOGEN_MAX_TOKENS_CAP=393216 393,216 Hard cap; requests above get 400 error

Verify YaRN is Active

curl -s http://localhost:8731/health | python3 -c "
import sys, json
d = json.load(sys.stdin)
print('Context:', d['context'])
print('YaRN:', d.get('rope_scaling'))
print('Max tokens default:', d.get('max_tokens_default'))
print('Max thinking tokens:', d.get('max_thinking_tokens_default'))
"

Expected output:

Context: 1048576
YaRN: {'type': 'yarn', 'factor': 4.0, 'original_context': 262144}
Max tokens default: 393216
Max thinking tokens: 262144

Startup Log Snippet

rope: static YaRN, factor 4 over the native 262144 (attention scale 1.138629)
startup [   3.6 s] KV pool reserved: 1048576 positions (about 28.8 GiB)
startup [   3.7 s] memory: 62.1 GiB of weights locked in RAM, 28.8 GiB of KV pool, 8.1 GiB of working memory, 99.0 GiB in all
startup [   3.7 s] host memory left for everything else: ~20 GiB

Memory Budget

With YaRN 1M enabled, the server uses ~99 GiB of the 128 GiB pool:

  • 62 GiB — model weights (pinned in RAM)
  • 29 GiB — KV cache (1,048,576 positions)
  • 8 GiB — working memory
  • ~20 GiB — remaining for the OS and other services

If you’re tight on memory, you can halve the KV pool:

-e HALOGEN_KV_POOL_POSITIONS=524288
-e HALOGEN_CTX=524288

This reduces context to 524K but frees ~14 GiB.


5. amd_iommu=off — The Secret Sauce

The single biggest performance unlock on Strix Halo is disabling the IOMMU. On this platform, the IOMMU adds overhead to GPU memory access that visibly impacts prefill throughput. The project’s reference machine runs with amd_iommu=off as part of its kernel command line, and the README notes it’s worth 13–16% of prefill performance.

Note: The reference machine also uses additional GPU-tuning kernel parameters: amdgpu.vm_update_mode=0 amdgpu.noretry=0 amdgpu.gttsize=126976 ttm.pages_limit=32505856 amdgpu.sg_display=0. We did NOT apply these in our testing — our results come from amd_iommu=off alone, combined with the userspace power tuning from Section 3.

How to Apply

The system uses systemd-boot (not GRUB). Boot entries live on the EFI System Partition at /efi/loader/entries/.

Step 1: Identify the current boot entry

bootctl status | grep "Current Entry"
# → amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf

Step 2: Back up the entry

sudo cp /efi/loader/entries/amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf \
       /efi/loader/entries/amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf.bak-iommu

Step 3: Add amd_iommu=off to the kernel command line

sudo sed -i 's/^options /options amd_iommu=off /' \
  /efi/loader/entries/amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf

Step 4: Verify the edit

cat /efi/loader/entries/amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf

Should show:

options amd_iommu=off     root=UUID=... splash quiet loglevel=3

Step 5: Reboot

sudo systemctl reboot

Step 6: Verify after reboot

cat /proc/cmdline | tr ' ' '\n' | grep iommu
# → amd_iommu=off

sudo dmesg | grep -c AMD-Vi
# → 0  (IOMMU is disabled)

sudo dmesg | grep -i kfd
# → kfd kfd: amdgpu: added device 1002:1586  (KFD still works)

Does KFD Still Work?

Yes. On this kernel (6.18.44+rex+5-amd64), the AMD KFD (Kernel Fusion Driver) falls back to GART-based initialization when the IOMMU is disabled. You’ll see this in dmesg:

kfd kfd: amdgpu: Allocated 3969056 bytes on gart
kfd kfd: amdgpu: Total number of KFD nodes to be created: 1
kfd kfd: amdgpu: added device 1002:1586

ROCm 7.14 works normally. The container needs --group-add with the render group’s GID (typically 992) because rootless Podman remaps device ownership, but that’s a container-runtime detail, not an IOMMU issue.

What If It Doesn’t Boot?

If the system fails to boot after adding amd_iommu=off, use the boot menu to select the backup entry or use a recovery USB to restore the backup:

# From a recovery shell:
sudo cp /efi/loader/entries/...conf.bak-iommu /efi/loader/entries/...conf

6. Container Management

The Rootful Podman Issue

On this Debian 13 system, rootless Podman remaps device node ownership inside the container. The /dev/kfd and /dev/dri/renderD128 devices show up as owned by nobody:nogroup, which breaks ROCm’s permission check.

Fix: Run the container under sudo podman with the render group’s GID:

# Find the render GID
grep ^render /etc/group | cut -d: -f3
# → 992

# Launch with sudo
sudo podman run -d --name halogen-flash-server \
  -p 8731:8731 \
  --device /dev/kfd --device /dev/dri \
  --group-add 992 \
  --ipc=host \
  --ulimit memlock=-1:-1 \
  -e HALOGEN_ROPE_YARN=4 \
  -e HALOGEN_CTX=1048576 \
  -e HALOGEN_MAX_THINKING_TOKENS=262144 \
  -e HALOGEN_MAX_TOKENS_DEFAULT=393216 \
  -e HALOGEN_MAX_TOKENS_CAP=393216 \
  -v /home/w/halogen-models:/models \
  ghcr.io/peonist-ai/halogen-flash-server:0.15.0

Management Wrapper Script

Save this as ~/halogen-podman and chmod +x:

#!/bin/bash
PASS=your_sudo_password_here
ACTION="$1"
shift
case "$ACTION" in
  start|stop|restart|logs|rm)
    echo "$PASS" | sudo -S podman "$ACTION" halogen-flash-server "$@"
    ;;
  ps)
    echo "$PASS" | sudo -S podman ps -a --filter name=halogen-flash-server "$@"
    ;;
  health)
    echo "$PASS" | sudo -S curl -s http://localhost:8731/health "$@"
    ;;
  run)
    echo "$PASS" | sudo -S podman run -d --name halogen-flash-server \
      -p 8731:8731 \
      --device /dev/kfd --device /dev/dri \
      --group-add 992 \
      --ipc=host \
      --ulimit memlock=-1:-1 \
      -e HALOGEN_ROPE_YARN=4 \
      -e HALOGEN_CTX=1048576 \
      -e HALOGEN_MAX_THINKING_TOKENS=262144 \
      -e HALOGEN_MAX_TOKENS_DEFAULT=393216 \
      -e HALOGEN_MAX_TOKENS_CAP=393216 \
      -v /home/w/halogen-models:/models \
      ghcr.io/peonist-ai/halogen-flash-server:0.15.0
    ;;
  *)
    echo "Usage: halogen-podman {start|stop|restart|logs|rm|ps|health|run}"
    ;;
esac

Usage:

./halogen-podman start    # Start the container
./halogen-podman stop     # Stop it
./halogen-podman restart  # Restart it
./halogen-podman logs     # View logs
./halogen-podman health   # Check health endpoint
./halogen-podman ps       # Container status
./halogen-podman run      # Create a fresh container

There is probably a better way to do this. This kind of thing isn’t necessary with Docker, or I might need more XP with podman to understand what I’ve missed. I suspect that because when you’re in the docker group, you’ve basically got root, and this is a different architectural choice in podman to prevent that. But I need the hardware. So this is just making some notes for myself about that.

Post-Reboot Automation

After every reboot, you need to:

  1. Re-apply the performance profile + governor
  2. Start the halogen container

A simple systemd oneshot service can handle this kind of thing, though. Create /etc/systemd/system/halogen-tune.service:

[Unit]
Description=Halogen power tuning
After=multi-user.target

[Service]
Type=oneshot
ExecStart=/usr/local/bin/halogen-tune.sh
RemainAfterExit=yes

[Install]
WantedBy=multi-user.target

And /usr/local/bin/halogen-tune.sh:

#!/bin/bash
echo performance > /sys/firmware/acpi/platform_profile
for f in /sys/devices/system/cpu/cpufreq/policy*/scaling_governor; do
  echo performance > "$f"
done
sudo systemctl enable halogen-tune.service

Then add the container start to your crontab (@reboot /home/w/halogen-podman start) or another systemd unit.

Different distros handle this in different ways. I’m getting a bit rusty on Debian and there may be a less brute-force way to do this. But this is good practice for you sysadmin-in-training folks out there.


7. Performance Results

Benchmark Methodology

We used the built-in sweep command, which measures end-to-end HTTP request latency including prefill and decode:

# Prefill benchmarks (3 repetitions)
sudo podman run --rm ... halogen-flash-server:0.15.0 sweep -p 8192,32768 -n 128 -r 3
sudo podman run --rm ... halogen-flash-server:0.15.0 sweep -p 131072 -n 128 -r 1

# Decode benchmark (10 prompt shapes, 1 repetition)
sudo podman run --rm ... halogen-flash-server:0.15.0 bench mtp 256 low 1

All benchmarks use the MTP (Multi-Token Prediction) drafter, which is the default and fastest mode.

Results Table

Test Ref (0.14.1) Baseline (0.14.0) Pass 1 (stock) Pass 2 (tuned) Pass 3 (tuned+IOMMU)
pp8192 1,584 t/s 1,268 t/s 1,350 t/s 1,679 t/s 1,768 t/s
pp32768 1,567 t/s 1,442 t/s 1,216 t/s 1,469 t/s 1,695 t/s
pp131072 1,517 t/s 1,390 t/s 1,171 t/s 1,426 t/s 1,621 t/s
tg128 MTP 46.0 t/s 39.9 t/s 48.1 t/s 52.0 t/s 52.2 t/s
mtp 256 low 1 — — — — 53.4 t/s

pp = prefill (prompt processing), tg = token generation. All values in tokens/second. Higher is better. Reference and Baseline columns from the project README.

What Each Pass Means

Pass Changes
Ref (0.14.1) Project’s reference machine – ROCm 7.14, IOMMU=off, additional GPU kernel params, ~85W sustained
Baseline (0.14.0) Same machine, prior software version (for comparison)
Pass 1 Our stock baseline – balanced profile, powersave governor, IOMMU on
Pass 2 Platform profile → performance, CPU governor → performance on all 32 cores
Pass 3 Pass 2 + amd_iommu=off kernel parameter + reboot

Performance at 256K Context (Real-World Sweet Spot)

Most real-world usage will be at 256K context or less – the model’s native length. The YaRN 1M config is available for deep-context tasks, but 256K covers the vast majority of chat, coding, and analysis workloads. Here’s how performance compares:

Metric 256K Context (native) 1M Context (YaRN 4x)
KV pool size ~7 GiB ~29 GiB
Total memory used ~77 GiB ~99 GiB
Host memory free ~42 GiB ~20 GiB
Prefill @ 8K ~1,770 t/s ~1,770 t/s
Prefill @ 32K ~1,700 t/s ~1,700 t/s
Prefill @ 131K ~1,620 t/s ~1,620 t/s
Decode (MTP, short ctx) ~53 t/s ~53 t/s
Decode (MTP, deep ctx ~260K) — ~45 t/s

The prefill and short-context decode numbers are nearly identical between configs – the YaRN scaling doesn’t add meaningful overhead for prompt processing or short generations. The difference appears at deep context: the README reports 45.0 tok/s decode at 258K context with the 1M config, vs 46.0 tok/s at 32K context. The 1M config also enables prompt caching across very long sessions (the follow-up turn at 100K context is ~2s).

Recommendation: Run with the 1M config by default. The memory cost (~22 GiB extra for the larger KV pool) is worth the flexibility, and performance at 256K seems basically identical. Only drop to 524K or 256K if you’re running other memory-hungry services alongside the server.

GPU Power & Clock Evidence

Metric Stock (Pass 1) Tuned (Pass 2) Tuned+IOMMU (Pass 3) Ref Machine
GPU clock under load ~2000 MHz ~2850 MHz ~2900 MHz —
GPU power under load ~60W ~130W ~140W ~85W
Idle clock 600 MHz 600 MHz 600 MHz —
Idle power ~5W ~5W ~5W —

The GPU hits its 2900 MHz ceiling and 140W power limit (160w on the GMKtek) after tuning. The reference machine runs at ~85W sustained – our higher power draw is expected given the performance profile (the reference likely uses a tuned balanced profile with IOMMU=off and the additional GPU kernel parameters). The remaining small gap vs reference at 131K prefill is likely memory-bandwidth bound rather than clock-limited.

Visual Summary

pp8192:     ████████████████████░░░░░░░░░░  1,768 t/s  (+12% vs ref 1,584)
pp32768:    █████████████████████░░░░░░░░░░  1,695 t/s  (+8% vs ref 1,567)
pp131072:   ████████████████████████░░░░░░░░  1,621 t/s  (+7% vs ref 1,517)
Decode:     ██████████████████████████░░░░░░  53.4 t/s  (+16% vs ref 46.0)

Key Takeaways

  • Pass 3 (tuned + IOMMU=off) exceeds the reference at every prefill size, despite not using the additional GPU kernel parameters (amdgpu.vm_update_mode=0, etc.) that the reference machine employs. This suggests the userspace power tuning (performance profile + governor) is doing significant work beyond just IOMMU=off.
  • Pass 1 was below the 0.14.0 baseline — our stock configuration (IOMMU on, balanced profile) was leaving ~20% on the table.
  • Pass 2 (tuning alone) recovered most of the gap — the power envelope change from ~60W to ~130W and GPU clocks from ~2000 MHz to ~2850 MHz was the dominant factor.
  • Pass 3 (IOMMU=off) added the remaining ~7-15% — consistent with the project’s stated 13-16% IOMMU overhead.

8. Troubleshooting

Container exits with “no ROCm-capable device”

Symptoms: Container starts but immediately exits. Logs show HIP /src/halogen/src/flash_ops.h:7060: no ROCm-capable device is detected.

Causes:

  1. Rootless Podman — Device nodes are remapped to nobody:nogroup. Use sudo podman with --group-add <render_GID>.
  2. User not in render group — Add your user: sudo usermod -aG render,video $USER then log out and back in.
  3. KFD not initialized — Check sudo dmesg | grep kfd. If empty, the kernel may need amd_iommu=off removed or KFD may need modprobe amdkfd (though on the AMD AI halo kernel it’s built-in).

Container exits with “checkpoint: refusing to pin”

Symptoms: Startup log shows memory budget close to limit, then engine refuses to start.

Fix: Reduce KV pool size:

-e HALOGEN_KV_POOL_POSITIONS=524288
-e HALOGEN_CTX=524288

This halves the KV cache from 1M to 524K positions, freeing ~14 GiB.

Container exits with “HIP out of memory”

Symptoms: OOM during weight loading or KV pool reservation.

Fix: Reduce HALOGEN_MAX_TOK (working memory):

-e HALOGEN_MAX_TOK=16384

The engine auto-caps this at 16384 for 1M context anyway, but setting it explicitly avoids the warning.

IOMMU=off breaks KFD

If a future kernel update changes the KFD behavior with amd_iommu=off, rollback:

sudo cp /efi/loader/entries/...conf.bak-iommu /efi/loader/entries/...conf
sudo reboot

On kernel 6.18.44+rex+5-amd64 with ROCm 7.14, KFD works correctly via GART fallback. The vendor’s reference machine runs the same configuration.

Boot menu shows wrong kernel

systemd-boot sorts entries by sort-key, then by version. If you edited the 6.18.35 entry but the system booted 6.18.44, apply the edit to the actually-booted entry. Check with bootctl status | grep "Current Entry". I’m just noting this here because I swear I remember this behaving differently in the past, but I wouldn’t expect the Debian maintainers to have changed this. Maybe Limine on CachyOS is overwriting my memories lol


9. Appendix: Rollback & Recovery

Rollback amd_iommu=off

# Restore the pre-iommu backup
sudo cp /efi/loader/entries/amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf.bak-iommu \
       /efi/loader/entries/amd-ryzen-ai-developer-platform-6.18.44+rex+5-amd64.conf
sudo reboot

Rollback Power Tuning

   sudo -S sh -c 'echo balanced > /sys/firmware/acpi/platform_profile'
for f in /sys/devices/system/cpu/cpufreq/policy*/scaling_governor; do
    sudo -S sh -c "echo powersave > \"$f\""
done

Full Factory Reset (Container)

sudo podman stop halogen-flash-server
sudo podman rm halogen-flash-server
# Then re-run the stock launch command from Section 2

Verify Everything is Working

# Health check
curl -s http://localhost:8731/health | python3 -c "import sys,json; d=json.load(sys.stdin); print('OK' if d['status']=='ok' else 'FAIL')"

# Quick chat test
curl -s -X POST http://localhost:8731/v1/chat/completions \
  -H 'Content-Type: application/json' \
  -d '{"model":"halogen-qwen3.8-flash-next","messages":[{"role":"user","content":"Say hello in one word."}],"max_completion_tokens":10,"temperature":0,"enable_thinking":false}'

# Expected: {"choices":[{"message":{"content":"Hello"}}]}

Acknowledgments

  • Peonist AI for the halogen-flash-server project and the Qwen3.8-Flash-Next model weights
  • AMD for the Strix Halo platform and ROCm 7.14
  • Qwen team (Alibaba) for the underlying Qwen3.8 architecture

I am genuinely very impressed with how fast the software ecosystem is improving. Halogen apparently cutting away all the cruft has led to more coherence and performance than I would have thought possible on the Strix Halo platform. 45t/s at 1M!

6 Likes

Note on disabling IOMMU on the notebook platforms

On the laptops (especially the HP G1a to a lesser extent the Flow Z13) IOMMU is needed for the current bluetooth + webcam implementation. I didn’t find a clean way to disable iommu but keep full functionality on the G1a. The notebooks are a lower power target and less performance anyway, so it’s not that much of a loss when you have to run with iommu on with those platforms.

Hi @wendell - made an account for this post and thank you for covering it. I’ve been browsing the readme on the halogen github and its got me a little scared. My current ‘plan’ was to get one of those minisforum n5 max and handle local AI + homeserver / little web app stuff, but I’m wondering whether I will have the resources left to do much? Everything I’m doing now is running on windows server with (20gb?) of ddr3 and i think a 2500k so it isn’t very demanding but I want room to grow.

If i don’t need concurrent sessions and and/or I could be fine with 512k or even 256k - is a reasonable direction to go in?

Thanks,

Stuart

1 Like

you’ve probably got a little tuning to do. 64gb version of the n5 max yes?
if you do qwen 27b dense it is true you wont have much room

But you dont have to run “dense” you might be perfectly happy with a q6 quant of A35B qwen 3.6 which will run way way faster, doesn’t need halogen, and still leave you plenty of ram for activities.

the exciting thing with halogen are these new n-gram MoEs because the n-grams pinned to “dram” give us some better memory juggling capabilities without necessarily having to do a full model unload.

the halogen tuned stuff running on NPU is really impressive.

1 Like

Hey Wendell! Thanks for the write up. Been on the fence about building a local AI machine because pricing but strix halo is something I could stomach since the power draw isnt bananas.

Question on the setup/maintenance: while I know I could follow this guide for initial setup and tuning, I’m less sure I’d be able to handle updating the models and accessibility from other machines on a system setup this way vs something “simpler” like Ollama or Turnstone even. Thoughts? Podman is a totally new ocean to me but I suppose thats not necessarily bad. More familair with K3s and Docker.

you can use docker as-is with the above guide. halogen gives you a LOT of performance over ollama, so I wouldn’t do something generic per se. Likely this whole thing evolves.

Think back to the olden days when ollama was a light wrapper around llama.cpp

Don’t think anything we do software wise now is going to have “5-year durability” so I wouldn’t sweat it too much

1 Like

Fair point, perhaps it’s good an AI machine would be a constantly evolving tool, force me to remain literate in the improvements and happenings in the space and keep my tech chops fresh. Will dig in more to halogen, loving that there’s so many implementation frameworks for localAI. Seize the means of computation!

Now to swallow the pricing pill. Was considering a bare framework desktop mainboard in a spare chassis I had but even the 32Gb models are nearly $1000 now.

Hi @wendell thanks for the reply!

Actually i was going to splurge for the 128GB. I assumed this 3.8 flash model would be a huge jump in quality over 3.6. I have tried running 3.8 27B on my 9070xt but its painful. Everything ive played around with seems to either need a lot of babysitting, run at 3tk/s from ram, or have 16k context :slight_smile: Anyway if I get the 128, do you think its wise to multitask with halogen? I was thinking to use docker for everything.

1 Like

Crazy because r9700 runs 27b super well these days with the optimizations .. but only 16gb vram is rough in. That case

Hyper optimized you can do about 30t/s per stream in c=2 on 27b dense or about 40t/d in c=1 not great not terrible. And still plenty of ram for other activities in that case.

You could also offload via thunderbolt if it runs entirely on the GPU so there kinda sorta is a path to upgrades. Right now imho rdna is more viable via tb than cuda if one GPU gets the job done

1 Like

Hi Wendell, I really appreciate the work you do. I’m a bit confused by your context size configuration though. In your suggested default you are using YARN=4 with the description that it is 4 x 262K, but then in the comment below your default you say if you are tight on memory use a new parameter that you hadn’t mentioned before KV_POOL_POSISTIONS=524K. I didn’t read that comment at first and I was tight on memory so I assumed I just needed to set YARN=2 and CTX=524K. It works like that, but I’m unclear if this KV_POOL_POSITIONS should be set too, or if I should stop using YARN if I am using 524K. Thanks in advance for the clarification.

1 Like

I’ll check tomorrow but 524k yarn 2 iirc is the sweetest spot. I had also been experimenting with kv quants and a bunch of engine params but if it’s working and you get similar speeds you’re probably fine
