Moving my Threadripper box into a 4U Chassis

Hardware Hub Build a PC
1

Hi all,

I’m looking to move my Threadripper build into a 4U chassis, which has an Asus Zenith Extreme. So the 4U chassis would need to support E-ATX boards as well.

Having gone through the Supermicro site I just haven’t been able to find anything that ‘fits’ the bill – what I’m looking for:

  • Max 2-3 3.5" storage bays, even 1-2 is enough.
  • 5-7 full-length PCI slots (in the case)
  • Either dual hot-swap PSUs or ATX PSU support.

Reason I’m looking at Supermicro is because I have found an agent for them in Singapore.

Thanks!

Cheers M.

2

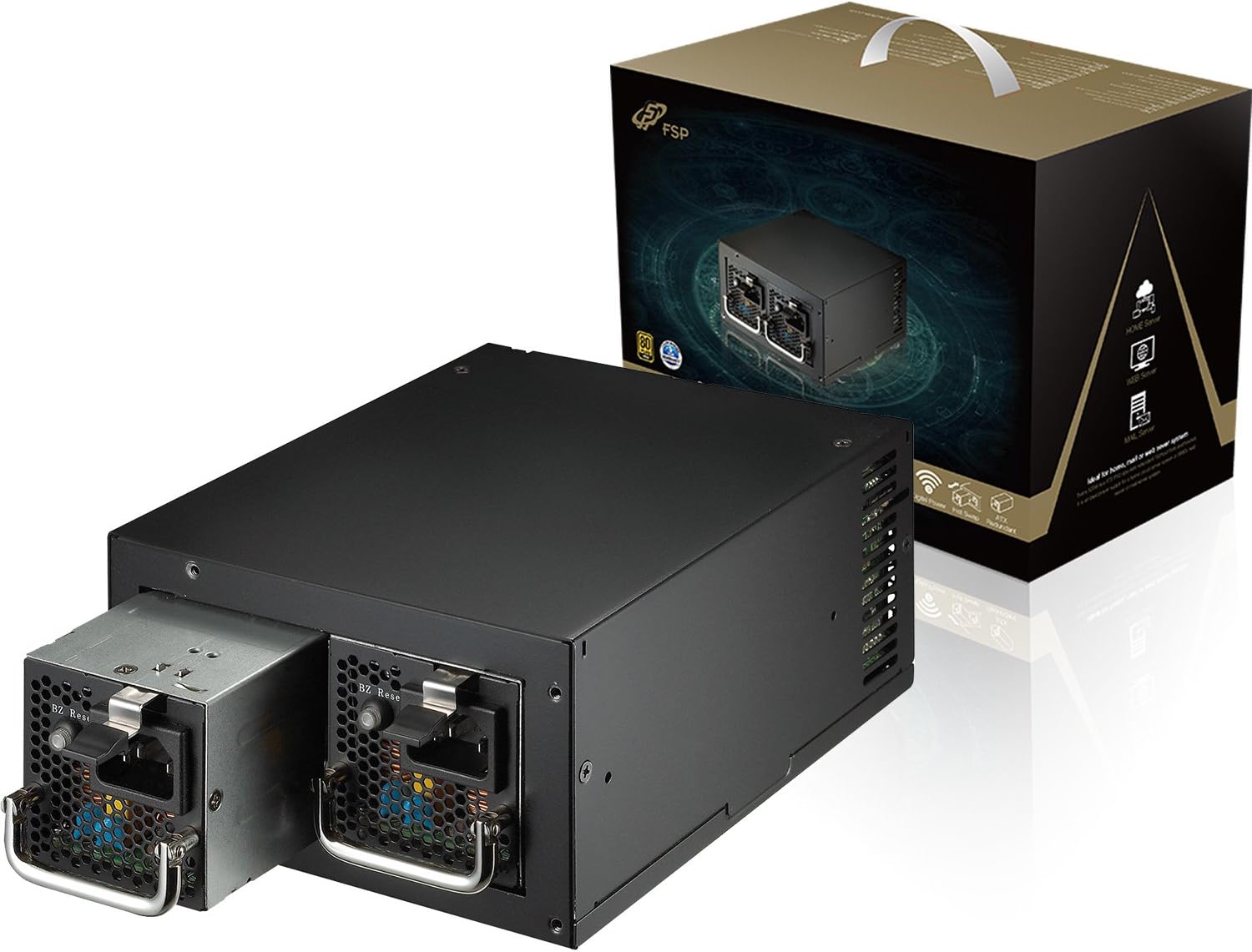

They have dual single ATX psus
Like these

3

That’s interesting, thanks hmm!

4

In terms of the chassis though, this may be an option, although it has way too many bays than I would need.

https://www.supermicro.com/en/products/chassis/4U/842/SC842XTQC-R804B

5

What about something like this
http://www.plinkusa.net/webe430.htm

6

That would work – my issue is that I’m in Asia and shipping anything like this is super costly. I’m looking to pick up another chassis from Supermicro for a secondary Freenas node.

7

Its a mass produced under many name case, I just happen to use plink since I am in the US. You should be able to find something similar from another company.

8

Similar to the one you found:
https://www.supermicro.com/en/products/chassis/4U/745/SC745TQ-R800B

9

Thanks, but it doesn’t look like that would go on rails to slide into my rack.

10

The case supports both, tower and 4U operation.

2 Likes
11

Sorry, thanks for pointing that out!!

1 Like
12

This topic was automatically closed 273 days after the last reply. New replies are no longer allowed.
