Looking for Socket G2 ITX Motherboards

koolaidescope · December 8, 2016, 9:51pm

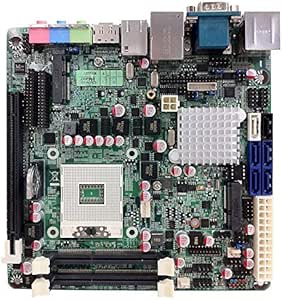

Hello.,I happen to have a couple old socket G2 I7 2670QM processors. I'm wondering if anyone on this forum is aware of any cheap boards like this one.

I'm looking to probably make a sort of cheap htpc/gaming machine. I'm not worried about onboard video as i'd be using some sort of GPU in the PCIE slot. I'm just curious to see if anyone has come across anything better or similar. I'm also curious about the bottleneck these old mobile I7's might cause on something like a GTX 1060 or a rx480.

Fouquin · December 8, 2016, 10:22pm

Portwell, Supermicro, BCM and Kontron are really the only ones who made anything like that, so scan ebay for their stuff. The Portwell WADE-8321(the one you linked) is honestly going to be the cheapest you'll find unless somebody posts a Kontron QM67 for $150.

Don't worry about bottlenecks. Even mobile sandy-bridge is going to have plenty of performance to keep up with a 1060 or 480.

koolaidescope · December 8, 2016, 10:51pm

I kind of figured. Now all I need to figure out is some sort of heatsink and fan. The one that comes with this board seems kinda puny. Not sure if that thing would be sufficient.

Fouquin · December 9, 2016, 4:25am

When you consider the size of the heatsinks in most laptops, that cooler they include is like a Hyper 212 in comparison.

anon94261841 · December 9, 2016, 4:38am

Ayyy

Squid pt. 1 [Squid Guts] Build Logs

[image] Premise Squid was conceived as a catch-all NAS, firewall, HTPC, couch gaming, and general everything computer build. My reasoning being that seeing as I have a rather capable workstation/primary gaming PC sitting on my desk, why not make another hybrid that will do all the secondary and tertiary things I want to do with a computer? My requirements were fairly straightforward: IO connections, network connections, low power for extended use, and room for expansion. So with that in mind, Squid started to come into being. [image] Parts • Intel i5 2450M • Jetway N9FG-QM77 • Jetway ADE4INLANG 4 Port Intel Gigabit LAN Daughterboard • Crucial Ballistix Sport (2x4GB) • Intel Wireless-AC 7260 • Crucial MX200 mSATA SSD • Fractal Design Node 605 [image] CPU To be honest I chose this simply because I already had it. I stripped out a laptop that was held together, quite literally, with hot glue and hope. Dual core, four thread at 2.50 GHz and a boost to 3.10 GHz on 35 watts isn’t too shabby in my opinion. Synthetic benchmarks place it near some Phenom II X4s and a little behind some first gen i5s. Respectable. Motherboard/Daughterboard This is the fun one. I know some people poke fun at Jetway for being anything but enthusiast, but damn does this motherboard have quite the feature list. Inside it has 6 SATA ports, PCIe 3.0 x16, mini PCIe, mini PCIe/mSATA, USB 3.0 header, 2x USB 2.0 header, 3 serial headers, and some fan connectors. Outside it has 2x USB 3.0, 2x USB 2.0, HDMI, RS232, VGA, audio, Displayport, and 2x Gigabit LAN. Did I mention it has quite a bit of I/O? The daughterboard adds even more excitement. The one I’m using has four, that’s right, four, Intel gigabit NICs on it. To quote Wendell, that’s crazy. There are also daughterboards available with Realtek NICs, serial outs, and even one with a GT 610M on it. And the daughterboards don’t even cover up the PCIe slot! [image] The bits Case I’ll leave it up to professional reviewers to make the…

Not cheap though.
