They were not done with PBO, EXPO was the only special setting enabled in the BIOS.
Very good point with the graphs I will definitely include the resolution for the graphs in our video, thanks for the suggestion!
EDIT: corrected my earlier statement
1 Like
@L1Sean COOOOL! amazing, thank You! will monitoring Nuke bench! Hope You add Nuke benches too into video! also would be amazing add predecessors(from google tab what I has provided) just for compare, but also I think it is a bit crazy different in 96c, because Puget systems launched tests with Deadline(render manager), and it is might delay with their test, just my thoughts . but if that is true scores with new 96c, I think it is jaw drop!
Graphs for the Nuke benchmarks will be coming next week but I’ll go ahead and paste the raw results for the 9995wx and the 9980x with 6000 gpus. Here’s what that looks like:
9980x
NUKE: 16.0v4
OS: Windows 10
RAM: 256
GPU: NVIDIA RTX PRO 6000 Blackwell Edition
CPU: AMD Ryzen Threadripper 9980X 64-Cores
CORES: 64
THREADS: 128
FREQ GHz: 3.2
SCANLINE fps: 8.098
ZDEFOCUS fps: 4.62
WRITE_HD_1080_NS_EXR32_none MB/s: 553.72
WRITE_HD_1080_NS_EXR32_none fps: 23.317
WRITE_HD_1080_NS_EXR16_Zip_1_scanline MB/s: 115.84
WRITE_HD_1080_NS_EXR16_Zip_1_scanline fps: 19.288
READ_HD_1080_NS_EXR32_none MB/s: 962.41
READ_HD_1080_NS_EXR32_none fps: 40.527
READ_HD_1080_NS_EXR16_Zip_1_scanline MB/s: 211.4
READ_HD_1080_NS_EXR16_Zip_1_scanline fps: 35.2
CPU/GPU FRAMES: 100
READ/WRITE FRAMES: 250
CHECKSUM: 620734
9995wx
NUKE: 16.0v4
OS: Windows 10
RAM: 256
GPU: NVIDIA RTX PRO 6000 Blackwell Edition
CPU: AMD Ryzen Threadripper PRO 9995WX 96-Cores
CORES: 96
THREADS: 192
FREQ GHz: 2.5
SCANLINE fps: 8.785
ZDEFOCUS fps: 4.441
WRITE_HD_1080_NS_EXR32_none MB/s: 568.77
WRITE_HD_1080_NS_EXR32_none fps: 23.951
WRITE_HD_1080_NS_EXR16_Zip_1_scanline MB/s: 124.61
WRITE_HD_1080_NS_EXR16_Zip_1_scanline fps: 20.75
READ_HD_1080_NS_EXR32_none MB/s: 918.54
READ_HD_1080_NS_EXR32_none fps: 38.679
READ_HD_1080_NS_EXR16_Zip_1_scanline MB/s: 184.11
READ_HD_1080_NS_EXR16_Zip_1_scanline fps: 30.656
CPU/GPU FRAMES: 100
READ/WRITE FRAMES: 250
CHECKSUM: 653190
1 Like
@L1Sean Amazing! Results so sweet! is this setup with RTX 6000 Q 300w or RTX 6000 600w version? buuuut CPU looks so strong to me, and I/O almost twice, with better FPS, what a monster!
it is everything on SS-XE-360 AIO, and what is RAM ?
Also quick question are You have in Your arsenal 9965wx as well?
Just considering for 2 PC build, and good to see if it is could benched as well.
Thank you so much! and waiting next update to nuke!
Heya any chance to publish Results?
for nuke for all 3 PCs? and can`t wait Youtube video released Thank You!
Graphs are still being worked on, took a tad longer than expected. But we do have those 9970x results which I can go ahead and post for you here. I’ll be sure to share the graphs as well once they’re done but they’ll just be a cleaner way to look at the information already present here.
9970x
NUKE: 16.0v4
OS: Windows 10
RAM: 256
GPU: NVIDIA RTX PRO 6000 Blackwell Edition
CPU: AMD Ryzen Threadripper 9970X 32-Cores
CORES: 32
THREADS: 64
FREQ GHz: 4.0
SCANLINE fps: 7.969
ZDEFOCUS fps: 4.563
WRITE_HD_1080_NS_EXR32_none MB/s: 479.14
WRITE_HD_1080_NS_EXR32_none fps: 20.177
WRITE_HD_1080_NS_EXR16_Zip_1_scanline MB/s: 110.09
WRITE_HD_1080_NS_EXR16_Zip_1_scanline fps: 18.332
READ_HD_1080_NS_EXR32_none MB/s: 749.64
READ_HD_1080_NS_EXR32_none fps: 31.567
READ_HD_1080_NS_EXR16_Zip_1_scanline MB/s: 188.5
READ_HD_1080_NS_EXR16_Zip_1_scanline fps: 31.388
CPU/GPU FRAMES: 100
READ/WRITE FRAMES: 250
CHECKSUM: 612027
1 Like
Thank You mate! btw You will publish results on Pxf spreadsheet? I could try update excel shreadsheet with your results and your nick name, is it okay? or you will do it later on, just let me know
Cheers!
EDIT: Also what is SSDs been used? just looking around other SSDs in Spreadsheets, and did some average(also saw same CPU have very very different results), and I think Write and Read speeds really is depends what is SSD is. I don`t know if You have much time, or possibilities You think it is possible make a test with intel optane p5801x or intel optane p5800x SSds, just wondering if it make aaaaaany sense in this nuke test, or like option ASUS Hyper M.2 Card with raid ssds, but yeah it is up to You (I know I know I am so many ask haha, but thank You and Wendell soooo much for all test what is been done, and very surprised with results).

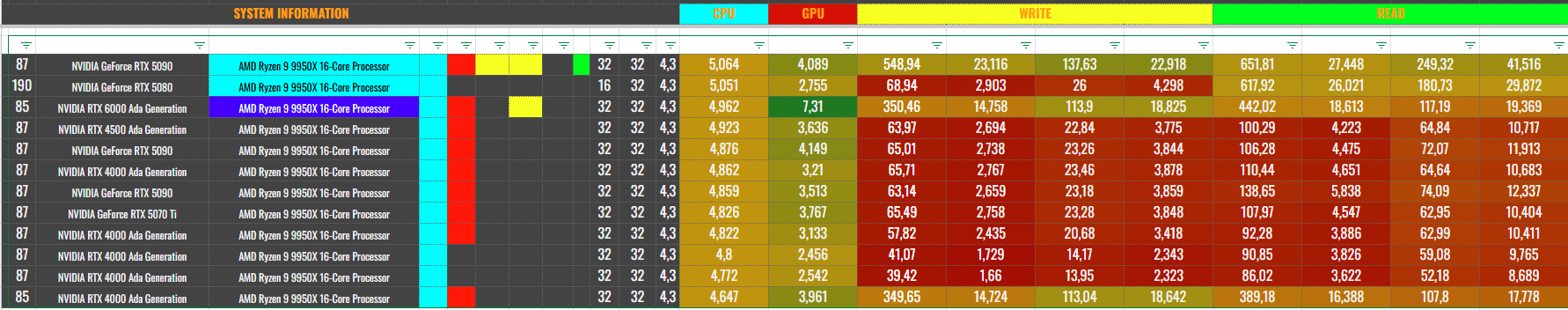

just got as ref 9950x just for SSD results (and unfortunately it is no info about ssd in tests)
but it is clearly see same CPU(I think it is variations in Overclocked or cooling in compare and different GPU and SSDs )
Heya @L1Sean any Thoughts about post earlier
And Very very waiting for that one on Youtube, Pretty sure it is would bunch VFX tests , hope so Cheers!
The SSD used for testing was the Crucial T700 1TB Gen5 NVMe M.2 SSD.
Interesting notes on the possible performance changes dependent on SSD. @wendell what are your thoughts on if SSD affects the results of the test? Is it something we should look into? Also I’ll let Wendell decide if we wish to publish the results within the spreadsheet.
But yes we have a video coming soon with a whole bunch of vfx tests!
1 Like

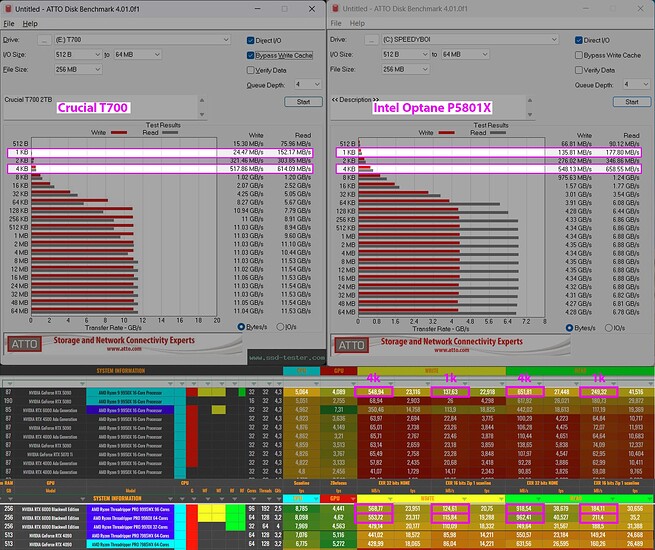

Heya @L1Sean, Brilliant! do You think @wendell give us lovely Optane for couple tests?
I found out it is would be very very interesting to take a look, as I understand inside Nuke this is test really close to 1 and 4k blocks speed, it is only mine thoughts, maybe I am not right but it is looks like.
@wendell do You think we could stealing lovely Optane drive
and maybe HyperX with 4 ssds Gen5 raid good for test on 1k and 4k blocks?
Thank You Both! Cheers!

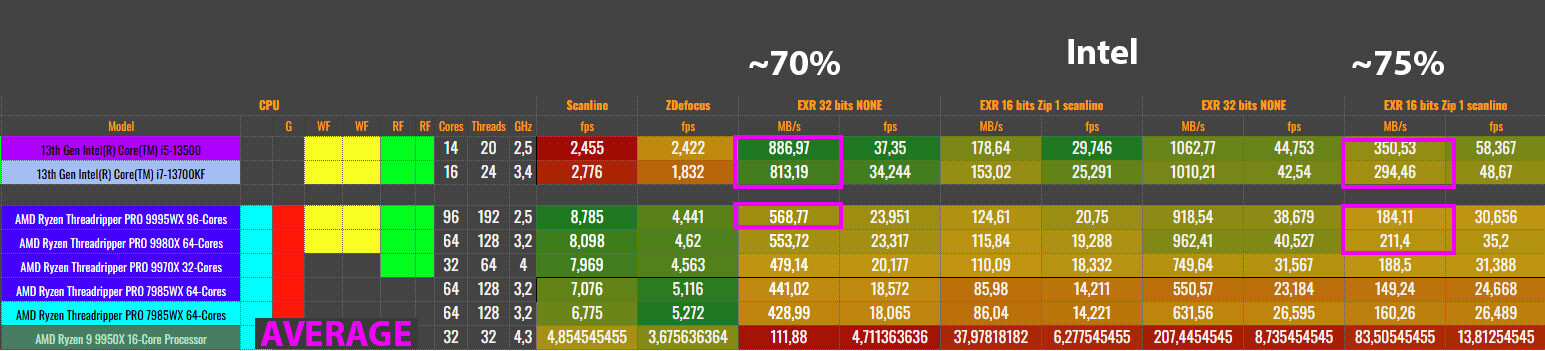

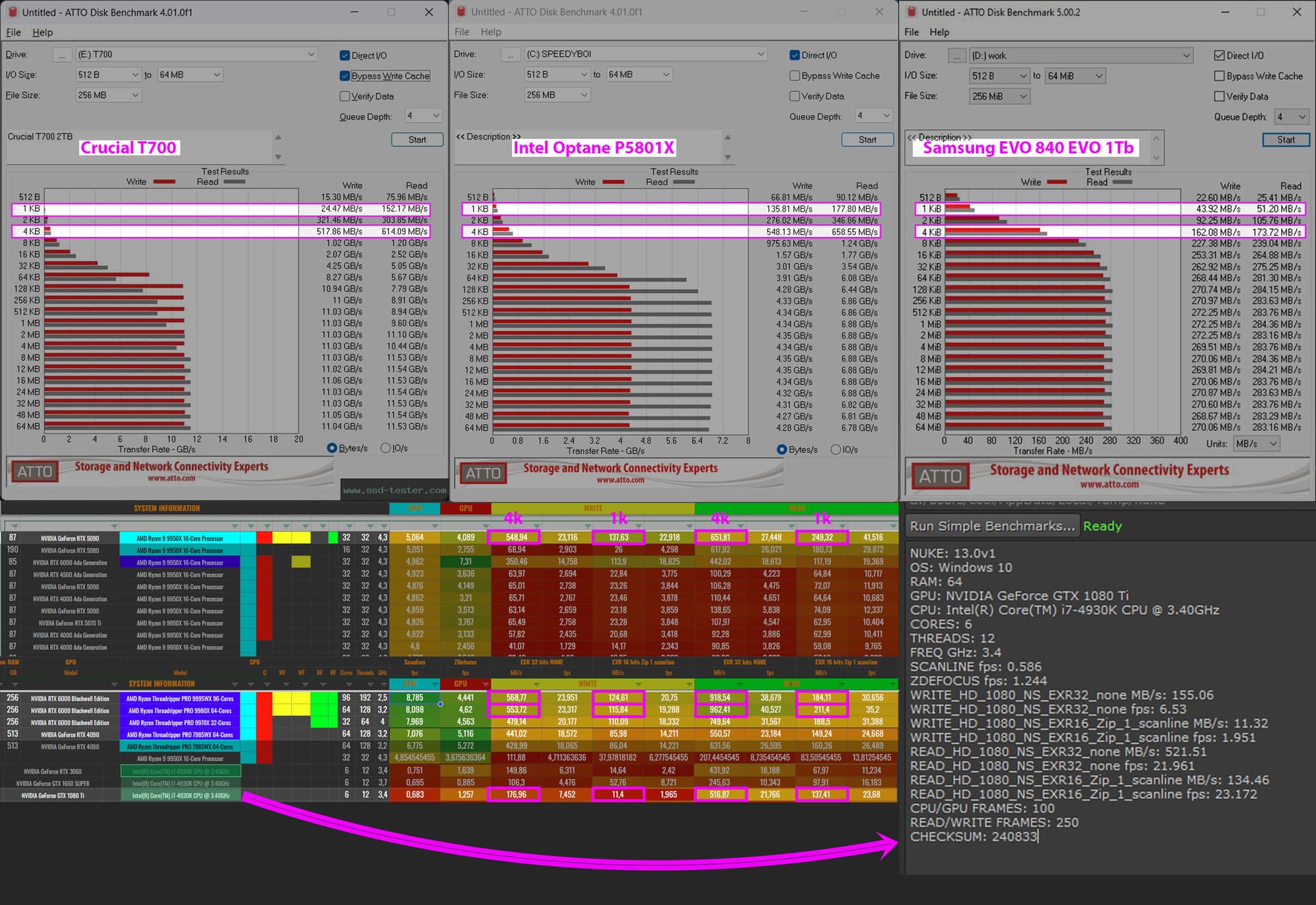

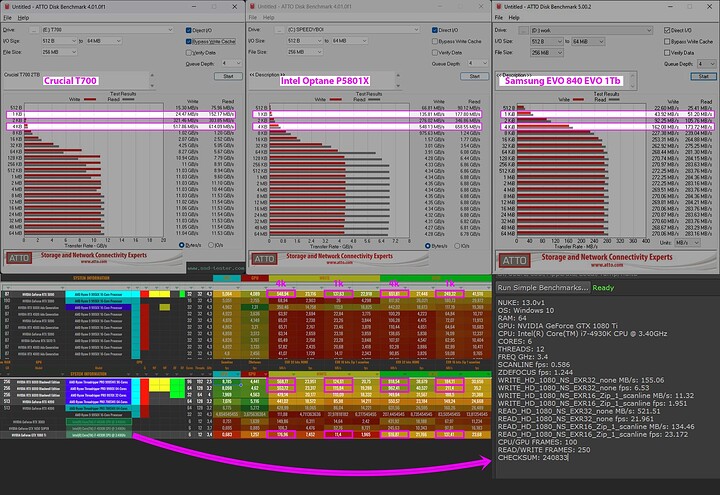

Heya @wendell @L1Sean Just did on old PC same test, maybe it is all about IMC?

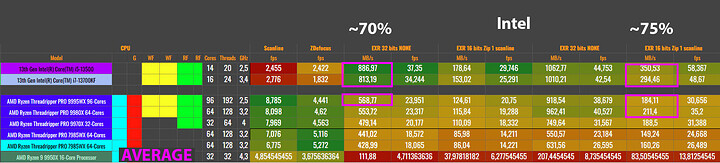

and for some intel CPUs in compare
Thanks
Heya Guys @wendell @L1Sean Do you think it is will possible to do sometimes, some SSDs tests with those SSDs setups? Cheers!
Heya Guys @wendell @L1Sean Any news or plans continue for this tests You think is possible make few more tests for Optane drive and 4xSSd in Raid ? would be great to know because I am still waiting and updating every day this thread Cheers!
P.S or we could see some in Youtube next release?
Thanks

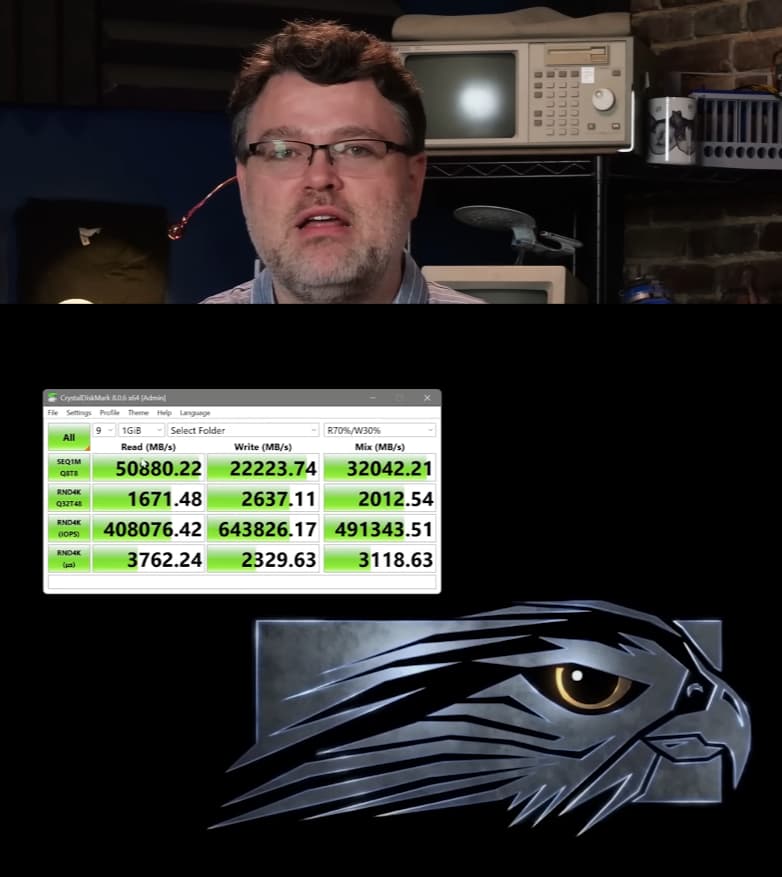

@wendell @L1Sean just rewatch Falcon Northwest review again I mean about that one Thaaats speed for test in Nuke at least,not sure if it make any sense in Hou, but who knows , sorry for so much activity, I am just planning build new PC and wish I could get some I/O about Cheers!
Hello again, I discussed with Wendell and we have set aside some intel optane memory to perform the SSD focused test you have requested, expect results on that particular test within the week.
1 Like
Heya @L1Sean Wahooo! Amazing! Btw in plans make some tests with Optane only or still could include Raid 4xSSDs? Thanks Guys and thanks for ETA, Sounds lovely, Cheers!
Heya @L1Sean mate any news, just asking,Cheers!
Heya mate any chance to dive into this one
Hi all! just joined the community, but I have been a big Level1Techs fan on Youtube! Glad to be here!
After 22 years at Intel, I made my mission to find better hardware guidance for applications than the typical (and mostly useless) Minimum System Requirements (4 cores, x86, 4GB, DX GPU).
Coincidentally, I started my journey analyzing Foundry Nuke. In the process, got to meet with the founder of Nukepedia and the creator of PxF Nukebench. I wrote a 3 part report on my analysis of Foundry Nuke. This is for all of you that care about Nuke performance, I’m working on other apps too. @coolvfx, @wendell and all, your feedback is super welcome! Please let me know if you like it, hate it or anything in between!
P.S. I have had issues posting this comment, I think it’s because of the external link below, I hope this works…
https: //www. cavalryhq.tech/p/foundry-nuke-16-workstation-selection-part3
1 Like
Heya mate @CavalryHQ.tech Welcome mate me too me too, I think it is brilliant channel and Youtube as well, really unique stuff for sure!
and Many thanks for burried to Nuke stuff, I think it is definetely need or must have some analizers for hardware it is have some where You mention on Your review, I think it is Brilliant! I am just scroll and read some interesting stuff, but will join on weekend and read whole stuff, but I think it is great stuff! Cheers mate!
