Compact Home Server + JBOD

Ordered up 4 fans and some abs. I am trying to figure out where I want to put them. I am thinking of mounting them to the back. Probably an inch or so from the back of the of the backplane. Building a rectangular box, a fan for each section of 3 drives, and a divider so it isn’t pulling air through areas that don’t have a disc. I am also open to mounting fans to the front. Thinking of also taping over all the open holes in the side.

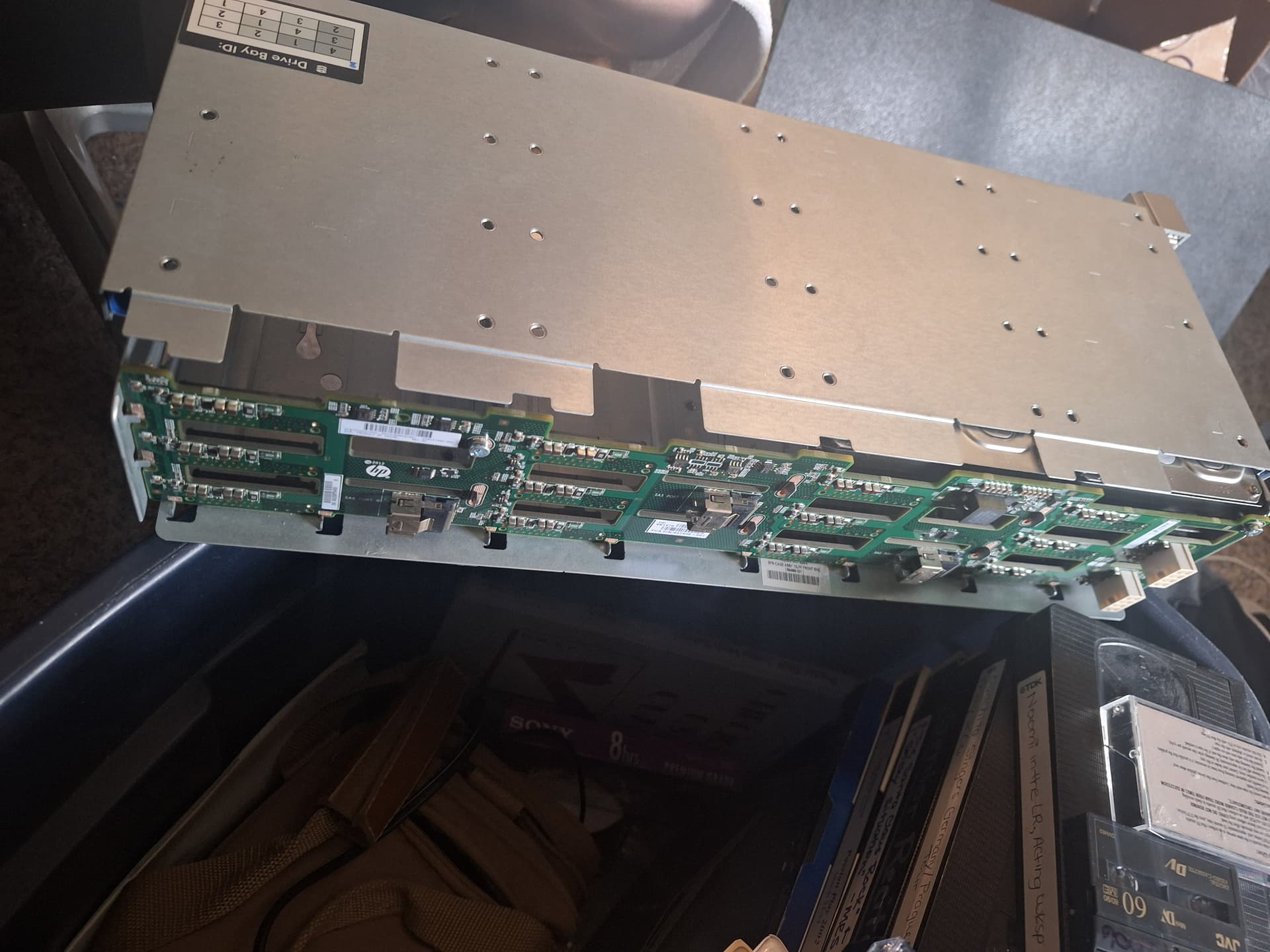

Orange is the back plane, black is ABS plastic, and pink is fans.



1 Like

Changed directions 75% of the way through.

So far working pretty well. I’ll do another version and make it better.



When you don’t have a 3d printer but plenty of tools.

2 Likes

Apparently I forgot to press reply last week.

I put everything up today. It is just sitting in the bottom of the rack. So I was going to place the server on a shelf but with the sff-8808 connections at the rear, it need to be slid all the way forward basically. I can’t get to the front IO but I can turn it on and off using IPMI.

I thought I would be able to use the built in bolts on the disk shelf to attach it to the rack, but if I center the JBOD between U’s, the bolt is (probably) not going to work.

I am going to create a new fan mount. What I have now is too tall to clear the rack unit above. I am also considering getting a different HBA with internal connections and longer cables, like a 9305-16i or the like. The trick is how to disconnect the server or shelf if I need to pull one or the other. I might make the fan mount easy to slide out so I can disconnect the JBOD from the server.

1 Like

Waiting on the 3d print of my fan brackets but I haven’t been running this because the drive temps, and temps in general were on the high side of normal at idle. The top of this closet is just hot. Got sone 120mm usb powered fans and was a difference. Within 10 seconds I would say the ambient dropped 5 degrees. I ordered up some larger grills to make it look nice. I’ll let it idle all night and check temps in the AM.

I love the inclusion of disc drives.

I’m currently messing around with old hardware/case that has a Blu-ray to make rips.

The case is an old NZXT Phantom and has a weird setup, but feel like it could be modded to be better. Want to start learning stuff about 3d printing for it.

Thanks.

I learned a lot. I have some short term things to fix and some long term goals as well.

Pretty excited that my…uh kids…got a 3d printer from Santa so I can redo my fan mounts. I am probably going to swap my LSI card as well. I really, really, really wanted the clean look of the 8088 out of the server to the 8087 on the shelf but they stick out quite far in the rear. Also, the .5m cable is at its max length. I am probably going to move to something like a 9305 as I can get a longer cable.

I just got some of the 9306’s and 3d printed a single slot cooler shroud for them:
