[Build log] Depth Charge a Framework Desktop Monster (Strix Halo)

[TheArkratos]

Welcome to my adventure in watercooling the strangest set of hardware I’ve ever run!

Today is the start of my build log for the Quake con 2026 case mod competition and the goal of the build is… A manta ray! And to suit the nerd that I am and my childhood love of beast wars/transformers, I will call this build Depth Charge after the manta ray character.

Photo credit: Wikipedia

Background: Hi, I’m Cameron. I go by Arkratos/TheArkratos on most of the internet. I’m a hobbyist case modder. Usually I just enter the Quake con case mod competition because I used to be local to the Dallas/Fort Worth area. I also almost always design my own cases for competitions because no one really makes a case to support the weird things I want to do.

A few months ago I managed to take 1st place in the scratch build category with my computer I call Lost Atlantis. But I have to give credit to the guys that also got 2nd and 3rd place; those guys’ computers were just insane. 2nd place was a professional cosplay-grade shield from the new Doom game. It is also a working chain saw, obviously without “real” blades. It had a pull start that would trigger the blades popping out and rotating! 3rd place was a 160% scale (I believe) portal gun. It was amazing with removable panels, easter eggs in the design, all I can say is it was just phenomenal! Quake con’s Instagram video shows the builds nicely (although a bit quick): https://www.instagram.com/reels/DNJtp1RMqJ_/

So going into next year I decided I want to up the ante: I want to incorporate specifically large motion into the build. I remembered seeing this marvel of engineering from the Cooler Master Case Mod World Series 2018: https://bit-tech.net/features/modding/case-mod/cooler-master-case-mod-world-series-2018-the-winners/7/ The Crescent by ‘CPSM’. This computer has a “pumpless” watercooling system. The entire system rotates to treat the computer like an hourglass: gravity pulls the liquid through the computer from one reservoir to the other and then it rotates to do it again.

Base idea: Long story short, my plan is to take that idea and expand upon it; I’ll make my design not just an engineering experiment, but also something pretty enough my partner won’t hate me for hanging on the wall! So yeah, a manta ray. The wings will be the reservoirs (which hopefully will flap), the computer in the “torso”, and even use the cables as the stinger!

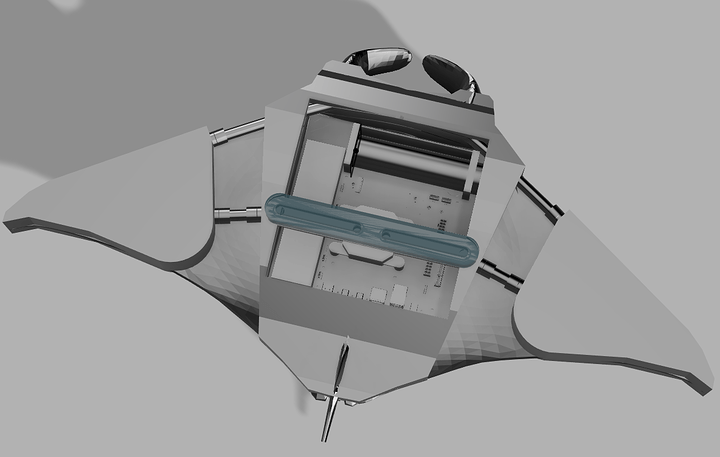

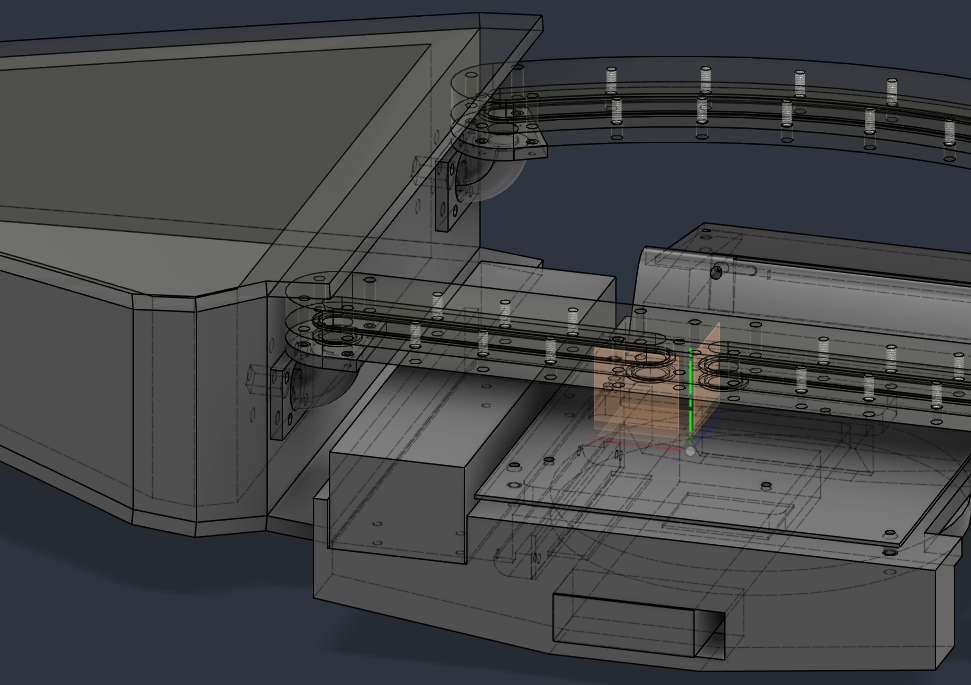

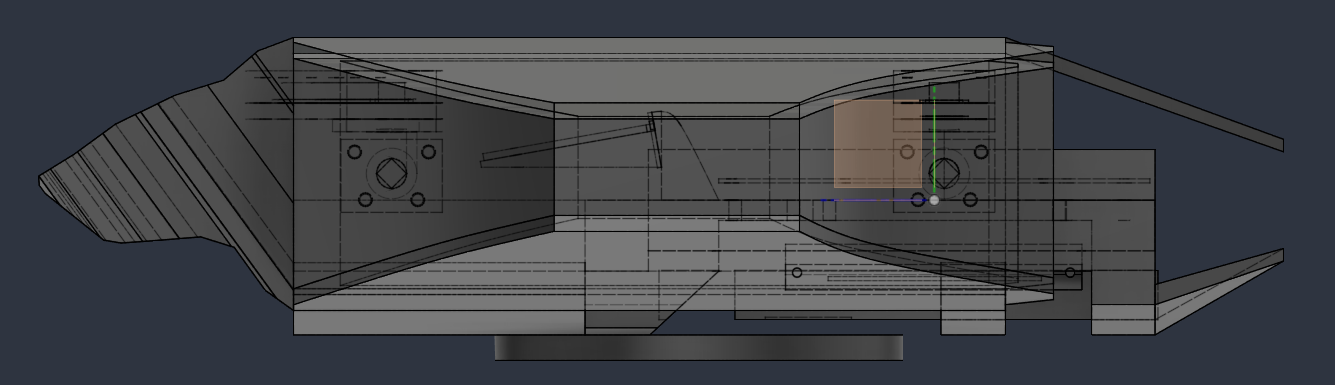

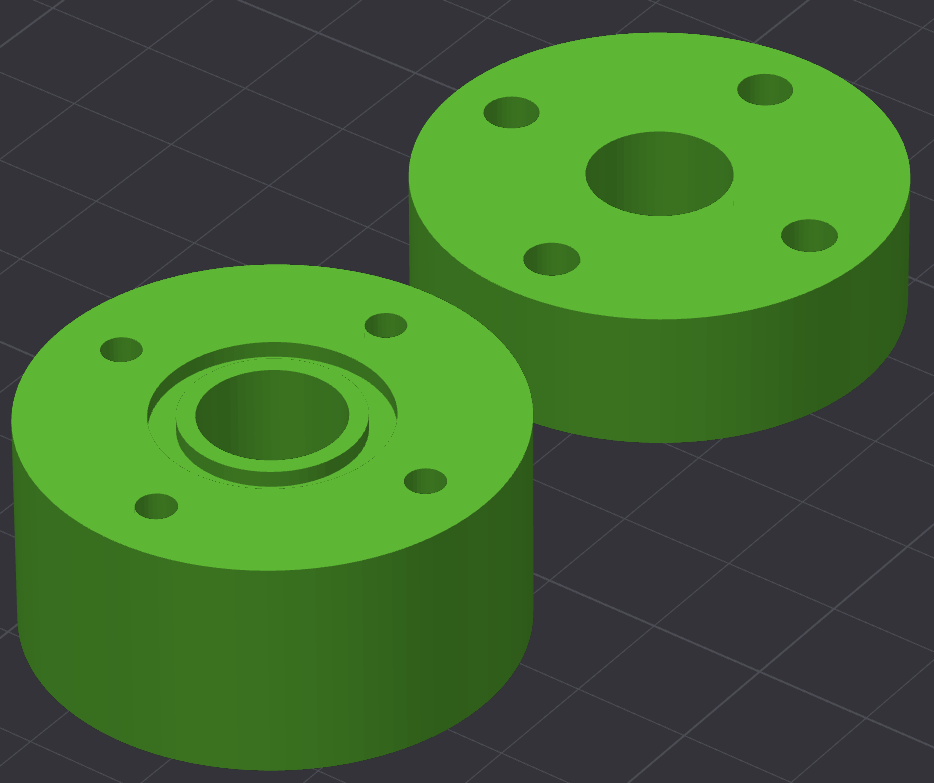

To CAD I go, and I end up with this rough mockup:

During the CAD phase, I start looking for hardware. Obviously I need an ITX motherboard, because with the reservoirs I’m already at around 3 feet wide. I don’t want to include a GPU in the watercooling, because I’m afraid it would complicate the watercooling enough it might not work. If I have a big air-cooled graphics card I kind of feel like the concept is a failure. That’s when it hits me… Strix Halo (Ryzen AI Max+) exists, and that is a beast of a platform that doesn’t need a dedicated GPU to game. So I reached out to Framework after talking with them at PAX West, and they have graciously sponsored this build with their Framework Desktop mainboard.

At this point the mainboard has come in, and I’ve been trying to settle on additional hardware. I believe at this point I have, but I’ll leave that update for another day.

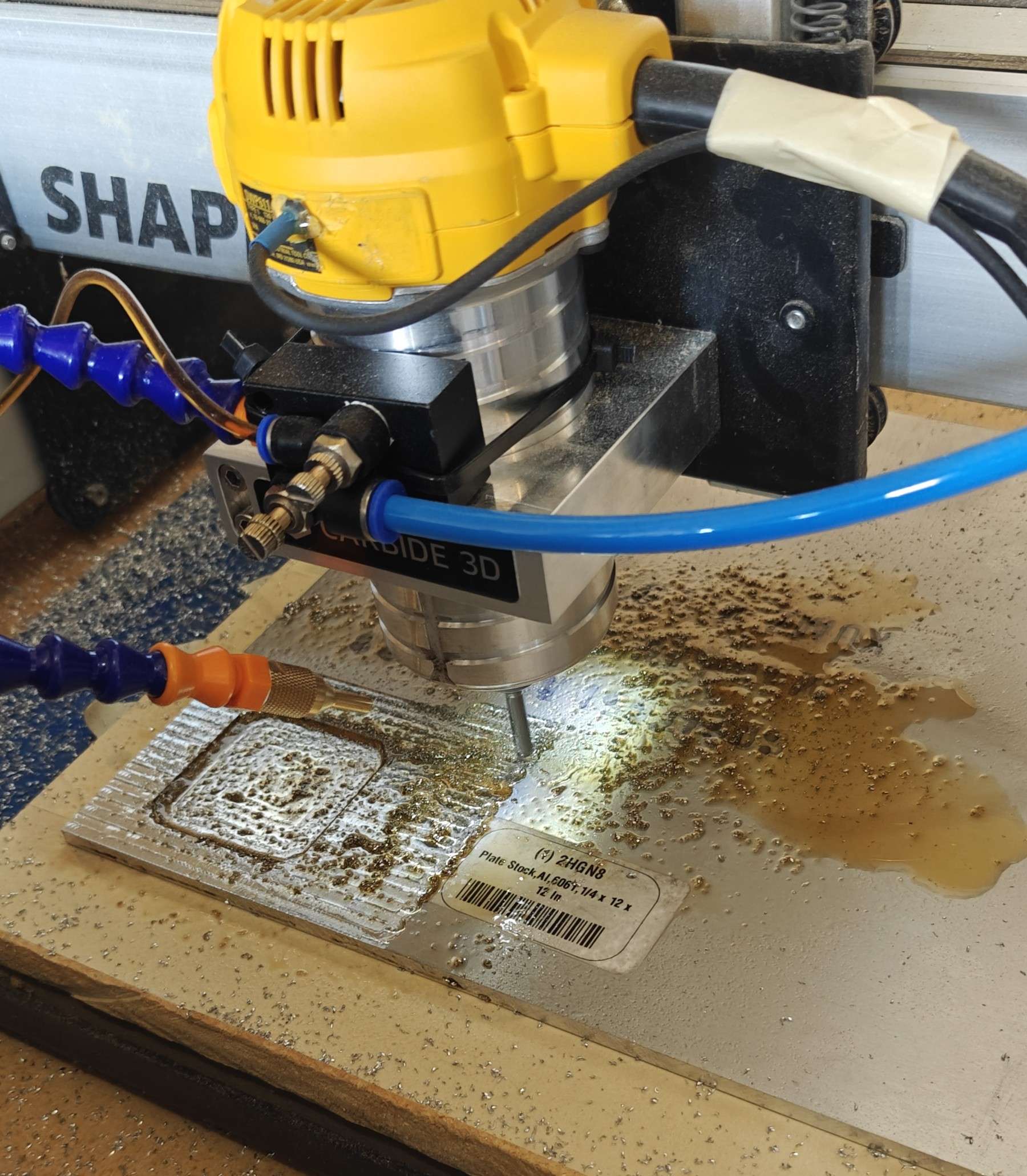

If you are wondering about the tags:

Summary

I will be running Linux, but I still need Windows for Autodesk Fusion… Framework doesn’t support dGPUs but I do have an Intel Arc B50 pro working that I will purely use for virtual machines.

[TheArkratos]

[Reserved]

[TheArkratos]

Sorry for not having a real update right now, I got sick… again… November was not my month basically went over a year without being sick and then get sick twice in a month… and then my work got slammed as we enter the holidays.

My real update will come this weekend but I do want to give an update.

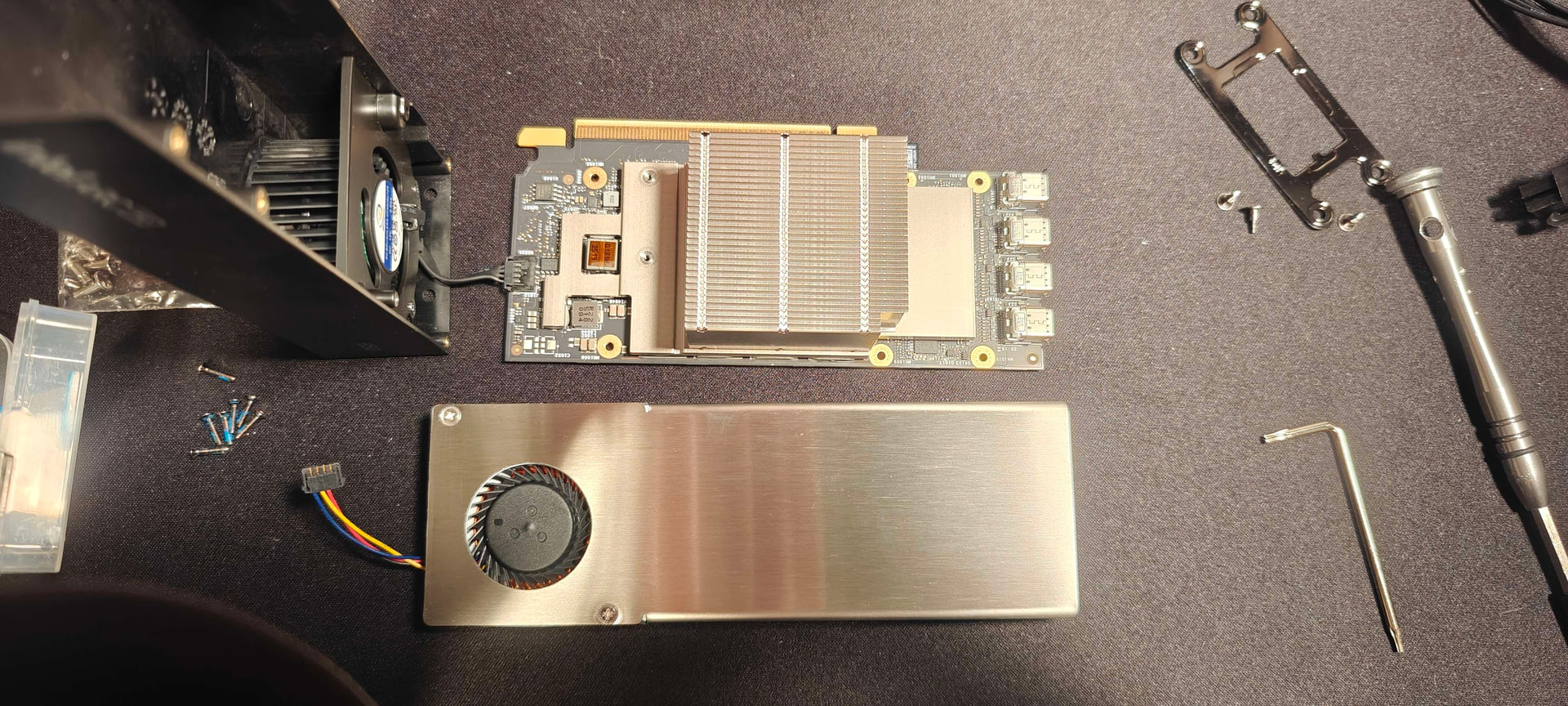

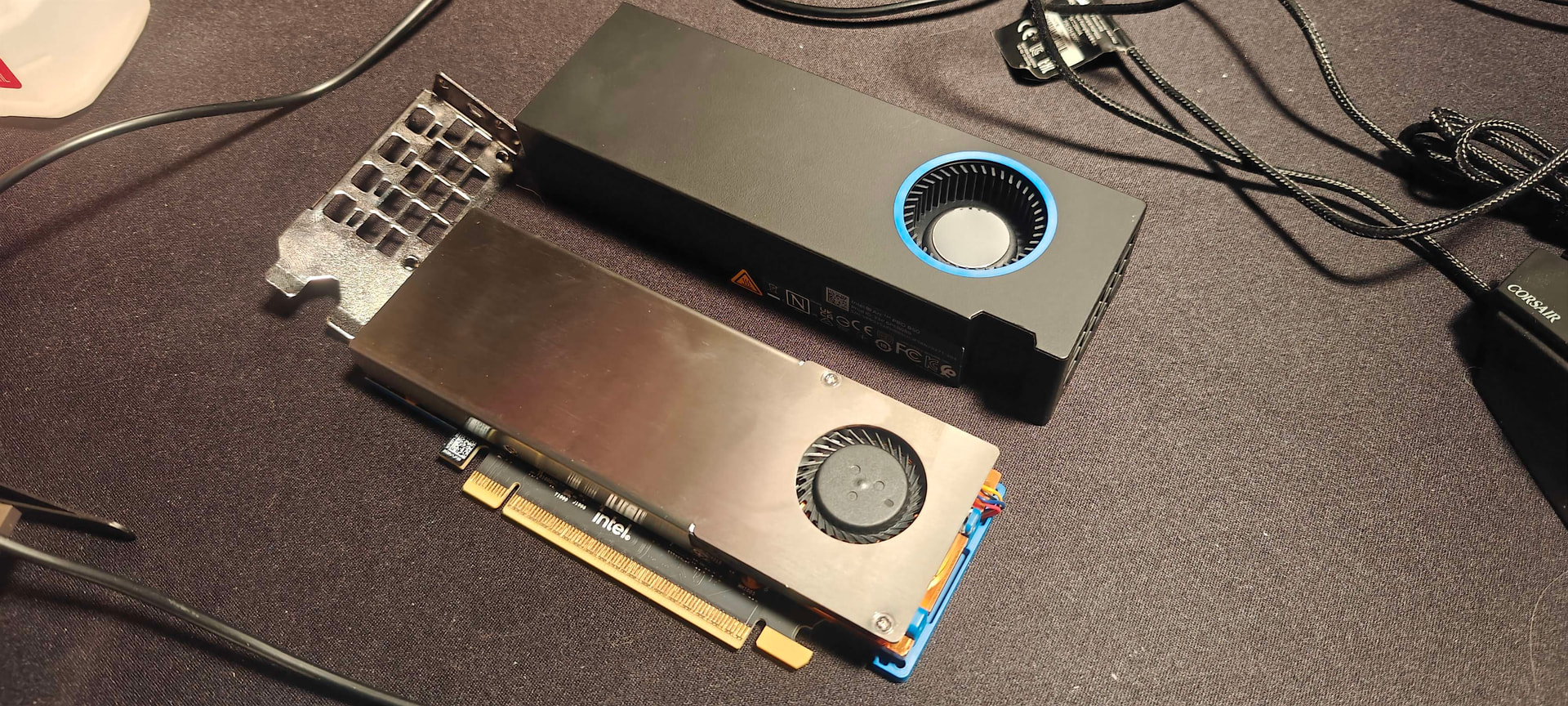

Basically I have the design of the hardware layout pretty close to nailed down. I’m using an HDPlex 500w GaN powersupply and obviously the framework mainboard. However, the first sprinkle of spice is that I’ve been testing the new Intel Arc B50 Pro gpu. I don’t plan to use that to game or really for AI workloads or anything… it is specifically to support gpu acceleration in virtual machines because that little 70w card supports SR-IOV, meaning you can functionally divide it up and pass it through to multiple virtual machines at the same time, which is critical for me as I run linux as my main OS, but need windows for things like Autodesk Fusion to work on this project.

The other spice, that’s probably a little less spicy, is that I want a separate usb controller for each VM that I intend to run. So I’ve found a 4 port PCIe USB card, that has multiple controller and can supply 30 watts on two of the ports and 45 watts on the other two. Totally unnecessary but that does mean I can power even my 24.5 inch portable monitor off the computer.

Pictures to come but the short story is that to run a dgpu off the 4x slot on the framework board you need to use a riser cable that has supplemental power. And you might ask how am I plugging in a second card? well turns out there are M.2 → PCIe 4x risers too (which also need supplemental power because an M.2 only supplies something like 7 watts)

Sorry for the short update.

[TheArkratos]

So to elaborate on my last update:

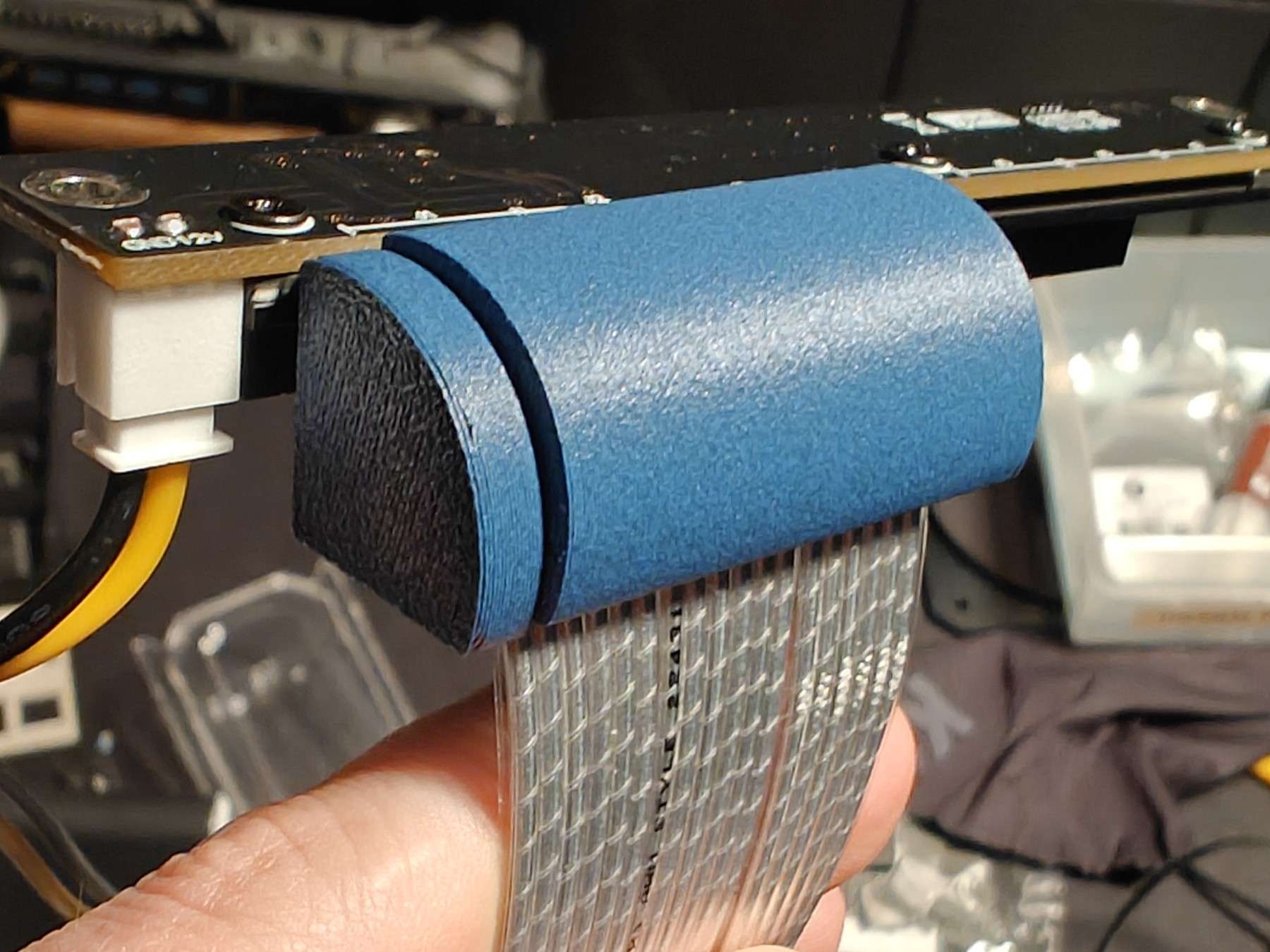

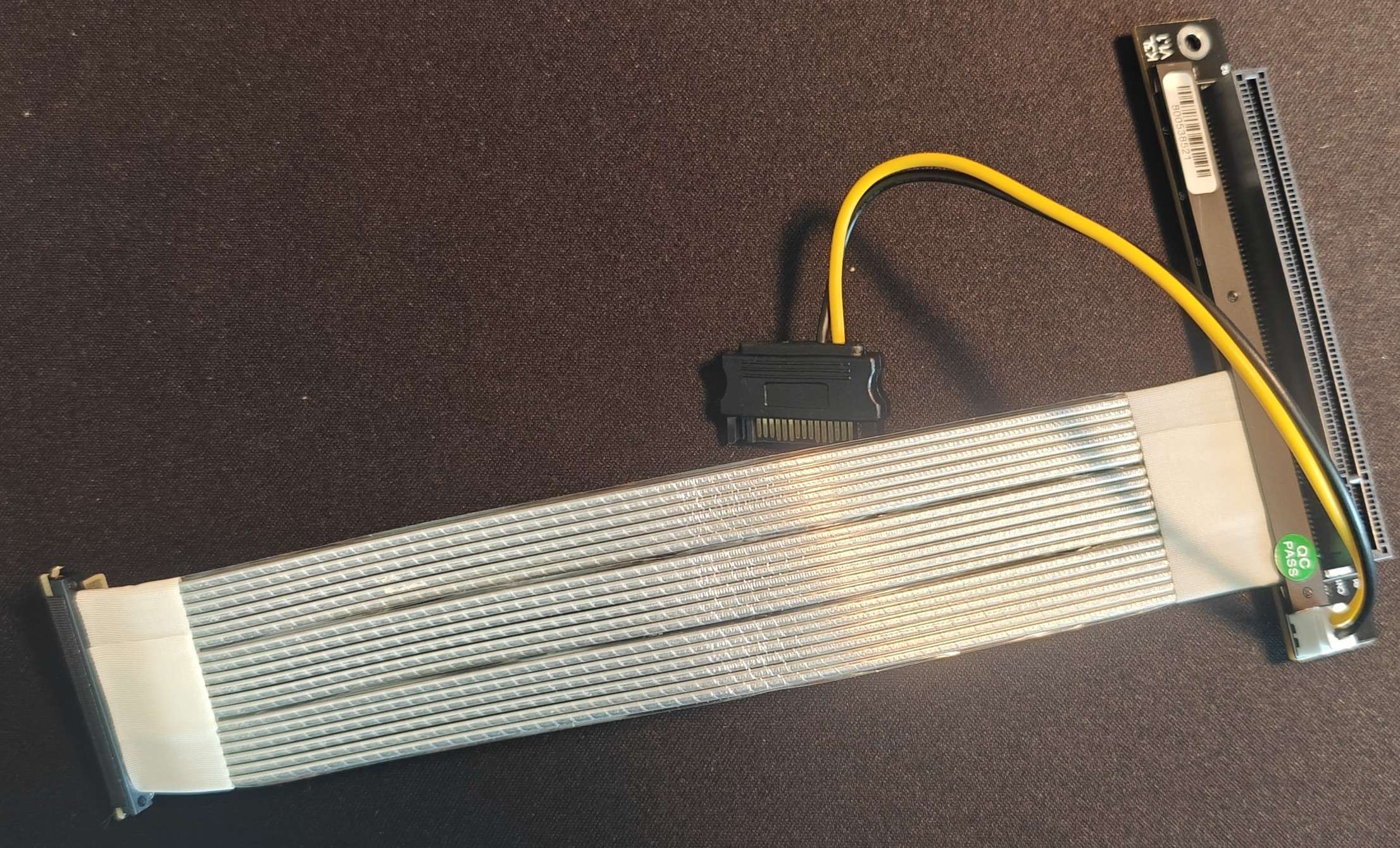

With a lot of help from other framework forum members I found that I could order riser cables from ADT-Link with the option for supplemental power, even if it doesn’t show the option on their website. You can place a note on the order “with a power connector”. The reason this is necessary is that the 4x PCIe connector on the motherboard is closed off and from what can be found online this is basically because if it was open it would need to provide the full 75 watts according to the PCIe spec. With it being closed off it only need to supply 20 something watts, so you will need to inject extra power if you plan to use something like a dGPU. I got the K23SL-TL model.

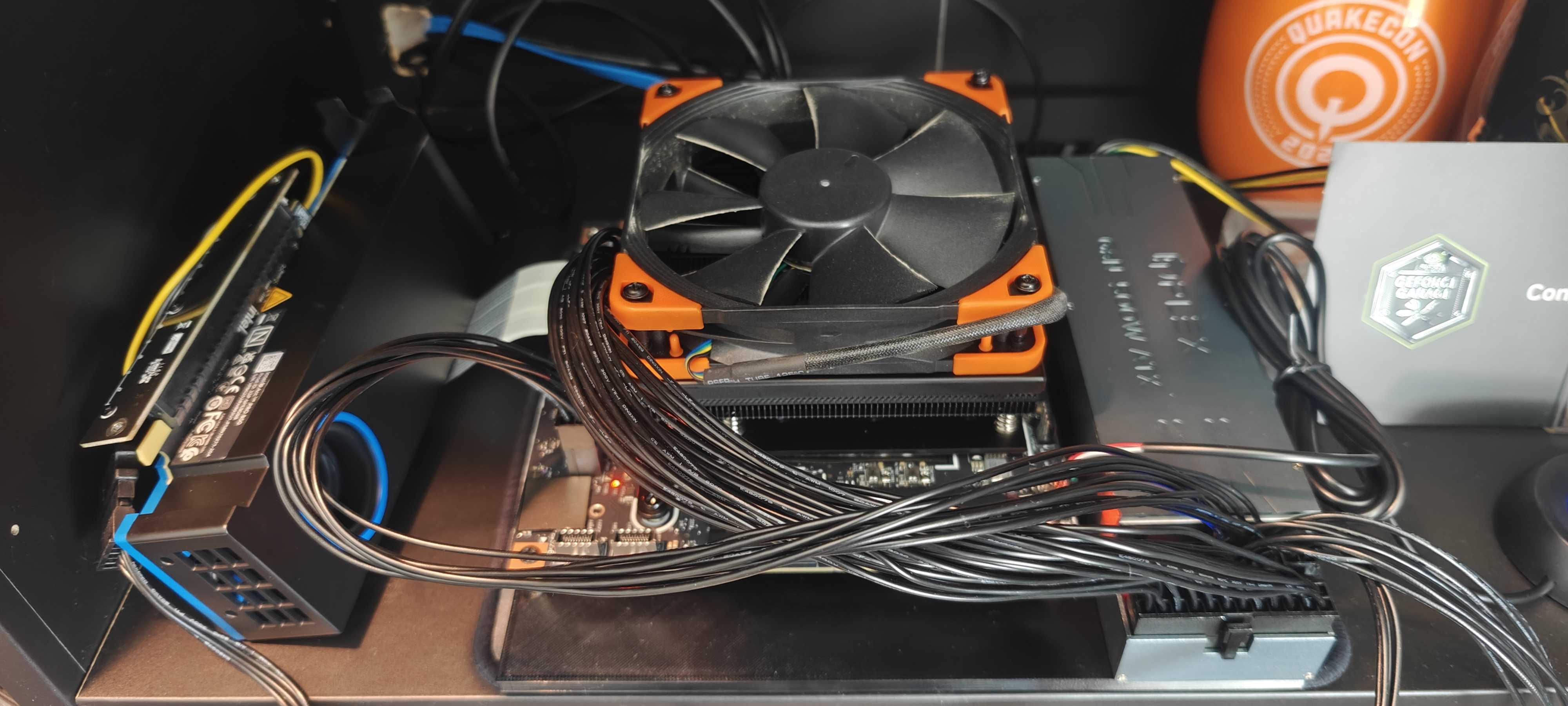

With a quick test of the GPU riser we are working!

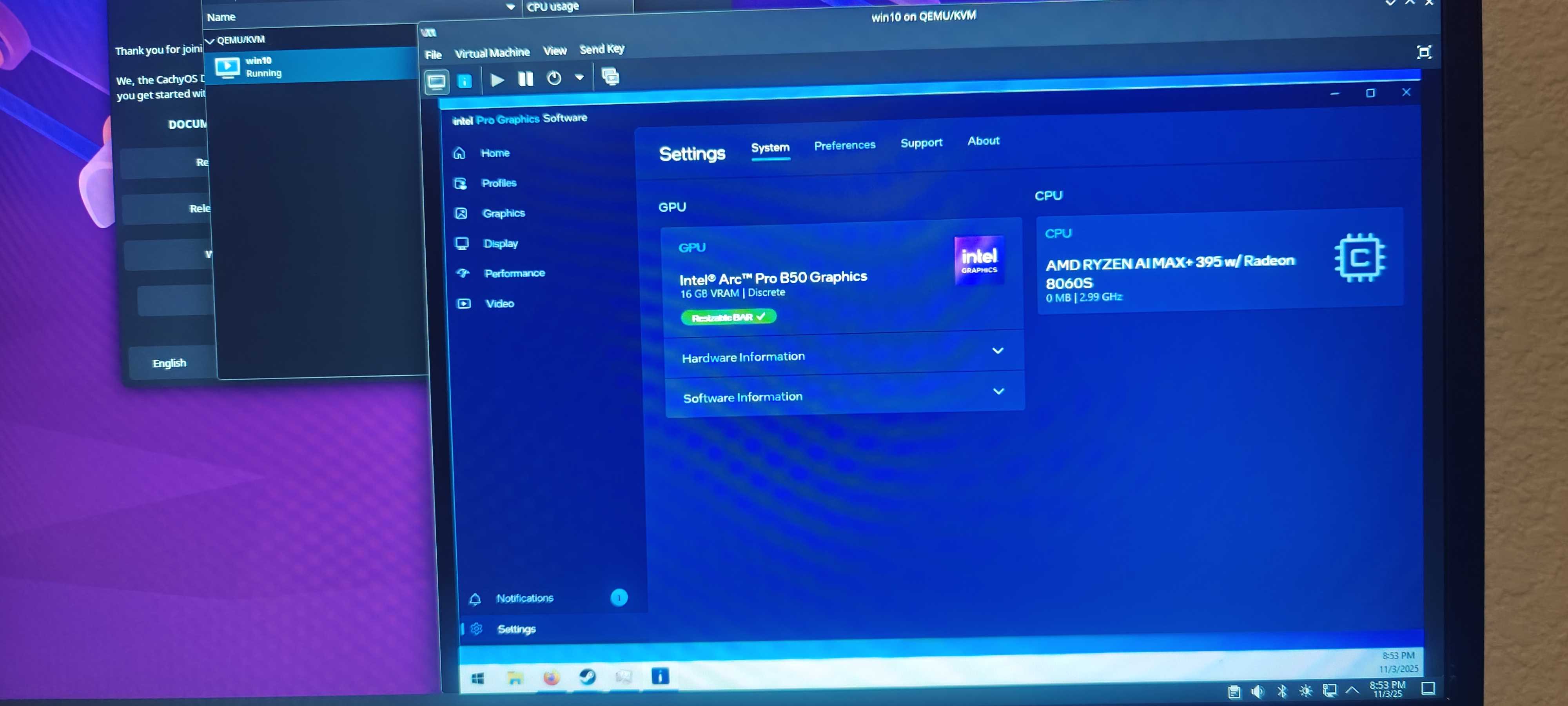

Passing the GPU through to a virtual machine works flawlessly, resize bar is even enabled, which is really lucky because that’s not an option exposed in my bios.

The other fun was an M.2 → Pcie 4x riser, also from ADT-link, also with a power connector… I didn’t take a picture of this but here is the link: https://www.adt.link/product/M43.html

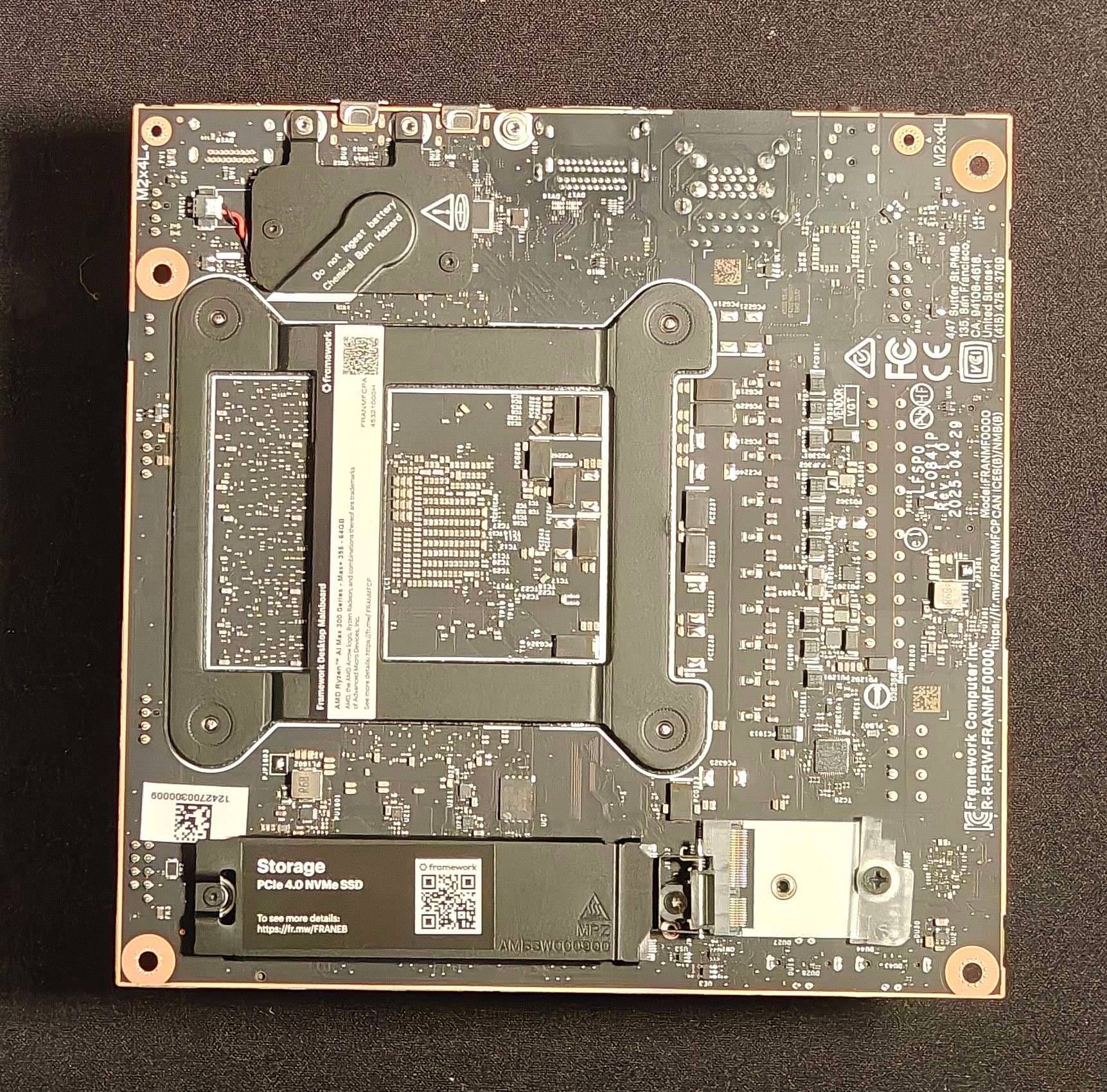

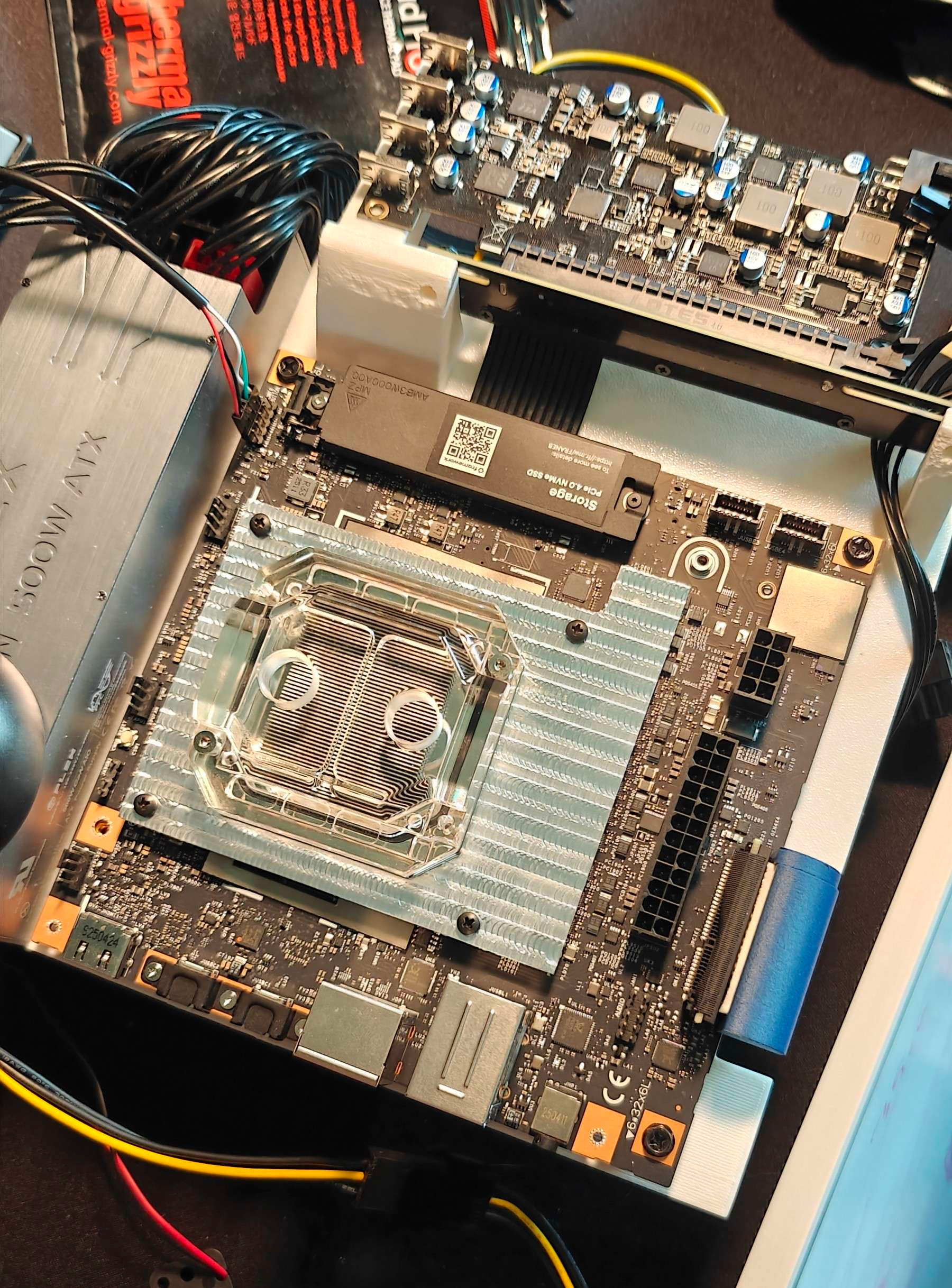

I got the M43UH model. So with a bit of playing around with layouts I settle on using M.2 slot that is on the bottom “front” of the motherboard. You can see it here, note that the rear IO is at the “top” of the picture:

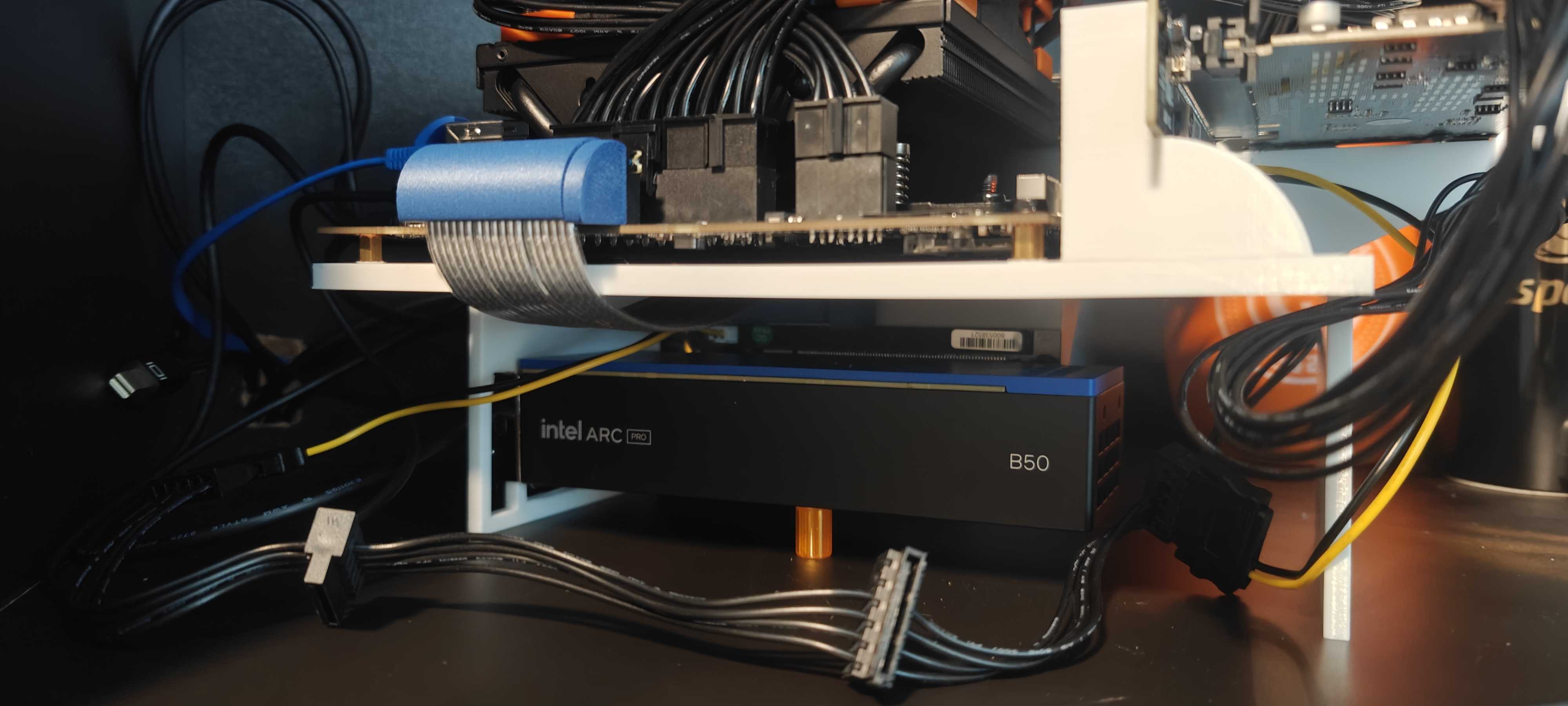

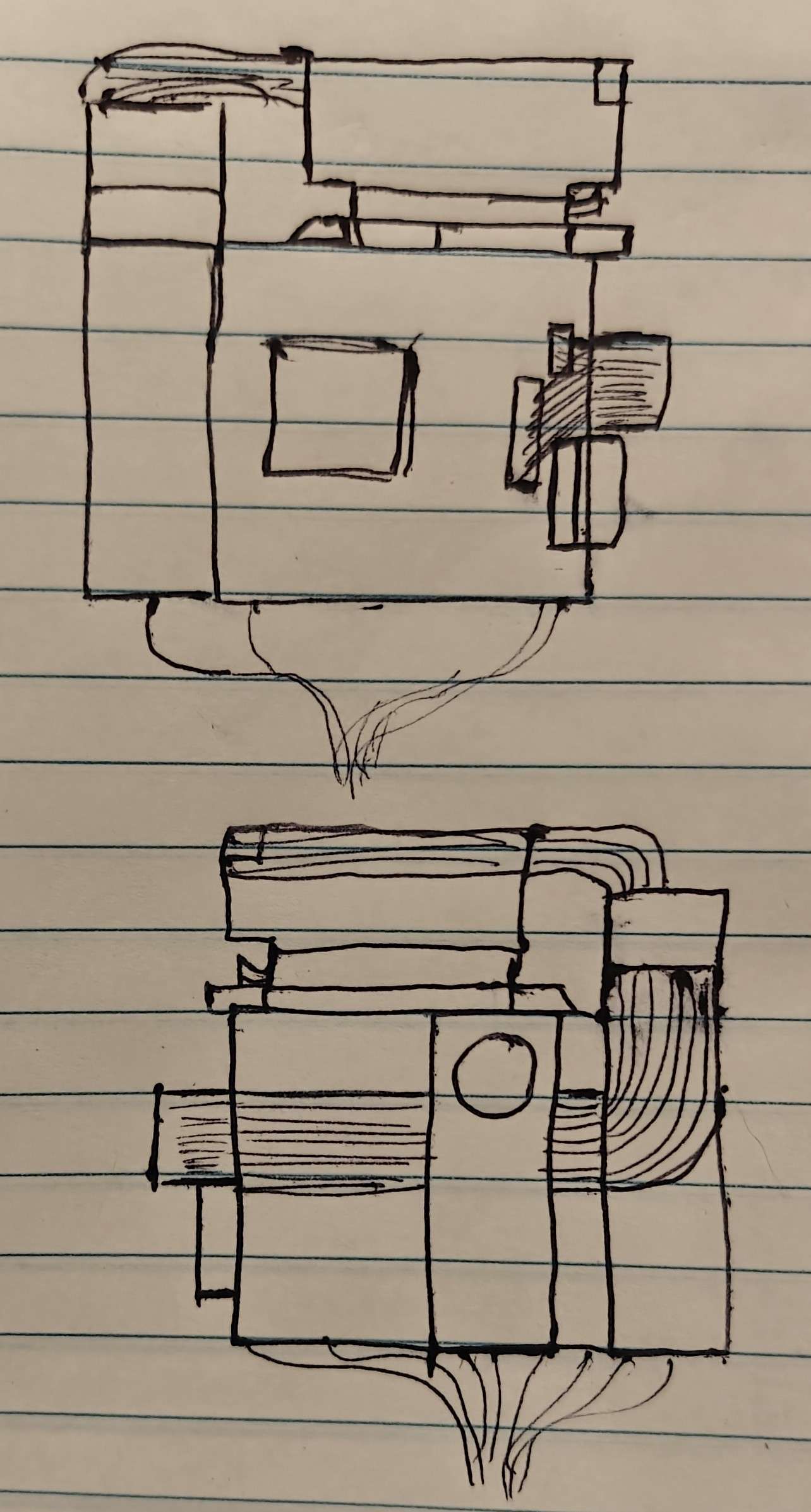

After a few scribbles I settled on more or less this layout, top of the motherboard is the first photo, the underside is the second, IO pointed down in both:

Basically, mount the usb card off the M.2 at the “front” of the motherboard and put the GPU underneath the motherboard like in a sandwich style.

[TheArkratos]

Oh and I have a bonus video, the B50 passed through to a VM:

Framework with Intel Arc B50 Pro Virtual machine

Running Cyberpunk off the iGPU, then closing that and running Armored Core 6 off the dGPU in windows in a VM. Ignore the slightly lower than normal framerate in cyberpunk (I think it had something to do with running the VM at the same time?) and ignore the stutters when I opened up the VM I don’t think the game functionally liked me alt tabbing into it like that, especially when I only gave the VM 8GB of ram.
