Broadwell-EP low power xeon (65w) ES

Hardware CPU
1

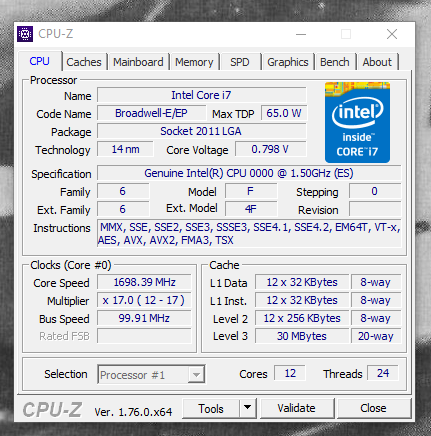

Got my hands on a broadwell-ep low power engineering sample.

Just a little overview with some pics.

Next to a haswell-ep HCC (ES) 14 core.

Thinner substrate, new IHS design supporting the edges a bit more to prevent flexing.(bendlake huehue)

My motherboard doesn't actually support the CPU yet, but it boots and works just fine but I have to reset the CMOS each time I want it to post, otherwise it gets stuck at CPU initialization code 13.
So no overclocking for me :c

2 Likes
2

Holy. How did you manage that?

3

@Dje4321
Broadwell-ep chips have been out in the wild for a good while now, I think it is way harder to get a hold of the i7 series, 6800k, 6850k, 6900k? and 6950x.

"edit, replying to my own post, http://risovach.ru/thumb/upload/200s400/2013/04/generator/genius_15647770_orig_.jpeg?t1u21 "

4

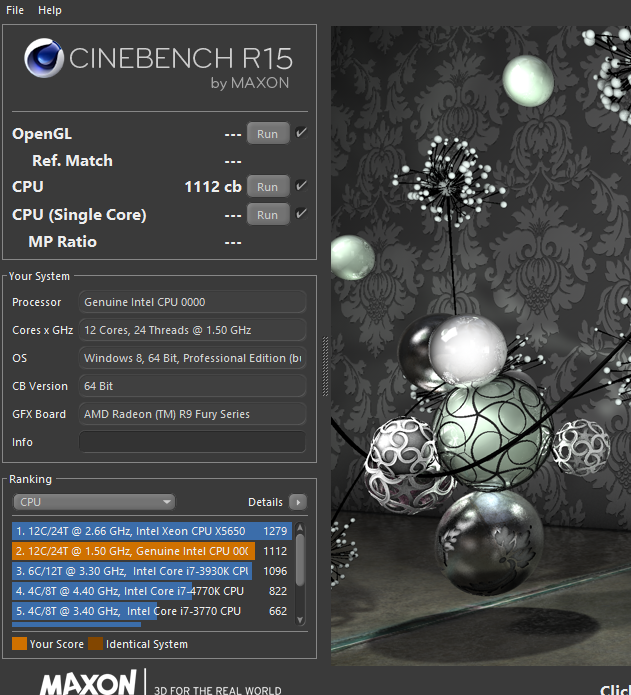

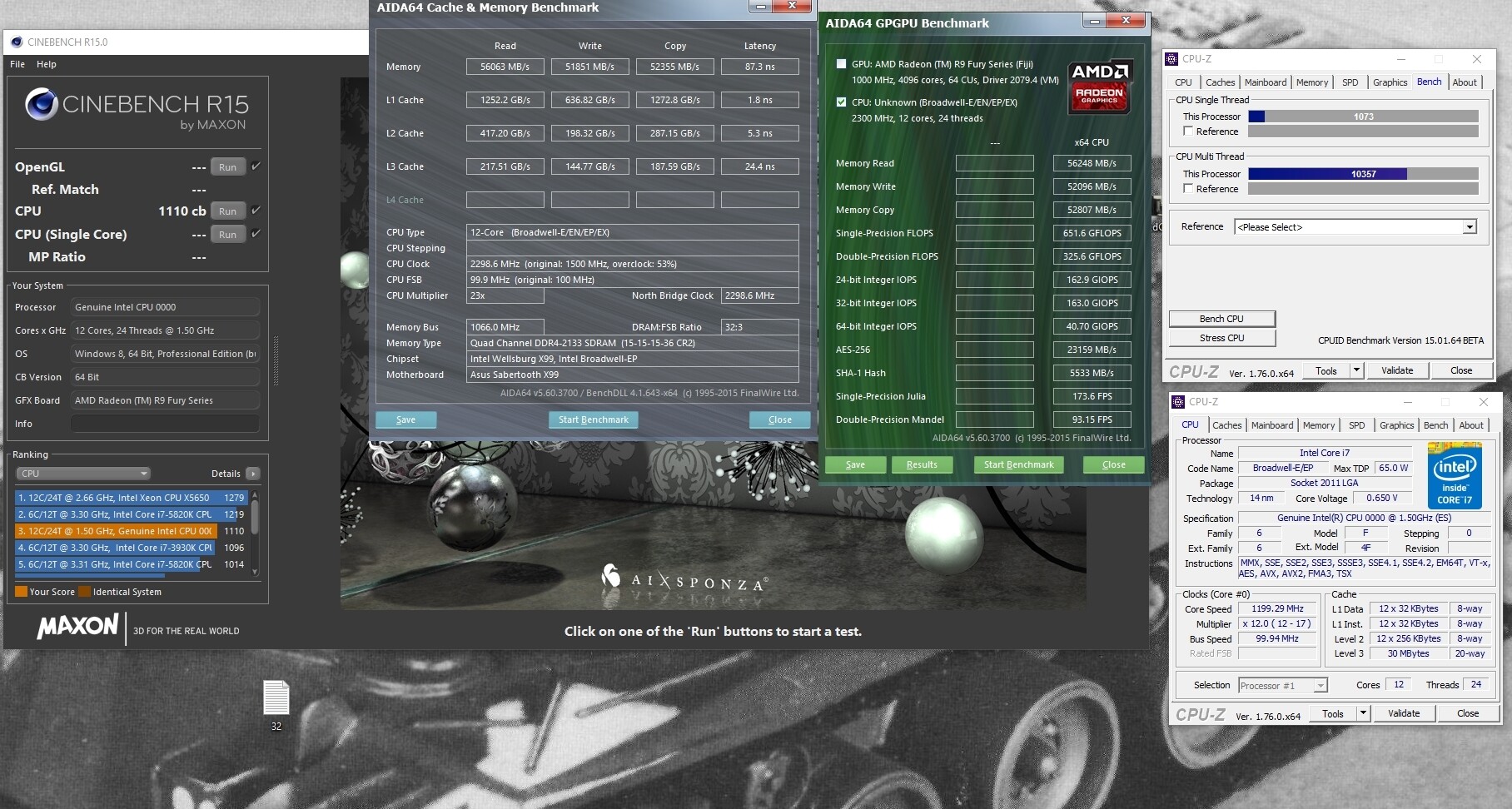

System power consumption during cinebench hanging around 80w, 5820k that is 10% slower in cinebench uses around 130w.

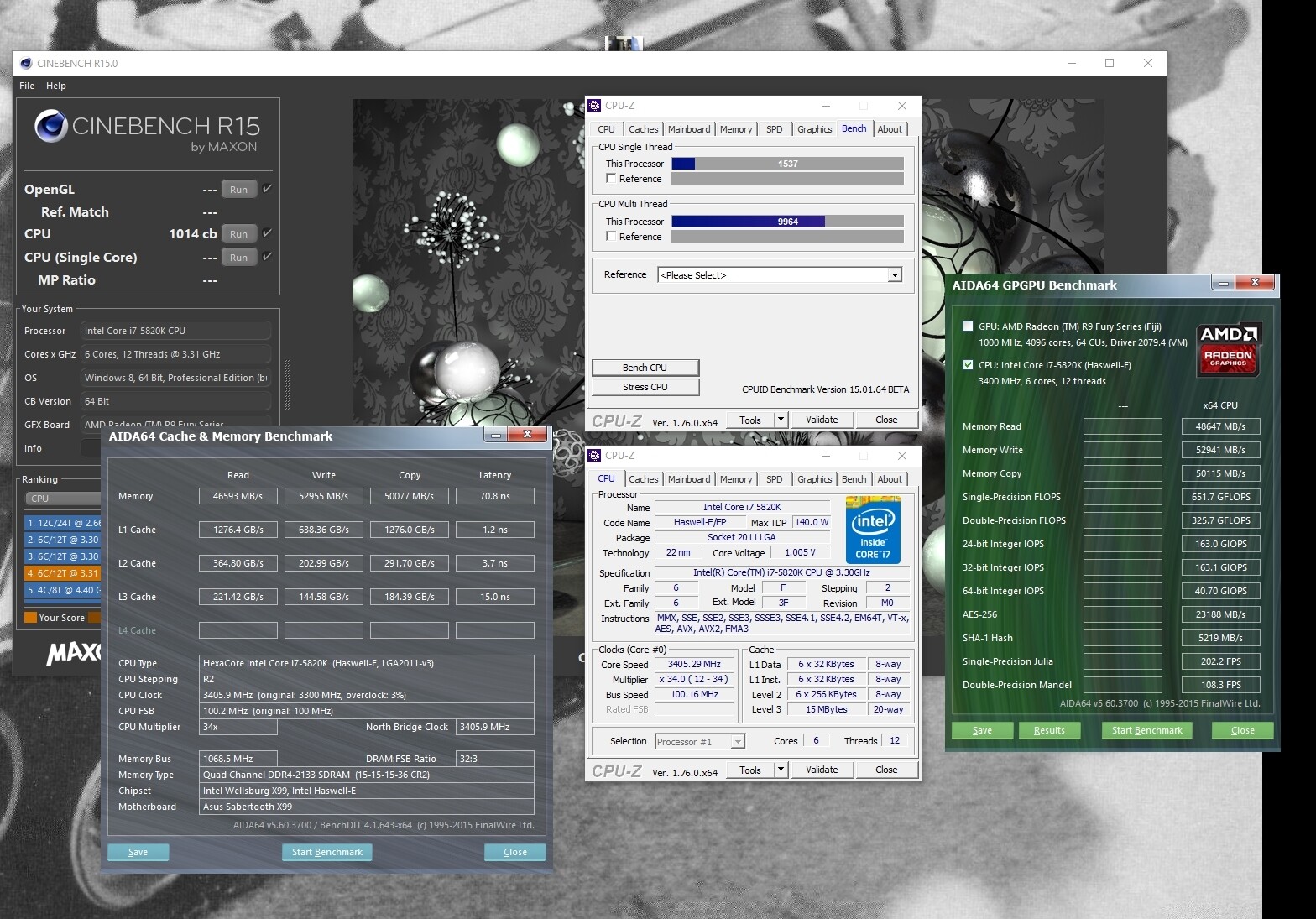

5820k @ 3.4ghz for comparison.

2 Likes
