oh my! We’re discussing these mobos on ServeTheHome, as well? (totally forgot, that they’re maintaining forums, as well.)

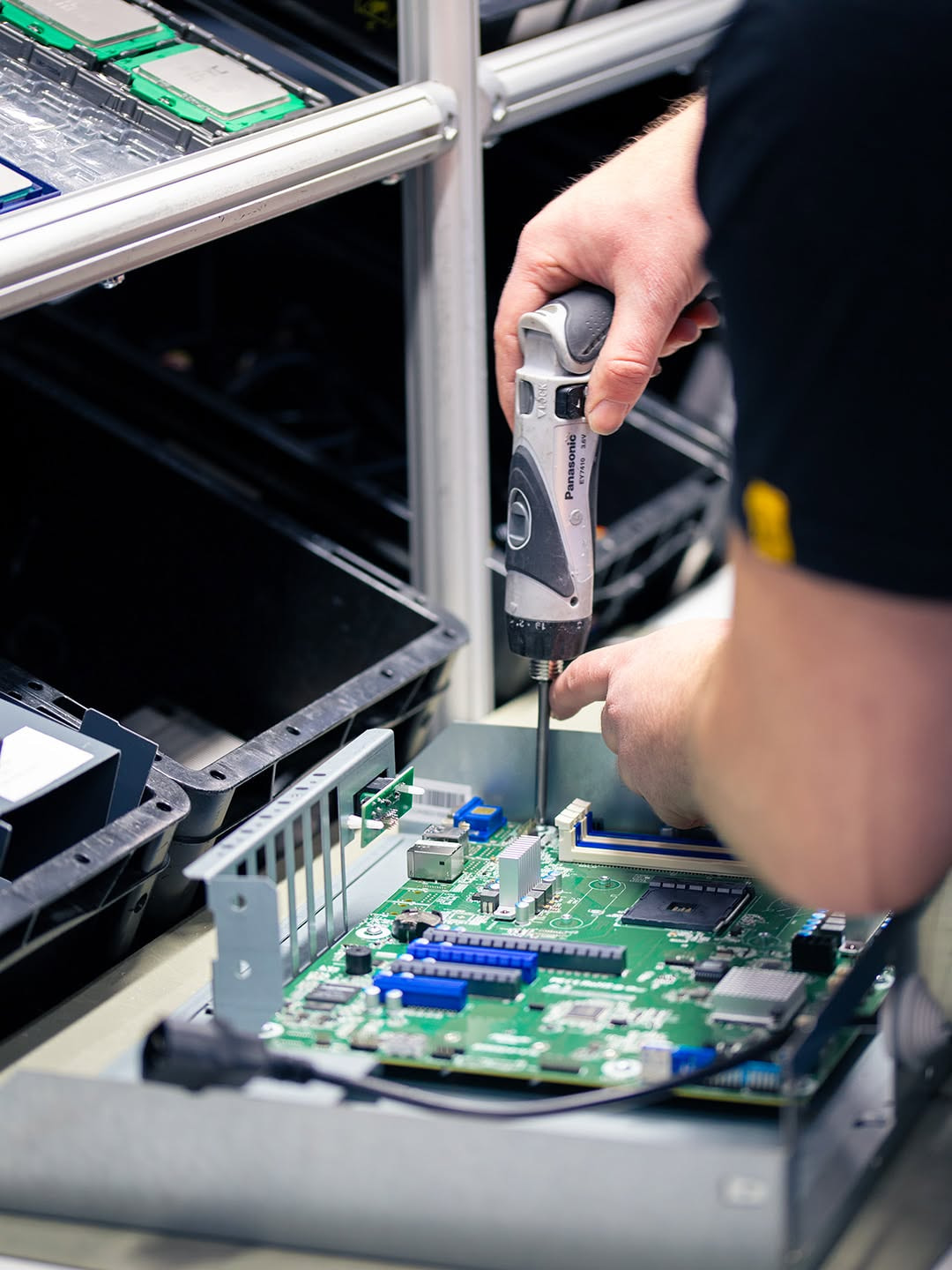

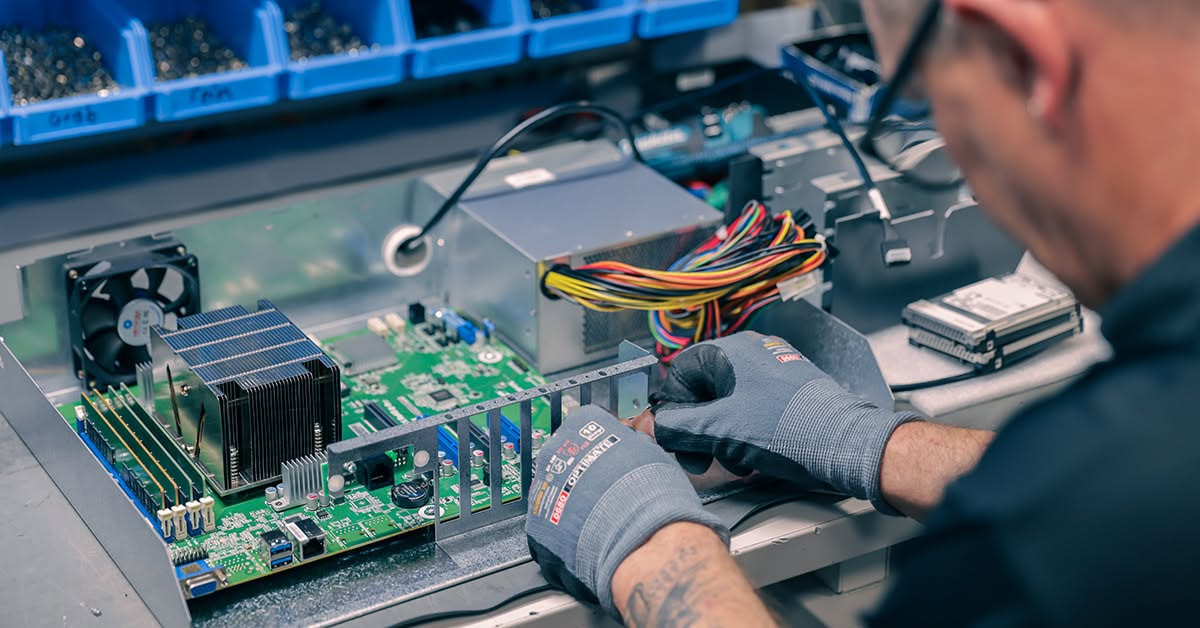

Btw, Roman “Der8auer“ (DerBauer) - Der AchtAuer - published a pretty good data centre tour, of one of Hetzners DCs. Hetzner uses those cost-optimised trays - 2U, or so - shelves, and shelves of them - fascinating.
ye their budget servers have custom made cases, thats why they can offer them so cheap cuz its not some HP/DELL/whatever expensive machine to buy in the first place (They offer Dell servers too if you need that tho)
Czech Koruna?
Czech this out! love this joke. (I think Deus Ex: Mankind Divided featured an NPC with a “button“ on her clothing - lovely stuff!)
I’m not here to advertise explicitly German stuff. I’m just talking about my shiny new toy. I didn’t even know that CZ doesn’t trade in Euro, yet. (they seem to be democratic - must have their reasons - i’m not judging)
As far as i’m concerned, we’re all earthlings - i’m one of those Star Trek nutters! …live long, and prosper!
Tembo; his arms wide!
EU; their arms wide! (usually, unless something ain’t quite right )
I might try replacing the dual-i226-V NIC with a single-port Realtek. Not only don’t i need the second 2.5G port, i’d also eschew the ASMedia PCIe bridge on that card.
I can report, though; Jellyfin runs pretty good on 6 Zen2 threads - the Ryzen 3 3100 has 4c/8t - the VM gets 6 vCPUs. For my single-user household workload, i really don’t need a GPU, after all. A GPU in my previous box would’ve drawn at least +10 Watts, idling, meh, it’s fine.

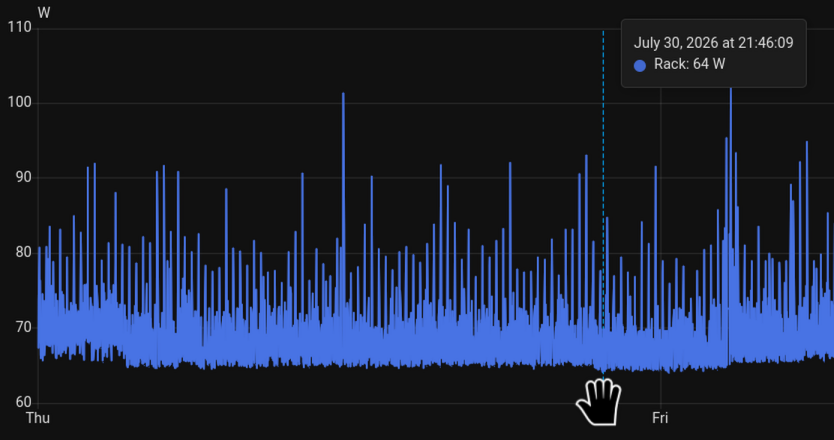

I think i should clarify; those power consumption figures above are for the whole rack - that includes a DSL router, switch, WAP, and a laser printer in stand-by.

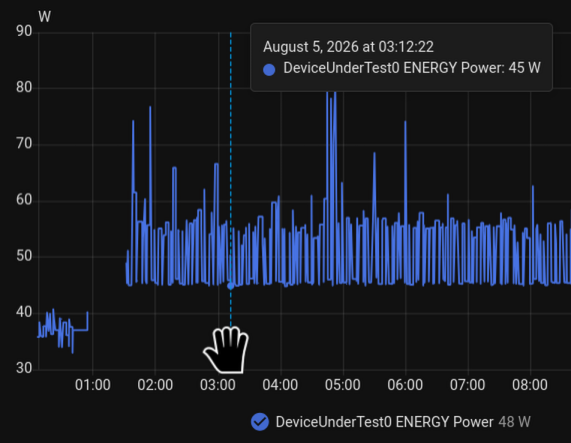

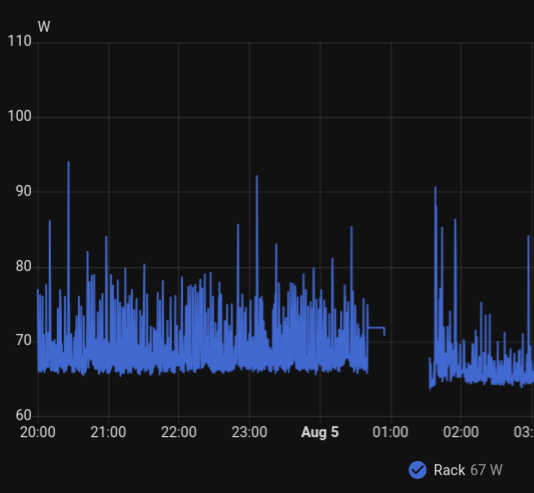

After replacing the dual i226-V with a Realtek 2.5G single port NIC, these are my current consumption figures (power-saver profile + AutoASPM script) - the DeviceUnderTest0 smart plug now measures the PSU of the ASRock Rack mobo box.
Ahoy guys! I’m new to the show. I’ve encountered major issues trying to run this board with my Ryzen 5500. Therefore i’m currently creating a coreboot-frankenstein BIOS in order to get it working properly for me. So far it works fine, boots fine into Linux. I didn’t get past PXE ROM init before, far away from even booting. So great success.
x58-debug:~# dmidecode -t baseboard
# dmidecode 3.7
Getting SMBIOS data from sysfs.
SMBIOS 3.3.0 present.
Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
Manufacturer: ASRockRack
Product Name: B565D4-V1L
Version:
Serial Number: M80-E1008500646
Asset Tag:
Features:
Board is a hosting board
Board is replaceable
Location In Chassis:
Chassis Handle: 0x0003
Type: Motherboard
Contained Object Handles: 0
Handle 0x0004, DMI type 10, 6 bytes
On Board Device Information
Type: Video
Status: Enabled
Description: To Be Filled By O.E.M.
x58-debug:~#
x58-debug:~#
x58-debug:~#
x58-debug:~#
x58-debug:~# dmidecode -t cpu
Invalid type keyword: cpu
Valid type keywords are:
bios
system
baseboard
chassis
processor
memory
cache
connector
slot
x58-debug:~# dmidecode -t processor
# dmidecode 3.7
Getting SMBIOS data from sysfs.
SMBIOS 3.3.0 present.
Handle 0x000E, DMI type 4, 48 bytes
Processor Information
Socket Designation: CPU1
Type: Central Processor
Family: Zen
Manufacturer: Advanced Micro Devices, Inc.
ID: 00 0F A5 00 FF FB 8B 17
Signature: Family 25, Model 80, Stepping 0
Flags:
FPU (Floating-point unit on-chip)
VME (Virtual mode extension)
DE (Debugging extension)
PSE (Page size extension)
TSC (Time stamp counter)
MSR (Model specific registers)
PAE (Physical address extension)
MCE (Machine check exception)
CX8 (CMPXCHG8 instruction supported)
APIC (On-chip APIC hardware supported)
SEP (Fast system call)
MTRR (Memory type range registers)
PGE (Page global enable)
MCA (Machine check architecture)
CMOV (Conditional move instruction supported)
PAT (Page attribute table)
PSE-36 (36-bit page size extension)
CLFSH (CLFLUSH instruction supported)
MMX (MMX technology supported)
FXSR (FXSAVE and FXSTOR instructions supported)
SSE (Streaming SIMD extensions)
SSE2 (Streaming SIMD extensions 2)
HTT (Multi-threading)
Version: AMD Ryzen 5 5500
Voltage: 1.4 V
External Clock: 100 MHz
Max Speed: 4250 MHz
Current Speed: 3600 MHz
Status: Populated, Enabled
Upgrade: Socket AM4
L1 Cache Handle: 0x000B
L2 Cache Handle: 0x000C
L3 Cache Handle: 0x000D
Serial Number: Unknown
Asset Tag: Unknown
Part Number: Unknown
Core Count: 6
Core Enabled: 6
Thread Count: 12
Characteristics:
64-bit capable
Multi-Core
Hardware Thread
Execute Protection
Enhanced Virtualization
Power/Performance Control
