I was suspecting USB controllers, actually, especially that they are under the same PCI controller as the iGPU, but it turns out… I had “All functions” enabled, which was passing through the parent PCI controller and all devices — including USB controllers that we already know cause reboots when passed-through.

My bad, lol. But I appreciate your quick response!

The Asrock B650 Live Mixer is also a great contender. Sane IMMO groups. Great PCIe lane split - 16x; 4x; 4x (last one disables the third m.2). Plenty of USB ports. The group 30 and 31 (USB-C and another are 2x USB 3 type A ports) are a bit picky regarding passing through certain USB hubs - (I am currently testing it, maybe it is just the USB-hub model I use)

Disadvantages: Only 2x SATA - I use a e-key pcie>SATA adapter instead of wifi-card in order to add additional 2x SATA

1 Like

I can second the LiveMixer B650 - it’s great!

I use a e-key pcie>SATA adapter instead of wifi-card in order to add additional 2x SATA

Hadn’t thought to use the M.2 key E to add a pair of SATA ports - thank you :grinning:

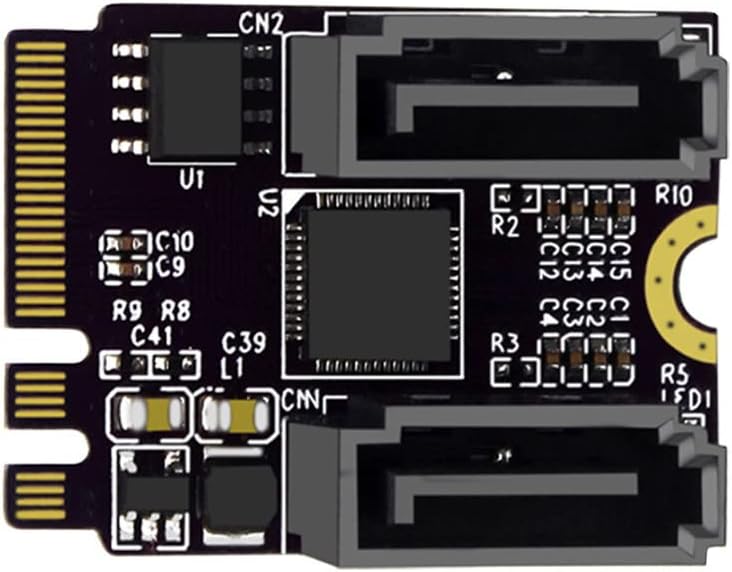

Here is the one I use from Alizon:

Edit: Its situated partly below the 16x PCIe, so you’ll need a right angled SATA connector - and because the two connectors face the same direction, I can only use one of them while my GPU is inserted (I could stack two differently sized right angled SATA cables on top of each other but this adds pressure to the GPU and the adapter card, so I decided against it). And you can’t boot of the attached drives, otherwise it is plug & play.

1 Like

I hadn’t expected there would be enough room under the GPU to fit the card and right angled cable (thought it would be a case of running one of the ribbon varieties to ports that sat elsewhere). Great to know, thanks!

1 Like

Cool, I hadn’t thought about using ribbon cables to reach blocked ports. This might come handy in future builds.

I just got myself one. I have not yet updated to the newest uefi (currently running version 1710 from 10/04/2023 according to hardinfo).

I’m seeing 28 Groups. I previously had to use ACS patches on my old mainboard to virtualize my older, secondary gpu. This mainboard perfectly gives it and the corresponding audio device a single iommu group (15, in second pci slot).

Here are my IOMMU Groups for that board (ASUS ProArt X670E-CREATOR):

IOMMU Group 0:
        00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 1:
        00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 2:
        00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 3:
        00:01.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 4:
        00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 5:
        00:02.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 6:
        00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 7:
        00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 8:
        00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 9:
        00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
IOMMU Group 10:
        00:08.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
IOMMU Group 11:
        00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 71)
        00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 12:
        00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e0]
        00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e1]
        00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e2]
        00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e3]
        00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e4]
        00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e5]
        00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e6]
        00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e7]
IOMMU Group 13:
        01:00.0 VGA compatible controller [0300]: NVIDIA Corporation AD104 [GeForce RTX 4070] [10de:2786] (rev a1)
        01:00.1 Audio device [0403]: NVIDIA Corporation AD104 High Definition Audio Controller [10de:22bc] (rev a1)
IOMMU Group 14:
        02:00.0 Non-Volatile memory controller [0108]: Samsung Electronics Co Ltd NVMe SSD Controller PM9A1/PM9A3/980PRO [144d:a80a]
IOMMU Group 15:
        03:00.0 VGA compatible controller [0300]: NVIDIA Corporation GP104 [GeForce GTX 1060 6GB] [10de:1b83] (rev a1)
        03:00.1 Audio device [0403]: NVIDIA Corporation GP104 High Definition Audio Controller [10de:10f0] (rev a1)
IOMMU Group 16:
        04:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Upstream Port [1022:43f4] (rev 01)
IOMMU Group 17:
        05:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
IOMMU Group 18:
        05:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        07:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Upstream Port [1022:43f4] (rev 01)
        08:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:01.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:02.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:03.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:0c.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        08:0d.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        09:00.0 Network controller [0280]: MEDIATEK Corp. MT7922 802.11ax PCI Express Wireless Network Adapter [14c3:0616]
        0a:00.0 Ethernet controller [0200]: Intel Corporation Ethernet Controller I225-V [8086:15f3] (rev 03)
        0b:00.0 Ethernet controller [0200]: Aquantia Corp. AQtion AQC113CS NBase-T/IEEE 802.3an Ethernet Controller [Antigua 10G] [1d6a:94c0] (rev 03)
        0d:00.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
        0e:00.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
        0e:01.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
        0e:02.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
        0e:03.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
        0f:00.0 USB controller [0c03]: Intel Corporation Thunderbolt 4 NHI [Maple Ridge 4C 2020] [8086:1137]
        3b:00.0 USB controller [0c03]: Intel Corporation Thunderbolt 4 USB Controller [Maple Ridge 4C 2020] [8086:1138]
        68:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset USB 3.2 Controller [1022:43f7] (rev 01)
        69:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset SATA Controller [1022:43f6] (rev 01)
IOMMU Group 19:
        05:0c.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        6a:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset USB 3.2 Controller [1022:43f7] (rev 01)
IOMMU Group 20:
        05:0d.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port [1022:43f5] (rev 01)
        6b:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset SATA Controller [1022:43f6] (rev 01)
IOMMU Group 21:
        6c:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Raphael [1002:164e] (rev c9)
IOMMU Group 22:
        6c:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller [1002:1640]
IOMMU Group 23:
        6c:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] Family 19h PSP/CCP [1022:1649]
IOMMU Group 24:
        6c:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b6]
IOMMU Group 25:
        6c:00.4 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b7]
IOMMU Group 26:
        6c:00.6 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller [1022:15e3]
IOMMU Group 27:
        6d:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b8]

I already tested it, and the secondary gpu (GTX 1060) now runs fine in virtualized.

Also interesting of note: It seems my CPU got an integrated gpu as well. And it seems to also be in a single IOMMU group (22). Not tested yet, but seems like a 2nd free gpu to virtualize. Maybe I can move my old nvidia card out of the system and use the Integrated GPU for the VM instead.

Edit: I updated to the newest bios (from 04/12/2024) and the IOMMU Groups stayed exactly the same.

If you’re able to pass through the iGPU, do let us know. I haven’t been able to do that.
