Which pci-e slot do you use for Mellanox NIC?
Just tried it out, works fine with a Linux guest. Last time I tried did not work with a Windows guest, you needed the Mellanox OFED driver to get that to work. I suppose it hasn’t been fixed on the kernel driver but I haven’t tested it in a while.
I use the second slot, runs at PCIe 3.0 x8 with the Mellanox card installed.
Forgot to mention that the first slot runs at PCIe 4.0. lspci reports that it is running at x16 but I don’t know how that can happen since the first and second slot are automatically bifurcated when both populated.
Here is the lspci output:
sudo lspci -vv
03:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Navi 31 [Radeon RX 7900 XT/7900 XTX] (rev c8) (prog-if 00 [VGA controller])
Subsystem: Sapphire Technology Limited Device 471e
Control: I/O+ Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin A routed to IRQ 33
IOMMU group: 15
Region 0: Memory at fce0000000 (64-bit, prefetchable) [size=256M]
Region 2: Memory at fcf0000000 (64-bit, prefetchable) [size=2M]
Region 4: I/O ports at f000 [size=256]
Region 5: Memory at fca00000 (32-bit, non-prefetchable) [size=1M]
Expansion ROM at fcb00000 [disabled] [size=128K]
Capabilities: [48] Vendor Specific Information: Len=08 <?>
Capabilities: [50] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1+,D2+,D3hot+,D3cold+)
Status: D3 NoSoftRst+ PME-Enable+ DSel=0 DScale=0 PME-
Capabilities: [64] Express (v2) Legacy Endpoint, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 256 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 16GT/s, Width x16, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 16GT/s, Width x16
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR+
10BitTagComp+ 10BitTagReq+ OBFF Not Supported, ExtFmt+ EETLPPrefix+, MaxEETLPPrefixes 1
EmergencyPowerReduction Form Factor Dev Specific, EmergencyPowerReductionInit-
FRS-
AtomicOpsCap: 32bit+ 64bit+ 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR+ 10BitTagReq+ OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCap2: Supported Link Speeds: 2.5-16GT/s, Crosslink- Retimer+ 2Retimers+ DRS-
LnkCtl2: Target Link Speed: 16GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
Capabilities: [150 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [200 v1] Physical Resizable BAR
BAR 0: current size: 256MB, supported: 256MB 512MB 1GB 2GB 4GB 8GB 16GB 32GB
BAR 2: current size: 2MB, supported: 2MB 4MB 8MB 16MB 32MB 64MB 128MB 256MB
Capabilities: [240 v1] Power Budgeting <?>
Capabilities: [270 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Capabilities: [2a0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Capabilities: [2d0 v1] Process Address Space ID (PASID)
PASIDCap: Exec+ Priv+, Max PASID Width: 10
PASIDCtl: Enable- Exec- Priv-
Capabilities: [320 v1] Latency Tolerance Reporting
Max snoop latency: 1048576ns
Max no snoop latency: 1048576ns
Capabilities: [410 v1] Physical Layer 16.0 GT/s <?>
Capabilities: [450 v1] Lane Margining at the Receiver <?>
Kernel driver in use: vfio-pci
Kernel modules: amdgpu
03:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device ab30
Subsystem: Advanced Micro Devices, Inc. [AMD/ATI] Device ab30
Control: I/O- Mem+ BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Interrupt: pin B routed to IRQ 102
IOMMU group: 16
Region 0: Memory at fcb20000 (32-bit, non-prefetchable) [size=16K]
Capabilities: [48] Vendor Specific Information: Len=08 <?>
Capabilities: [50] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1+,D2+,D3hot+,D3cold+)
Status: D3 NoSoftRst+ PME-Enable+ DSel=0 DScale=0 PME-
Capabilities: [64] Express (v2) Legacy Endpoint, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s <4us, L1 unlimited
ExtTag+ AttnBtn- AttnInd- PwrInd- RBE+ FLReset-
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag+ PhantFunc- AuxPwr- NoSnoop+
MaxPayload 256 bytes, MaxReadReq 512 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 16GT/s, Width x16, ASPM L1, Exit Latency L1 <1us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 16GT/s, Width x16
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR+
10BitTagComp+ 10BitTagReq+ OBFF Not Supported, ExtFmt+ EETLPPrefix+, MaxEETLPPrefixes 1
EmergencyPowerReduction Form Factor Dev Specific, EmergencyPowerReductionInit-
FRS-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq+ OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [a0] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [100 v1] Vendor Specific Information: ID=0001 Rev=1 Len=010 <?>
Capabilities: [150 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [2a0 v1] Access Control Services
ACSCap: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
ACSCtl: SrcValid- TransBlk- ReqRedir- CmpltRedir- UpstreamFwd- EgressCtrl- DirectTrans-
Kernel driver in use: vfio-pci
Kernel modules: snd_hda_intel
04:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983 (prog-if 02 [NVM Express])
Subsystem: Samsung Electronics Co Ltd SSD 970 EVO
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 48
NUMA node: 0
IOMMU group: 17
Region 0: Memory at fce00000 (64-bit, non-prefetchable) [size=16K]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [50] MSI: Enable- Count=1/1 Maskable- 64bit+
Address: 0000000000000000 Data: 0000
Capabilities: [70] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 256 bytes, PhantFunc 0, Latency L0s unlimited, L1 unlimited
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 75W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd+ ExtTag- PhantFunc- AuxPwr- NoSnoop+ FLReset-
MaxPayload 256 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x4, ASPM L1, Exit Latency L1 <64us
ClockPM+ Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM L1 Enabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 8GT/s, Width x4
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR+
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR+ 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -3.5dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [b0] MSI-X: Enable+ Count=33 Masked-
Vector table: BAR=0 offset=00003000
PBA: BAR=0 offset=00002000
Capabilities: [100 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES+ TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap+ MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [148 v1] Device Serial Number 00-00-00-00-00-00-00-00
Capabilities: [158 v1] Power Budgeting <?>
Capabilities: [168 v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Capabilities: [188 v1] Latency Tolerance Reporting
Max snoop latency: 1048576ns
Max no snoop latency: 1048576ns
Capabilities: [190 v1] L1 PM Substates
L1SubCap: PCI-PM_L1.2+ PCI-PM_L1.1+ ASPM_L1.2+ ASPM_L1.1+ L1_PM_Substates+
PortCommonModeRestoreTime=10us PortTPowerOnTime=10us
L1SubCtl1: PCI-PM_L1.2- PCI-PM_L1.1- ASPM_L1.2- ASPM_L1.1-
T_CommonMode=0us LTR1.2_Threshold=32768ns
L1SubCtl2: T_PwrOn=10us
Kernel driver in use: nvme
Kernel modules: nvme
05:00.0 Ethernet controller: Mellanox Technologies MT27500 Family [ConnectX-3]
Subsystem: Mellanox Technologies Device 0050
Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
Latency: 0, Cache Line Size: 64 bytes
Interrupt: pin A routed to IRQ 47
IOMMU group: 18
Region 0: Memory at fc000000 (64-bit, non-prefetchable) [size=1M]
Region 2: Memory at fb800000 (64-bit, prefetchable) [size=8M]
Capabilities: [40] Power Management version 3
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME-
Capabilities: [48] Vital Product Data
Product Name: CX354A - ConnectX-3 QSFP
Read-only fields:
[PN] Part number: 7046442
[EC] Engineering changes: XX
[SN] Serial number: 465774X-1437700436
[V0] Vendor specific: PCIe Gen3 x8
[RV] Reserved: checksum good, 0 byte(s) reserved
Read/write fields:
[V1] Vendor specific: N/A
[YA] Asset tag: N/A
[RW] Read-write area: 105 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 253 byte(s) free
[RW] Read-write area: 252 byte(s) free
End
Capabilities: [9c] MSI-X: Enable+ Count=128 Masked-
Vector table: BAR=0 offset=0007c000
PBA: BAR=0 offset=0007d000
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 unlimited
ExtTag- AttnBtn- AttnInd- PwrInd- RBE+ FLReset+ SlotPowerLimit 116W
DevCtl: CorrErr+ NonFatalErr+ FatalErr+ UnsupReq+
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 512 bytes, MaxReadReq 512 bytes
DevSta: CorrErr+ NonFatalErr- FatalErr- UnsupReq+ AuxPwr- TransPend-
LnkCap: Port #8, Speed 8GT/s, Width x8, ASPM L0s, Exit Latency L0s unlimited
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp+
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk+
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed 8GT/s, Width x8
TrErr- Train- SlotClk+ DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkCap2: Supported Link Speeds: 2.5-8GT/s, Crosslink- Retimer- 2Retimers- DRS-
LnkCtl2: Target Link Speed: 8GT/s, EnterCompliance- SpeedDis-
Transmit Margin: Normal Operating Range, EnterModifiedCompliance- ComplianceSOS-
Compliance Preset/De-emphasis: -6dB de-emphasis, 0dB preshoot
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete+ EqualizationPhase1+
EqualizationPhase2+ EqualizationPhase3+ LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [c0] Vendor Specific Information: Len=18 <?>
Capabilities: [100 v1] Alternative Routing-ID Interpretation (ARI)
ARICap: MFVC- ACS-, Next Function: 0
ARICtl: MFVC- ACS-, Function Group: 0
Capabilities: [148 v1] Device Serial Number 00-10-e0-00-01-59-c0-6c
Capabilities: [154 v2] Advanced Error Reporting
UESta: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UEMsk: DLP- SDES- TLP- FCP- CmpltTO- CmpltAbrt- UnxCmplt- RxOF- MalfTLP- ECRC- UnsupReq- ACSViol-
UESvrt: DLP+ SDES- TLP- FCP+ CmpltTO- CmpltAbrt- UnxCmplt- RxOF+ MalfTLP+ ECRC- UnsupReq- ACSViol-
CESta: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr-
CEMsk: RxErr- BadTLP- BadDLLP- Rollover- Timeout- AdvNonFatalErr+
AERCap: First Error Pointer: 00, ECRCGenCap+ ECRCGenEn- ECRCChkCap+ ECRCChkEn-
MultHdrRecCap- MultHdrRecEn- TLPPfxPres- HdrLogCap-
HeaderLog: 00000000 00000000 00000000 00000000
Capabilities: [18c v1] Secondary PCI Express
LnkCtl3: LnkEquIntrruptEn- PerformEqu-
LaneErrStat: 0
Capabilities: [108 v1] Single Root I/O Virtualization (SR-IOV)
IOVCap: Migration- 10BitTagReq- Interrupt Message Number: 000
IOVCtl: Enable+ Migration- Interrupt- MSE+ ARIHierarchy+ 10BitTagReq-
IOVSta: Migration-
Initial VFs: 4, Total VFs: 4, Number of VFs: 4, Function Dependency Link: 00
VF offset: 1, stride: 1, Device ID: 1004
Supported Page Size: 000007ff, System Page Size: 00000001
Region 2: Memory at 000000fcf0800000 (64-bit, prefetchable)
VF Migration: offset: 00000000, BIR: 0
Kernel driver in use: mlx4_core
Kernel modules: mlx4_core
05:00.1 Ethernet controller: Mellanox Technologies MT27500/MT27520 Family [ConnectX-3/ConnectX-3 Pro Virtual Function]
Subsystem: Mellanox Technologies Device 61b0
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 34
Region 2: Memory at fcf0800000 (64-bit, prefetchable) [virtual] [size=8M]
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM not supported
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed unknown (downgraded), Width x0 (downgraded)
TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [9c] MSI-X: Enable- Count=220 Masked-
Vector table: BAR=2 offset=00002000
PBA: BAR=2 offset=00003000
Capabilities: [40] Power Management version 0
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel modules: mlx4_core
05:00.2 Ethernet controller: Mellanox Technologies MT27500/MT27520 Family [ConnectX-3/ConnectX-3 Pro Virtual Function]
Subsystem: Mellanox Technologies Device 61b0
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 35
Region 2: Memory at fcf1000000 (64-bit, prefetchable) [virtual] [size=8M]
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM not supported
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed unknown (downgraded), Width x0 (downgraded)
TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [9c] MSI-X: Enable- Count=220 Masked-
Vector table: BAR=2 offset=00002000
PBA: BAR=2 offset=00003000
Capabilities: [40] Power Management version 0
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel modules: mlx4_core
05:00.3 Ethernet controller: Mellanox Technologies MT27500/MT27520 Family [ConnectX-3/ConnectX-3 Pro Virtual Function]
Subsystem: Mellanox Technologies Device 61b0
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 36
Region 2: Memory at fcf1800000 (64-bit, prefetchable) [virtual] [size=8M]
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM not supported
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed unknown (downgraded), Width x0 (downgraded)
TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [9c] MSI-X: Enable- Count=220 Masked-
Vector table: BAR=2 offset=00002000
PBA: BAR=2 offset=00003000
Capabilities: [40] Power Management version 0
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel modules: mlx4_core
05:00.4 Ethernet controller: Mellanox Technologies MT27500/MT27520 Family [ConnectX-3/ConnectX-3 Pro Virtual Function]
Subsystem: Mellanox Technologies Device 61b0
Control: I/O- Mem- BusMaster- SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx-
Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
IOMMU group: 37
Region 2: Memory at fcf2000000 (64-bit, prefetchable) [virtual] [size=8M]
Capabilities: [60] Express (v2) Endpoint, MSI 00
DevCap: MaxPayload 512 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
ExtTag- AttnBtn- AttnInd- PwrInd- RBE- FLReset+ SlotPowerLimit 0W
DevCtl: CorrErr- NonFatalErr- FatalErr- UnsupReq-
RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop- FLReset-
MaxPayload 128 bytes, MaxReadReq 128 bytes
DevSta: CorrErr- NonFatalErr- FatalErr- UnsupReq- AuxPwr- TransPend-
LnkCap: Port #0, Speed 8GT/s, Width x8, ASPM not supported
ClockPM- Surprise- LLActRep- BwNot- ASPMOptComp-
LnkCtl: ASPM Disabled; RCB 64 bytes, Disabled- CommClk-
ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
LnkSta: Speed unknown (downgraded), Width x0 (downgraded)
TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-
DevCap2: Completion Timeout: Range ABCD, TimeoutDis+ NROPrPrP- LTR-
10BitTagComp- 10BitTagReq- OBFF Not Supported, ExtFmt- EETLPPrefix-
EmergencyPowerReduction Not Supported, EmergencyPowerReductionInit-
FRS- TPHComp- ExtTPHComp-
AtomicOpsCap: 32bit- 64bit- 128bitCAS-
DevCtl2: Completion Timeout: 50us to 50ms, TimeoutDis- LTR- 10BitTagReq- OBFF Disabled,
AtomicOpsCtl: ReqEn-
LnkSta2: Current De-emphasis Level: -6dB, EqualizationComplete- EqualizationPhase1-
EqualizationPhase2- EqualizationPhase3- LinkEqualizationRequest-
Retimer- 2Retimers- CrosslinkRes: unsupported
Capabilities: [9c] MSI-X: Enable- Count=220 Masked-
Vector table: BAR=2 offset=00002000
PBA: BAR=2 offset=00003000
Capabilities: [40] Power Management version 0
Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot-,D3cold-)
Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
Kernel modules: mlx4_core
1 Like
I posted them in another thread but maybe this is a better place for the the IOMMU groups of my ASRock B650 LiveMixer.
This is from BIOS version 1.18:
# ./iommu-groups.sh
IOMMU Group 0:
00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 1:
00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 2:
00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 3:
00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 4:
00:02.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 5:
00:02.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 6:
00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 7:
00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 8:
00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 9:
00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
IOMMU Group 10:
00:08.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
IOMMU Group 11:
00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 71)
00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 12:
00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e0]
00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e1]
00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e2]
00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e3]
00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e4]
00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e5]
00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e6]
00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e7]
IOMMU Group 13:
01:00.0 VGA compatible controller [0300]: NVIDIA Corporation GM204 [GeForce GTX 970] [10de:13c2] (rev a1)
01:00.1 Audio device [0403]: NVIDIA Corporation GM204 High Definition Audio Controller [10de:0fbb] (rev a1)
IOMMU Group 14:
02:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch [1002:1478] (rev c7)
IOMMU Group 15:
03:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:1479]
IOMMU Group 16:
04:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 24 [Radeon RX 6400/6500 XT/6500M] [1002:743f] (rev c7)
IOMMU Group 17:
04:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 21/23 HDMI/DP Audio Controller [1002:ab28]
IOMMU Group 18:
05:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f4] (rev 01)
IOMMU Group 19:
06:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
IOMMU Group 20:
06:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
IOMMU Group 21:
06:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
09:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. RTL8125 2.5GbE Controller [10ec:8125] (rev 05)
IOMMU Group 22:
06:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
IOMMU Group 23:
06:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
IOMMU Group 24:
06:0c.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
0c:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f7] (rev 01)
IOMMU Group 25:
06:0d.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
0d:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f6] (rev 01)
IOMMU Group 26:
0e:00.0 Non-Volatile memory controller [0108]: Seagate Technology PLC FireCuda 530 SSD [1bb1:5018] (rev 01)
IOMMU Group 27:
0f:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Raphael [1002:164e] (rev c1)
IOMMU Group 28:
0f:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller [1002:1640]
IOMMU Group 29:
0f:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] VanGogh PSP/CCP [1022:1649]
IOMMU Group 30:
0f:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b6]
IOMMU Group 31:
0f:00.4 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b7]
IOMMU Group 32:
0f:00.6 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller [1022:15e3]
IOMMU Group 33:
10:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b8]
USB-wise group #30 is the single USB-C port next to the ethernet port, group #31 is for the “lightning gaming” port nearest the edge and the single USB-B next to the ethernet and group #24 is for all the rest. Assigning group #33 to a VM reboots the host.
Well Msi and Gigabyte are mainly focusing on gaming and overclock enthusiast motherboards.
So that they don´t mention anything about ecc support isn´t that strange,
because they likely don´t really care.
So with those brands ecc support could either be a hit or miss.
I gotta say I am pleasantly surprised. I just clobbered together the hardware, hit the power button with my Ubuntu stick in the USB port, and got really nice IOMMU groupings right away. No BIOS settings touched.
IOMMU groups; nothing new that others have not already posted elsewhere
0. 1 device(s)
* [1022:14da] 00:01.0 Host bridge Device 14da
1. 1 device(s)
* [1022:14db] [R] 00:01.2 PCI bridge Device 14db
2. 1 device(s)
* [1022:14da] 00:02.0 Host bridge Device 14da
3. 1 device(s)
* [1022:14db] [R] 00:02.1 PCI bridge Device 14db
4. 1 device(s)
* [1022:14db] [R] 00:02.2 PCI bridge Device 14db
5. 1 device(s)
* [1022:14da] 00:03.0 Host bridge Device 14da
6. 1 device(s)
* [1022:14da] 00:04.0 Host bridge Device 14da
7. 1 device(s)
* [1022:14da] 00:08.0 Host bridge Device 14da
8. 1 device(s)
* [1022:14dd] [R] 00:08.1 PCI bridge Device 14dd
9. 1 device(s)
* [1022:14dd] [R] 00:08.3 PCI bridge Device 14dd
10. 2 device(s)
* [1022:790b] 00:14.0 SMBus FCH SMBus Controller
* [1022:790e] 00:14.3 ISA bridge FCH LPC Bridge
11. 8 device(s)
* [1022:14e0] 00:18.0 Host bridge Device 14e0
* [1022:14e1] 00:18.1 Host bridge Device 14e1
* [1022:14e2] 00:18.2 Host bridge Device 14e2
* [1022:14e3] 00:18.3 Host bridge Device 14e3
* [1022:14e4] 00:18.4 Host bridge Device 14e4
* [1022:14e5] 00:18.5 Host bridge Device 14e5
* [1022:14e6] 00:18.6 Host bridge Device 14e6
* [1022:14e7] 00:18.7 Host bridge Device 14e7
12. 1 device(s)
* [8086:1136] [R] 01:00.0 PCI bridge Thunderbolt 4 Bridge [Maple Ridge 4C 2020]
13. 1 device(s)
* [8086:1136] [R] 02:00.0 PCI bridge Thunderbolt 4 Bridge [Maple Ridge 4C 2020]
14. 1 device(s)
* [8086:1136] 02:01.0 PCI bridge Thunderbolt 4 Bridge [Maple Ridge 4C 2020]
15. 1 device(s)
* [8086:1136] 02:02.0 PCI bridge Thunderbolt 4 Bridge [Maple Ridge 4C 2020]
16. 1 device(s)
* [8086:1136] 02:03.0 PCI bridge Thunderbolt 4 Bridge [Maple Ridge 4C 2020]
17. 1 device(s)
* [8086:1137] [R] 03:00.0 USB controller Thunderbolt 4 NHI [Maple Ridge 4C 2020]
18. 1 device(s)
* [8086:1138] [R] 44:00.0 USB controller Thunderbolt 4 USB Controller [Maple Ridge 4C 2020]
* [1d6b:0002] Bus 001 Device 001 Linux Foundation 2.0 root hub
* [1d6b:0003] Bus 002 Device 001 Linux Foundation 3.0 root hub
19. 1 device(s)
* [1022:43f4] [R] 46:00.0 PCI bridge Device 43f4
20. 1 device(s)
* [1022:43f5] [R] 47:00.0 PCI bridge Device 43f5
21. 2 device(s)
* [1022:43f5] [R] 47:04.0 PCI bridge Device 43f5
* [1b21:0612] [R] 49:00.0 SATA controller ASM1062 Serial ATA Controller
22. 2 device(s)
* [1022:43f5] [R] 47:05.0 PCI bridge Device 43f5
* [8086:2725] [R] 4a:00.0 Network controller Wi-Fi 6 AX210/AX211/AX411 160MHz
23. 2 device(s)
* [1022:43f5] [R] 47:06.0 PCI bridge Device 43f5
* [10ec:3000] [R] 4b:00.0 Ethernet controller Killer E3000 2.5GbE Controller
24. 2 device(s)
* [1022:43f5] [R] 47:07.0 PCI bridge Device 43f5
* [1b21:0612] [R] 4c:00.0 SATA controller ASM1062 Serial ATA Controller
25. 12 device(s)
* [1022:43f5] [R] 47:08.0 PCI bridge Device 43f5
* [1022:43f4] [R] 4d:00.0 PCI bridge Device 43f4
* [1022:43f5] [R] 4e:00.0 PCI bridge Device 43f5
* [1022:43f5] [R] 4e:04.0 PCI bridge Device 43f5
* [1022:43f5] [R] 4e:05.0 PCI bridge Device 43f5
* [1022:43f5] [R] 4e:06.0 PCI bridge Device 43f5
* [1022:43f5] [R] 4e:07.0 PCI bridge Device 43f5
* [1022:43f5] [R] 4e:08.0 PCI bridge Device 43f5
* [1022:43f5] 4e:0c.0 PCI bridge Device 43f5
* [1022:43f5] 4e:0d.0 PCI bridge Device 43f5
* [1022:43f7] [R] 55:00.0 USB controller Device 43f7
* [1d6b:0002] Bus 003 Device 001 Linux Foundation 2.0 root hub
* [1d6b:0003] Bus 004 Device 001 Linux Foundation 3.0 root hub
* [1022:43f6] [R] 56:00.0 SATA controller Device 43f6
26. 2 device(s)
* [1022:43f5] 47:0c.0 PCI bridge Device 43f5
* [1022:43f7] [R] 57:00.0 USB controller Device 43f7
* [26ce:0a06] Bus 005 Device 004 Generic USB Audio
* [8087:0032] Bus 005 Device 003 Intel Corp. AX210 Bluetooth
* [1d6b:0002] Bus 005 Device 001 Linux Foundation 2.0 root hub
* [1d6b:0003] Bus 006 Device 001 Linux Foundation 3.0 root hub
27. 2 device(s)
* [1022:43f5] 47:0d.0 PCI bridge Device 43f5
* [1022:43f6] [R] 58:00.0 SATA controller Device 43f6
28. 1 device(s)
* [1002:164e] [R] 5a:00.0 VGA compatible controller Raphael
29. 1 device(s)
* [1002:1640] [R] 5a:00.1 Audio device Rembrandt Radeon High Definition Audio Controller
30. 1 device(s)
* [1022:1649] 5a:00.2 Encryption controller VanGogh PSP/CCP
31. 1 device(s)
* [1022:15b6] [R] 5a:00.3 USB controller Device 15b6
* [1d6b:0002] Bus 007 Device 001 Linux Foundation 2.0 root hub
* [1d6b:0003] Bus 008 Device 001 Linux Foundation 3.0 root hub
32. 1 device(s)
* [1022:15b7] [R] 5a:00.4 USB controller Device 15b7
* [1d6b:0003] Bus 010 Device 001 Linux Foundation 3.0 root hub
* [1d6b:0002] Bus 009 Device 001 Linux Foundation 2.0 root hub
33. 1 device(s)
* [1022:15e3] 5a:00.6 Audio device Family 17h/19h HD Audio Controller
34. 1 device(s)
* [1022:15b8] [R] 5b:00.0 USB controller Device 15b8
* [26ce:01a2] Bus 011 Device 002 ASRock LED Controller
* [1d6b:0002] Bus 011 Device 001 Linux Foundation 2.0 root hub
* [1d6b:0003] Bus 012 Device 001 Linux Foundation 3.0 root hub

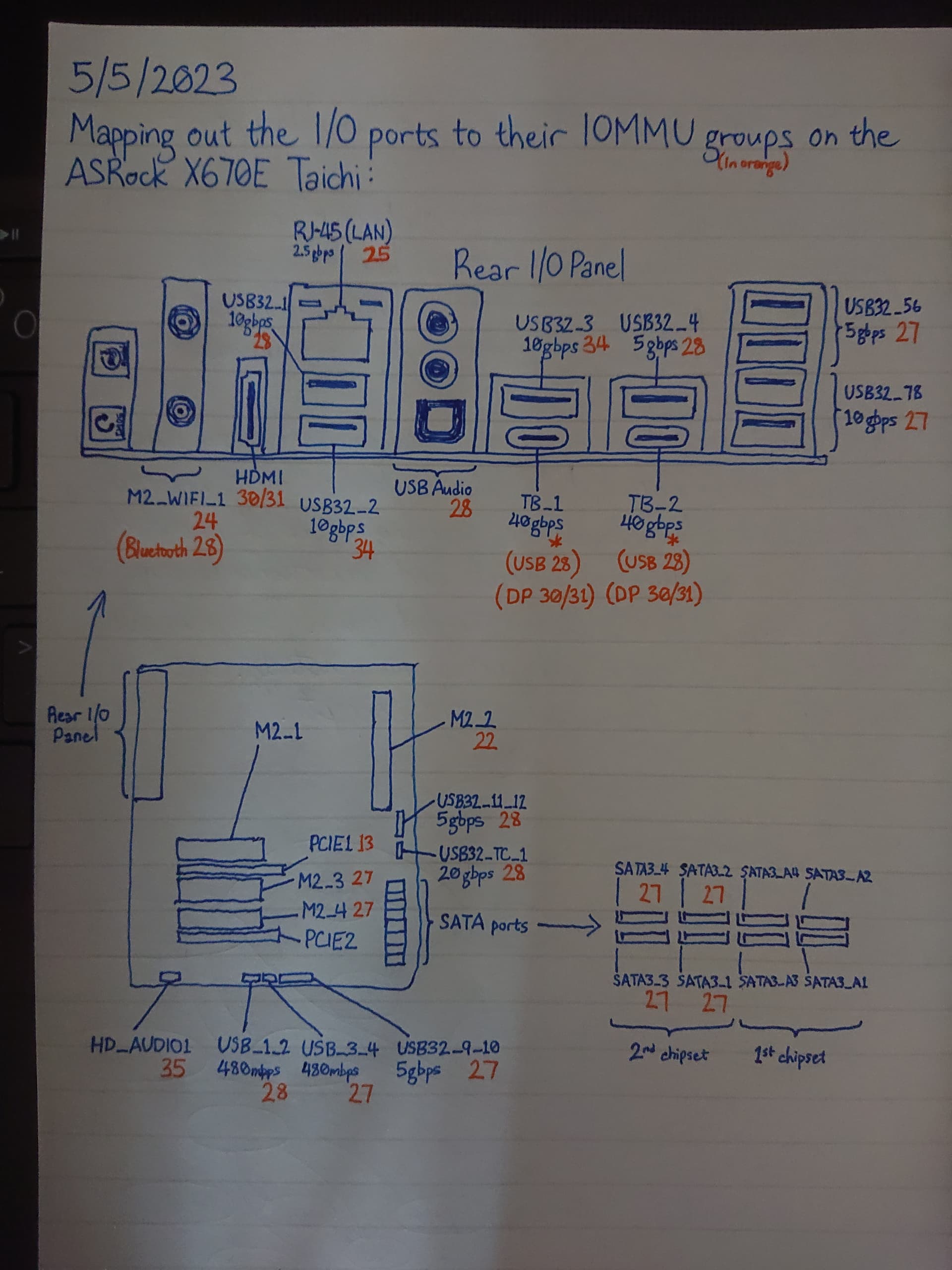

Gotta put these USB ports, Thunderbolt ports, iGPU, and dGPU through some tests this week with Proxmox.
Yeah. ASUS is really the exception rather than the rule here. Also no surprise that ASRock backpedalled after having initially advertised ECC support.
4 Likes
I also got a X670E Taichi recently, but my IOMMU groups are really bad:
IOMMU Group 0:
00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
01:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch [1002:1478] (rev c7)
02:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:1479]
03:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 23 [Radeon RX 6600/6600 XT/6600M] [1002:73ff] (rev c7)
03:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 21/23 HDMI/DP Audio Controller [1002:ab28]
04:00.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
05:00.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
05:01.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
05:02.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
05:03.0 PCI bridge [0604]: Intel Corporation Thunderbolt 4 Bridge [Maple Ridge 4C 2020] [8086:1136] (rev 02)
06:00.0 USB controller [0c03]: Intel Corporation Thunderbolt 4 NHI [Maple Ridge 4C 2020] [8086:1137]
08:00.0 USB controller [0c03]: Intel Corporation Thunderbolt 4 USB Controller [Maple Ridge 4C 2020] [8086:1138]
IOMMU Group 1:
00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
00:02.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
00:02.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
45:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f4] (rev 01)
46:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:0c.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
46:0d.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
47:00.0 Non-Volatile memory controller [0108]: Realtek Semiconductor Co., Ltd. Device [10ec:5763] (rev 01)
48:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02)
49:00.0 Network controller [0280]: Intel Corporation Wi-Fi 6 AX210/AX211/AX411 160MHz [8086:2725] (rev 1a)
4a:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. Killer E3000 2.5GbE Controller [10ec:3000] (rev 06)
4b:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02)
4c:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f4] (rev 01)
4d:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:0c.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:0d.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
54:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f7] (rev 01)
55:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f6] (rev 01)
56:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f7] (rev 01)
57:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f6] (rev 01)
58:00.0 Non-Volatile memory controller [0108]: Kingston Technology Company, Inc. Device [2646:5013] (rev 01)
IOMMU Group 2:
00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 3:
00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 4:
00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
00:08.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
59:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Raphael [1002:164e] (rev c1)
59:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller [1002:1640]
59:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] VanGogh PSP/CCP [1022:1649]
59:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b6]
59:00.4 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b7]
59:00.6 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller [1022:15e3]
5a:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b8]
IOMMU Group 5:
00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 71)
00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 6:
00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e0]
00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e1]
00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e2]
00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e3]
00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e4]
00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e5]
00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e6]
00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e7]
Can you tell me what BIOS version are you using? Are you using ACS override?
Would really like to have some free USBs, thinking of getting a thunderbolt docking.
I can confirm same 26 IOMMU groups for the Asus B650M TUF Gaming non-Wifi mATX as @coffeeoops .
It shows 26 groups without any ACS override (tested on Fedora 38 and Unraid 6.12). But thats misleading.
For example USB passthrough - Only one of the four USB controllers can be passed through without hot crashing the host. 0c:00.3. Thats one USB 2.0 and one 3.0 on the back. Its also probably connected to one of the internal USB 3 ports.
The boot times are pretty long with EXPO even with latest BIOS (1601). So I am thinking of switching to B650M PG Riptide.
Also I have been trying ryzen iGPU headless passthrough, but no avail. Extracted VBIOS, disabled loading gpu drivers, VFIO bind, and although KVM win11 guest can see it in device manager, it outputs black screen.
1 Like
There is a bug, probably AGESA, could be affecting you.
Here is my long thread of troubleshooting with a workaround.
Also I just reported it to AMD, hoping they will fix it.
1 Like
Quote
The ASRock X670E Taichi, when I got it had nice IOMMU groupings out of the box without touching anything in BIOS. However, after BIOS updates, I had to go into the BIOS to enable it explicitly to get the nice IOMMU groupings.
The groupings are indeed nice as I’ve found out over the weekend. Only the stuff connected to the second chip set (the M2_3, M2_4, and 4 of the SATA ports) are kind of an annoyance, but it’s easy to plan around.
I obtained the information through trial and error as well as parsing the output of lspci -v.
Mind you, these group numbers will change depending on how many devices you have and where they are installed. Some of the SATA ports are not numbered because I had no SATA devices to use for testing. However, those SATA ports with the missing IOMMU information are definitely the ones using the ASMedia controllers and are each in their own isolated group.
I was able to pass through group 28 which allowed me to give the Windows guest 5 front panel USB ports, some of the ones on the rear panel, Bluetooth, and Realtek USB audio.
There is a caveat with the Thunderbolt ports which I managed to pass through: “legacy” USB devices show up in the guest, but Thunderbolt devices show up in the host. I had no luck passing through the Thunderbolt controllers.
There is also a caveat with group 27: because binding the group 28 USB controller to VFIO was done using its device ID and group 27 USB controller also shares the same device ID, you effectively cannot use 4 of the rear panel USB ports and 4 of the left over front panel ones for the host. If you want to use them, the 4 SATA ports in the same IOMMU group will be going along for the ride. I’m thinking I can unbind the USB controller from VFIO somewhere along the host’s boot process, but I haven’t figured that out yet.
But overall, I am very pleased with the ASRock X670E Taichi for my virtualization needs.
8 Likes
Do you have a VR setup? On my current motherboard, I cannot pass through USB ports without getting noticeable stutter in VR, so I had to get another PCIe card specifically for PCI passthrough of the card for full USB performance for my VR headset.
However, given that I also have 2 GPUs, with the taichi I would have to sacrifice the USB PCI card as there are only 2 PCI slots. Do both M.2 slot groups get the same performance in guests? Or would I want to put my fastest SSD for gaming in the first M.2 slot and pass through directly to the guest, and boot the host off of the chipset M.2 Slot ssd?
did you overclock your system?
During the burn in phase of my system I noticed that with some timings I don’t get any errors in Linpack or Y-Cruncher, but USB problems and sometimes IGPU problems.
If so, just go down a notch with Memory and IF clock and see what happens.
If not the case, something like this but with USB-C 3.2
No, didn’t overclock my current mobo (Gigabyte Aorus Master x570) and the stutter was still present in VR. It manifested as very brief but sudden loss of tracking with my Valve Index, and then tracking suddenly would return a split second later. Very annoying and disorienting. This occurs with USB ports passed through via device ID, no matter which IOMMU group I pulled the ports from. Only a pci passthrough usb 3.1 card solved this issue on this motherboard.
What is that m.2 card in your image?
Unfortunately, I didn’t find one with USB-C 3.1, if you have an M.2 slot available, that would be an option.
Supposedly this one should have USB 3.1 according to what is stated in the description and title
https://it.aliexpress.com/item/1005005692328172.html?spm=a2g0o.order_list.order_list_main.4.65e63696Ccx5Lw&gatewayAdapt=glo2ita
If anyone tries it before I can please let us know how it goes
Have there been any standouts in the time since this question was raised? Are any B650/B650E boards suitable? On 9 April @LiKenun suggested the ASRock X670E Taichi looked best based on the IOMMU info seen so far. I’m wondering if there’s new info based on further experiments, bios upgrades, etc.
Here is the iommu grouping for the Asrock b650e taichi (non-lite). BIOS settings include IOMMU, AER, ACS, and SVM.
I’m trying to get passthrough the iGPU to a win10 VM, but so far, I keep getting a code 43 error.
IOMMU Group 0:
00:01.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 1:
00:01.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 10:
00:08.3 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
IOMMU Group 11:
00:14.0 SMBus [0c05]: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller [1022:790b] (rev 71)
00:14.3 ISA bridge [0601]: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge [1022:790e] (rev 51)
IOMMU Group 12:
00:18.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e0]
00:18.1 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e1]
00:18.2 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e2]
00:18.3 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e3]
00:18.4 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e4]
00:18.5 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e5]
00:18.6 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e6]
00:18.7 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14e7]
IOMMU Group 13:
01:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Upstream Port of PCI Express Switch [1002:1478] (rev c0)
IOMMU Group 14:
02:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 10 XL Downstream Port of PCI Express Switch [1002:1479]
IOMMU Group 15:
03:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 21 [Radeon RX 6900 XT] [1002:73af] (rev c0)
IOMMU Group 16:
03:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Navi 21/23 HDMI/DP Audio Controller [1002:ab28]
IOMMU Group 17:
04:00.0 PCI bridge [0604]: Intel Corporation Device [8086:1133] (rev 02)
IOMMU Group 18:
05:00.0 PCI bridge [0604]: Intel Corporation Device [8086:1133] (rev 02)
IOMMU Group 19:
05:01.0 PCI bridge [0604]: Intel Corporation Device [8086:1133] (rev 02)
IOMMU Group 2:
00:01.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 20:
05:02.0 PCI bridge [0604]: Intel Corporation Device [8086:1133] (rev 02)
IOMMU Group 21:
05:03.0 PCI bridge [0604]: Intel Corporation Device [8086:1133] (rev 02)
IOMMU Group 22:
06:00.0 USB controller [0c03]: Intel Corporation Device [8086:1134]
IOMMU Group 23:
08:00.0 USB controller [0c03]: Intel Corporation Device [8086:1135]
IOMMU Group 24:
45:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f4] (rev 01)
IOMMU Group 25:
46:00.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
IOMMU Group 26:
46:04.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
48:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02)
IOMMU Group 27:
46:05.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
49:00.0 Network controller [0280]: Intel Corporation Wi-Fi 6 AX210/AX211/AX411 160MHz [8086:2725] (rev 1a)
IOMMU Group 28:
46:06.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4a:00.0 Ethernet controller [0200]: Realtek Semiconductor Co., Ltd. Killer E3000 2.5GbE Controller [10ec:3000] (rev 06)
IOMMU Group 29:
46:07.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4b:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02)
IOMMU Group 3:
00:02.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 30:
46:08.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
IOMMU Group 31:
46:0c.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4d:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f7] (rev 01)
IOMMU Group 32:
46:0d.0 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f5] (rev 01)
4e:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] Device [1022:43f6] (rev 01)
IOMMU Group 33:
4f:00.0 Non-Volatile memory controller [0108]: Solidigm Device [025e:f1ac]
IOMMU Group 34:
50:00.0 VGA compatible controller [0300]: Advanced Micro Devices, Inc. [AMD/ATI] Raphael [1002:164e] (rev c5)
IOMMU Group 35:
50:00.1 Audio device [0403]: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller [1002:1640]
IOMMU Group 36:
50:00.2 Encryption controller [1080]: Advanced Micro Devices, Inc. [AMD] VanGogh PSP/CCP [1022:1649]
IOMMU Group 37:
50:00.3 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b6]
IOMMU Group 38:
50:00.4 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b7]
IOMMU Group 39:
50:00.6 Audio device [0403]: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller [1022:15e3]
IOMMU Group 4:
00:02.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 40:
51:00.0 USB controller [0c03]: Advanced Micro Devices, Inc. [AMD] Device [1022:15b8]
IOMMU Group 5:
00:02.2 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14db]
IOMMU Group 6:
00:03.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 7:
00:04.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 8:
00:08.0 Host bridge [0600]: Advanced Micro Devices, Inc. [AMD] Device [1022:14da]
IOMMU Group 9:
00:08.1 PCI bridge [0604]: Advanced Micro Devices, Inc. [AMD] Device [1022:14dd]
1 Like
It’s interesting that the b650e taichi is a little different than the PG Riptide with the same chipset. I guess it has to do with how the PCIe busses and lanes are assigned?
My b650e was like that until I enable the bios settings. The last three are buried in the NBIO menu, I think. I think some people are say to turn on ARI?
SVM
IOMMU
AER
ACS
Look at the proart B650. IOMMU groups are posted here and look great. Cheapest board with x8/x8/x4 slots. The only thing that’s „missing“ is pcie 5 slots, IMO.
I have the x670 proart and honestly wish I got that one, but it was not released yet at the time.
